Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 8 illustrations

Illustrations

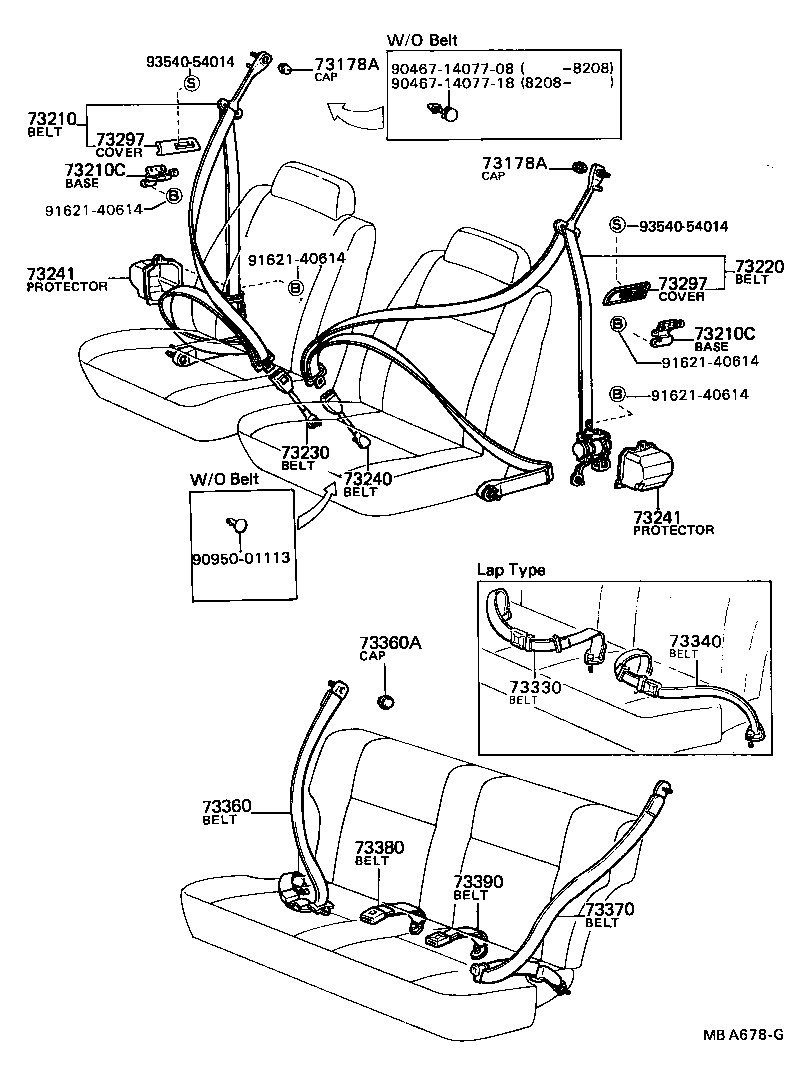

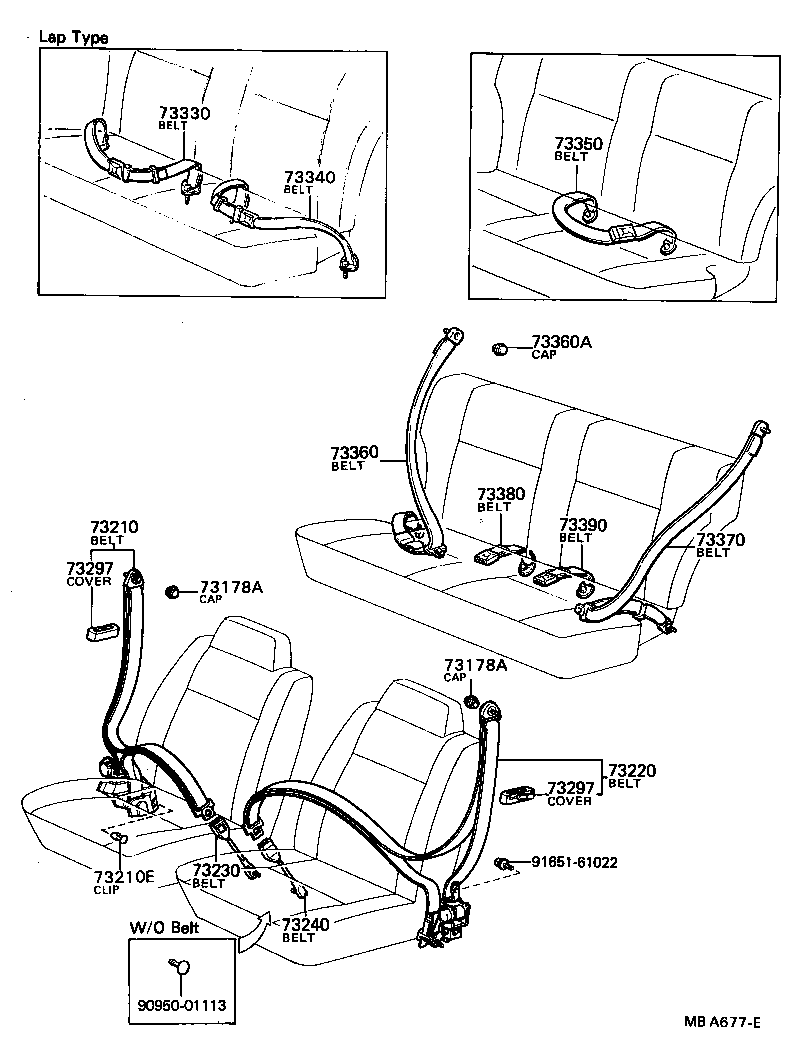

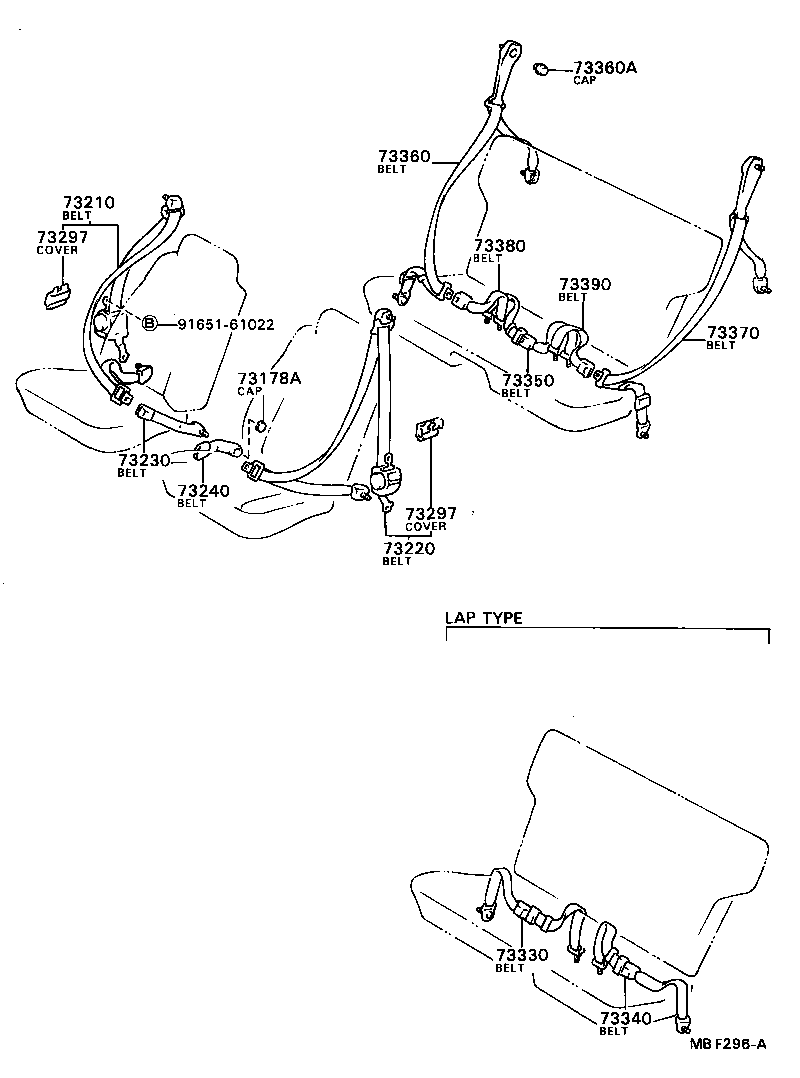

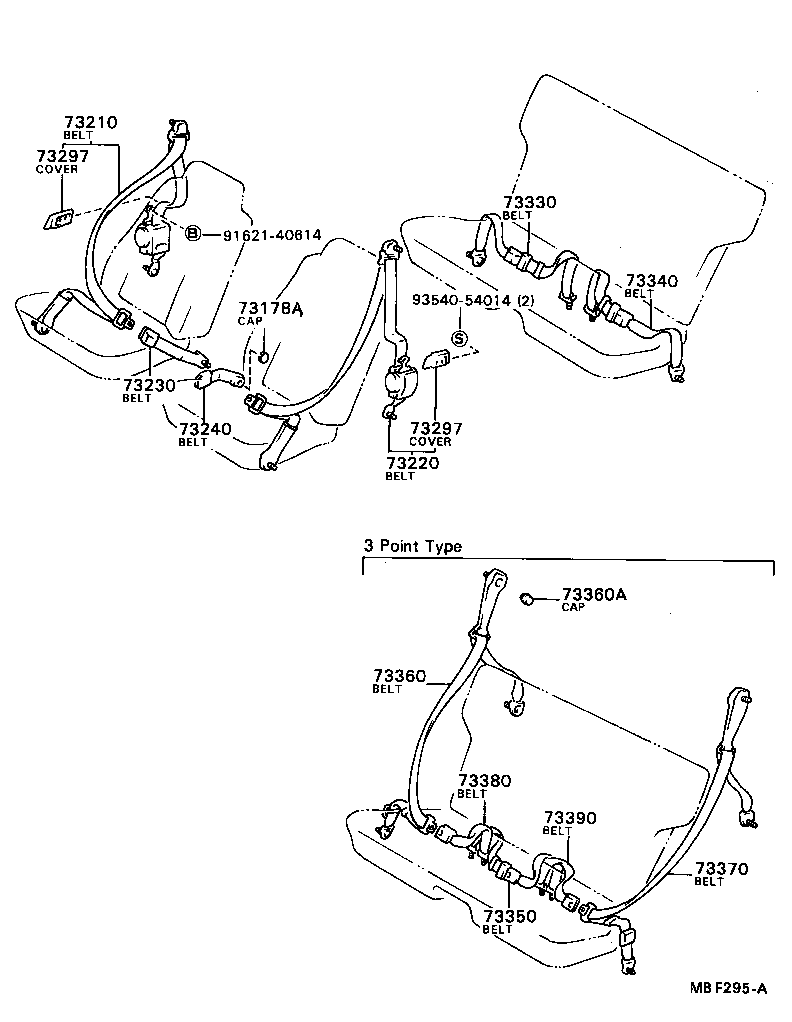

Figure MBA676D MBA676D 1979-08 → 1983-05 Figure MBA676D MBA676D 1983-05 → 1983-09 Figure MBA677E MBA677E 1979-08 → 1983-05 Figure MBA677E MBA677E 1983-05 → 1983-08 Figure MBF295A MBF295A 1983-05 → 1983-09 Figure MBF295A MBF295A 1983-09 → — Figure MBF296A MBF296A 1983-05 → — Figure MBA678G MBA678G 1979-08 → 1984-06

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73210C Base, Quarter Trim Upper Belt Hole Cover
73210E Clip (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73241 Protector OR Case, Belt Retractor
73297 Cover, Quarter Trim OR Center Pillar Belt Hole
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360A Cap, Rear Seat Belt Anchor
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
