Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

19 part groups · 2 illustrations

Illustrations

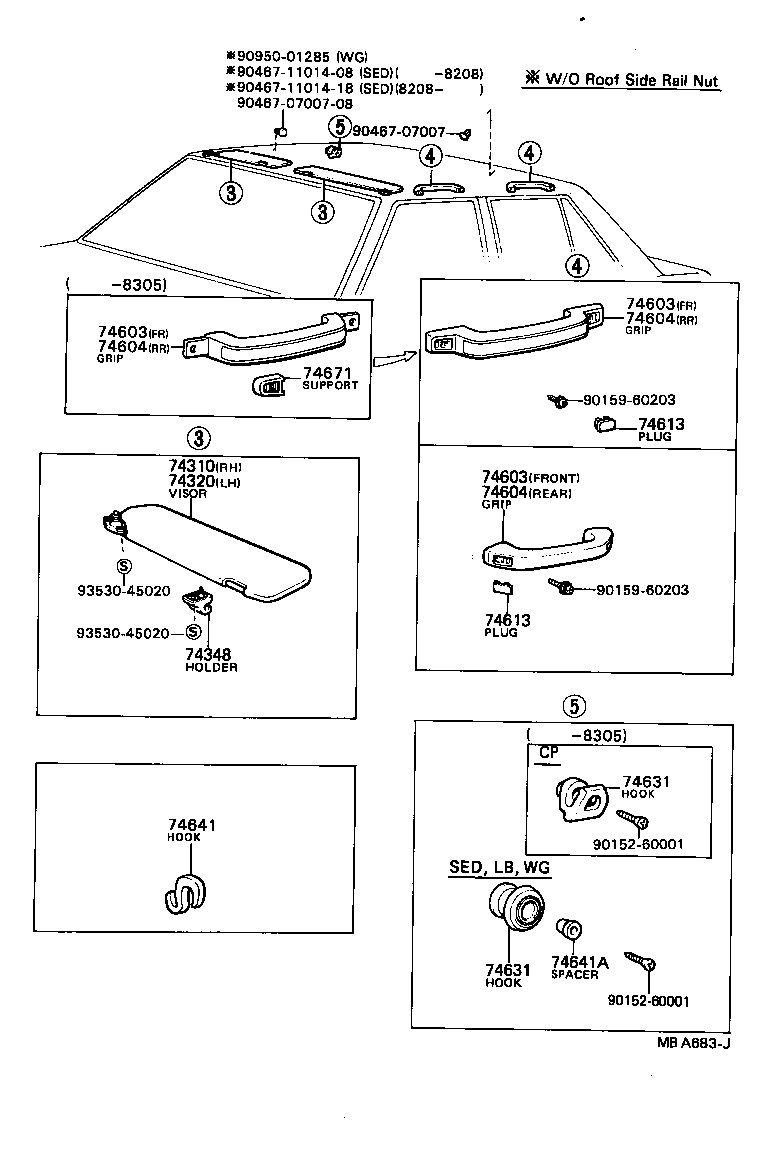

Figure MBA682H MBA682H 1979-08 → — Figure MBA683J MBA683J 1979-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74225 Cap, Door Armrest, Rear RH
74226 Cap, Door Armrest, Rear LH
74230 Armrest Assy, Rear, RH
74240 Armrest Assy, Rear, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74631 Hook, Coat, A
74641 Hook, Coat, B
74641A Spacer (FOR COAT HOOK)
74671 Support, Assist Grip
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
