Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

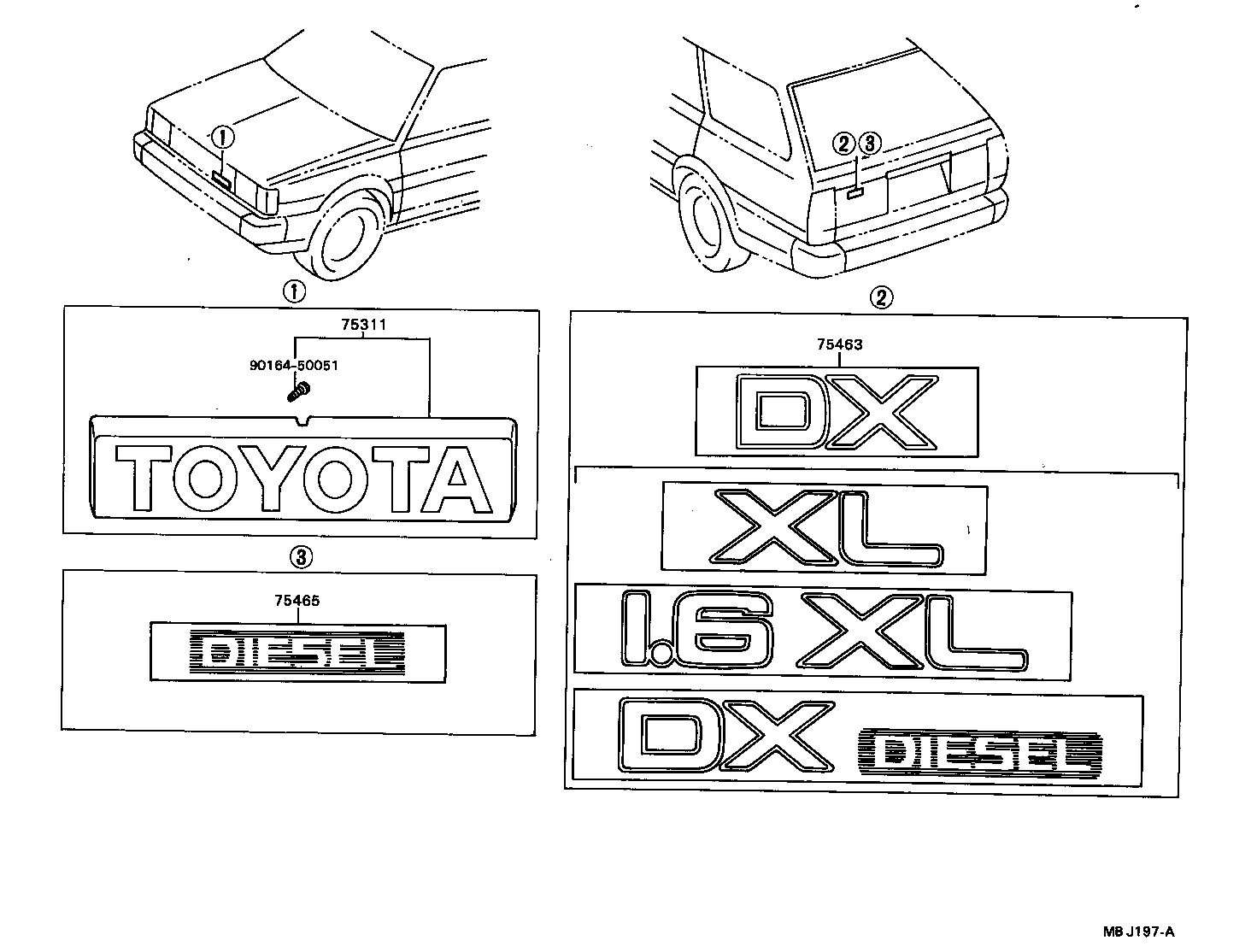

Figure MBA613G MBA613G 1979-08 → 1985-08 Figure MBJ197A MBJ197A 1985-08 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75341 Plate, Instrument Panel Name, NO.1
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
