Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

50 part groups · 6 illustrations

Illustrations

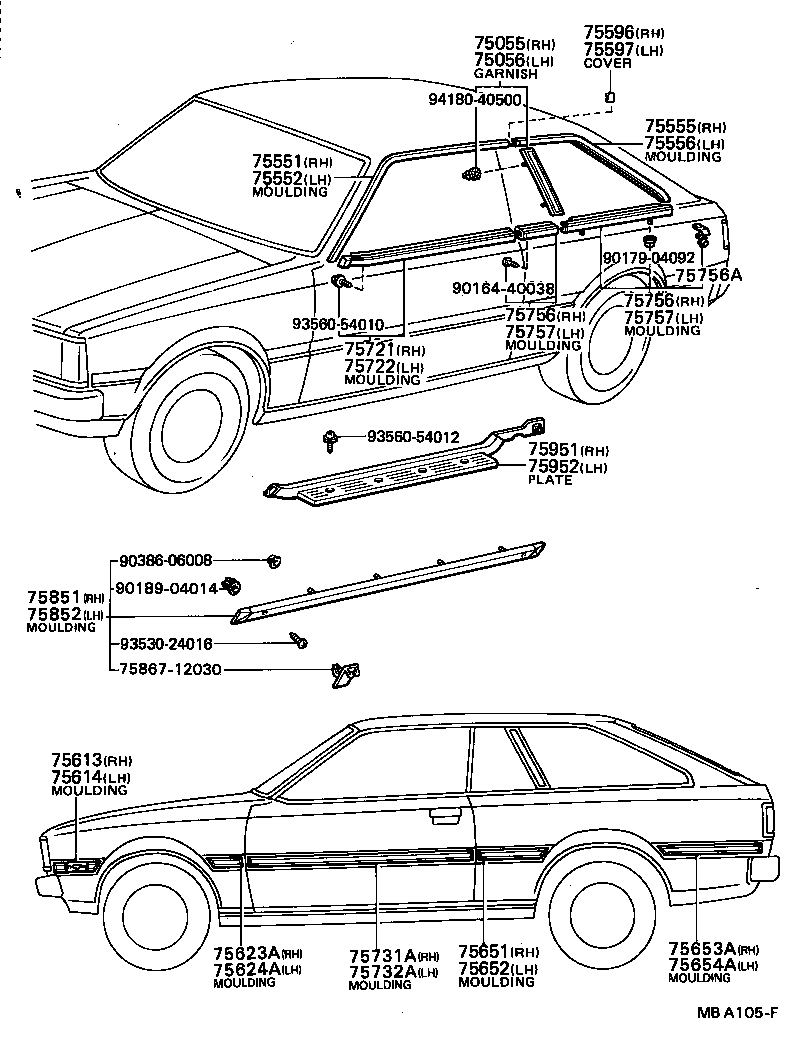

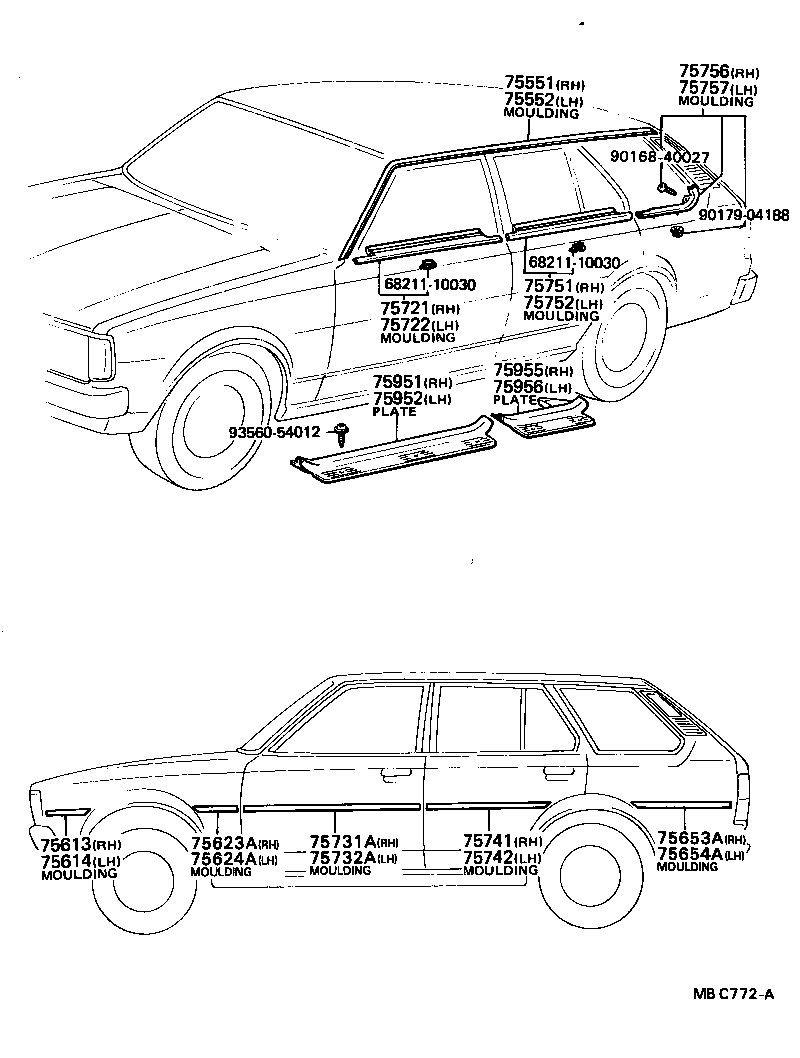

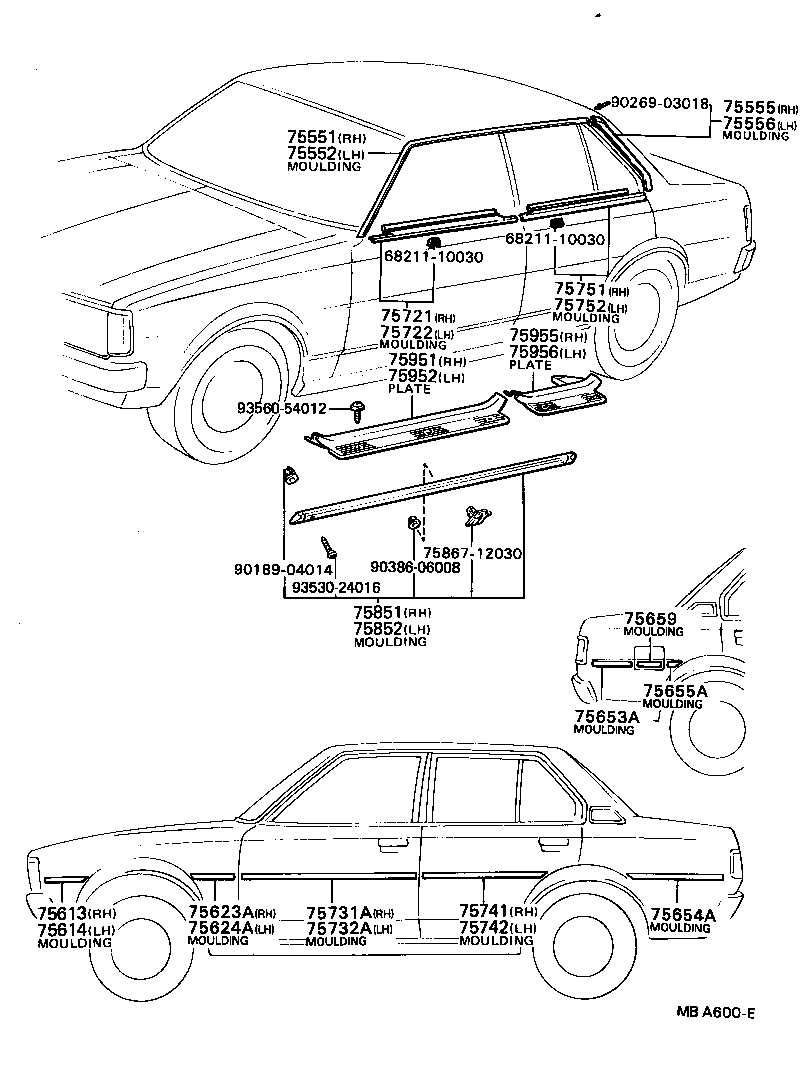

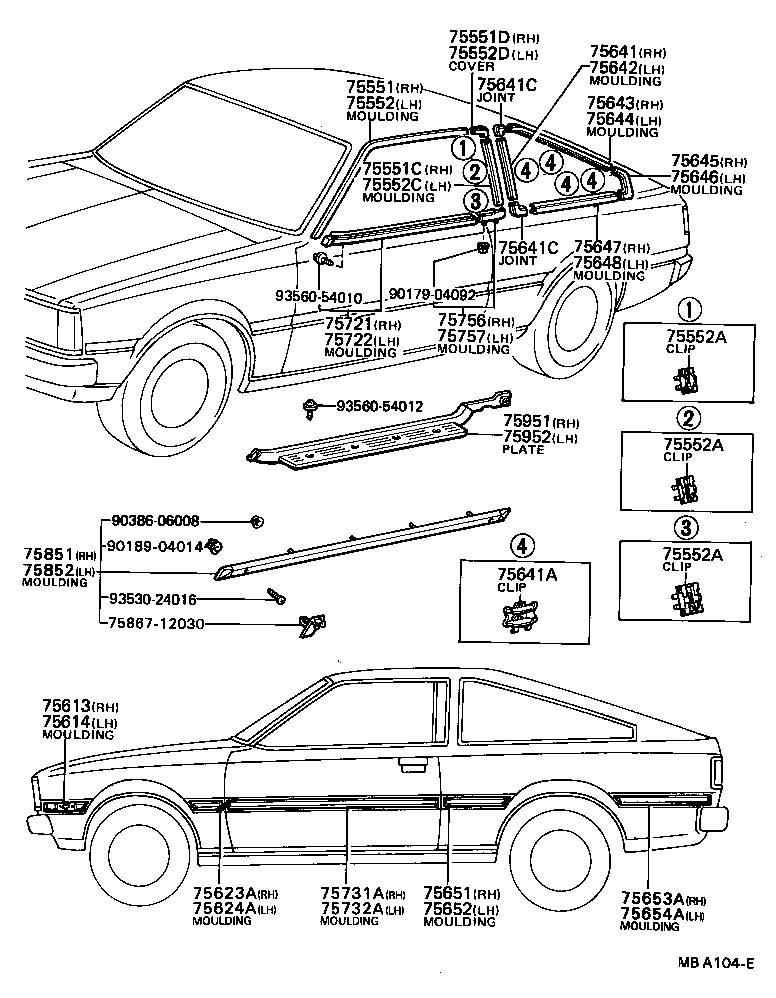

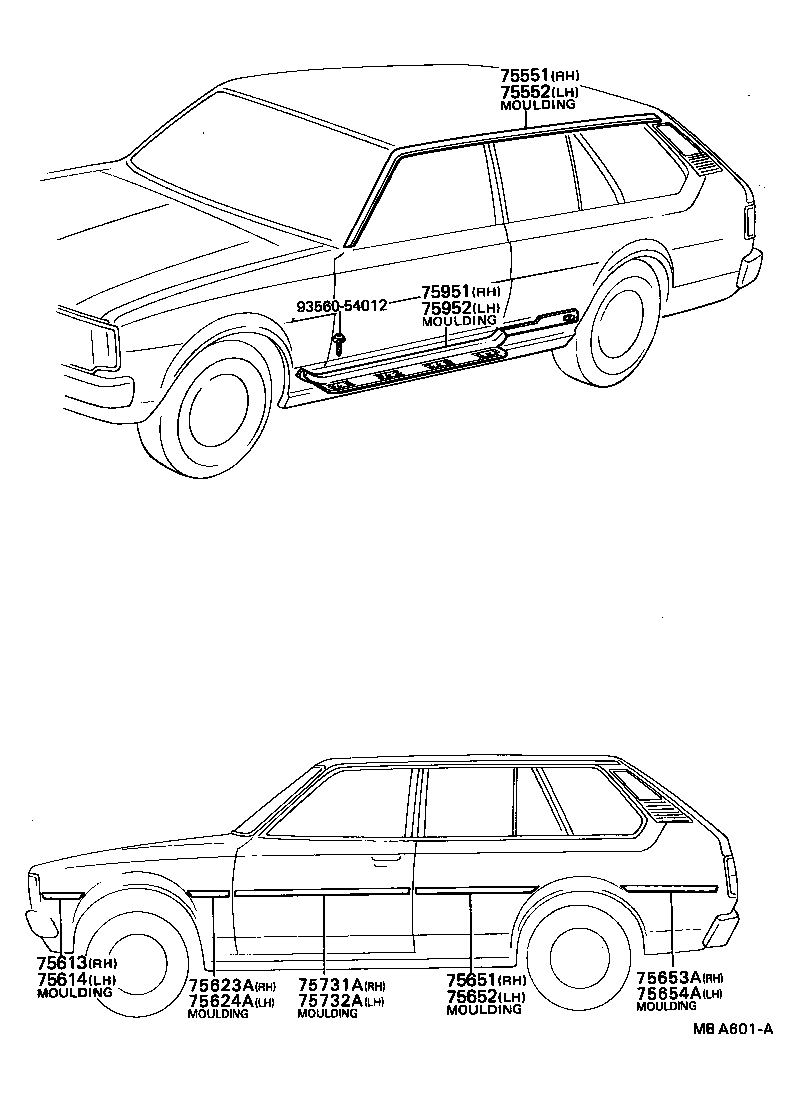

Figure MBA599A MBA599A 1979-08 → 1983-05 Figure MBA600E MBA600E 1979-08 → 1985-02 Figure MBA104E MBA104E 1979-08 → 1983-05 Figure MBA105F MBA105F 1979-08 → 1984-06 Figure MBA601A MBA601A 1979-08 → — Figure MBC772A MBC772A 1979-08 → —

Part groups

PNCDescription
75055 Garnish, Division Pillar, Outer RH
75056 Garnish, Division Pillar, Outer LH
75551 Moulding, Roof Drip Side Finish, RH
75551C Moulding, Quarter Outside, Center RH
75551D Cover (FOR QUARTER OUTSIDE CENTER MOULDING, RH)
75552 Moulding, Roof Drip Side Finish, LH
75552A Clip, Quarter Outside Center Moulding
75552C Moulding, Quarter Outside, Center LH
75552D Cover (FOR QUARTER OUTSIDE CENTER MOULDING, LH)
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75596 Cover, Roof Drip Side Finish Moulding Joint, RH
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75641 Moulding, Quarter Window, Outside Front RH
75641A Clip(FOR QUARTER WINDOW OUTSIDE MOULDING)
75641C Joint, Quarter Window Moulding
75642 Moulding, Quarter Window, Outside Front LH
75643 Moulding, Quarter Window, Outside Upper RH
75644 Moulding, Quarter Window, Outside Upper LH
75645 Moulding, Quarter Window, Outside Rear RH
75646 Moulding, Quarter Window, Outside Rear LH
75647 Moulding, Quarter Window, Outside Lower RH
75648 Moulding, Quarter Window, Outside Lower LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75653A Moulding, Quarter, Outside Rear RH
75654A Moulding, Quarter, Outside Rear LH
75655A Moulding, Quarter, Outside Center RH
75659 Moulding, Fuel Filler Lid
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75756 Moulding, Quarter Belt, RH
75756A Clip, Belt Side Moulding
75757 Moulding, Quarter Belt, LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
