Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 3 illustrations

Illustrations

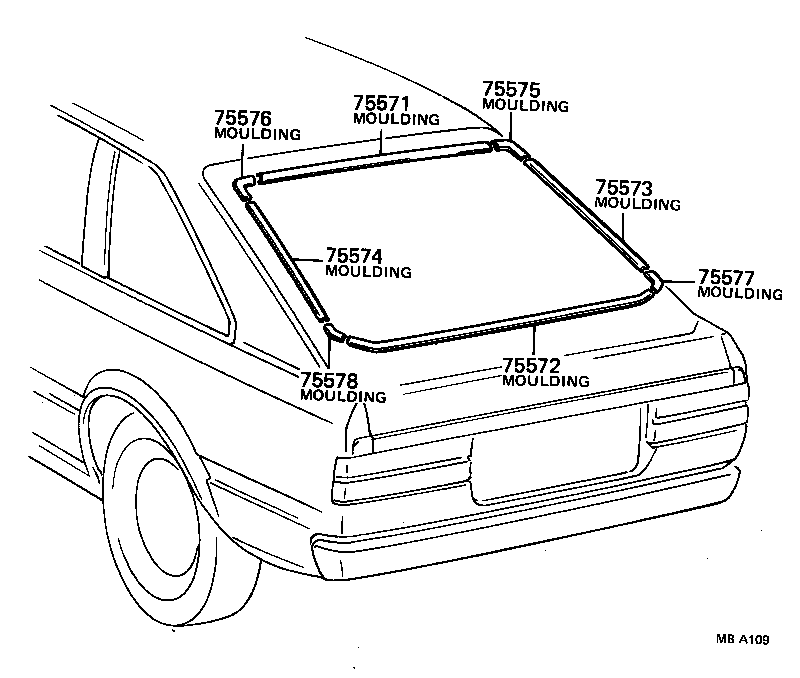

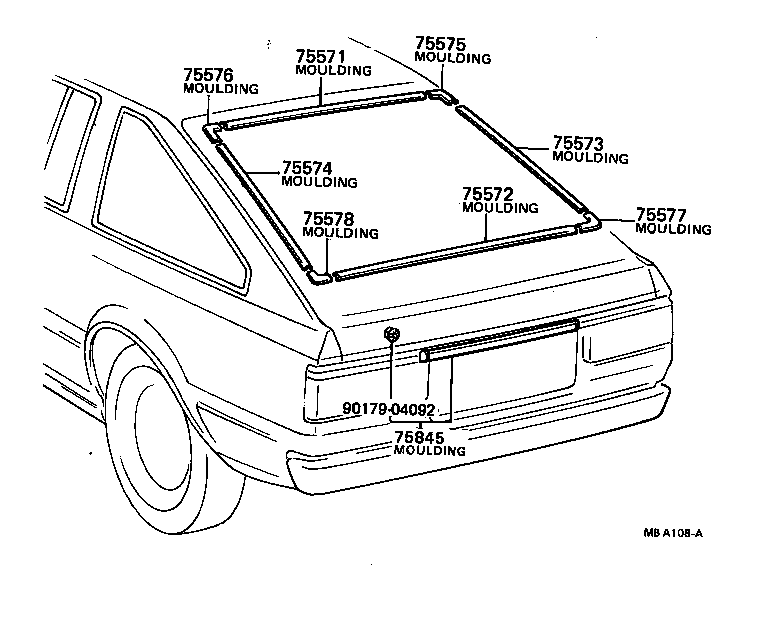

Figure MBA537A MBA537A 1979-08 → 1985-02 Figure MBA108A MBA108A 1979-08 → 1983-05 Figure MBA109 MBA109 1979-08 → 1984-06

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75845 Moulding, Body Lower Back Panel, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
