Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

56 part groups · 18 illustrations

Illustrations

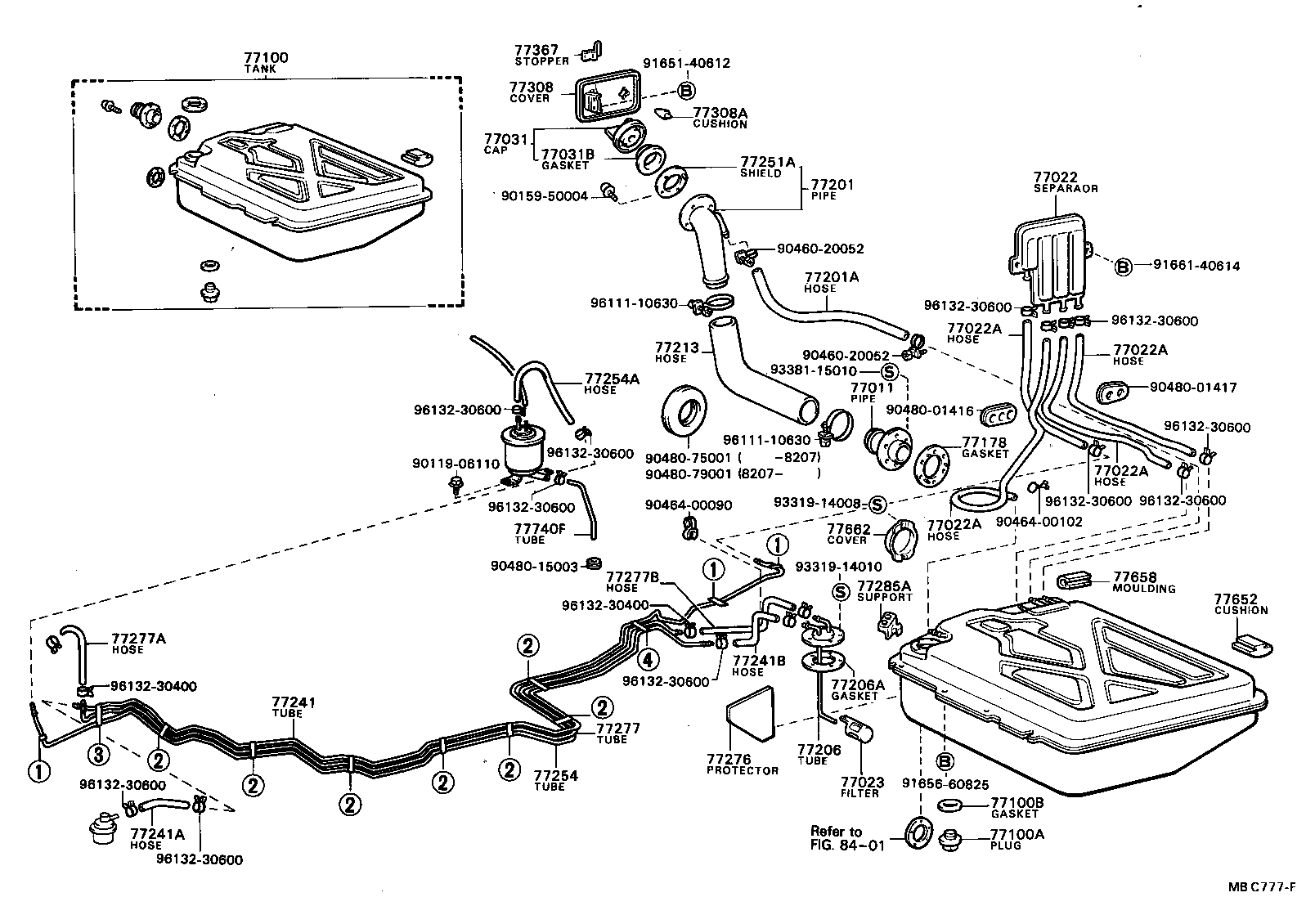

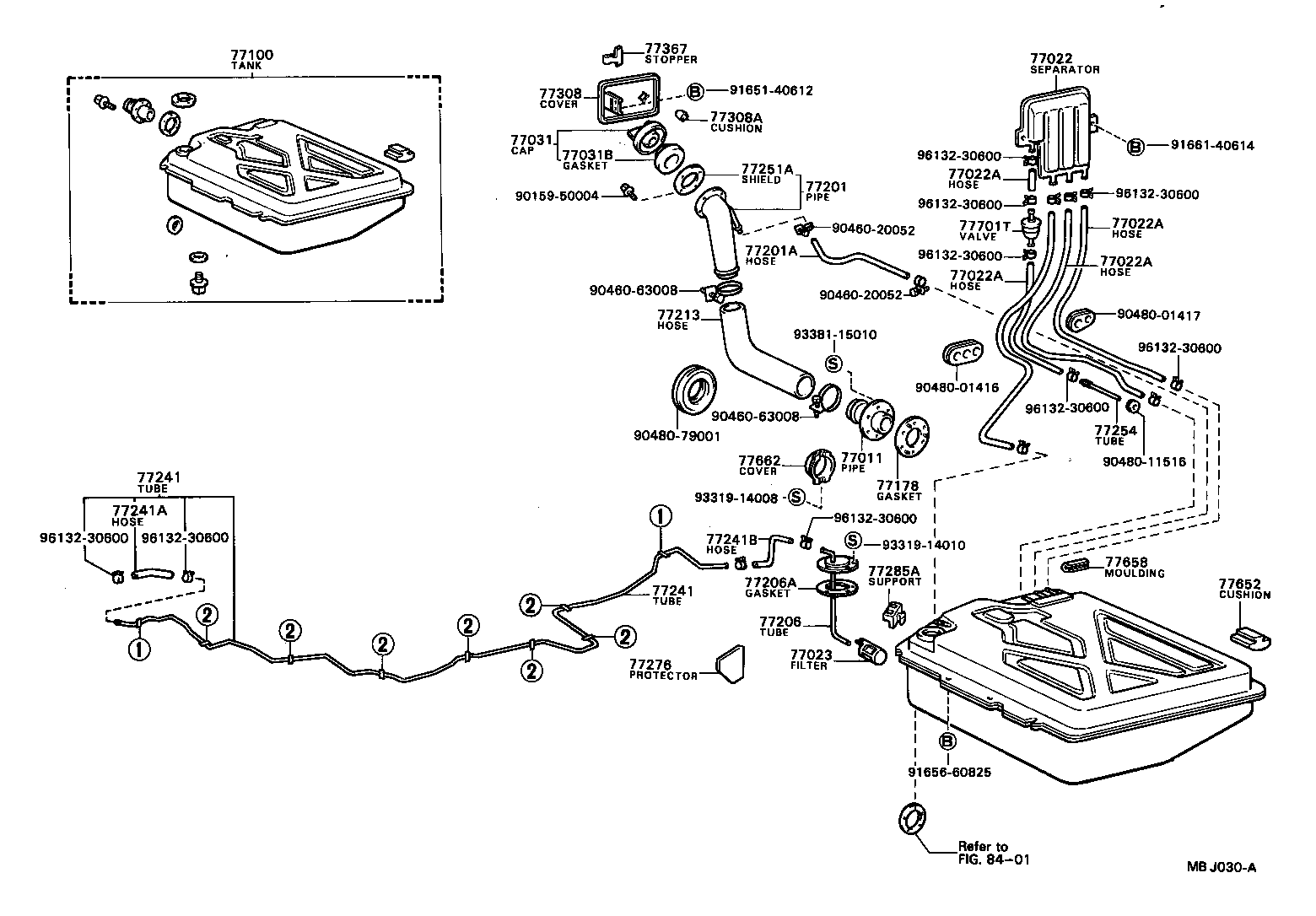

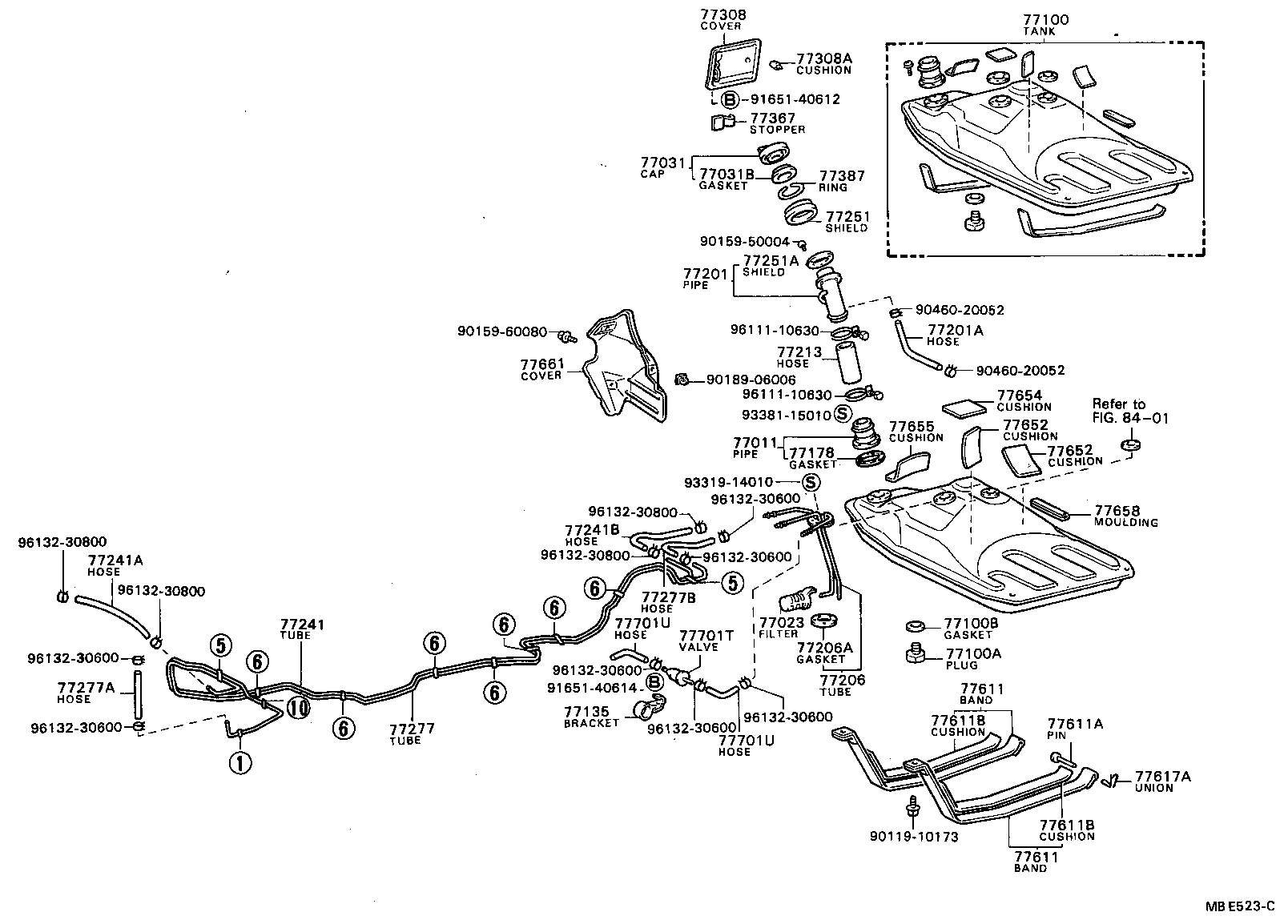

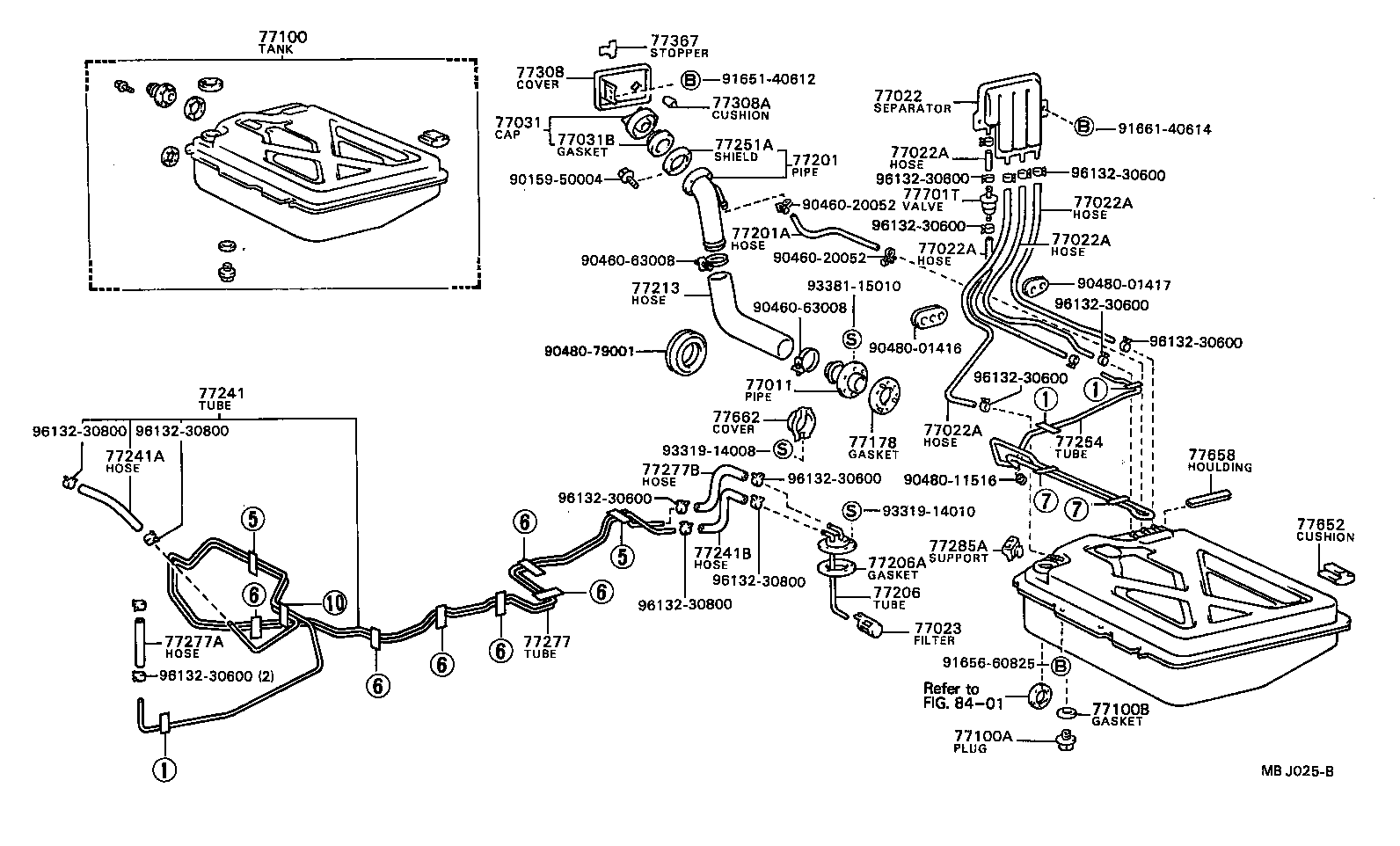

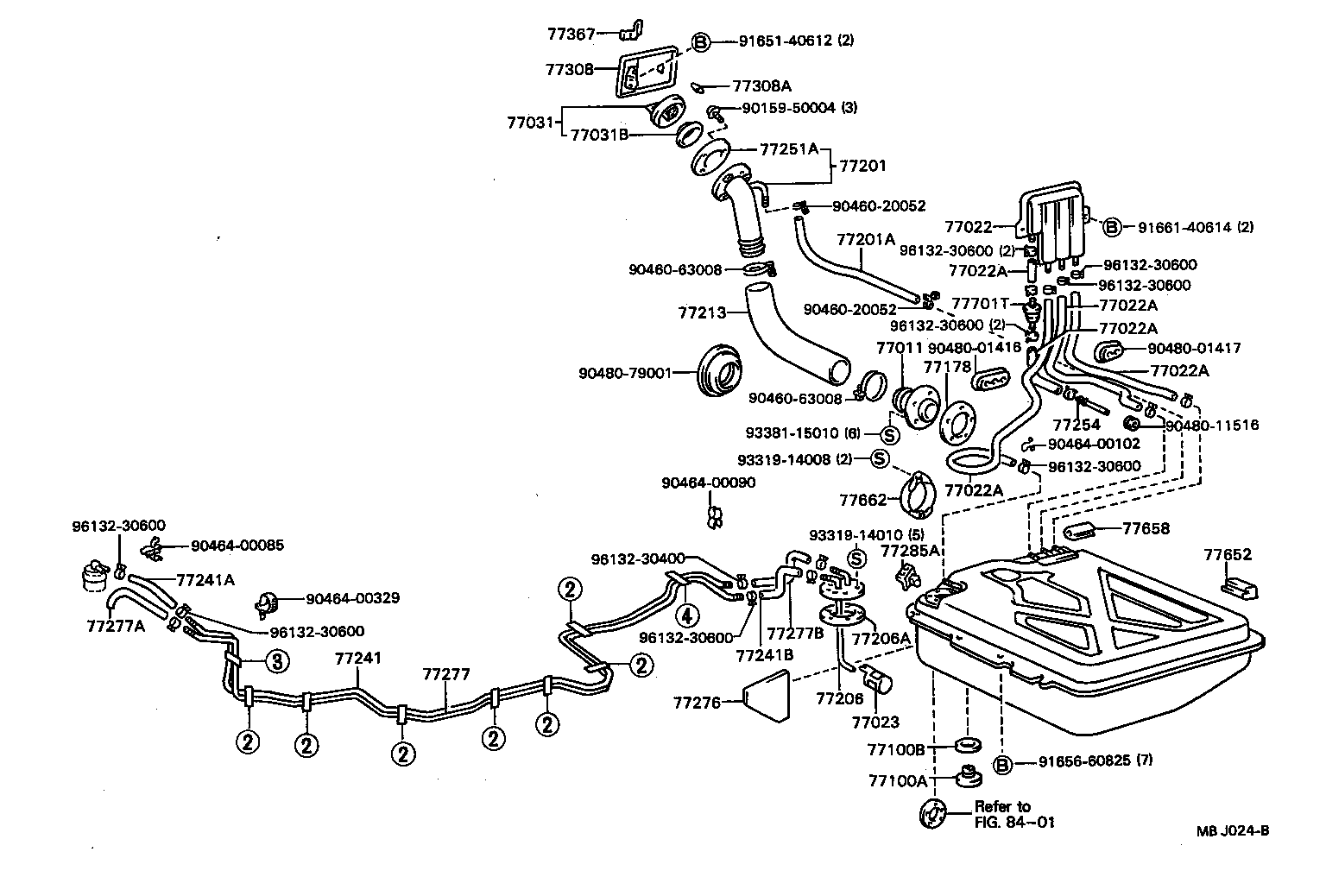

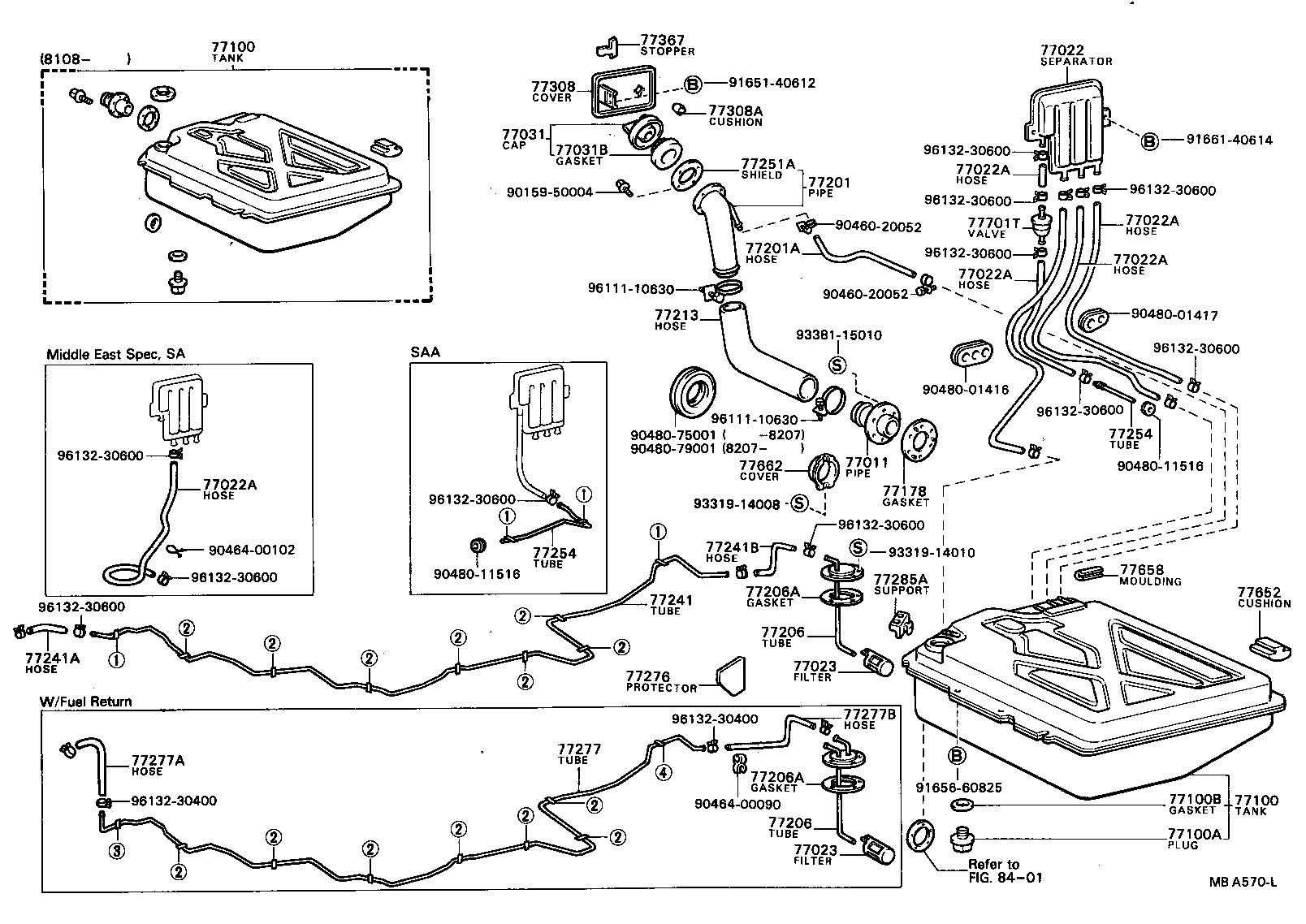

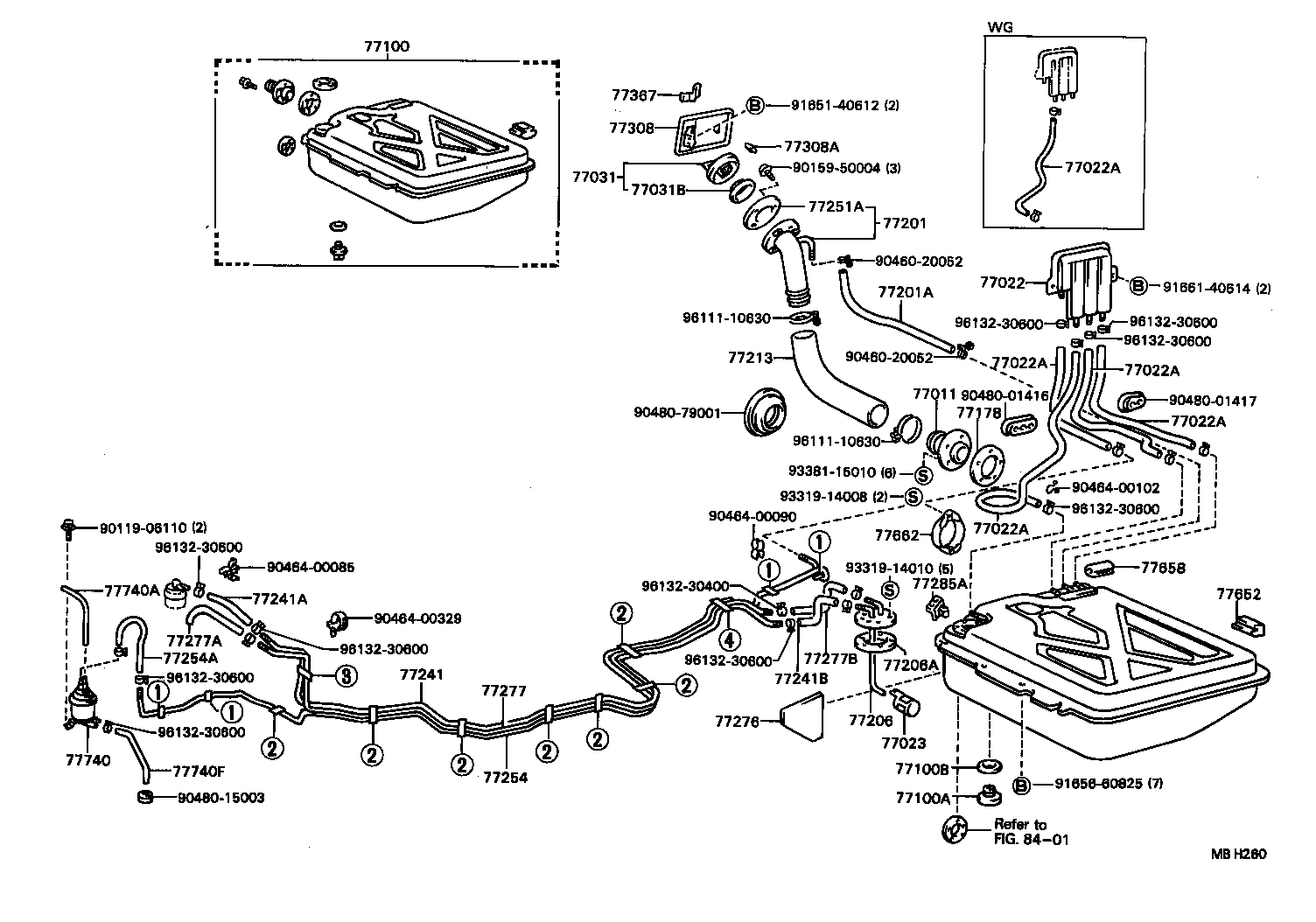

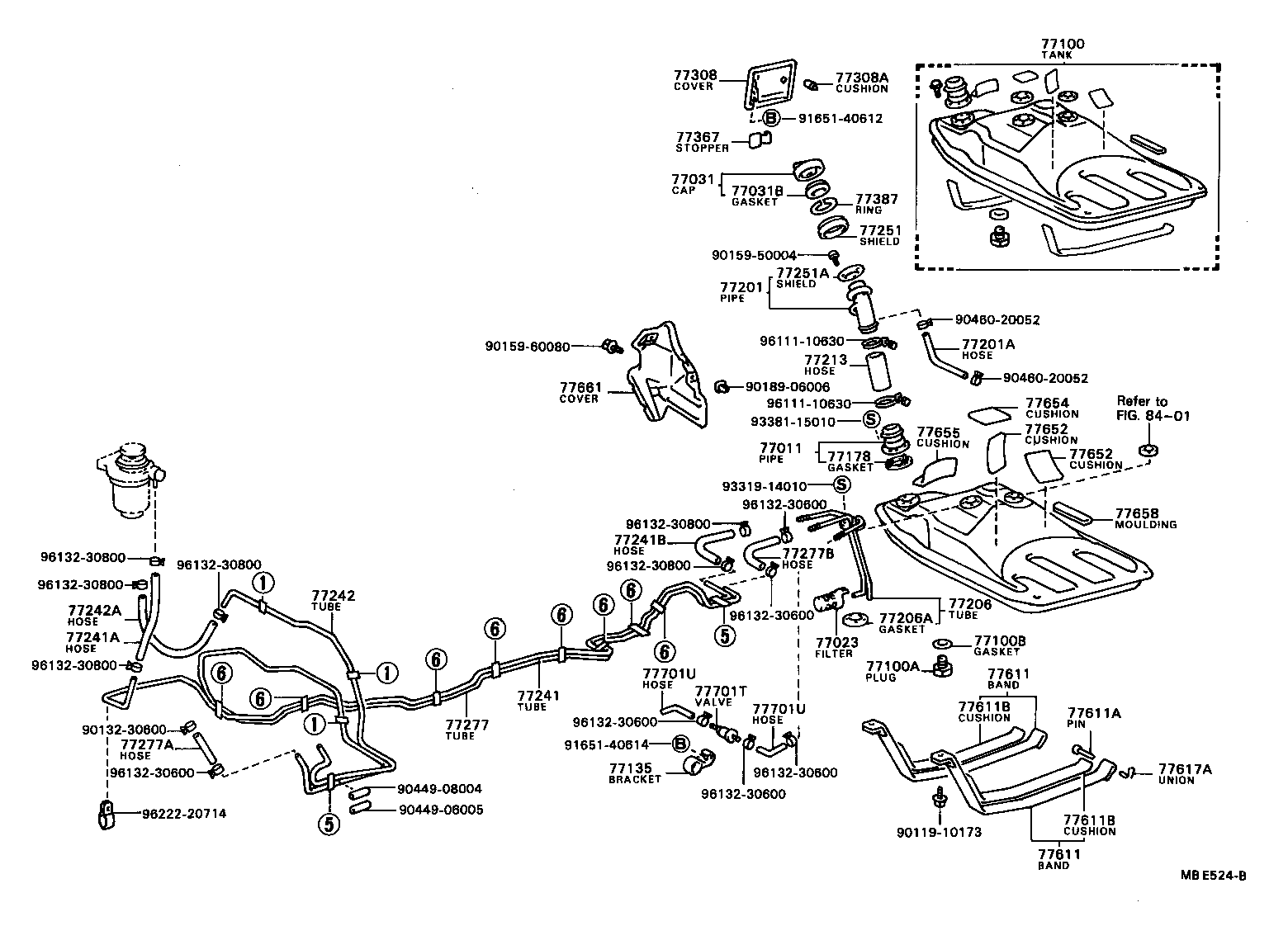

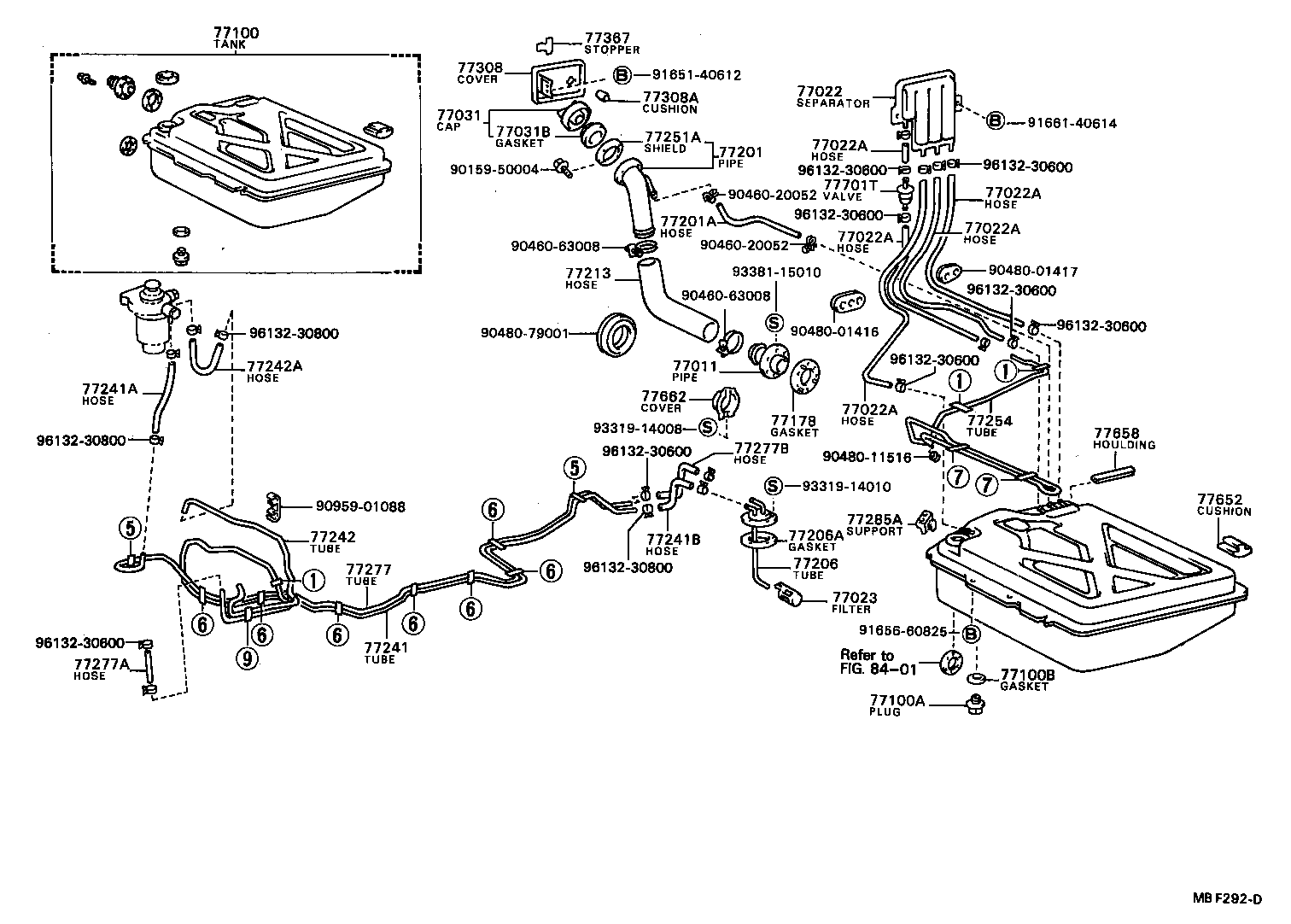

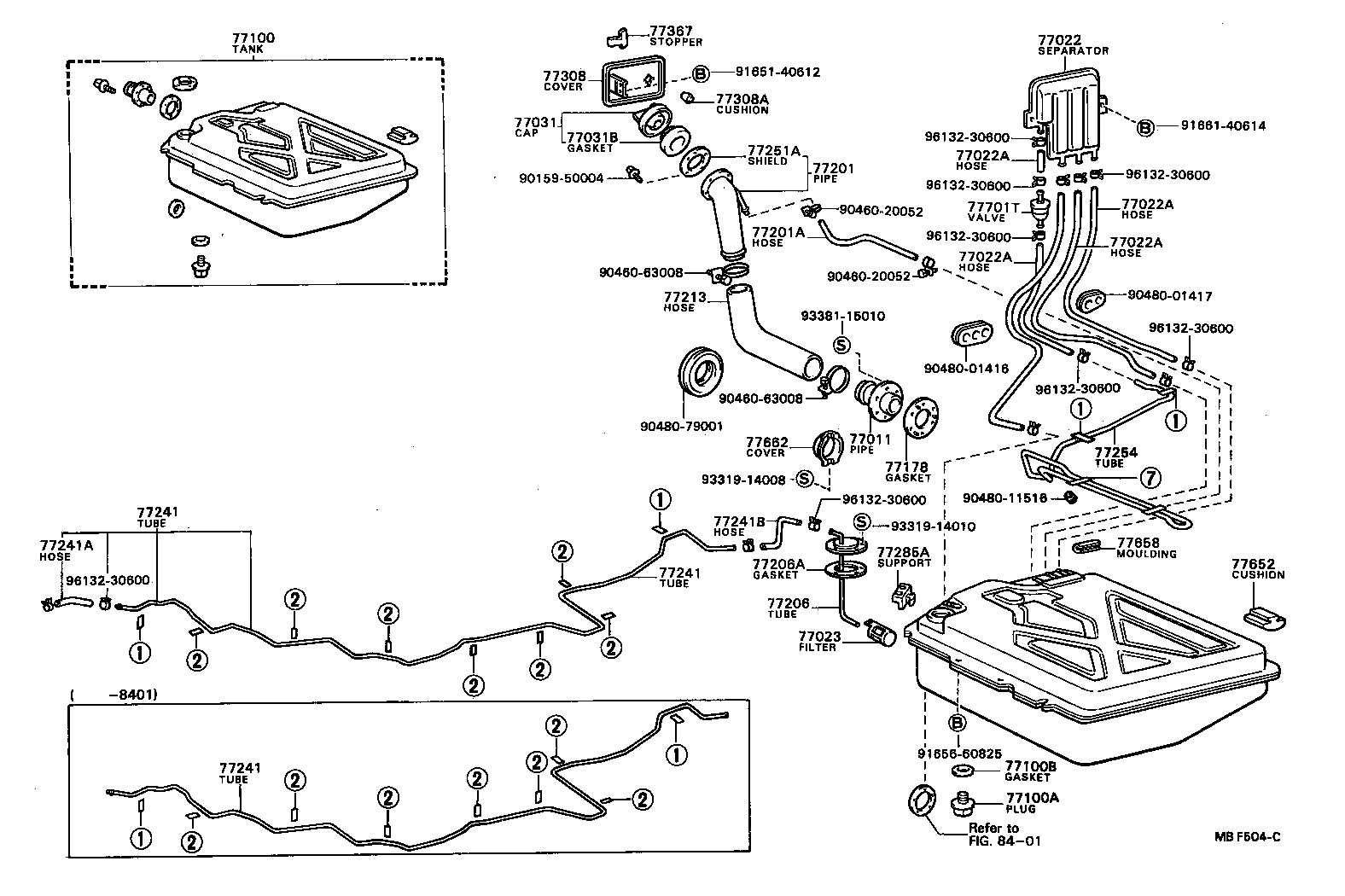

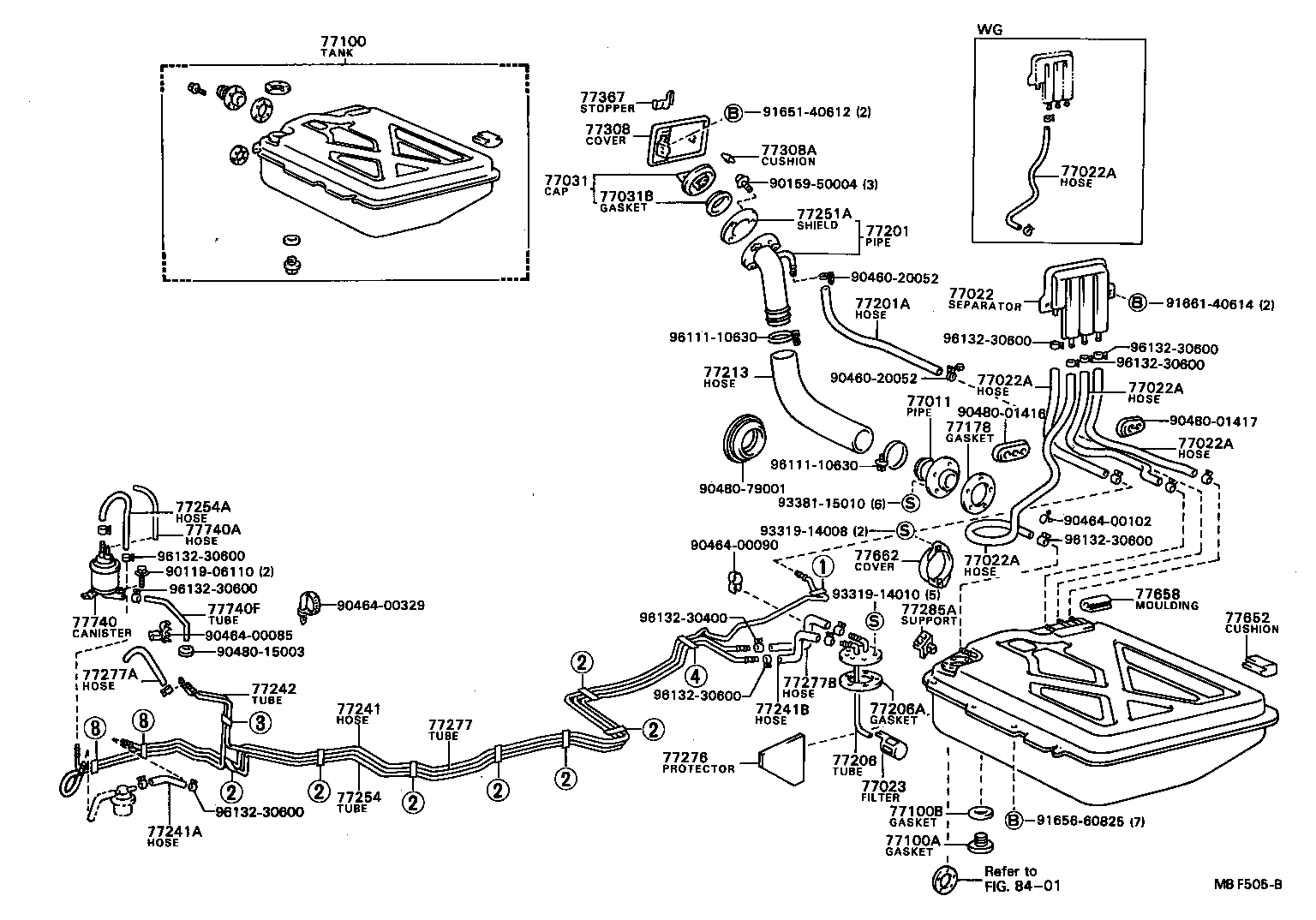

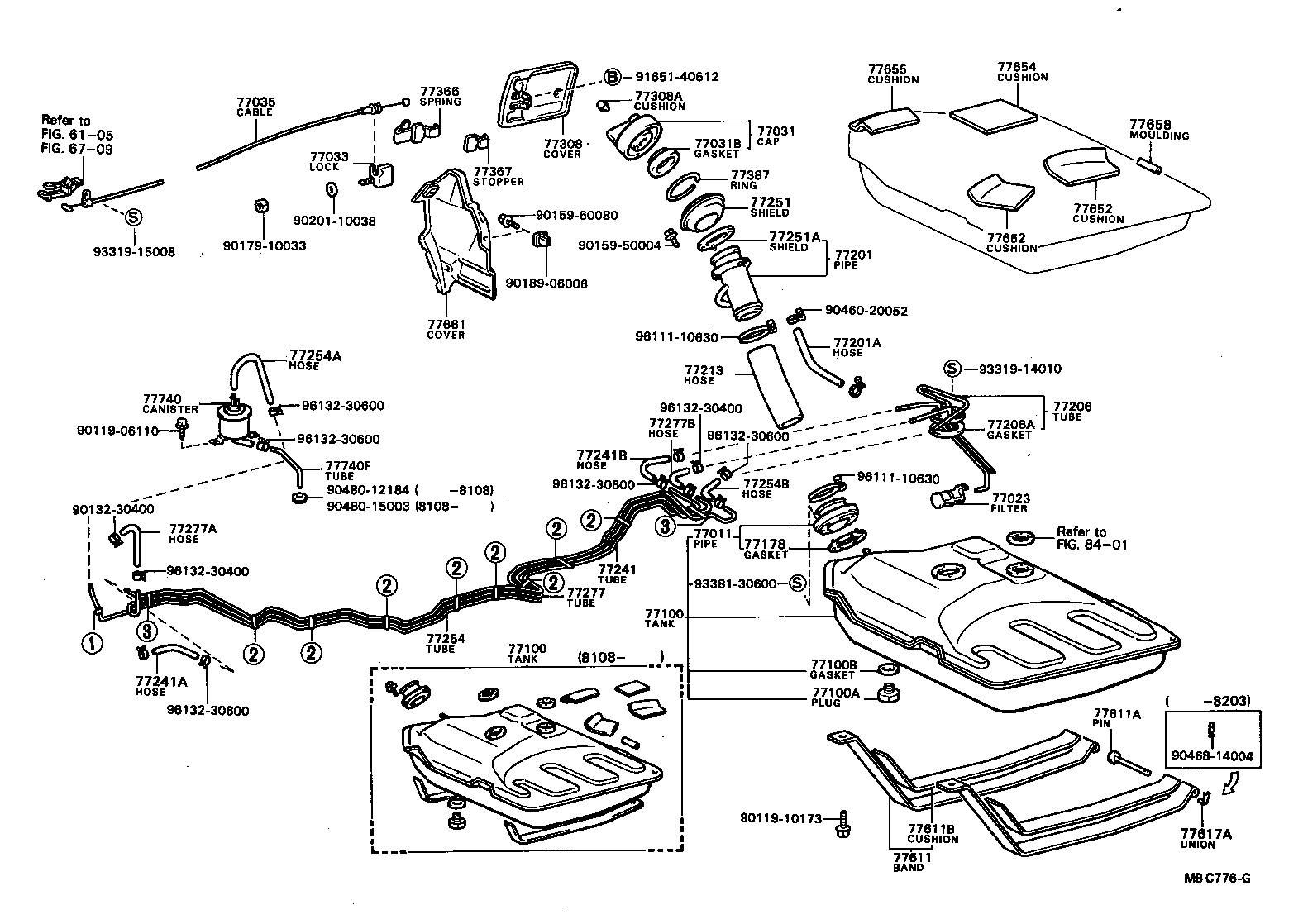

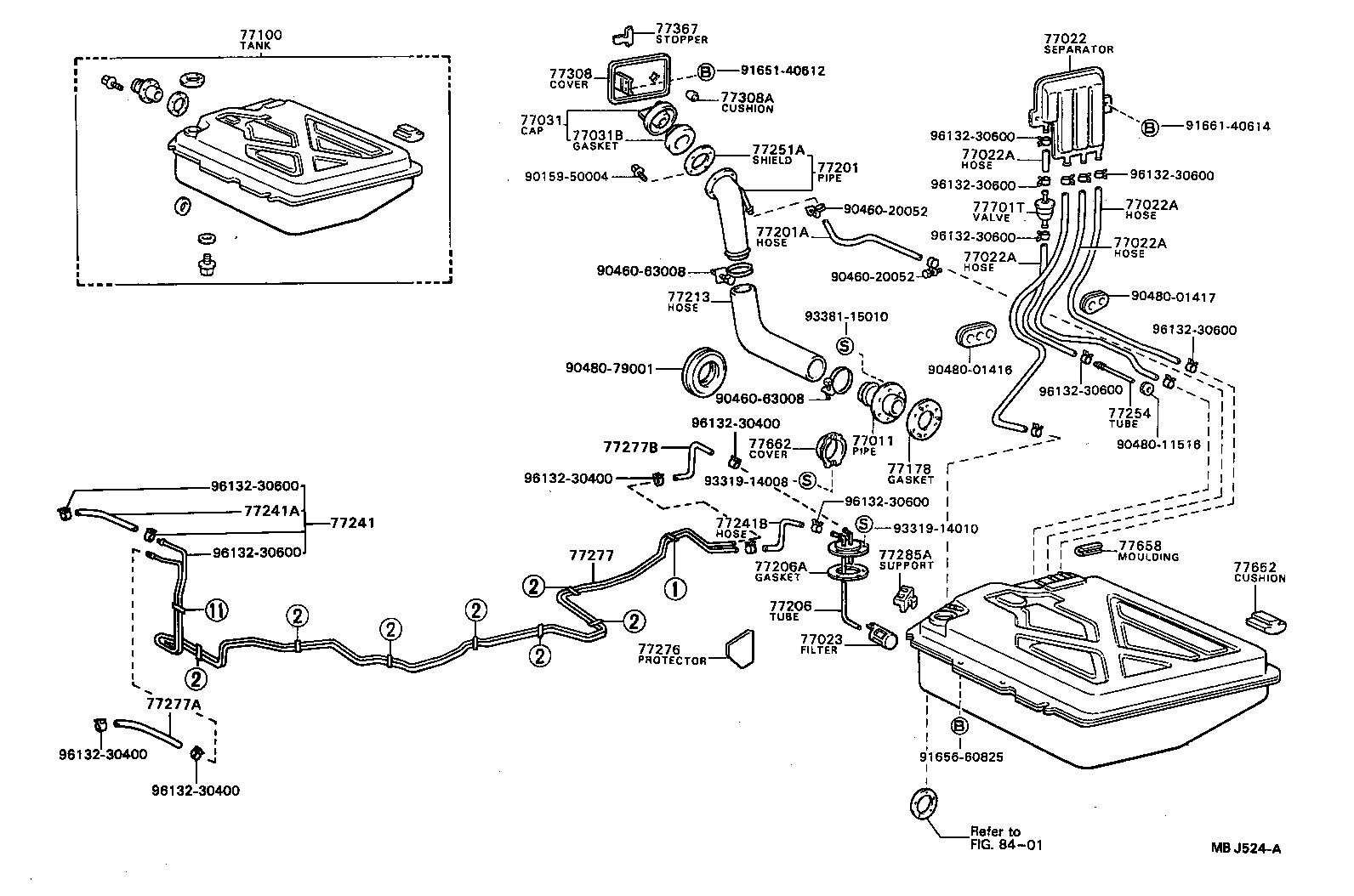

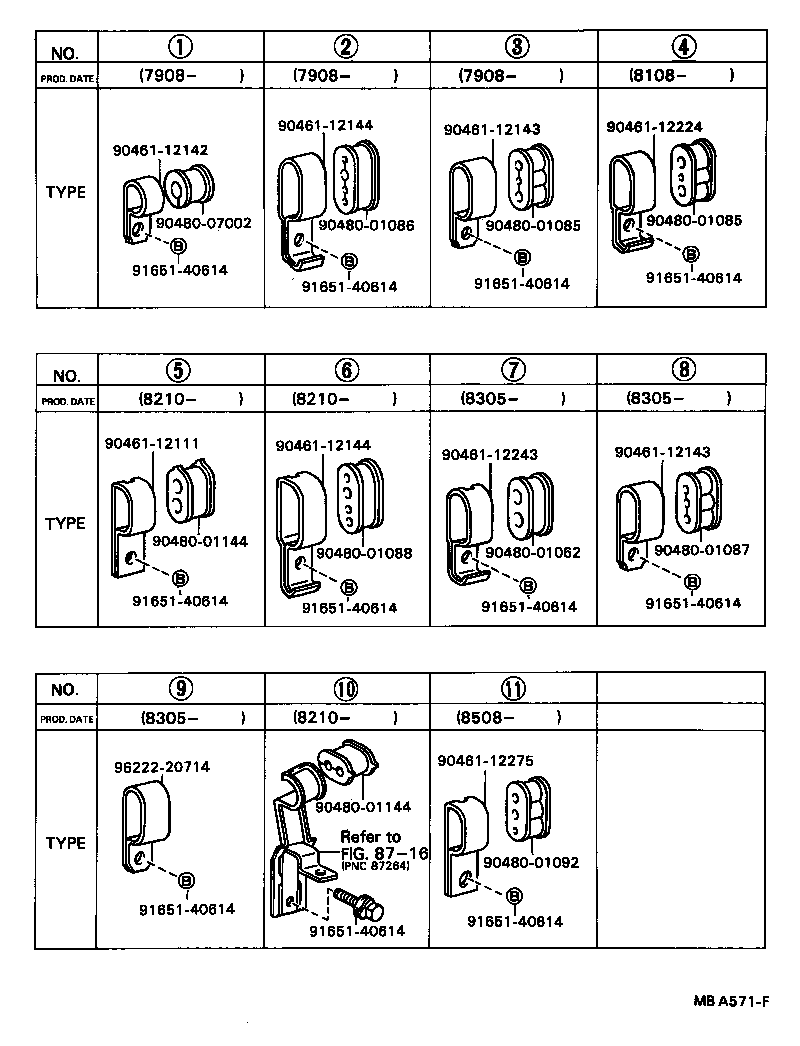

Figure MBA569G MBA569G 1978-09 → 1985-02 Figure MBC776G MBC776G 1979-08 → 1984-10 Figure MBF503C MBF503C 1983-05 → 1984-10 Figure MBE523C MBE523C 1982-10 → 1983-05 Figure MBE524B MBE524B 1982-10 → 1983-05 Figure MBA570L MBA570L 1979-08 → 1983-05 Figure MBA570L MBA570L 1983-05 → 1984-08 Figure MBJ030A MBJ030A 1984-08 → 1985-01 Figure MBJ030A MBJ030A 1985-01 → — Figure MBF504C MBF504C 1983-05 → — Figure MBC777F MBC777F 1981-08 → 1984-06 Figure MBF505B MBF505B 1983-05 → 1984-02 Figure MBH260 MBH260 1984-02 → 1984-10 Figure MBJ024B MBJ024B 1985-01 → — Figure MBJ524A MBJ524A 1985-08 → — Figure MBF292D MBF292D 1983-05 → — Figure MBJ025B MBJ025B 1985-01 → — Figure MBA571F MBA571F 1979-08 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77251 Shield, Fuel Tank, Inlet, NO.1
77251A Shield, Fuel Tank, Inlet, NO.2
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77285A Support, Fuel Return And Main Tube
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77387 Ring, Fuel Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77606A Protector, Fuel Tank Filler Pipe
77606C Protector, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77611B Cushion, Fuel Tank, NO.4
77617A Union, Auxiliary Fuel Band
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77655 Cushion, Fuel Tank, NO.3
77658 Moulding, Fuel Tank Edge
77661 Cover, Fuel Inlet Pipe
77662 Cover, Fuel Tank Gage
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
