Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

12 part groups · 12 illustrations

Illustrations

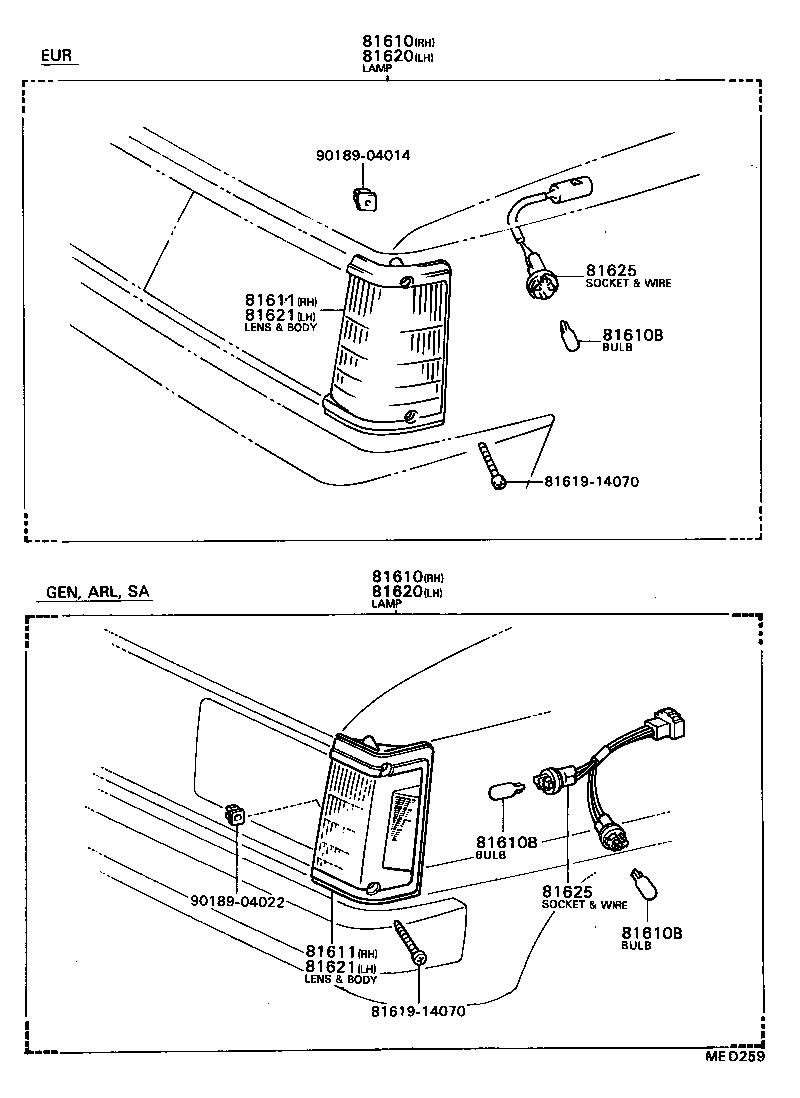

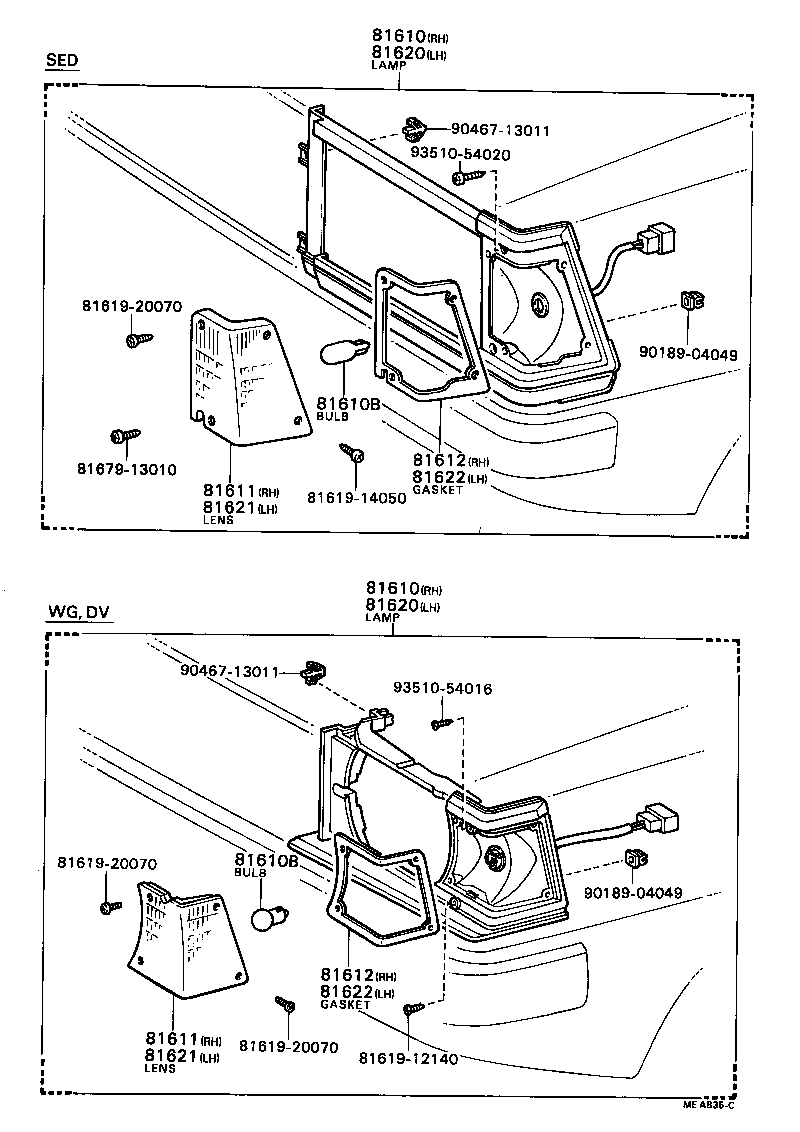

Figure ME8709E ME8709E 1979-08 → 1981-08 Figure ME8709E ME8709E 1981-08 → 1984-10 Figure MEA835C MEA835C 1981-08 → 1983-05 Figure MEA835C MEA835C 1981-08 → 1984-06 Figure MEA835C MEA835C 1982-04 → 1983-05 Figure MEA835C MEA835C 1983-05 → 1983-08 Figure MEB457 MEB457 1979-08 → 1981-08 Figure MEB457 MEB457 1981-08 → 1982-04 Figure MEA836A MEA836A 1981-08 → 1984-06 Figure MEA836A MEA836A 1982-04 → 1984-01 Figure MED259 MED259 1983-05 → 1984-10 Figure MED259 MED259 1983-05 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81614C Protector, Clearance Lamp, RH
81614D Seat, Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
81624C Protector, Clearance Lamp, LH
81624D Seat, Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
