Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

10 part groups · 6 illustrations

Illustrations

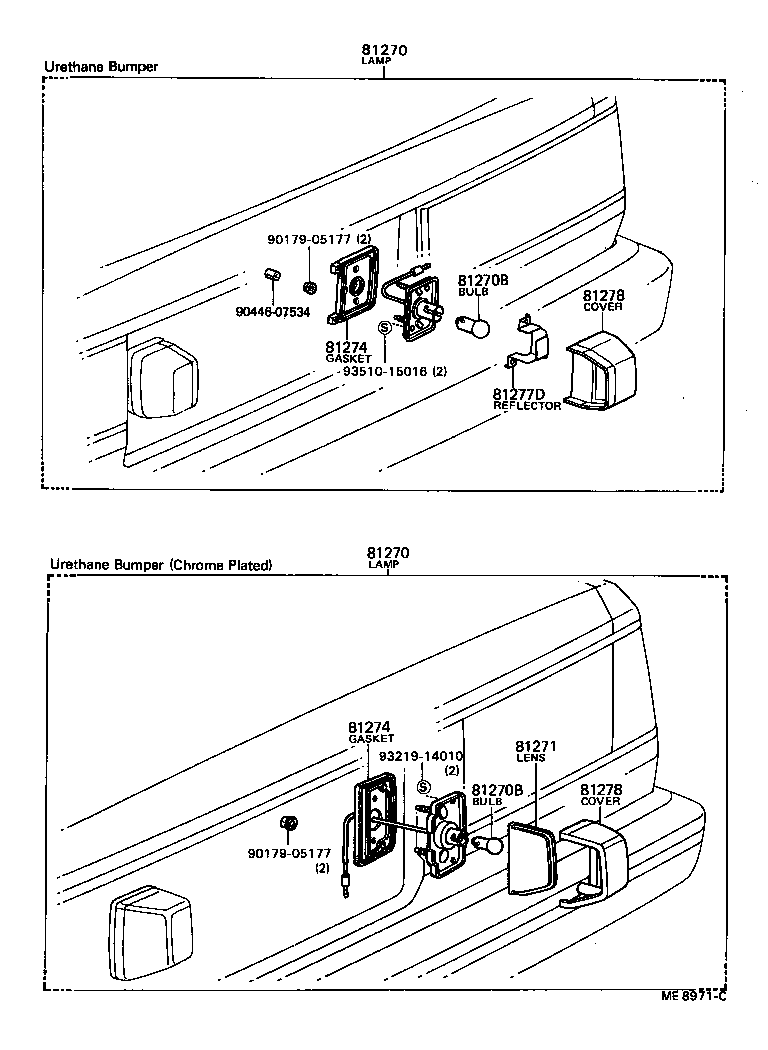

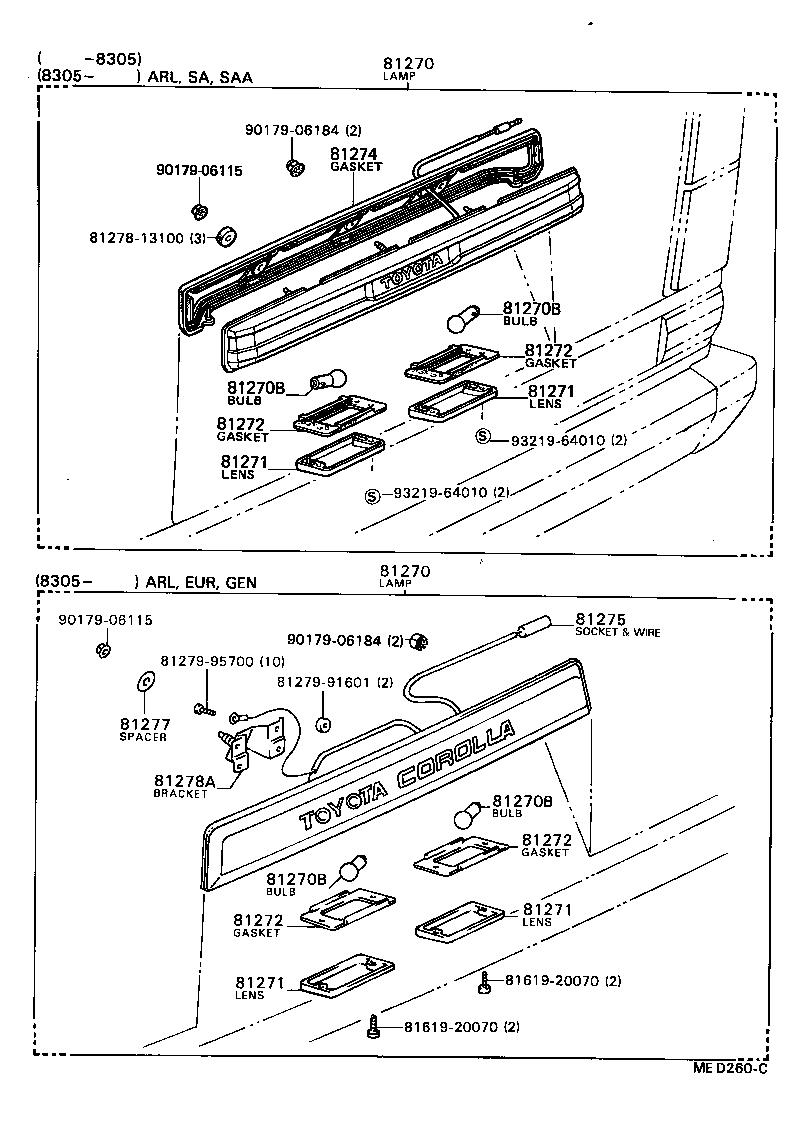

Figure ME8093E ME8093E 1979-08 → 1981-08 Figure ME8093E ME8093E 1981-08 → 1982-04 Figure MEA768B MEA768B 1981-08 → 1984-06 Figure MEA768B MEA768B 1982-04 → 1985-02 Figure ME8971C ME8971C 1979-08 → — Figure MED260C MED260C 1979-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
81277 Spacer, License Plate Lamp Rim And Lens
81277D Reflector, License Plate Lamp
81278 Cover, License Plate Lamp
81278A Bracket, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
