Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

6 part groups · 2 illustrations

Illustrations

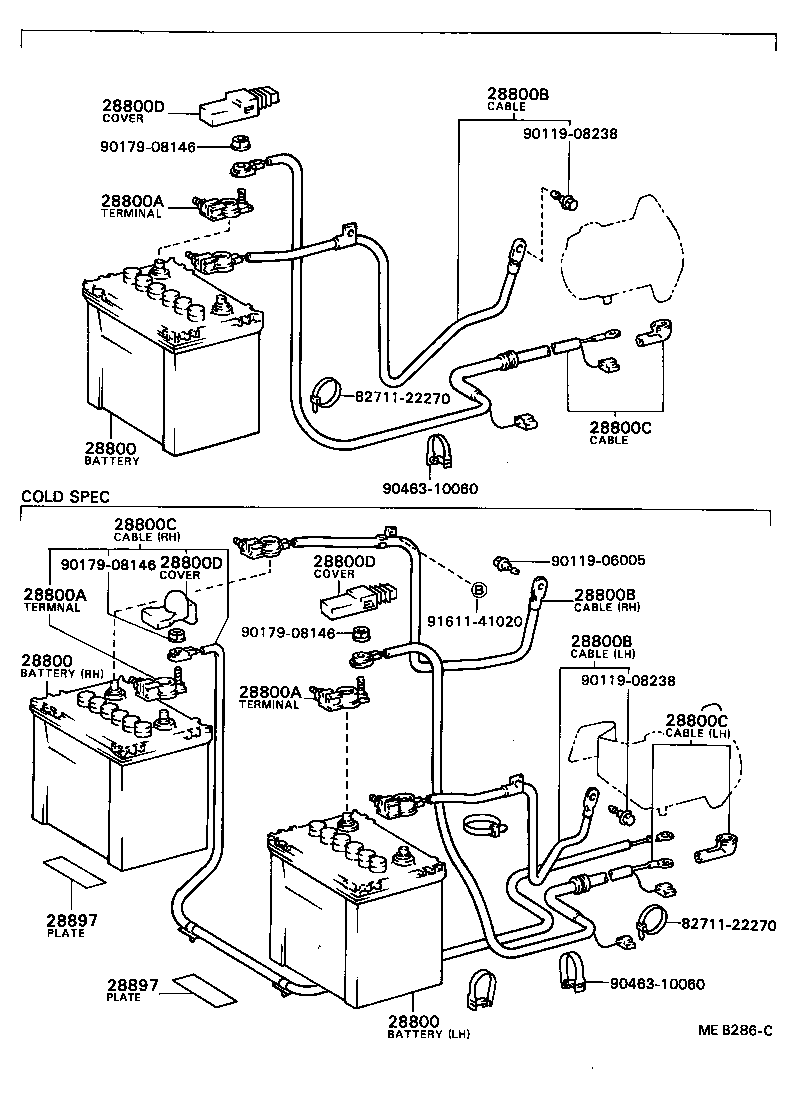

Figure ME7862B ME7862B 1979-08 → — Figure MEB286C MEB286C 1982-10 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28897 Plate, Battery Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
