Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 12 illustrations

Illustrations

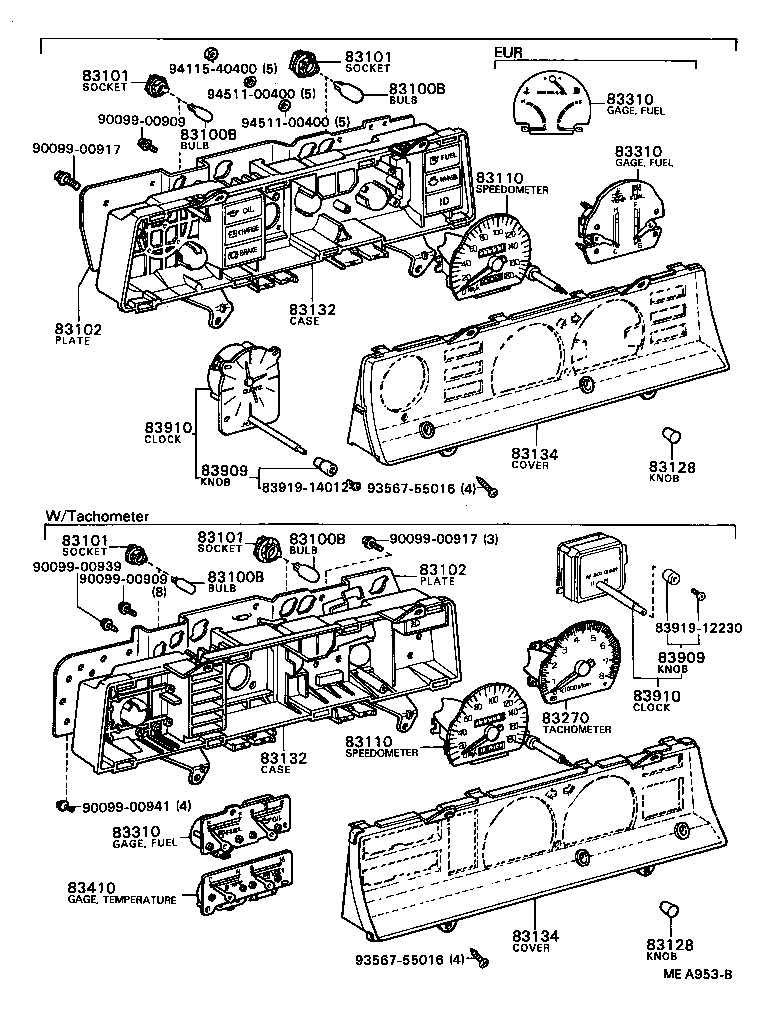

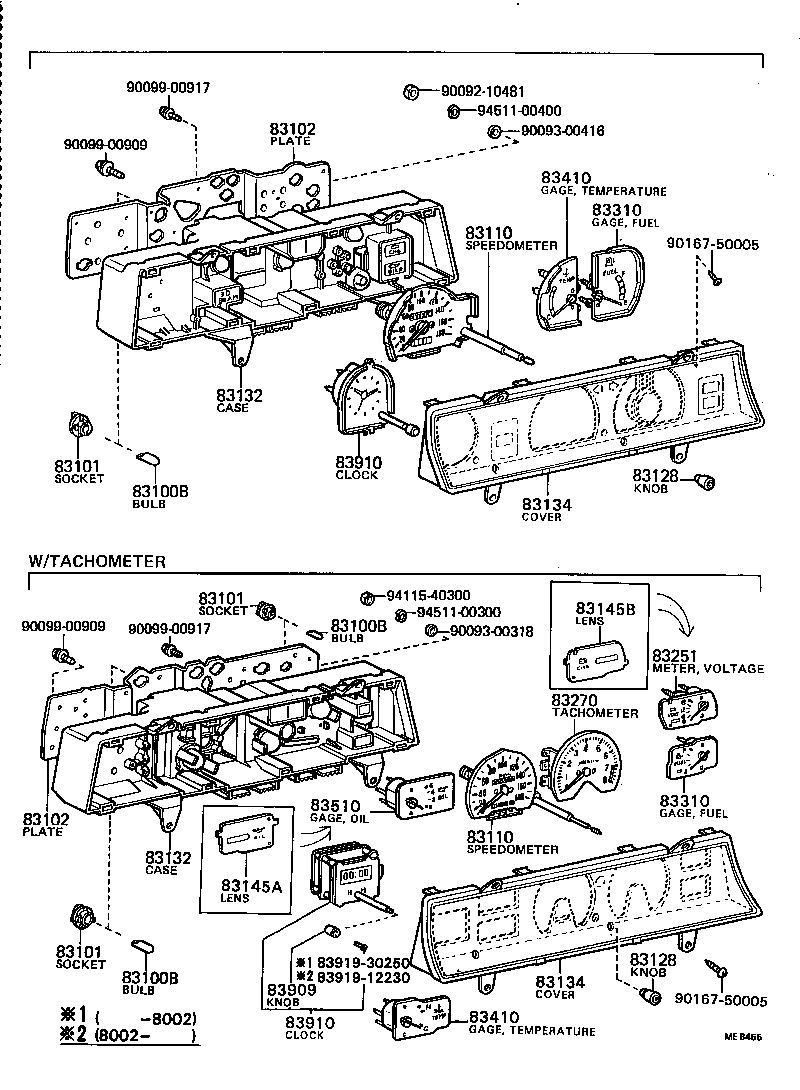

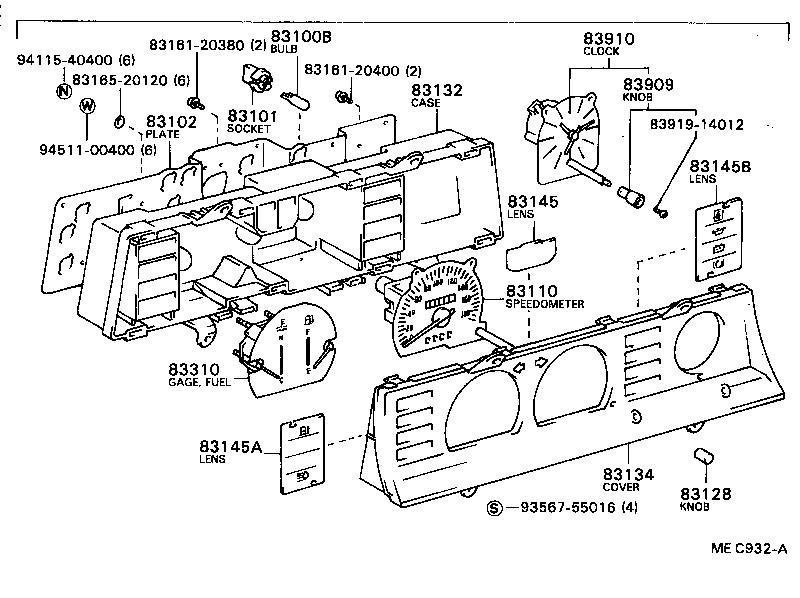

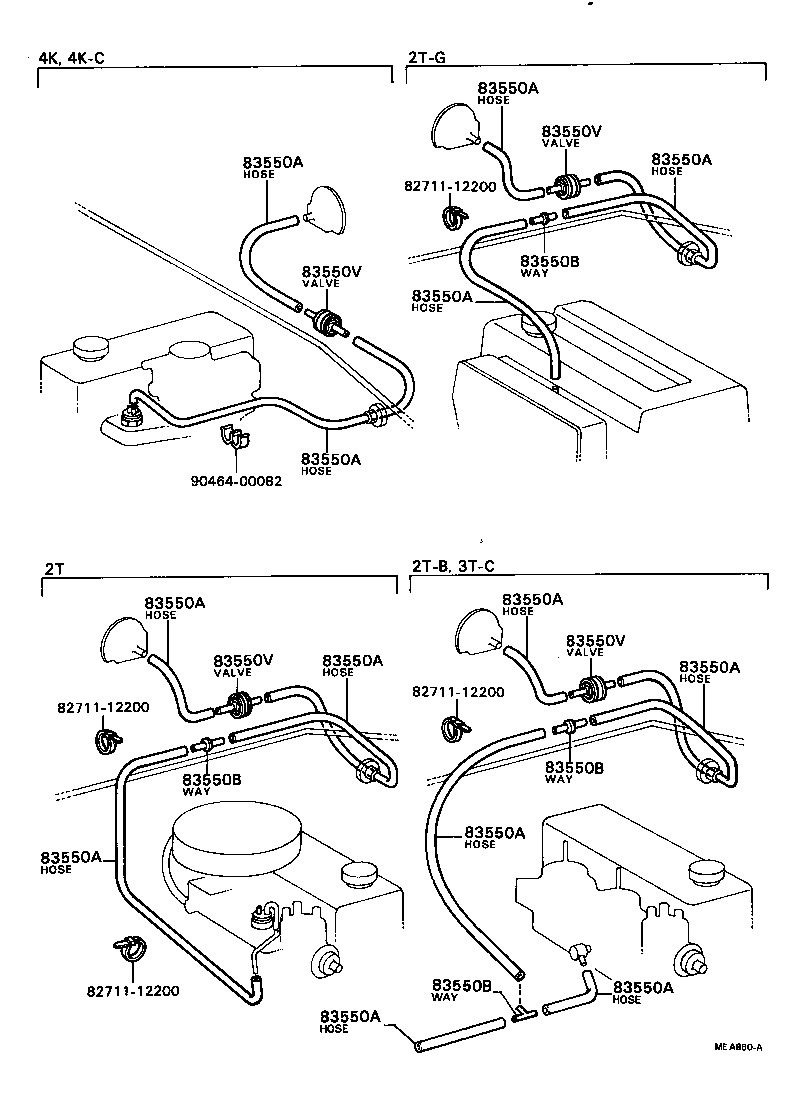

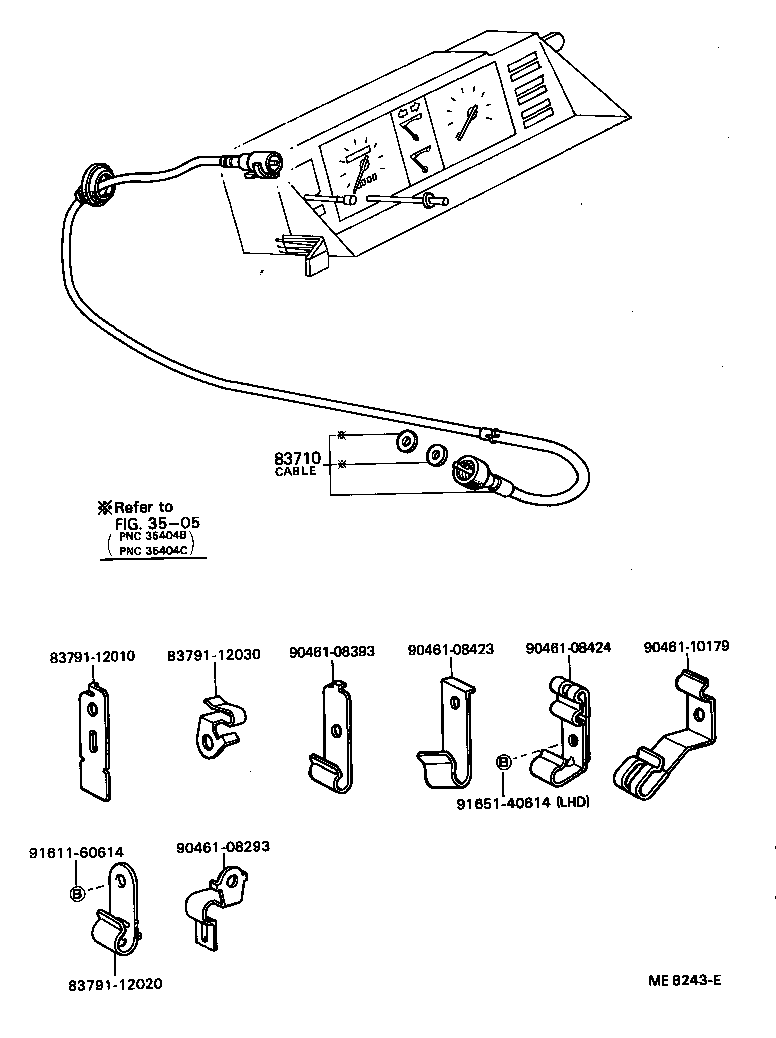

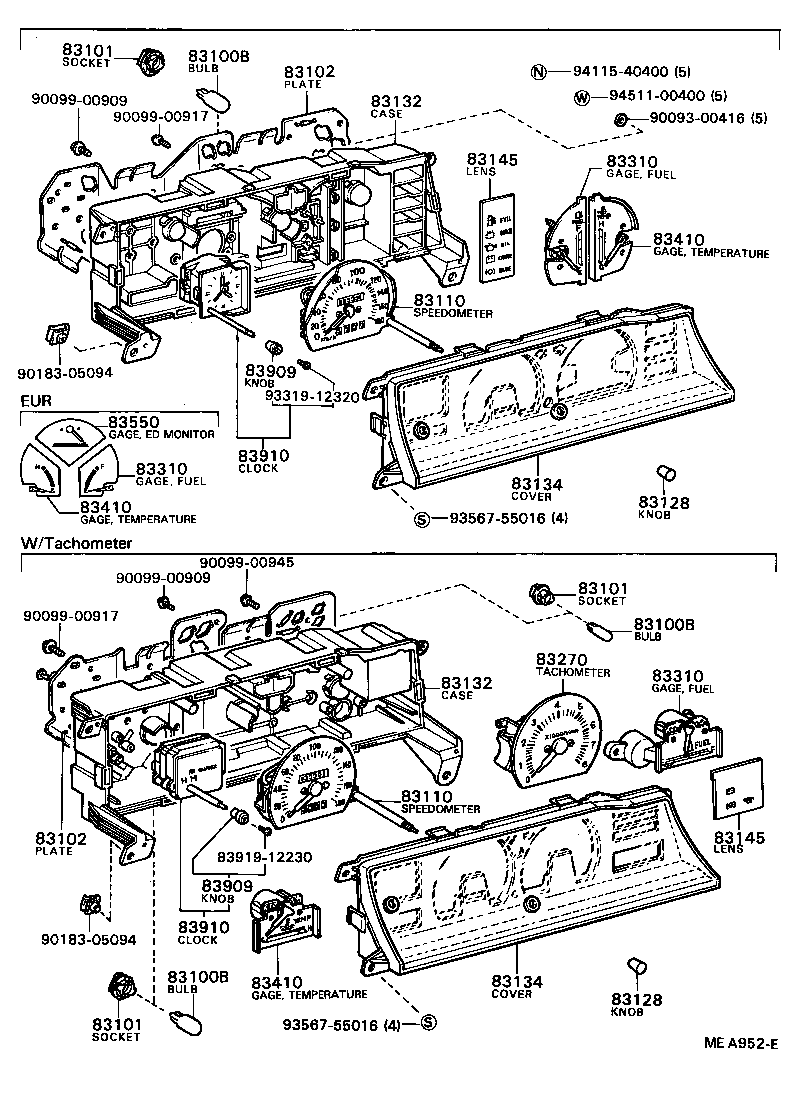

Figure MEB454 MEB454 1979-08 → 1981-08 Figure MEB454 MEB454 1981-08 → 1982-04 Figure MEA952E MEA952E 1981-08 → — Figure MEA952E MEA952E 1982-04 → — Figure MEB455 MEB455 1979-08 → 1981-08 Figure MEB455 MEB455 1981-08 → 1982-04 Figure MEA953B MEA953B 1981-08 → 1982-09 Figure MEA953B MEA953B 1981-08 → 1984-06 Figure MEA953B MEA953B 1982-04 → 1984-01 Figure MEC932A MEC932A 1982-09 → 1983-05 Figure MEA860A MEA860A 1981-08 → — Figure ME8243E ME8243E 1979-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83550 Gage Assy, ED Monitor
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83550V Valve, Vacuum Transmitting
83710 Cable Assy, Speedometer Drive, NO.1
83909 Knob, Clock
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
