Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

11 part groups · 3 illustrations

Illustrations

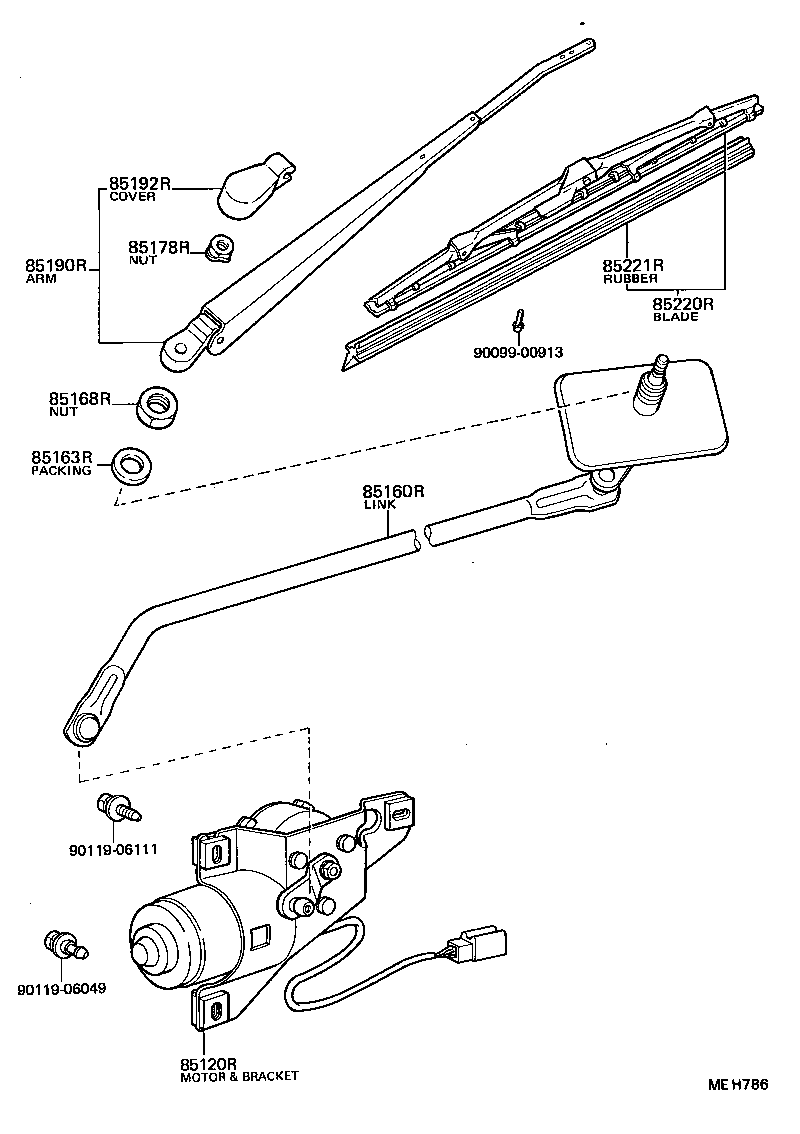

Figure ME7864A ME7864A 1979-08 → 1984-06 Figure MEH786 MEH786 1979-08 → — Figure MEH786 MEH786 1983-05 → —

Part groups

PNCDescription
85120R Motor And Bracket Assy, Rear Wiper
85160R Link Assy, Rear Wiper
85163R Packing, Rear Wiper Pivot, NO.1
85168R Nut, Rear Wiper Link Pivot, NO.1
85169S Washer, Rear Wiper Link Pivot, NO.2
85178R Nut (FOR REAR WIPER ARM SETTING)
85188R Cap, Rear Wiper Pivot, NO.1
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
