Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

13 part groups · 7 illustrations

Illustrations

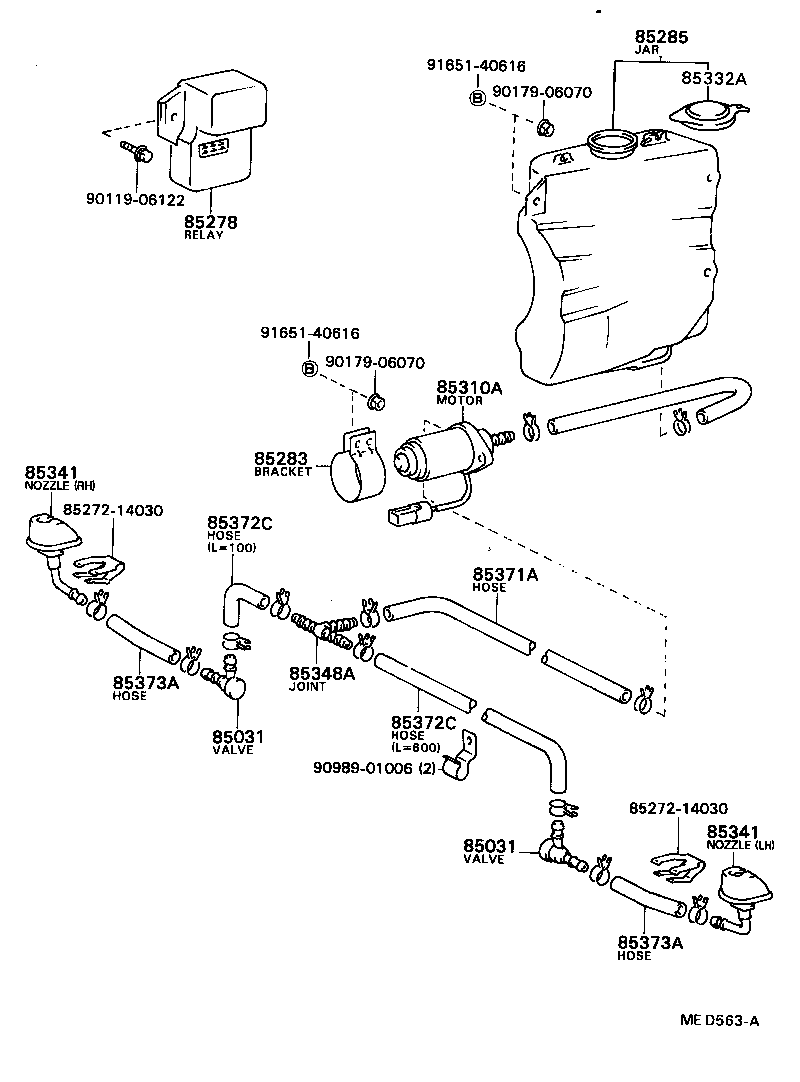

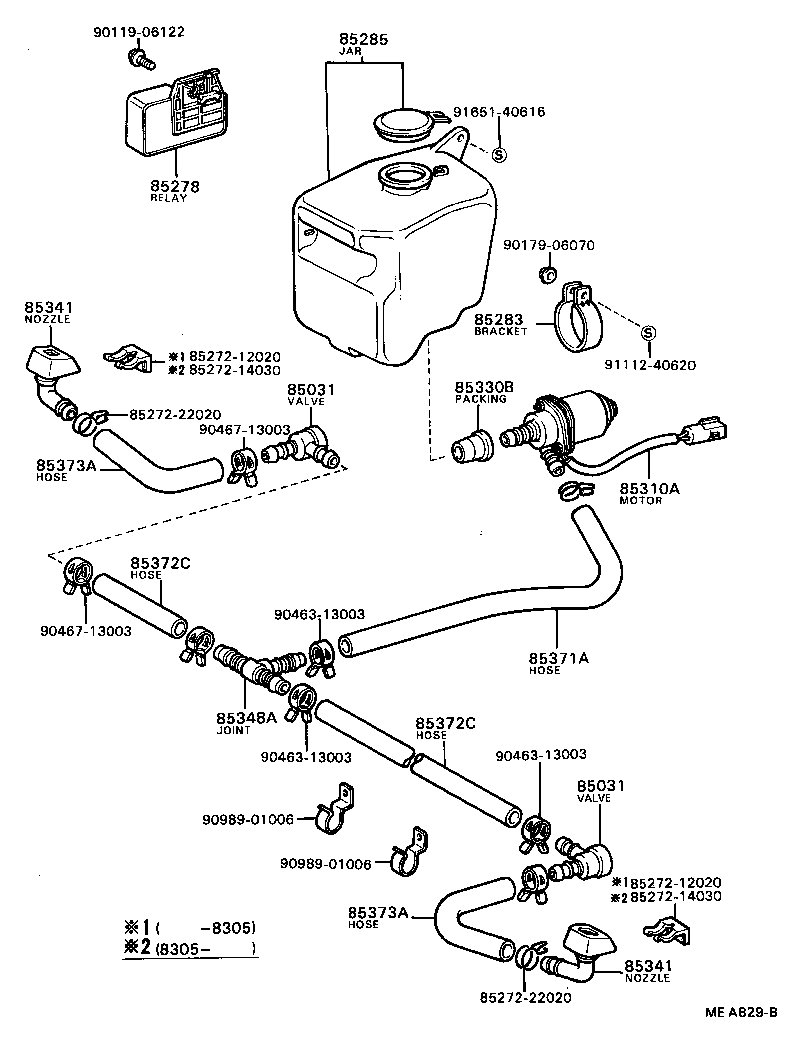

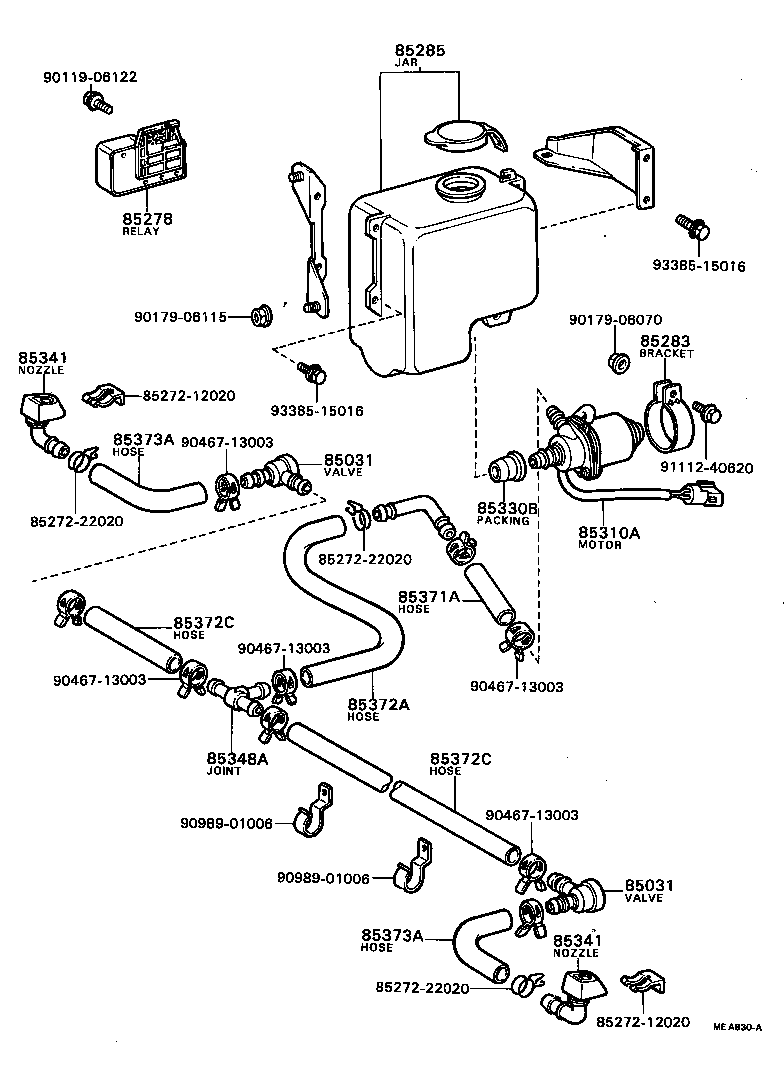

Figure ME8253B ME8253B 1979-08 → 1980-05 Figure ME8253B ME8253B 1980-03 → 1980-05 Figure ME8253B ME8253B 1980-05 → 1981-08 Figure MEA829B MEA829B 1981-08 → 1983-05 Figure MEA829B MEA829B 1983-05 → — Figure MEA830A MEA830A 1981-08 → 1983-05 Figure MED563A MED563A 1983-05 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85278 Relay Assy, Headlamp Cleaner Control
85283 Bracket, Headlamp Cleaner Washer
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85330B Bush, Headlamp Cleaner Washer Jar
85332A Cap, Headlamp Cleaner Washer Jar
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
