Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

24 part groups · 9 illustrations

Illustrations

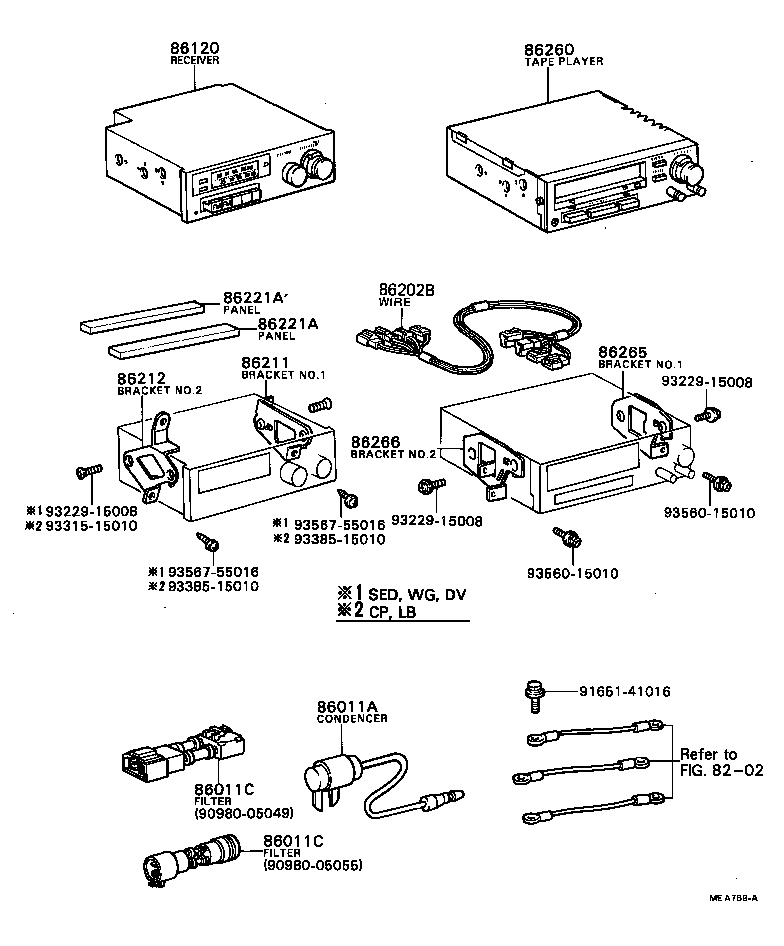

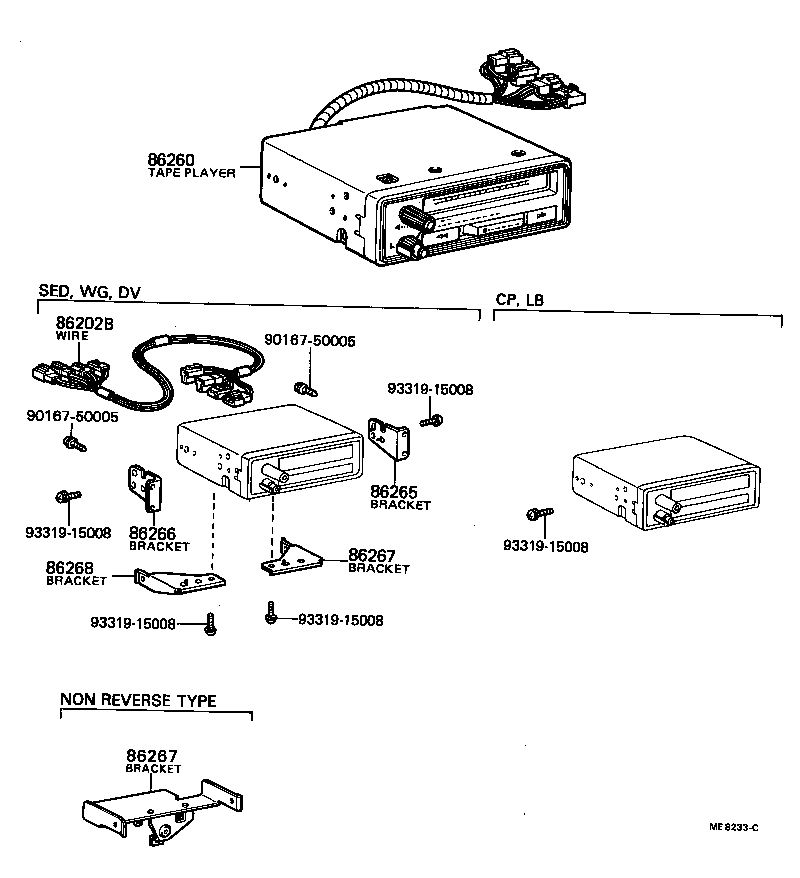

Figure ME8452B ME8452B 1979-08 → 1981-08 Figure ME8452B ME8452B 1981-08 → 1984-10 Figure ME8233C ME8233C 1979-08 → 1981-08 Figure MEA769A MEA769A 1981-08 → 1984-10 Figure MEA769A MEA769A 1981-08 → — Figure MEA769A MEA769A 1982-04 → — Figure MEA770 MEA770 1981-08 → 1984-10 Figure MEB168A MEB168A 1981-08 → — Figure MEB169 MEB169 1979-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120C Knob, Radio Receiver Tuning, NO.2
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86126 Plate, Radio Receiver
86202B Wire, Tape Player
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86260C Knob, Tape Player Balance
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86268 Bracket, Tape Player, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
