Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

14 part groups · 3 illustrations

Illustrations

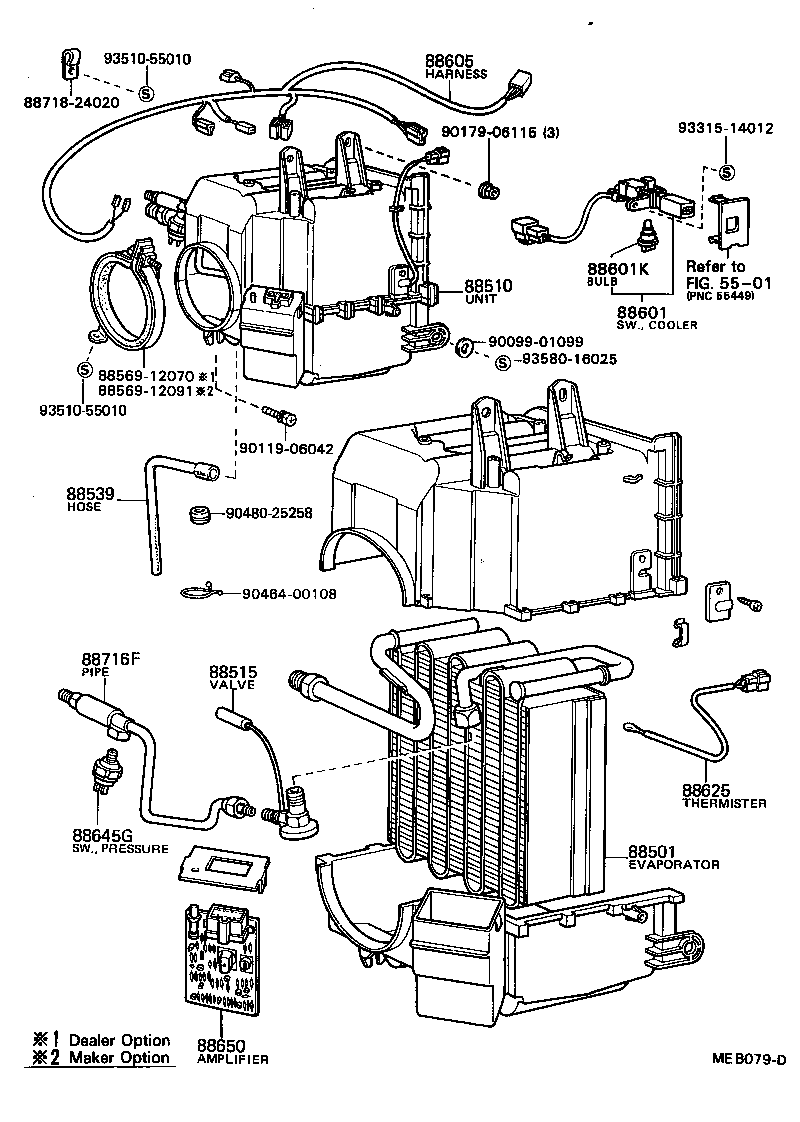

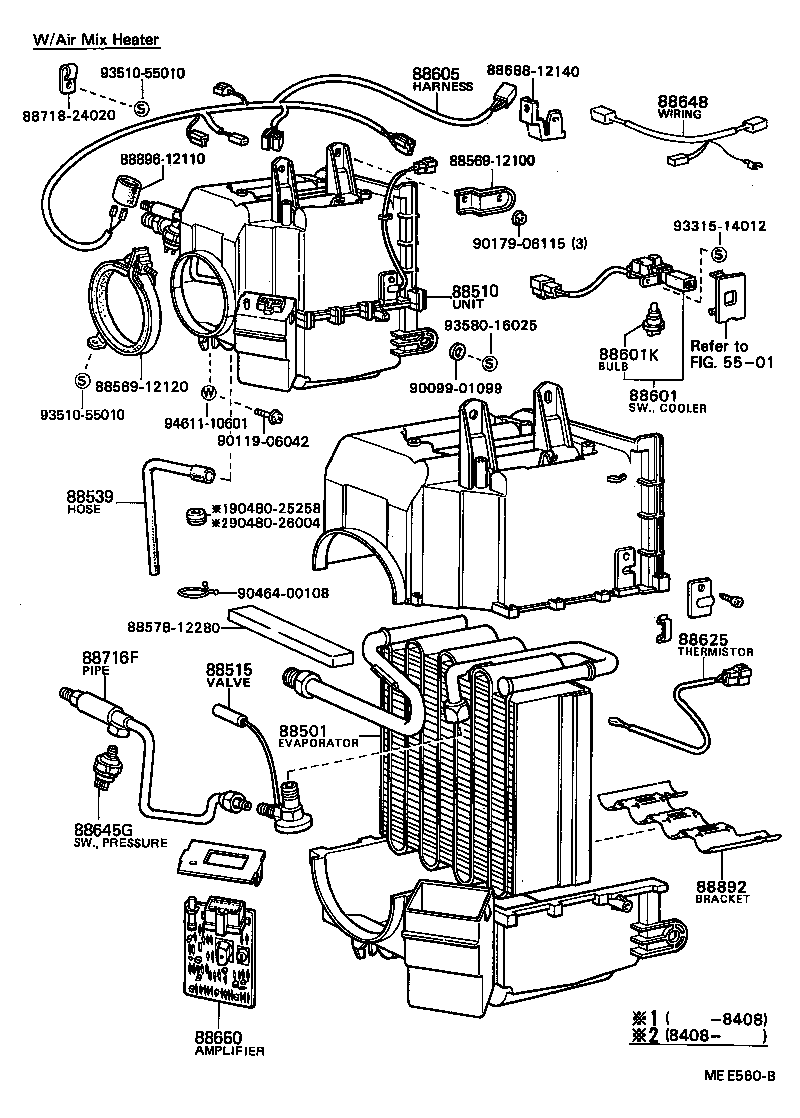

Figure ME8712C ME8712C 1979-08 → — Figure MEB079D MEB079D 1981-08 → — Figure MEE560B MEE560B 1984-02 → —

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88601 Switch Sub-assy, Cooler Control
88601K Bulb(FOR COOLER SWITCH)
88605 Harness Sub-assy, Cooler Wiring, NO.1
88611 Knob, Cooler Control Switch
88625 Thermistor, Cooler, NO.1
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88892 Bracket, Cooler Evaporator Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
