Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 4 illustrations

Illustrations

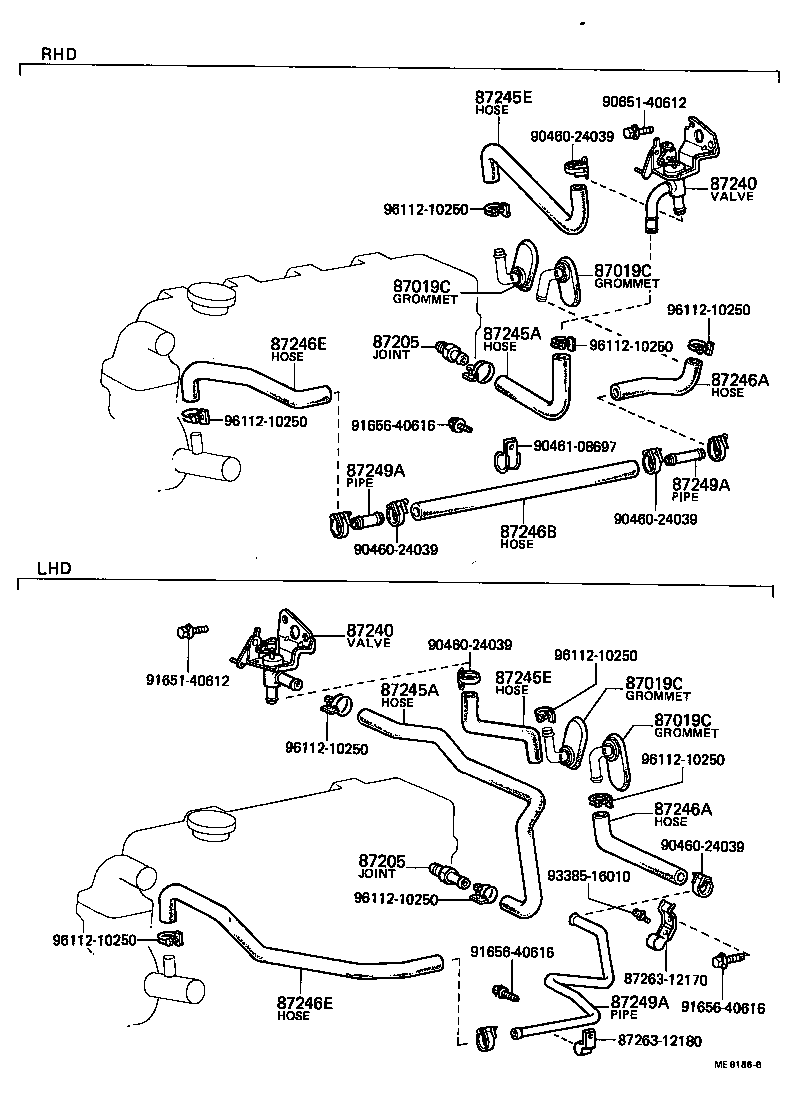

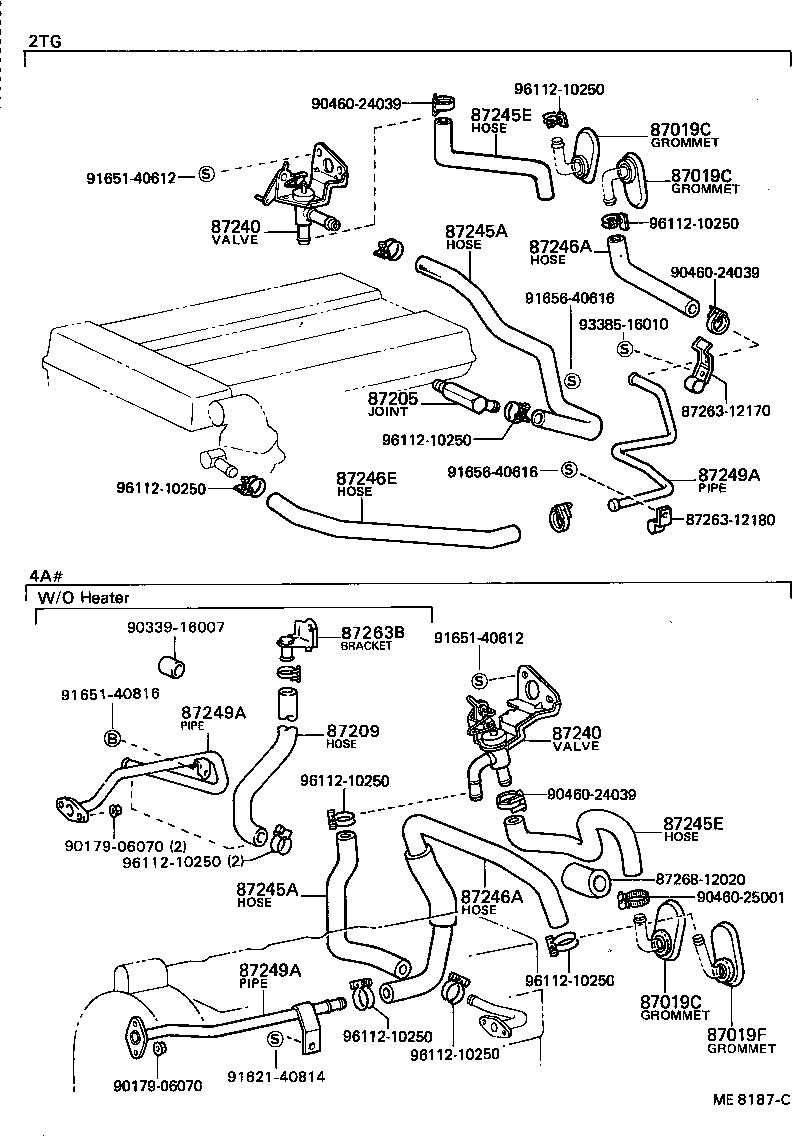

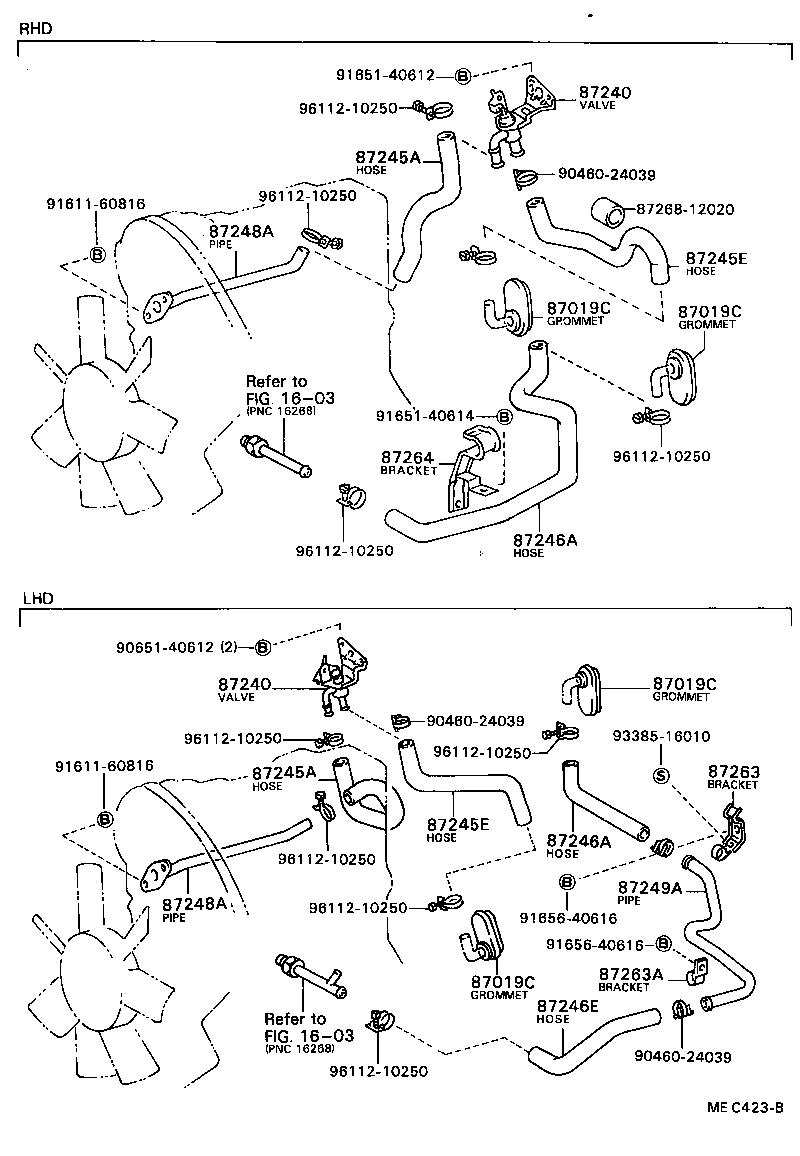

Figure ME8185C ME8185C 1979-08 → — Figure ME8186B ME8186B 1979-08 → 1985-02 Figure ME8187C ME8187C 1979-08 → — Figure MEC423B MEC423B 1982-10 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87019F Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87263 Bracket, Heater Water Pipe, NO.1
87263A Bracket, Heater Water Pipe, NO.2
87263B Bracket, Heater Water Pipe, NO.3
87264 Bracket, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
