Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 12 illustrations

Illustrations

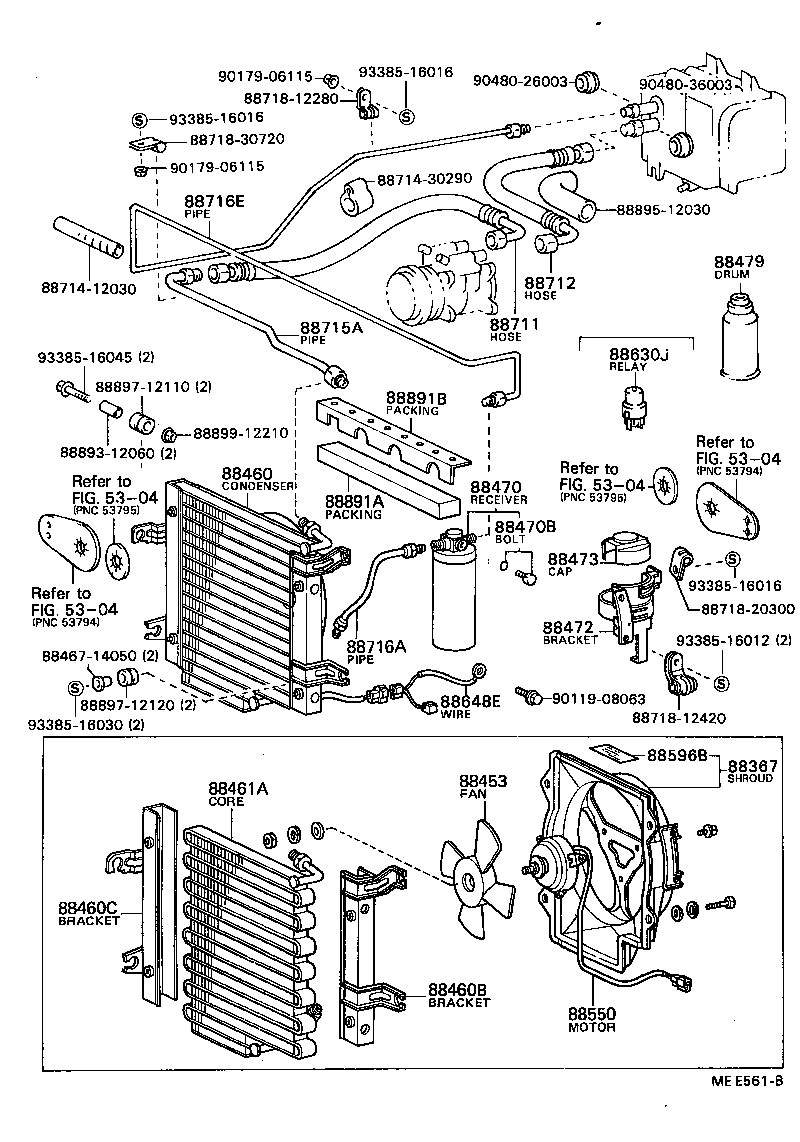

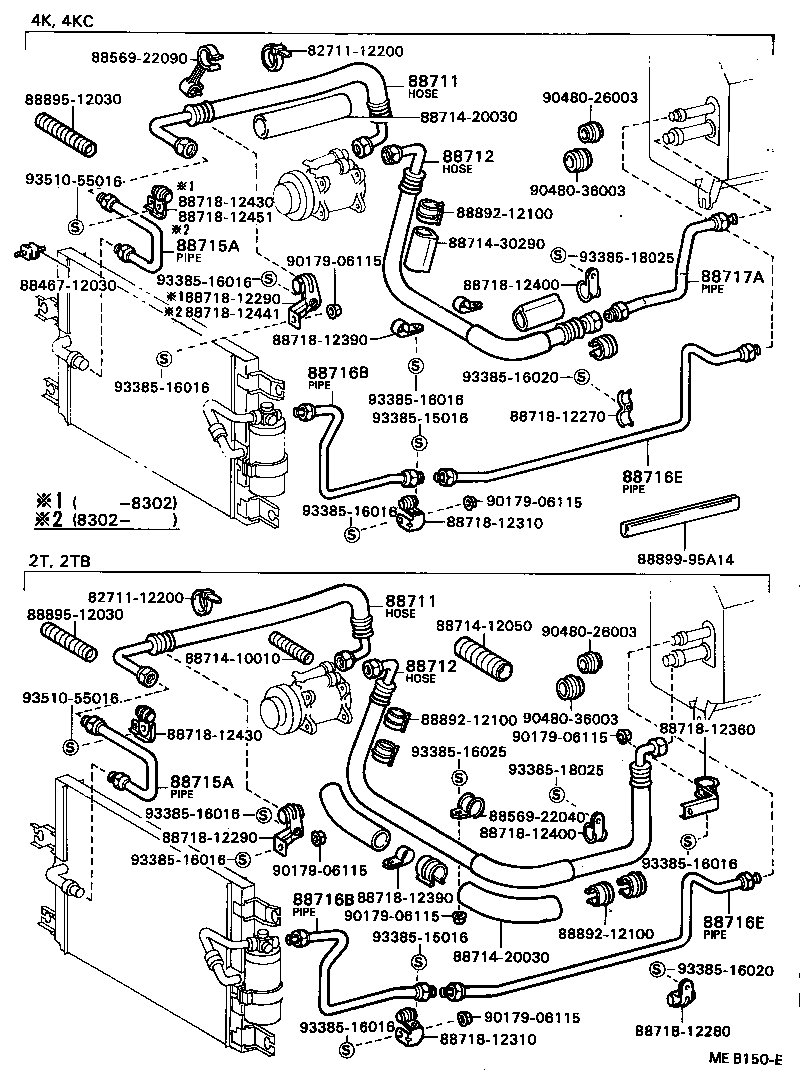

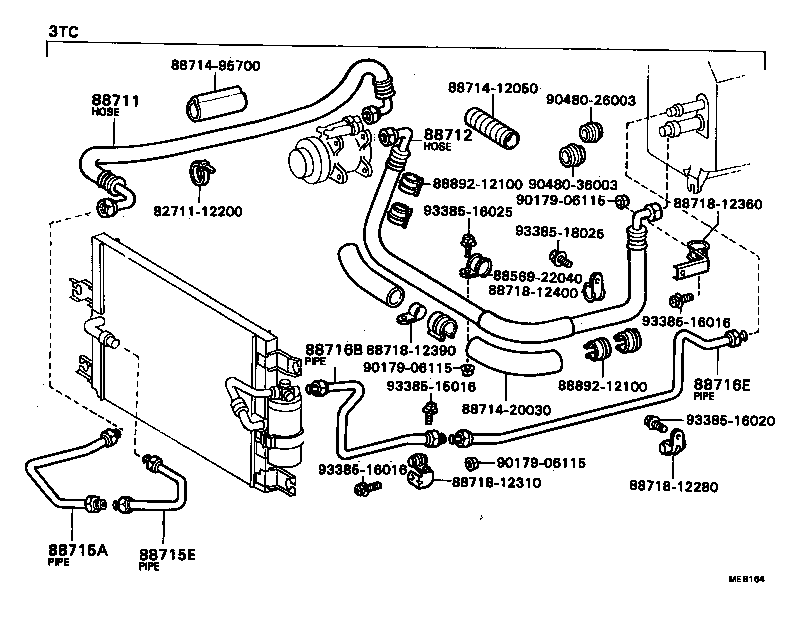

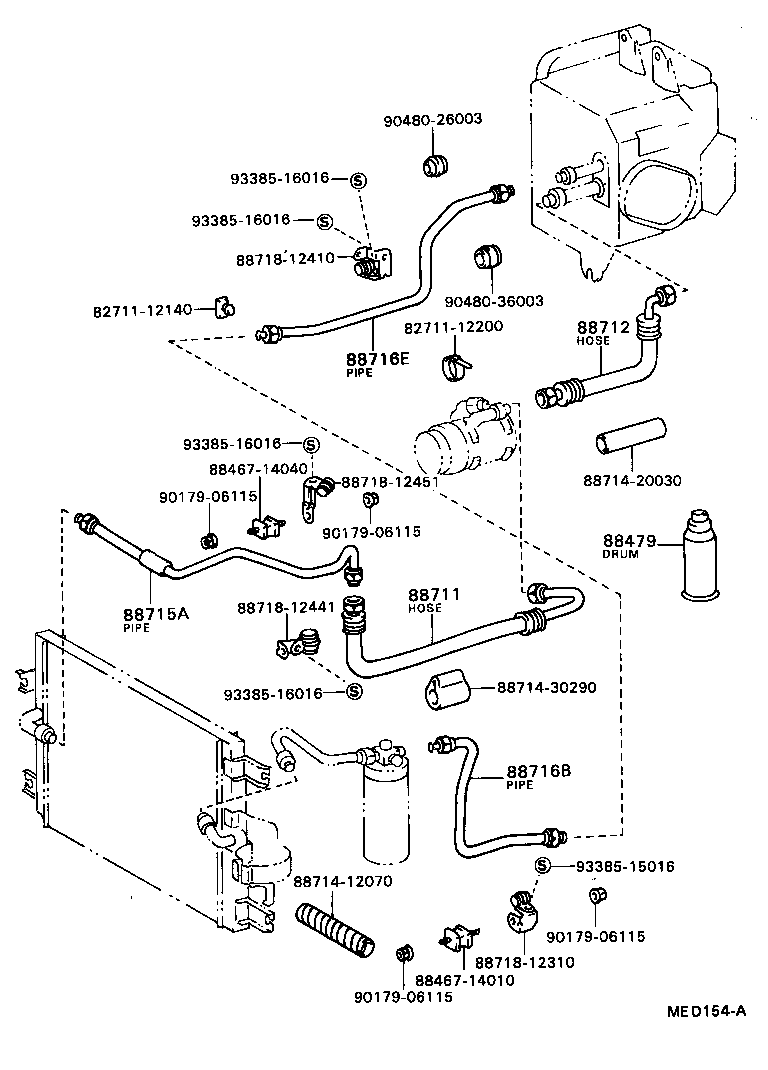

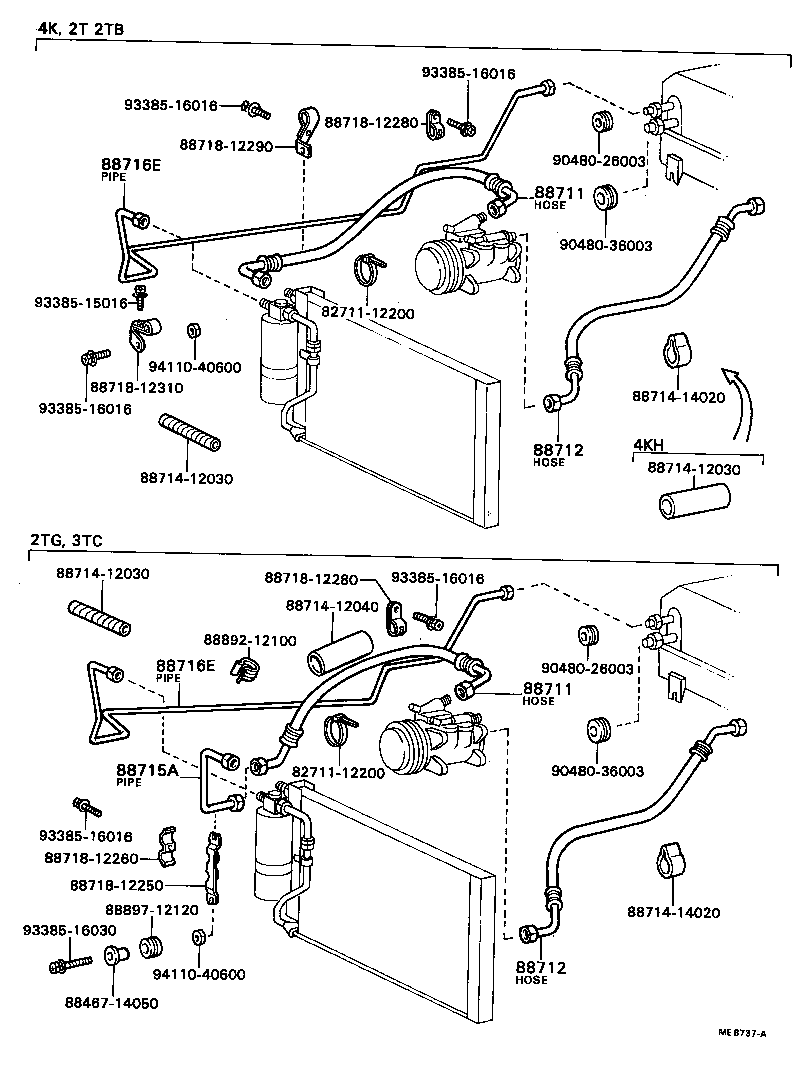

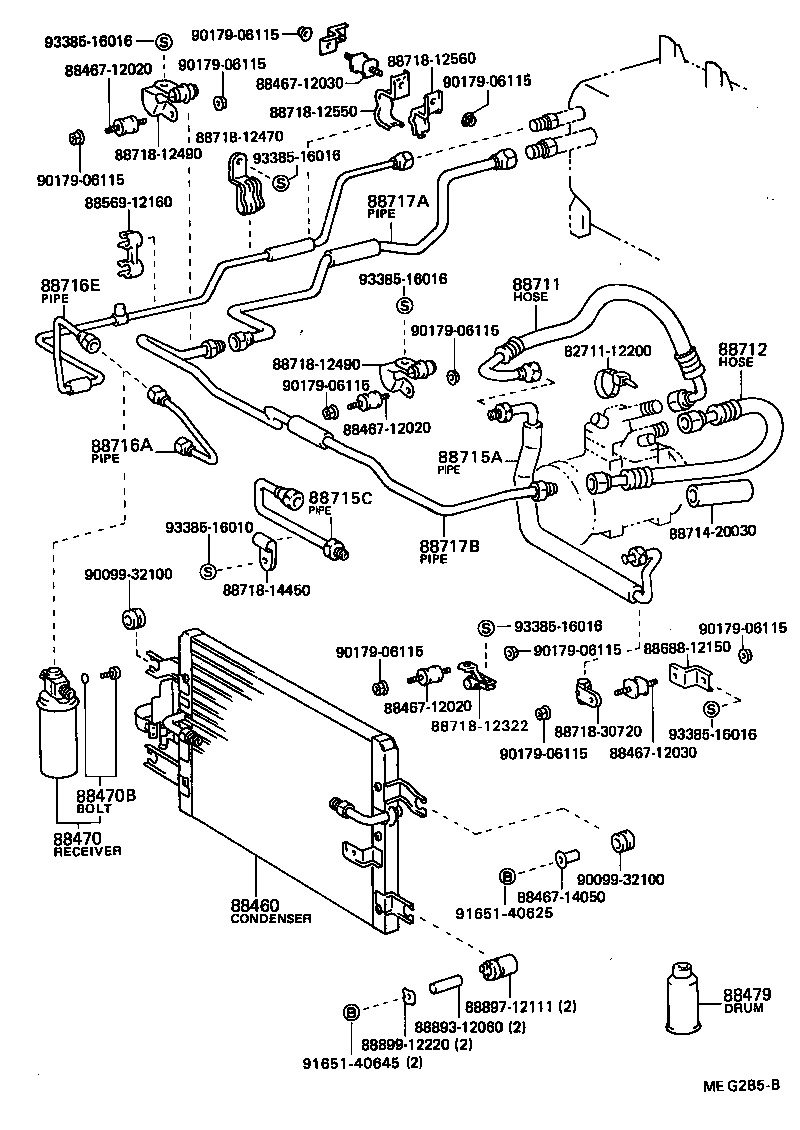

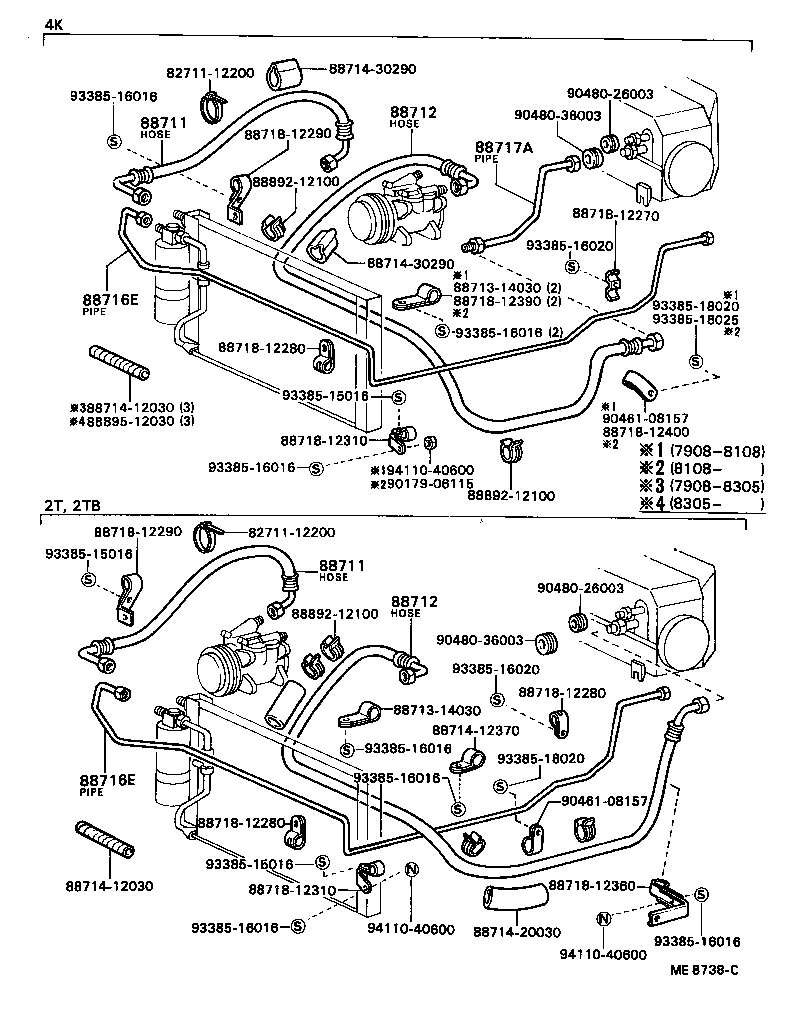

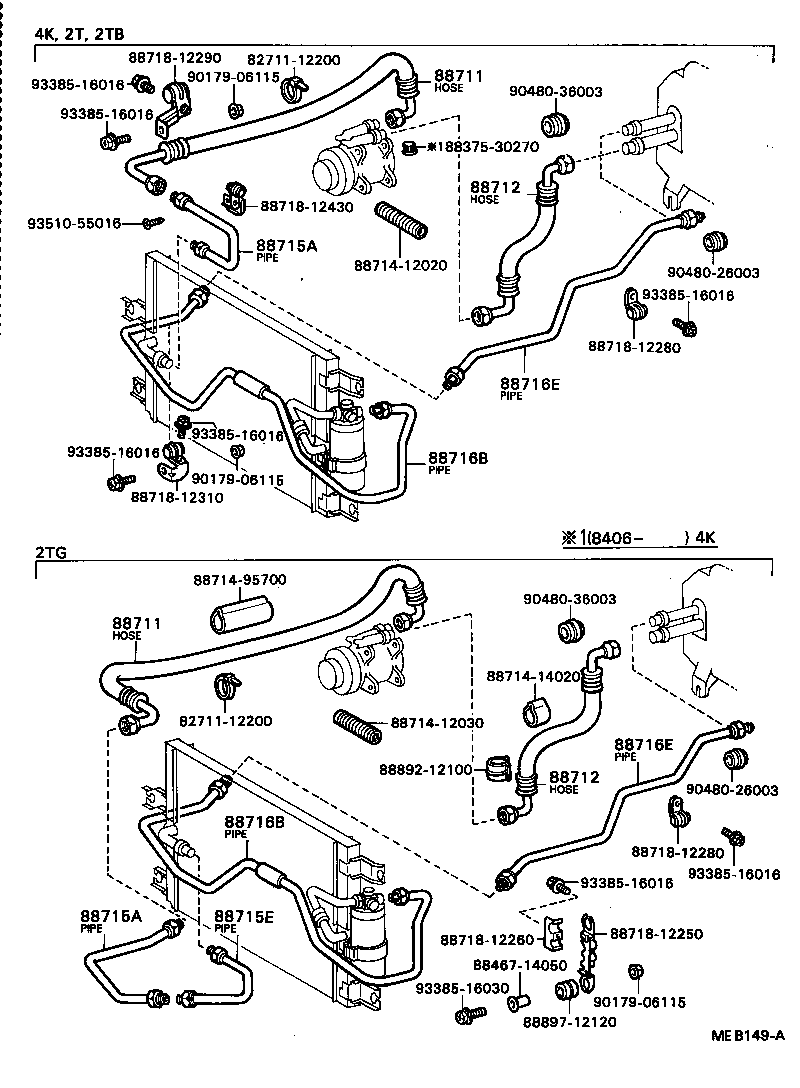

Figure ME8736E ME8736E 1979-08 → — Figure ME8737A ME8737A 1979-08 → 1981-08 Figure MEB149A MEB149A 1981-08 → — Figure ME8738C ME8738C 1979-08 → 1981-08 Figure ME8738C ME8738C 1981-08 → 1984-10 Figure ME8738C ME8738C 1984-03 → — Figure MEB150E MEB150E 1981-08 → 1983-08 Figure MEB150E MEB150E 1983-08 → — Figure MEB164 MEB164 1981-08 → 1983-05 Figure MED154A MED154A 1983-05 → 1984-10 Figure MEE561B MEE561B 1984-02 → — Figure MEG285B MEG285B 1985-08 → —

Part groups

PNCDescription
88367 Shroud, Cooler Blower Fan
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88473 Cap, Cooler Receiver Tank
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88630J Relay Assy (FOR CONDENSER MOTOR)
88648E Wiring, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715C Ring, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
