Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 4 illustrations

Illustrations

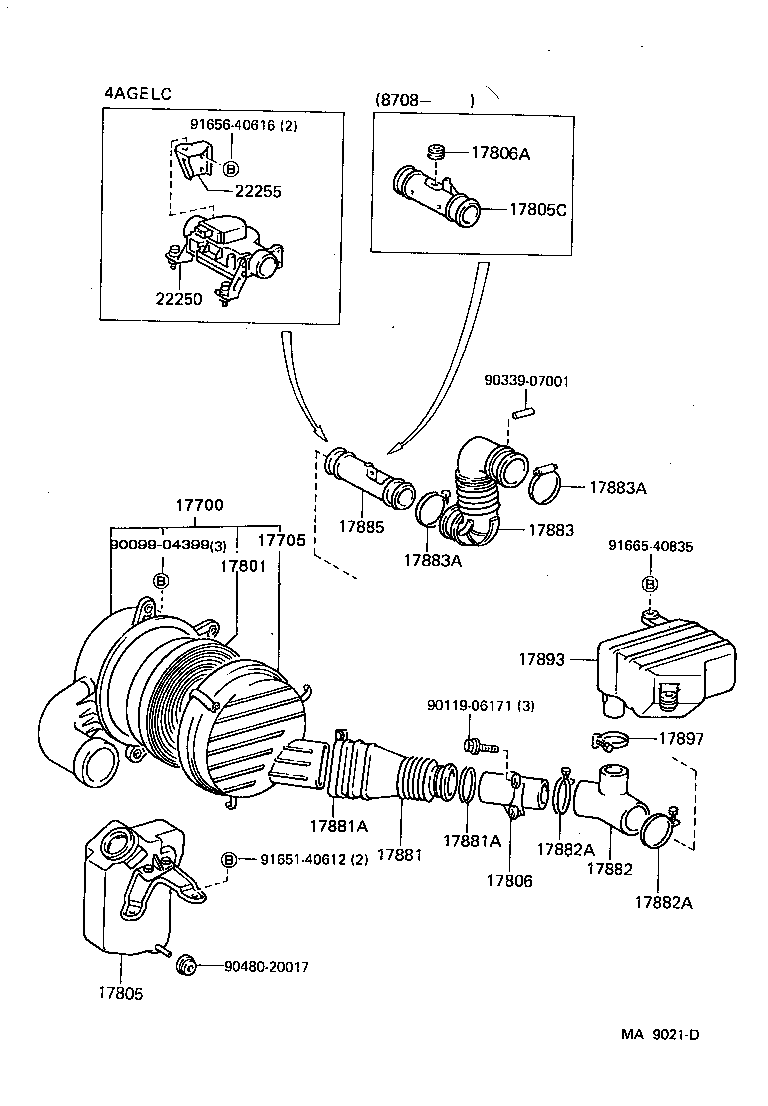

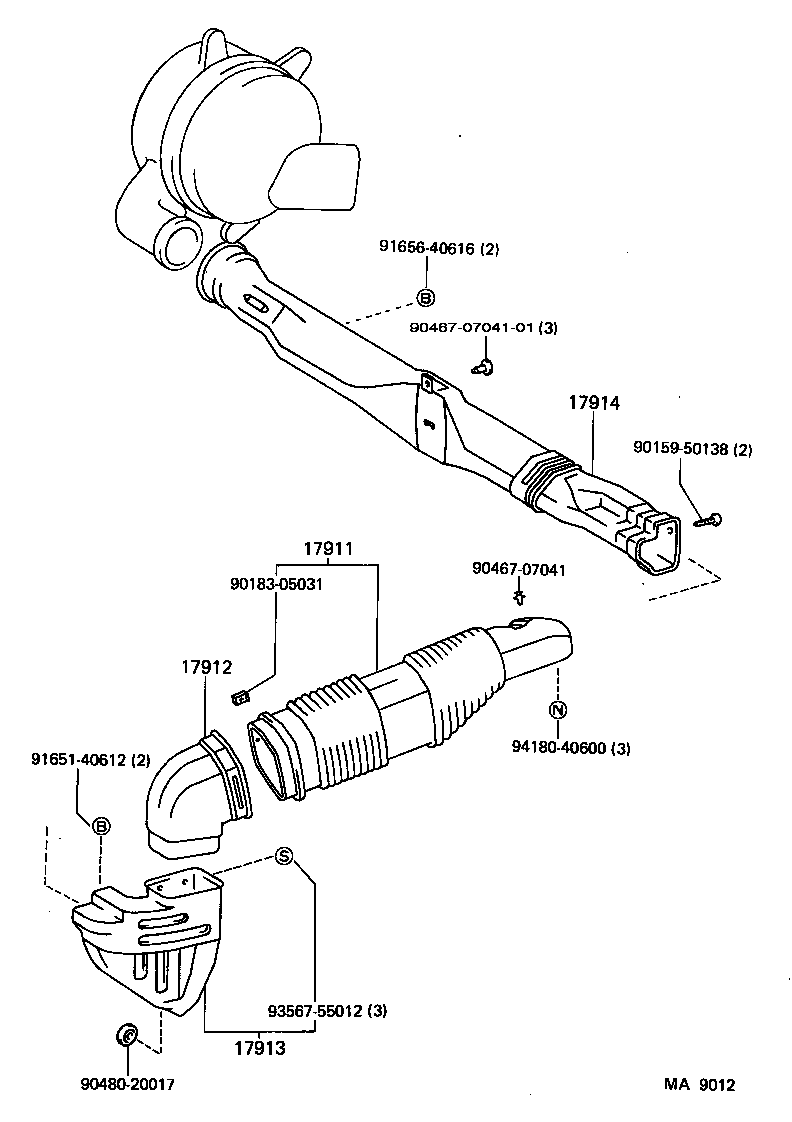

Figure MA7418A MA7418A 1984-11 → 1986-08 Figure MA8092 MA8092 1985-11 → 1986-08 Figure MA9021D MA9021D 1986-08 → — Figure MA9012 MA9012 1986-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806A Grommet, Air Cleaner Pipe
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17897 Clamp, Hose(FOR AIR CLEANER)
17911 Duct, Cool Air Intake, NO.1
17911D Bracket, Cool Air Intake Hose, NO.1
17912 Duct, Cool Air Intake, NO.2
17913 Duct, Cool Air Intake, NO.3
17914 Duct, Cool Air Intake, NO.4
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
