Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 2 illustrations

Illustrations

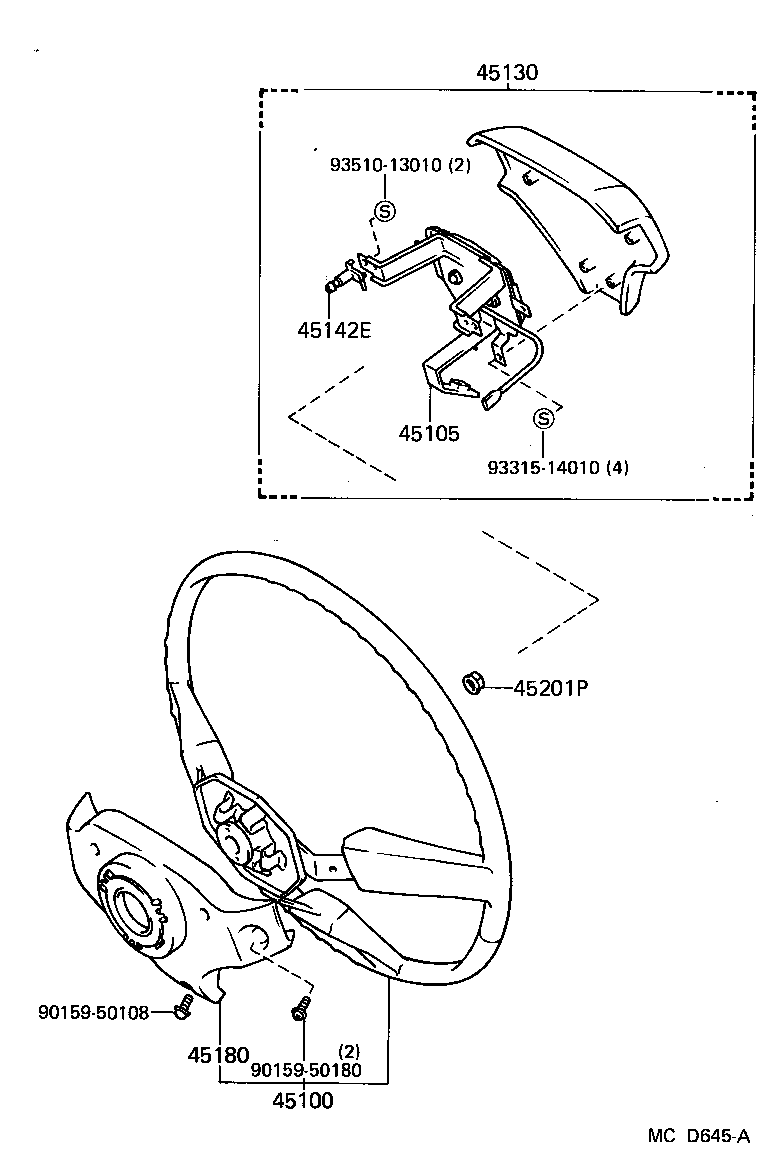

Figure MC9751D MC9751D 1984-11 → 1986-08 Figure MCD645A MCD645A 1986-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45155A Spacer, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
