Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

32 part groups · 6 illustrations

Illustrations

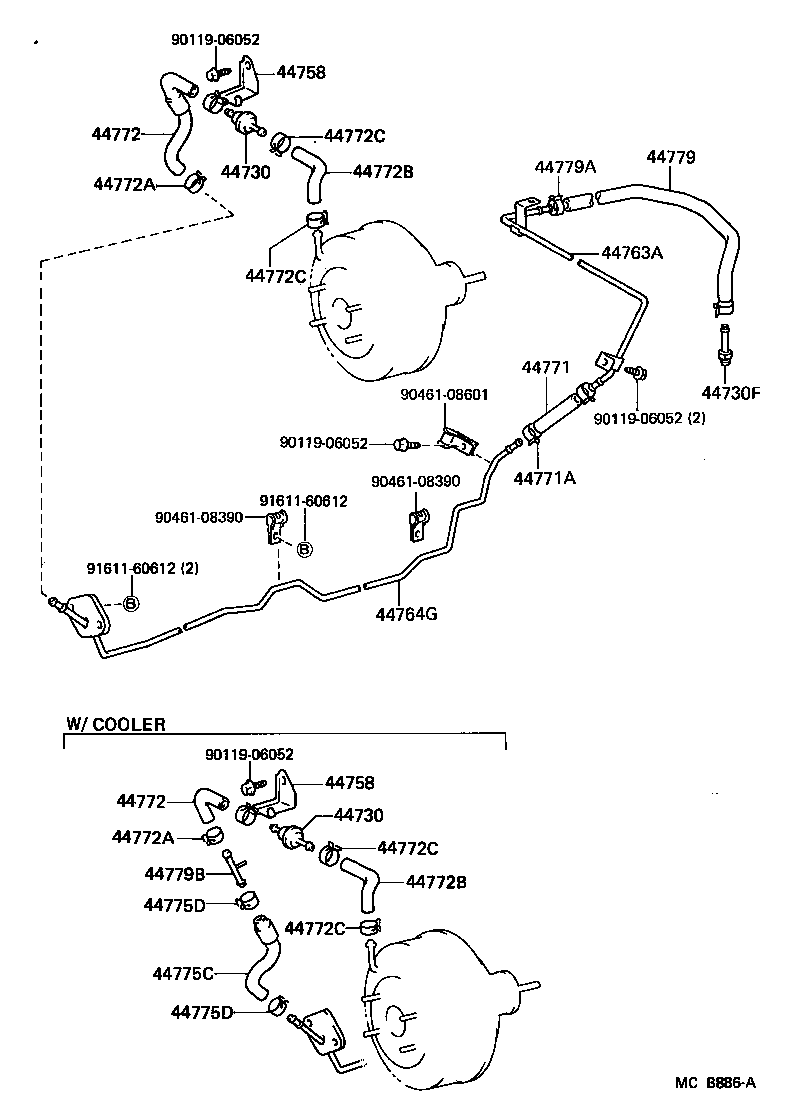

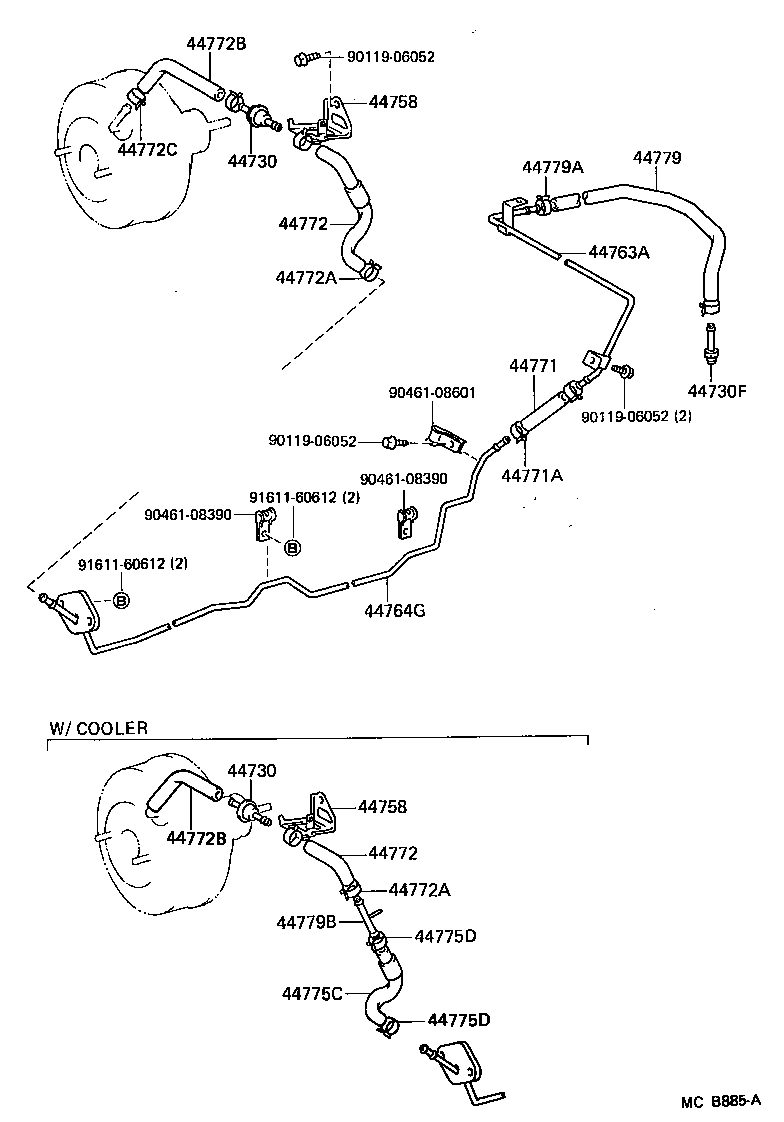

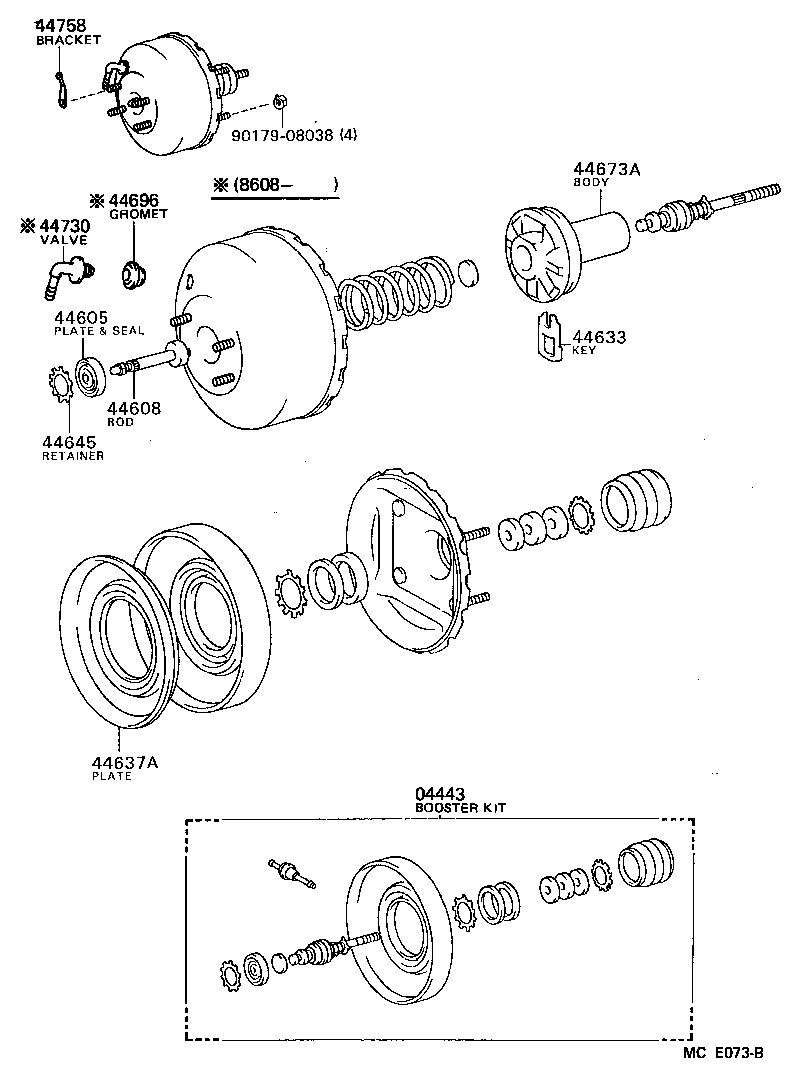

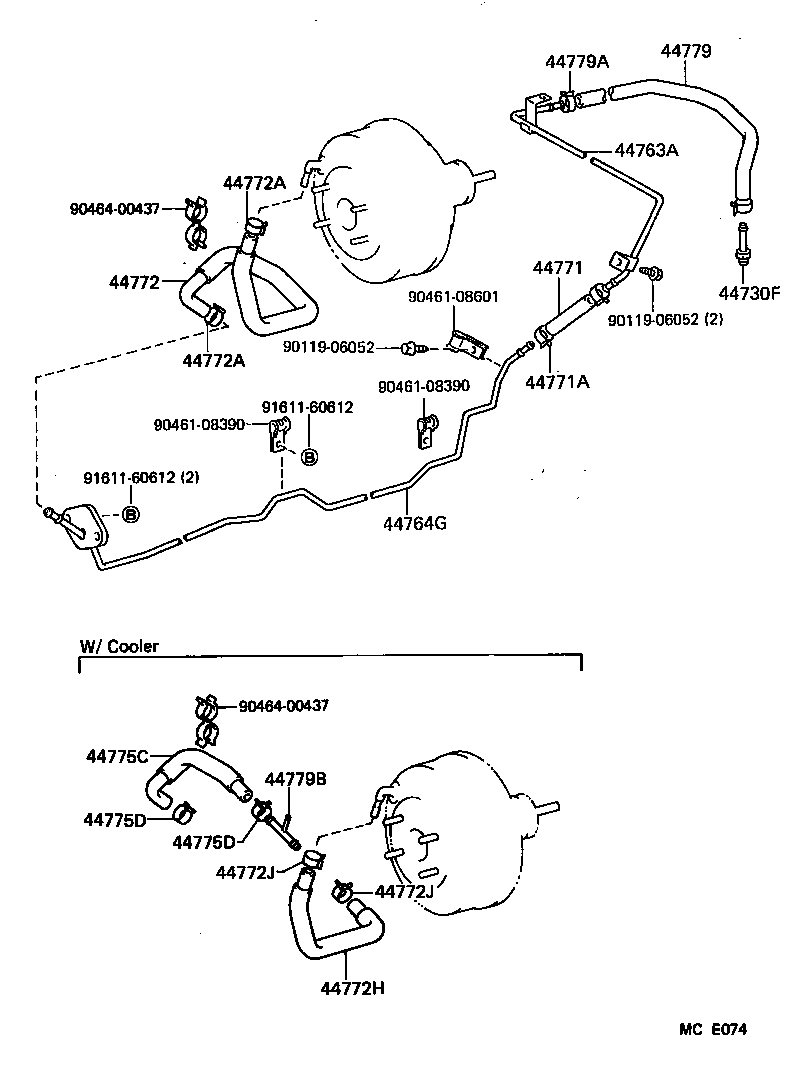

Figure MCE072B MCE072B 1984-11 → — Figure MCE073B MCE073B 1984-11 → 1986-08 Figure MCE073B MCE073B 1986-08 → — Figure MCB885A MCB885A 1984-11 → — Figure MCB886A MCB886A 1984-11 → 1986-08 Figure MCE074 MCE074 1986-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44645 Retainer, Booster Push Rod Seal
44663 Key, Valve Stopper
44673A Body, Booster Valve
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44731 Bracket, Brake Booster, Front
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44764G Tube, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44772H Hose, Check Valve TO 3 Way
44772J Way, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
44775C Hose, Connector TO Way
44775D Clamp(FOR CONNECTOR TO WAY HOSE)
44779 Hose, Union TO Connector
44779A Clip(FOR UNION TO CONNECTOR HOSE)
44779B Way(FOR UNION TO CONNECTOR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
