Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

32 part groups · 3 illustrations

Illustrations

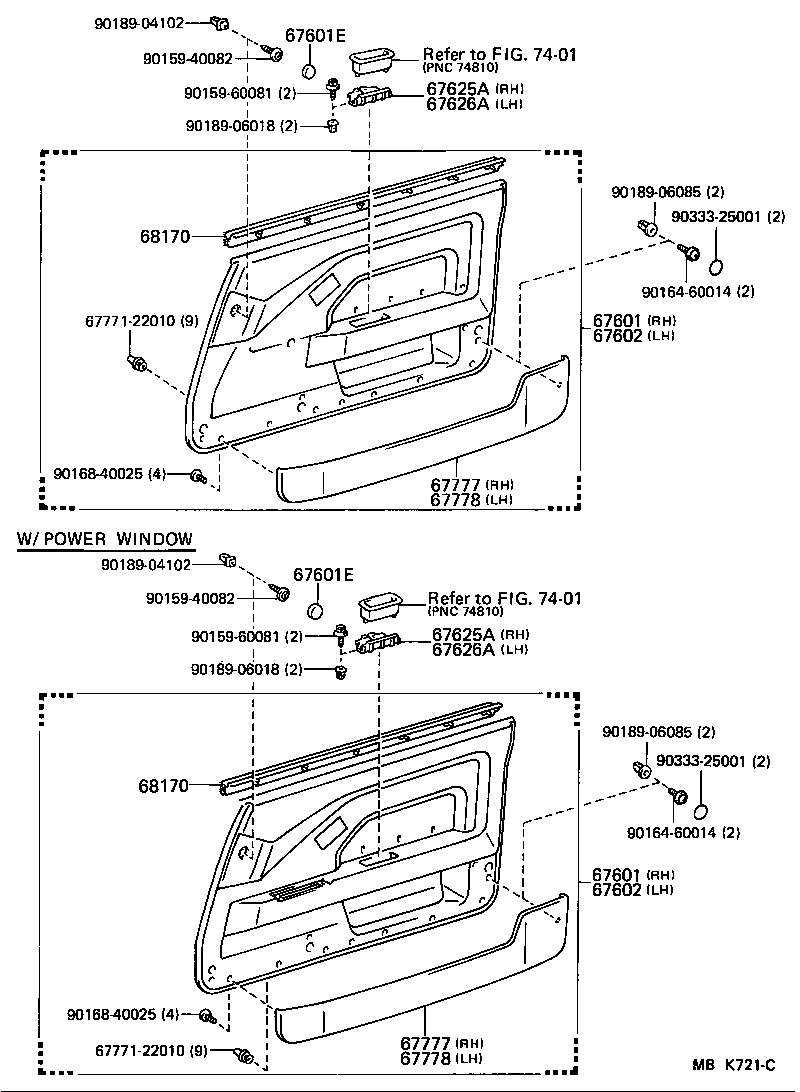

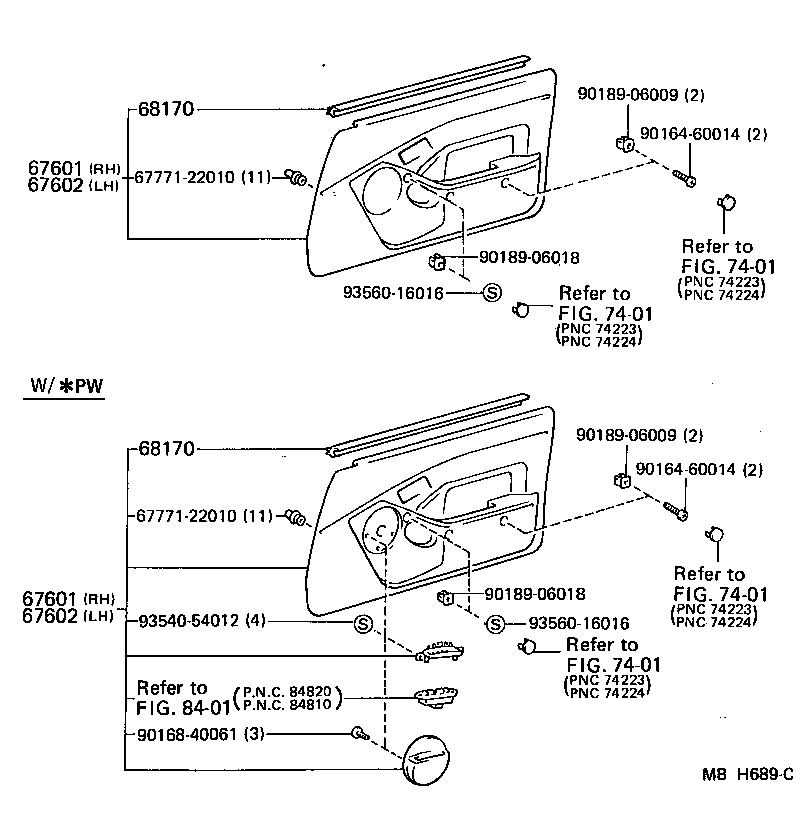

Figure MBH688F MBH688F 1984-11 → — Figure MBH689C MBH689C 1984-11 → 1986-08 Figure MBK721C MBK721C 1986-08 → —

Part groups

PNCDescription
61824 Plate, Noise Control, NO.1
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67513 Bracket, Front Door Mirror, RH
67514 Bracket, Front Door Mirror, LH
67601 Board Sub-assy, Front Door Trim, RH
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67626A Bracket, Door Trim, NO.2
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67811 Pad, Front Door Silencer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837A Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67855B Protector, Front Door Panel, RH
67856B Protector, Front Door Panel, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
67868A Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
