Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 7 illustrations

Illustrations

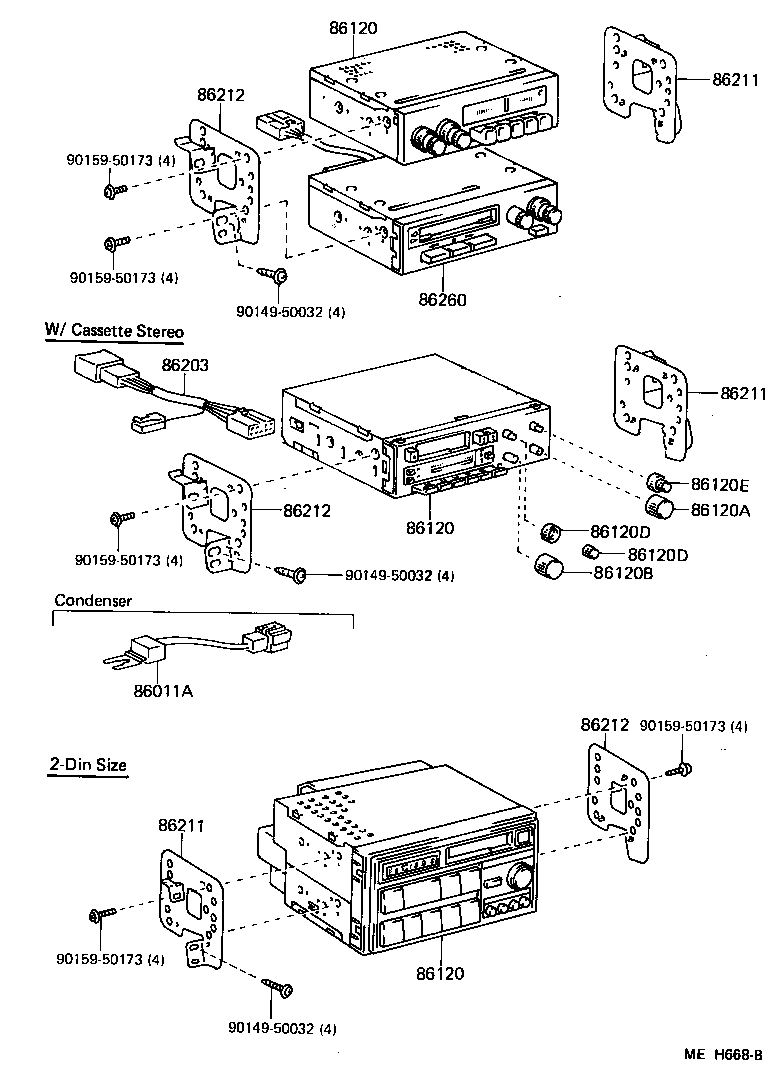

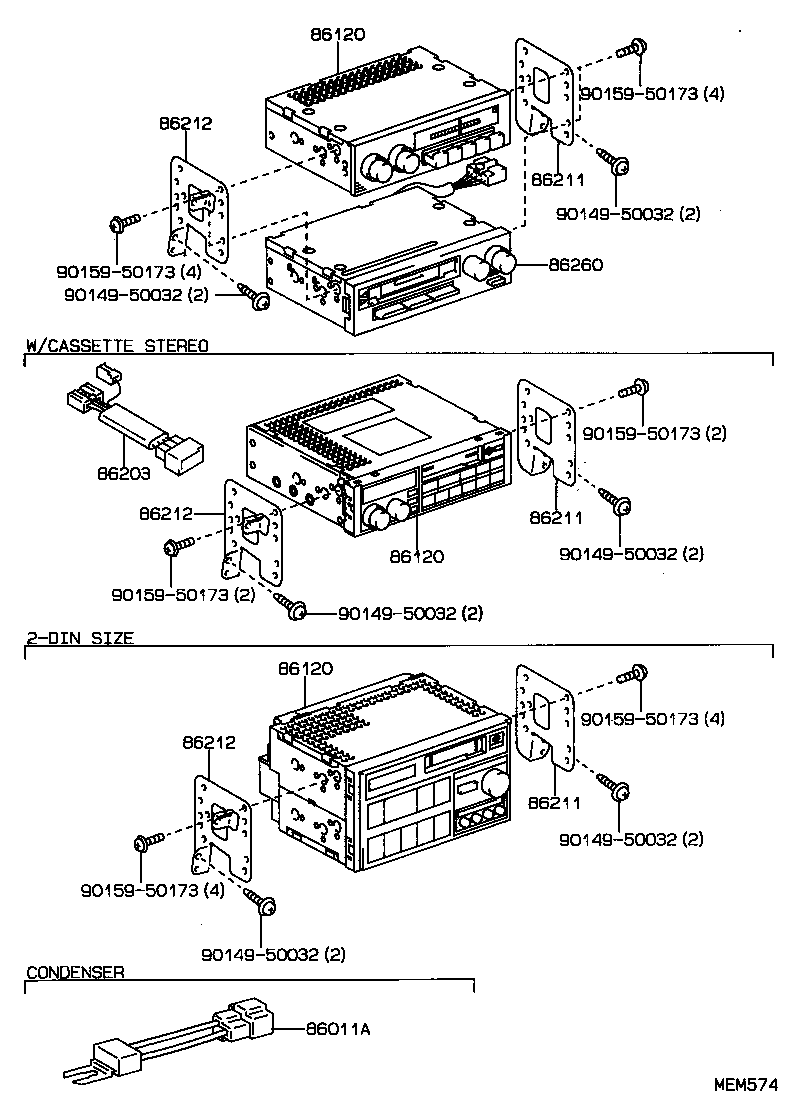

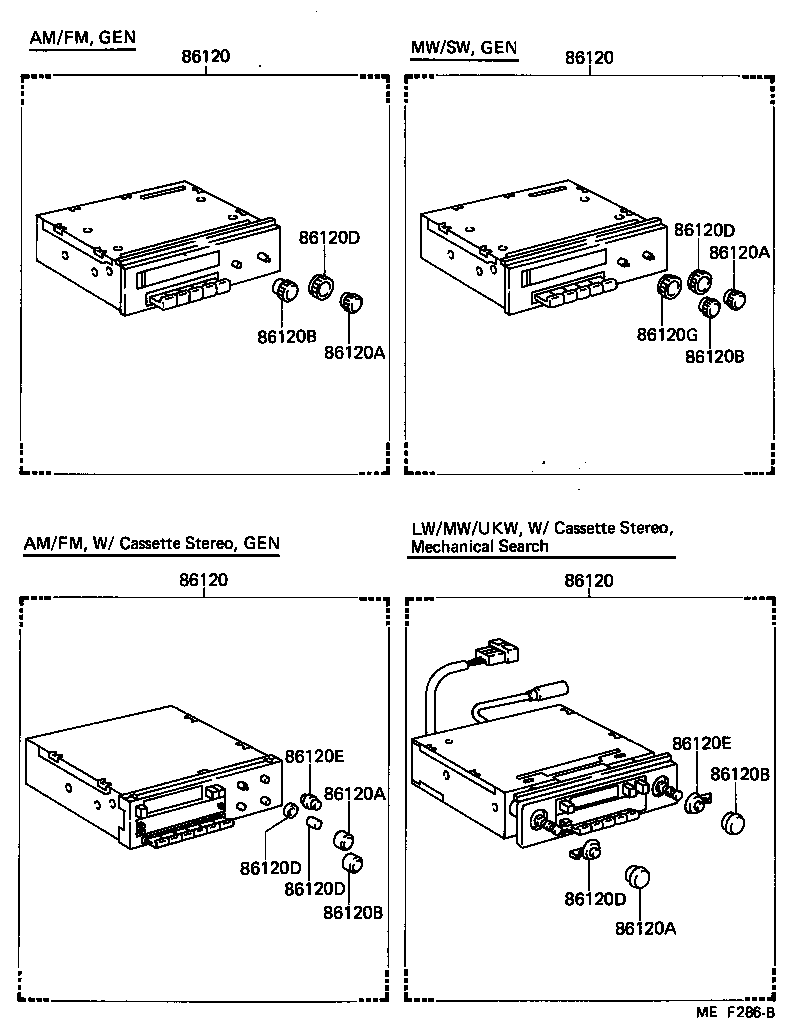

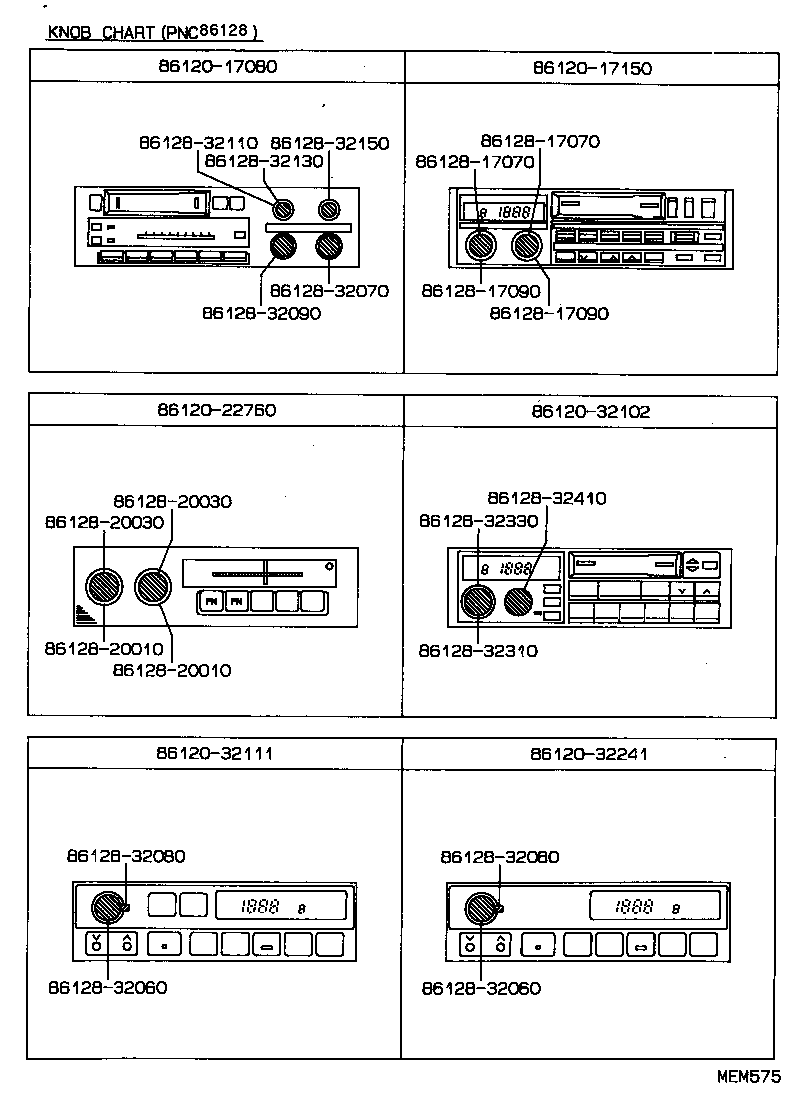

Figure MEF281A MEF281A 1984-11 → 1986-08 Figure MEH102A MEH102A 1984-11 → 1986-08 Figure MEF286B MEF286B 1984-11 → 1986-08 Figure MEH668B MEH668B 1986-08 → 1988-03 Figure MEM574 MEM574 1988-03 → — Figure MEM575 MEM575 1988-03 → — Figure MEM576 MEM576 1988-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120D Knob, Radio Receiver Tone
86120E Knob, Radio Receiver Balance
86120G Knob, Radio Receiver Band
86128 Knob, Radio Receiver
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
