Toyota MR2

1984-11 → 1989-12 · chassis AW11 · catalogue 211210 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

11 part groups · 4 illustrations

Illustrations

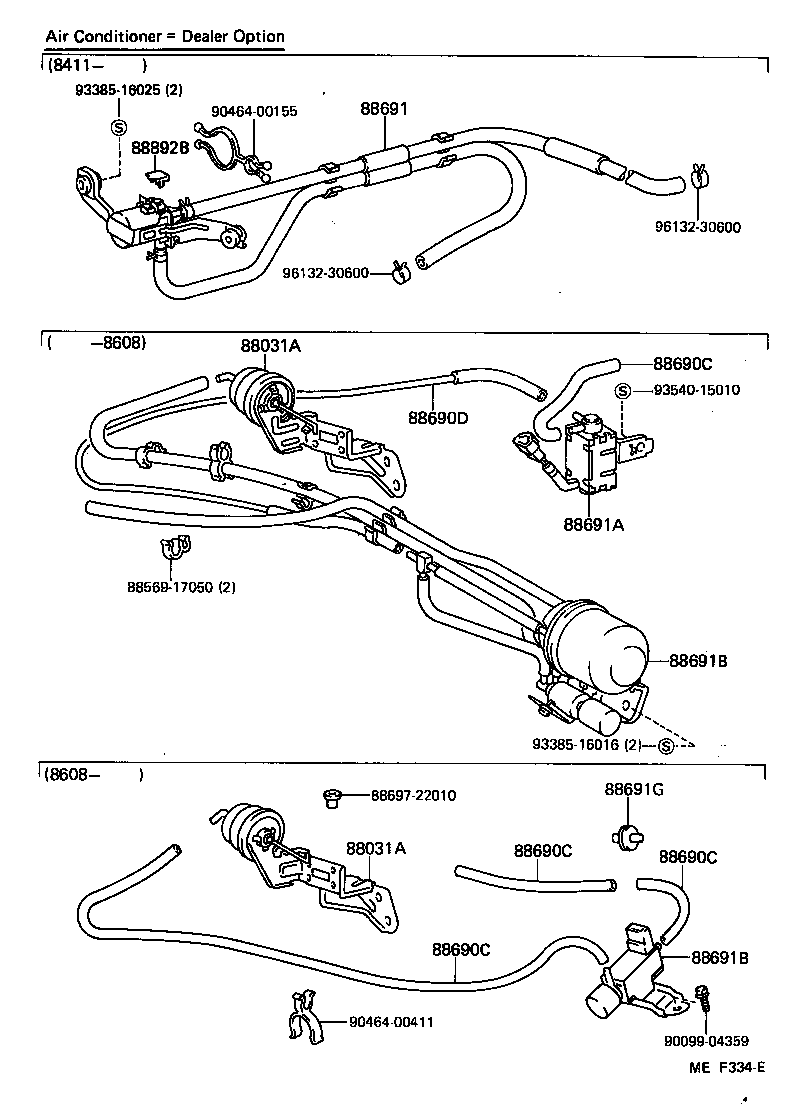

Figure MEF293C MEF293C 1984-11 → 1986-08 Figure MEH673C MEH673C 1986-08 → — Figure MEH096C MEH096C 1984-11 → — Figure MEF334E MEF334E 1984-11 → —

Part groups

PNCDescription
88031A Diaphragm Sub-assy, Idle-up Actuator
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88683B Tank, Vacuum
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691G Valve, Check(FOR IDLE-UP DIVICE)
88892B Cover, Magnet Valve
