Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 470753 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (3 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (1 parts) 47719A — PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) (1 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (2 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (2 parts) 47718A — PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) (1 parts) 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (2 parts) 47745A — SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) (2 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (3 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (2 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (1 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (1 parts) 47781A — BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) (1 parts) 47744A — SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) (2 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (2 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (2 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 47715B — BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) (1 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (3 parts) 47715A — PIN, FRONT DISC BRAKE CYLINDER SLIDE (3 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (1 parts) 47731 — PISTON, FRONT DISC BRAKE (1 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (1 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (1 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (1 parts) 47731 — PISTON, FRONT DISC BRAKE (1 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (2 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (2 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (1 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (1 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (4 parts)

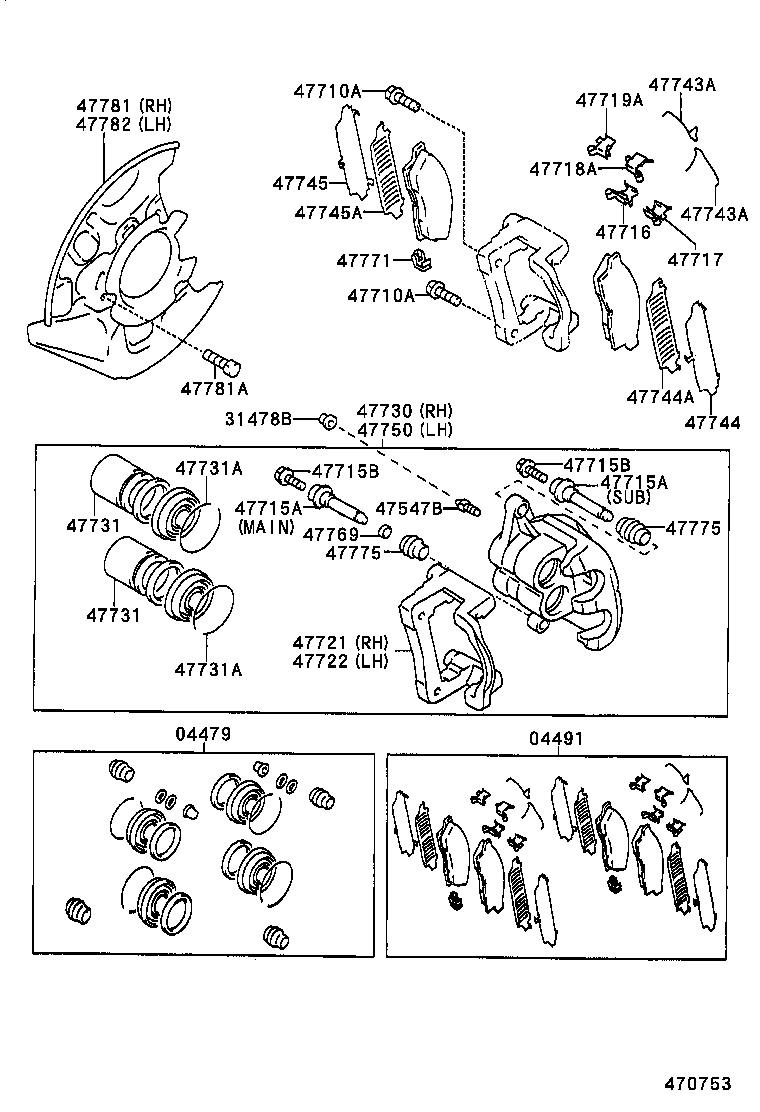

470753 · 35 callouts Full size ↗
47 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-17020 Cylinder Kit, Disc Brake, Front
1989-12 → 1999-08 ended
SW20 —
04491 — Pad Kit, Disc Brake, Front
04491-17110 Pad Kit, Disc Brake, Front
1989-12 → 1991-12 ended
SW20 G,W —
04491-17120 Pad Kit, Disc Brake, Front
1989-12 → 1991-12 ended
SW20 ARL —
04491-17160 Pad Kit, Disc Brake, Front
1991-12 → 1995-05 ended
SW20 ARL —
04491-17170 Pad Kit, Disc Brake, Front
1991-12 → 1995-05 ended
SW20 G,W —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1989-12 → 1999-08 ended
SW20 —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1989-12 → 1999-08 ended
SW20 —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90119-12040 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1989-12 → 1999-08 ended
SW20 —
47715A — Pin, Front Disc Brake Cylinder Slide
47715-50010 Pin, Front Disc Brake Cylinder Slide
1989-12 → 1992-08 ended
SW20 —
47715-50010 note Pin, Front Disc Brake Cylinder Slide
1992-08 → 1999-08 ended
SW20 —
47715-50030 note Pin, Front Disc Brake Cylinder Slide
1992-08 → 1999-08 ended
SW20 —
47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164 Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
1989-12 → 1999-08 ended
SW20 —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-17020 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47716-33010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47716-17020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47716-33020 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47718A — Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
47717-33010 Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
1991-12 → —
SW20 —
47719A — Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
47717-33020 Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
1991-12 → —
SW20 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-17040 Mounting, Front Disc Brake Cylinder, RH
1989-12 → 1991-12 ended
SW20 —
47721-17050 Mounting, Front Disc Brake Cylinder, RH
1991-12 → 1999-08 ended
SW20 —
47722 — Mounting, Front Disc Brake Cylinder, LH
47722-17010 Mounting, Front Disc Brake Cylinder, LH
1989-12 → 1991-12 ended
SW20 —
47722-17020 Mounting, Front Disc Brake Cylinder, LH
1991-12 → 1999-08 ended
SW20 —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-17090 Cylinder Assy, Front Disc Brake, RH
1989-12 → 1991-12 ended
SW20 —
47730-17140 Cylinder Assy, Front Disc Brake, RH
1991-12 → 1999-08 ended
SW20 —
47731 — Piston, Front Disc Brake
47731-17020 Piston, Front Disc Brake
1989-12 → 1999-08 ended
SW20 —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90522-43003 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1989-12 → 1999-08 ended
SW20 —
47743A — Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47743-17010 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1989-12 → 1990-10 ended
SW20 —
47743-17020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47743-32030 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1990-10 → 1991-12 ended
SW20 —
47744 — Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47745-12060 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47745-17030 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47744A — Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
47742-12030 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47742-17020 Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47745 — Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745-12060 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47745-17030 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47745A — Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47742-12030 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1991-12 → 1999-08 ended
SW20 —
47742-17020 Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
1989-12 → 1991-12 ended
SW20 —
47750 — Cylinder Assy, Disc Brake, LH
47750-17090 Cylinder Assy, Disc Brake, LH
1989-12 → 1991-12 ended
SW20 —
47750-17140 Cylinder Assy, Disc Brake, LH
1991-12 → 1999-08 ended
SW20 —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1989-12 → 1999-08 ended
SW20 —
47771 — Plate, Pad Wear Indicator, NO.1
47771-50010 Plate, Pad Wear Indicator, NO.1
1989-12 → 1999-08 ended
SW20 —
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-50010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1989-12 → 1999-08 ended
SW20 —
47781 — Cover, Disc Brake Dust, Front RH
47703-17020 Cover, Disc Brake Dust, Front RH
1991-12 → —
SW20 —
47781-17030 Cover, Disc Brake Dust, Front RH
1989-12 → 1991-12 ended
SW20 —
47781A — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227 Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
1989-12 → —
SW20 —
47782 — Cover, Disc Brake Dust, Front LH
47704-17020 Cover, Disc Brake Dust, Front LH
1991-12 → —
SW20 —
47782-17010 Cover, Disc Brake Dust, Front LH
1989-12 → 1991-12 ended
SW20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
