Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

20 part groups · 3 illustrations

Illustrations

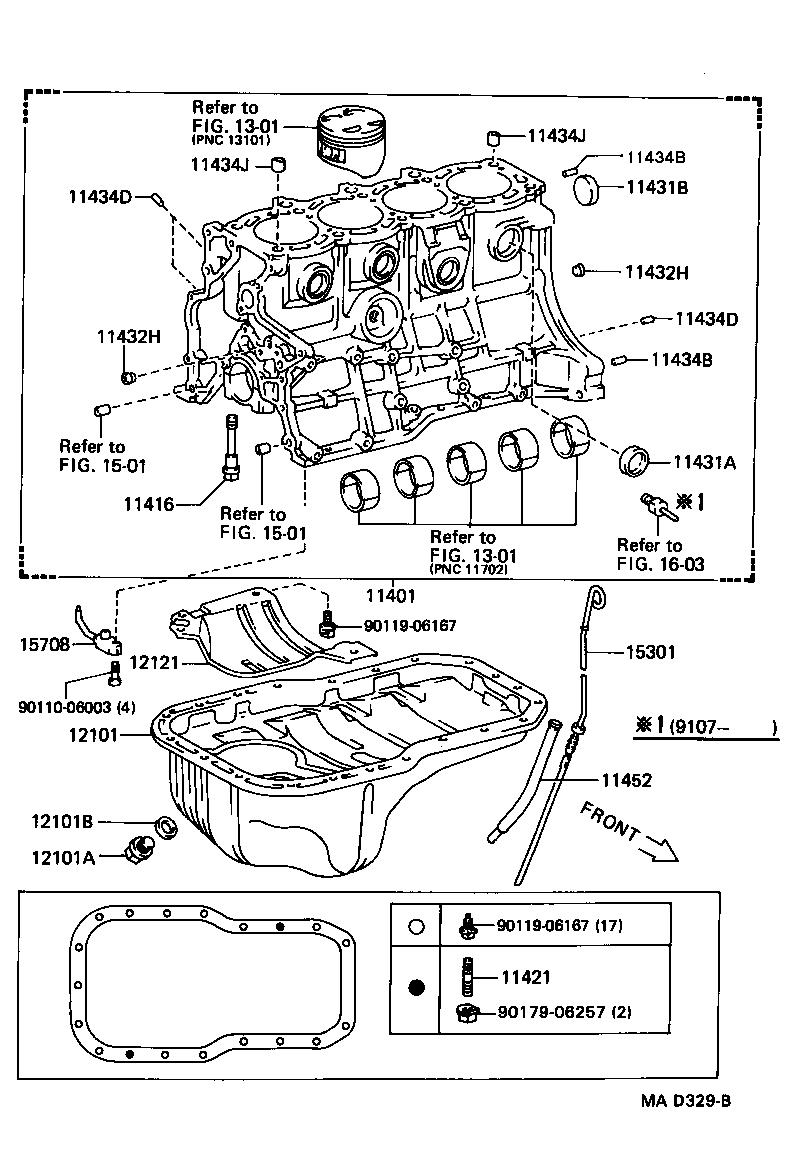

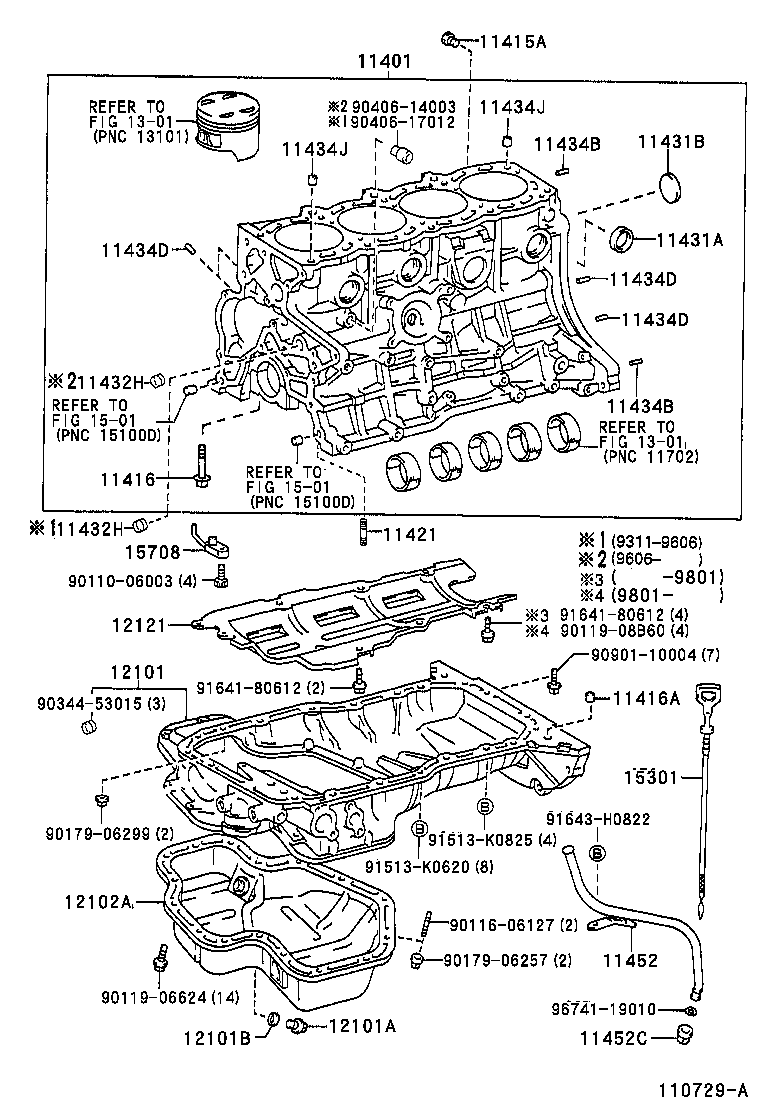

Figure MAD328C MAD328C 1989-12 → 1992-08 Figure MAD329B MAD329B 1989-12 → 1993-11 Figure 110729A 110729A 1993-11 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432H Plug, W/Head Taper Screw, NO.5
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11452 Guide, Oil Level Gage
11452C Union(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
