Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe
Discontinued model
Data version 2000-03

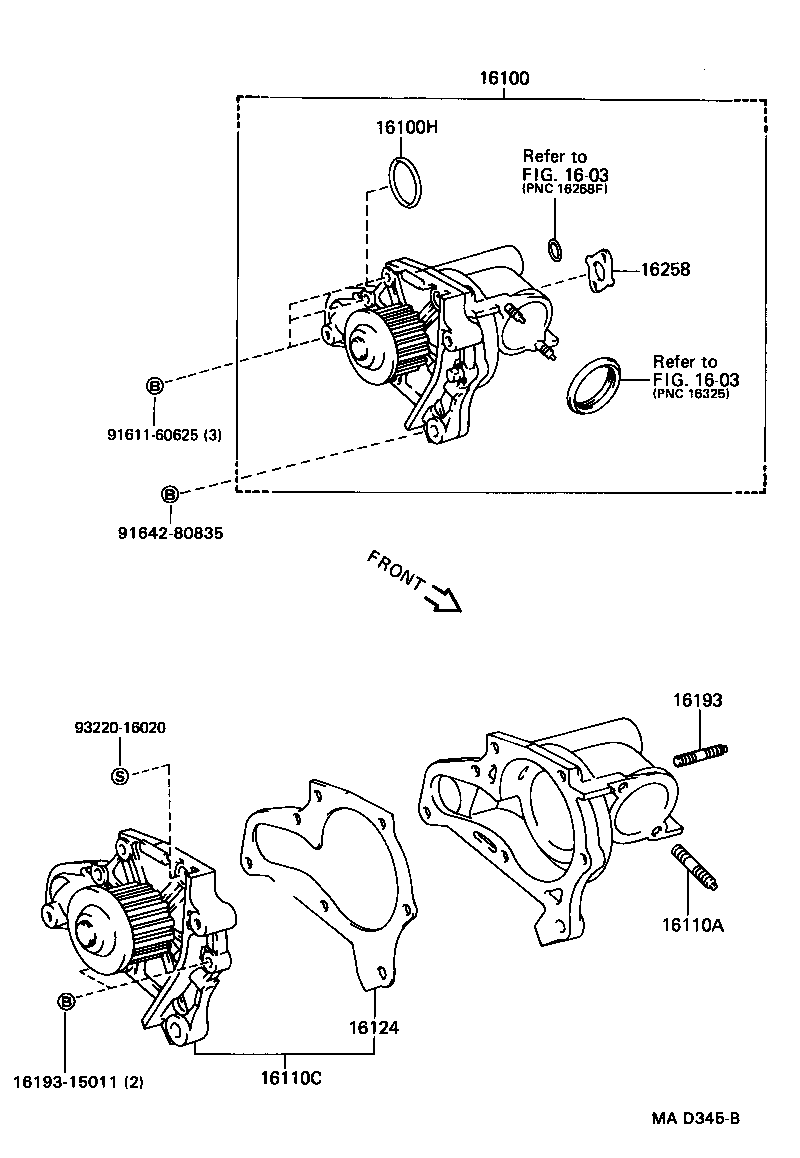

Water Pump
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16110A | Bolt, Stud(FOR WATER OUTLET SETTING) |
| 16110C | Pump Assy, Water, W/O Cover |
| 16124 | Gasket, Water Pump Cover |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16258 | Gasket(FOR HEATER RETURN) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
