Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 5 illustrations

Illustrations

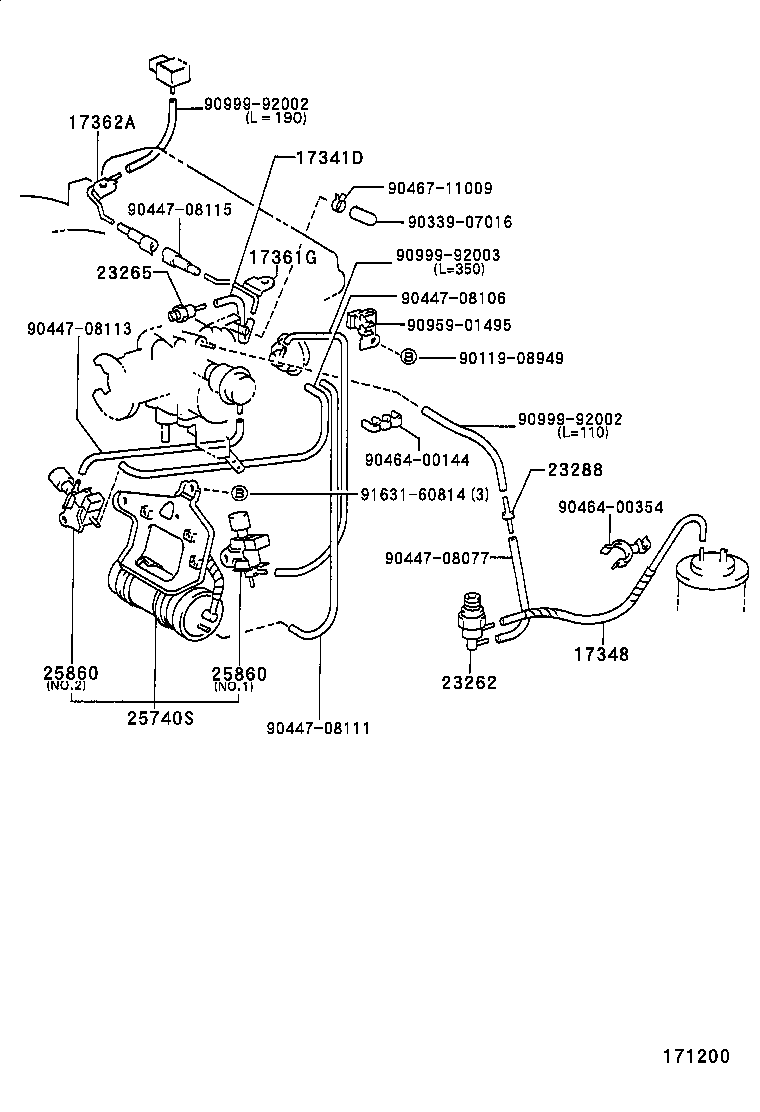

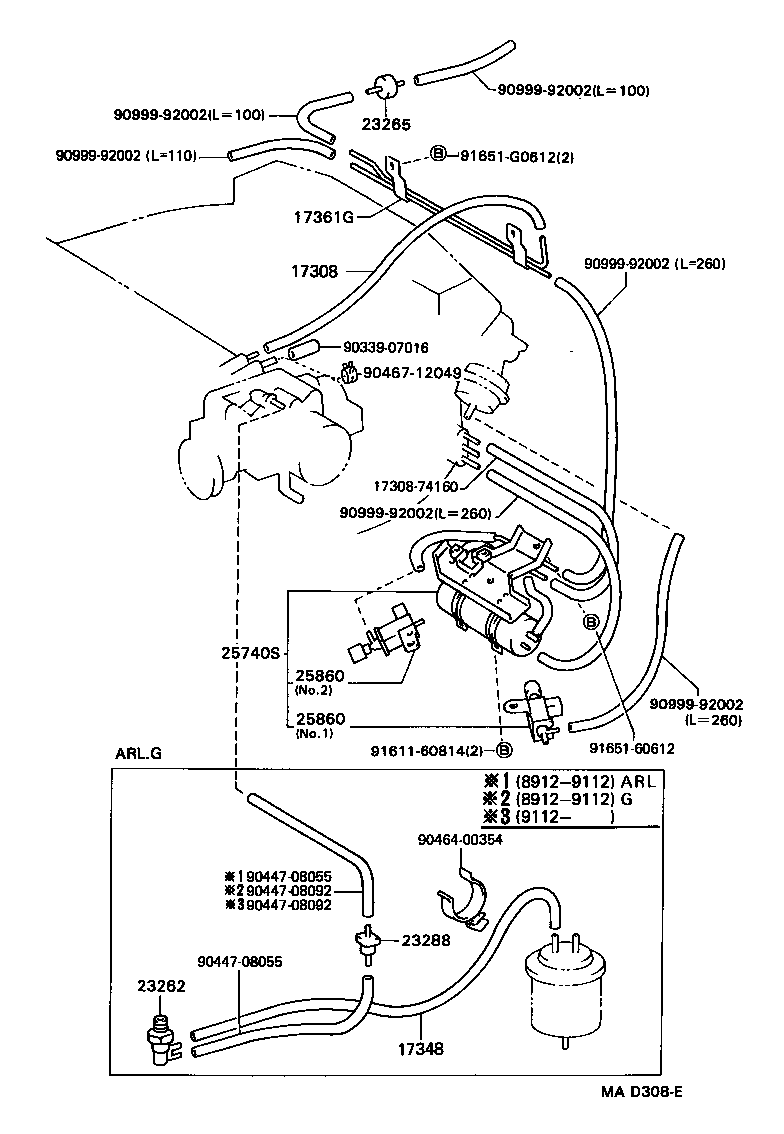

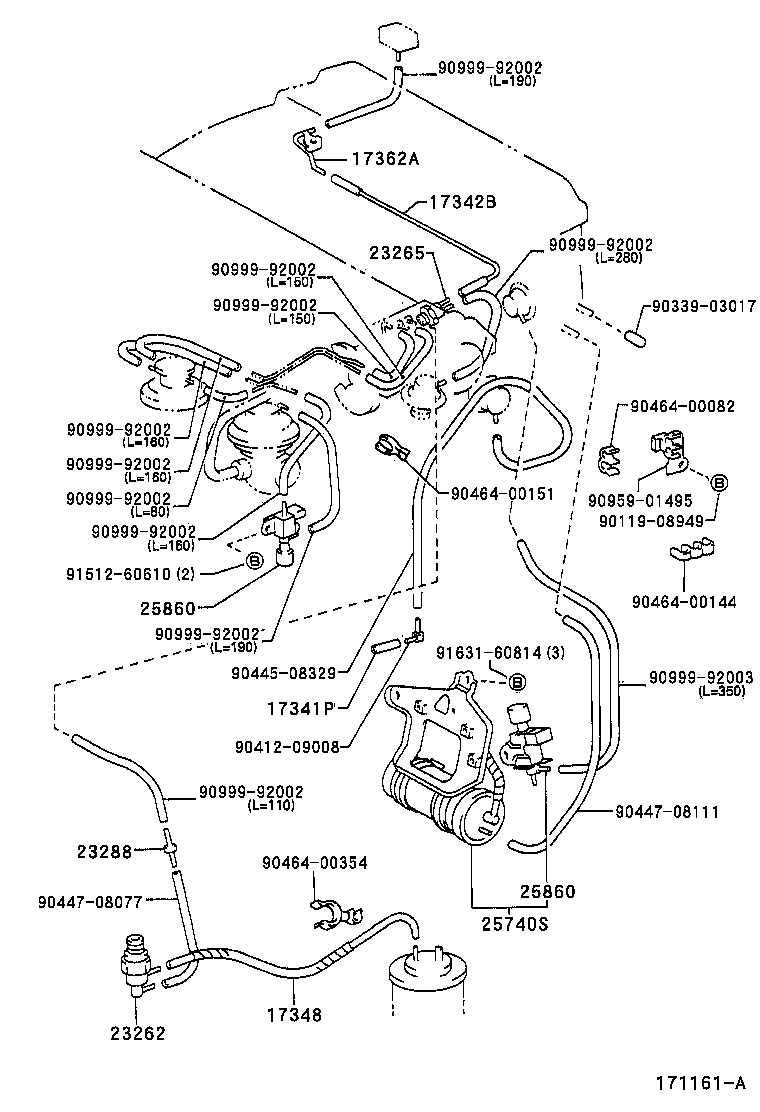

Figure 170021 170021 1989-12 → — Figure MAD312A MAD312A 1989-12 → 1992-08 Figure MAD308E MAD308E 1989-12 → 1993-11 Figure 171200 171200 1993-11 → 1996-06 Figure 171161A 171161A 1996-06 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17348 Hose, Air, NO.8
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23288 Jet, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
