Toyota MR2
1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe
Discontinued model
Data version 2000-03

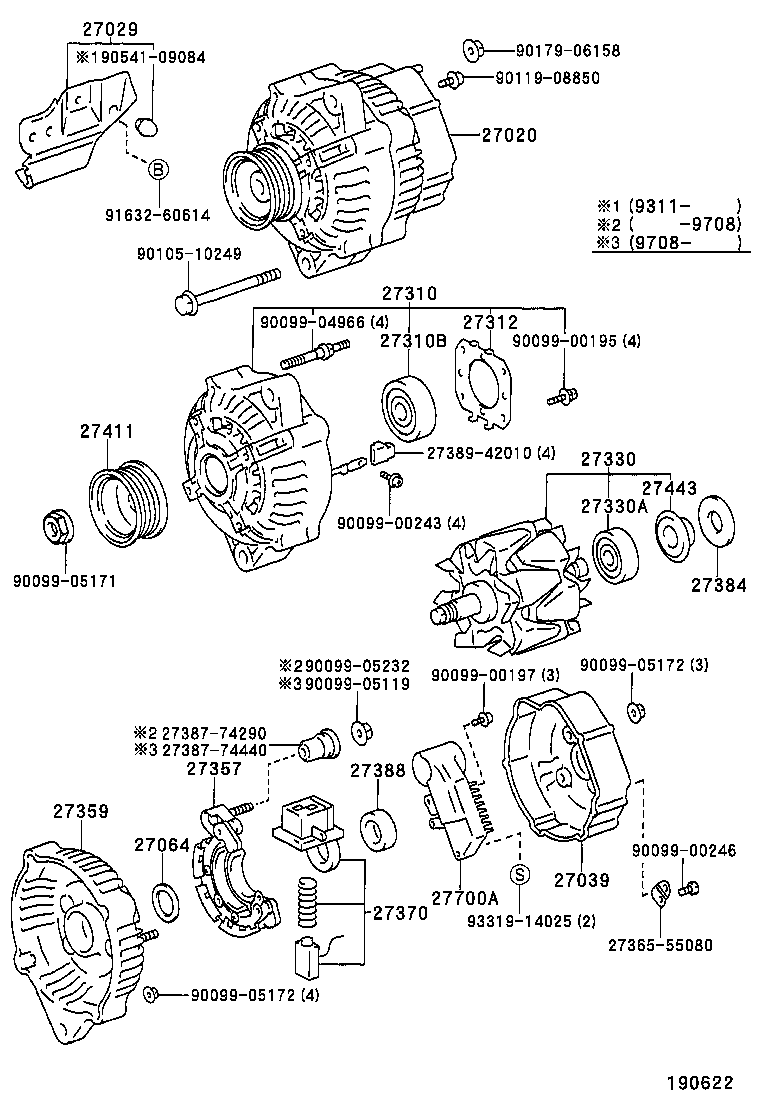

Alternator
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27029 | Cover, Alternator |
| 27039 | Cover, Alternator Rear End |
| 27064 | Seal, Alternator Plate |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27350B | Condenser, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27370 | Holder Assy, Alternator Brush |
| 27384 | Washer |
| 27388 | Cover, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
