Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 4 illustrations

Illustrations

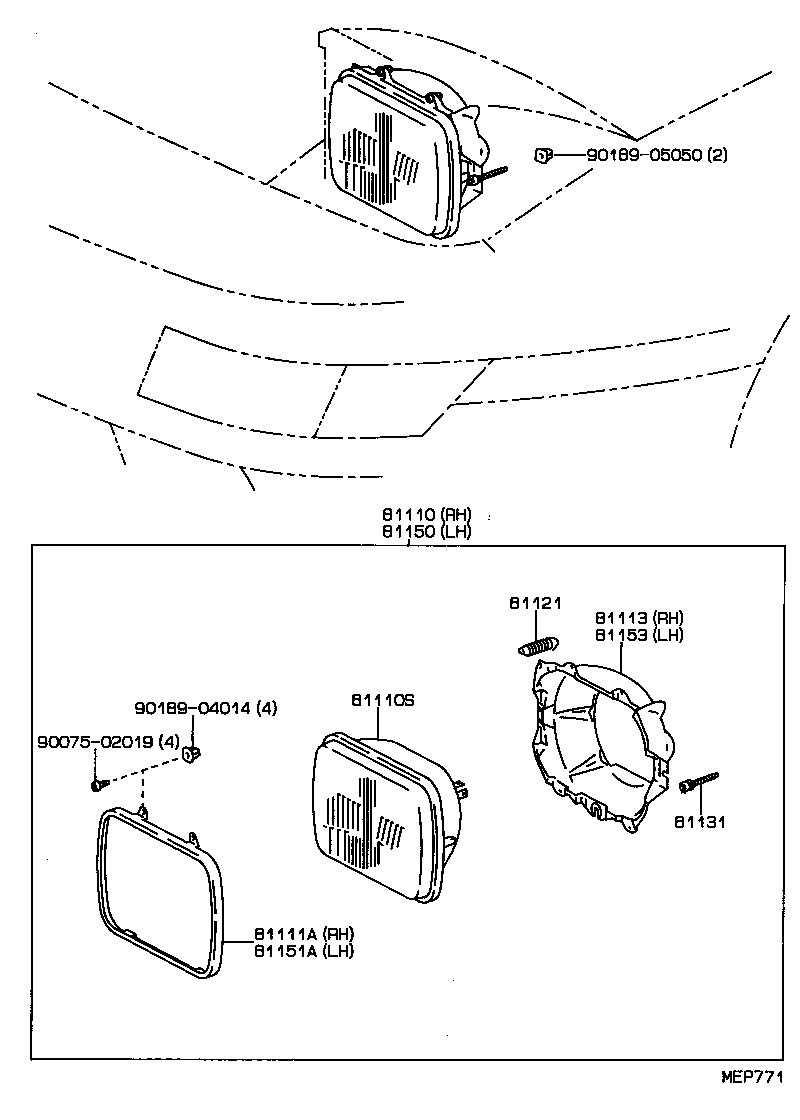

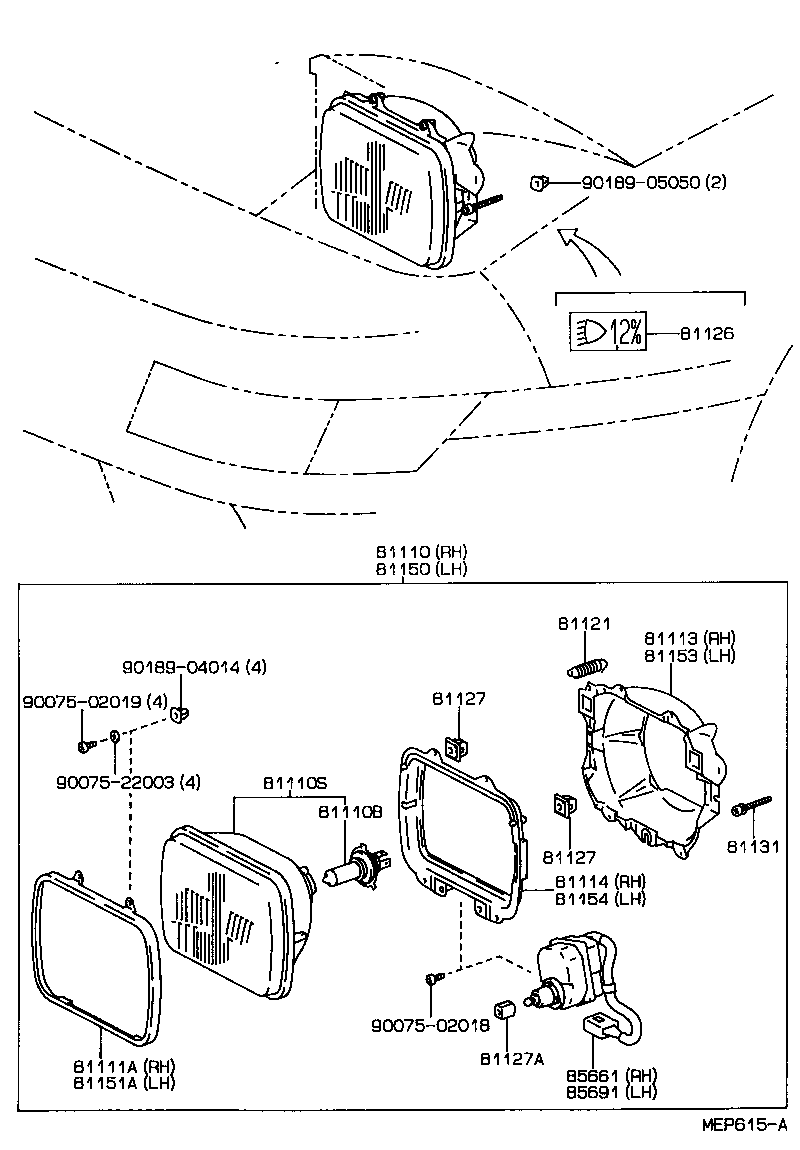

Figure MEP613A MEP613A 1989-12 → — Figure MEP613A MEP613A 1990-09 → — Figure MEP771 MEP771 1989-12 → 1990-09 Figure MEP615A MEP615A 1989-12 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81127 Bearing, Headlamp, NO.1
81127A Bearing, Headlamp, NO.2
81131 Screw, Headlamp Adjusting
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
85661 Motor, Headlamp Leveling, RH
85691 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
