Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 2 illustrations

Illustrations

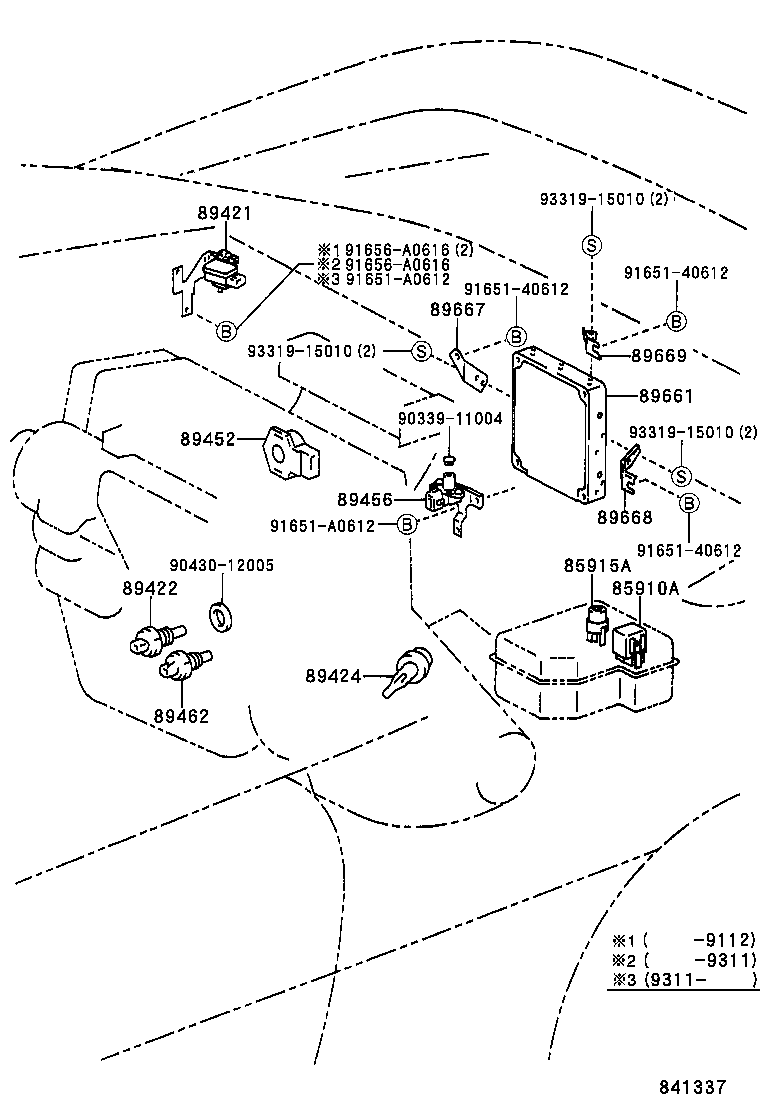

Figure MEP621A MEP621A 1989-12 → 1992-08 Figure 841337 841337 1989-12 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89456 Resistor, Variable
89462 Switch, Start Injector Time
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
