Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 3 illustrations

Illustrations

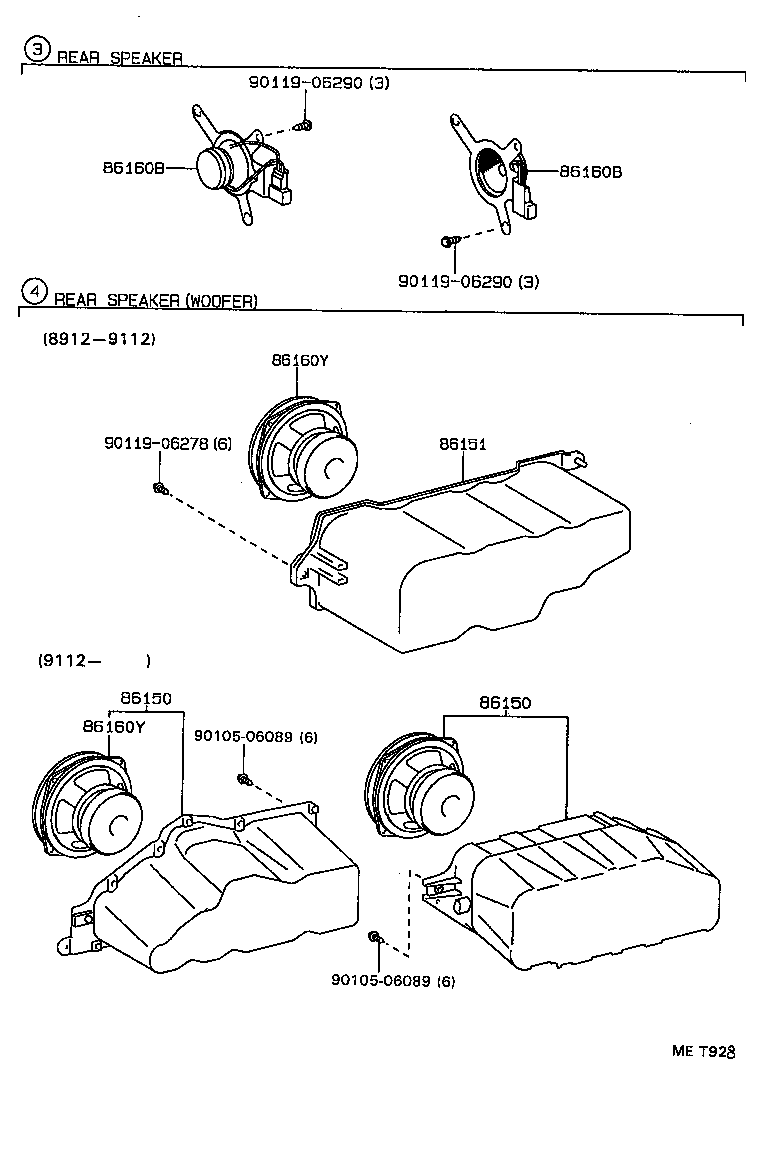

Figure 860476 860476 1989-12 → — Figure 860475 860475 1989-12 → — Figure MET928 MET928 1989-12 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86151 Box, Speaker
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
