Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

37 part groups · 16 illustrations

Illustrations

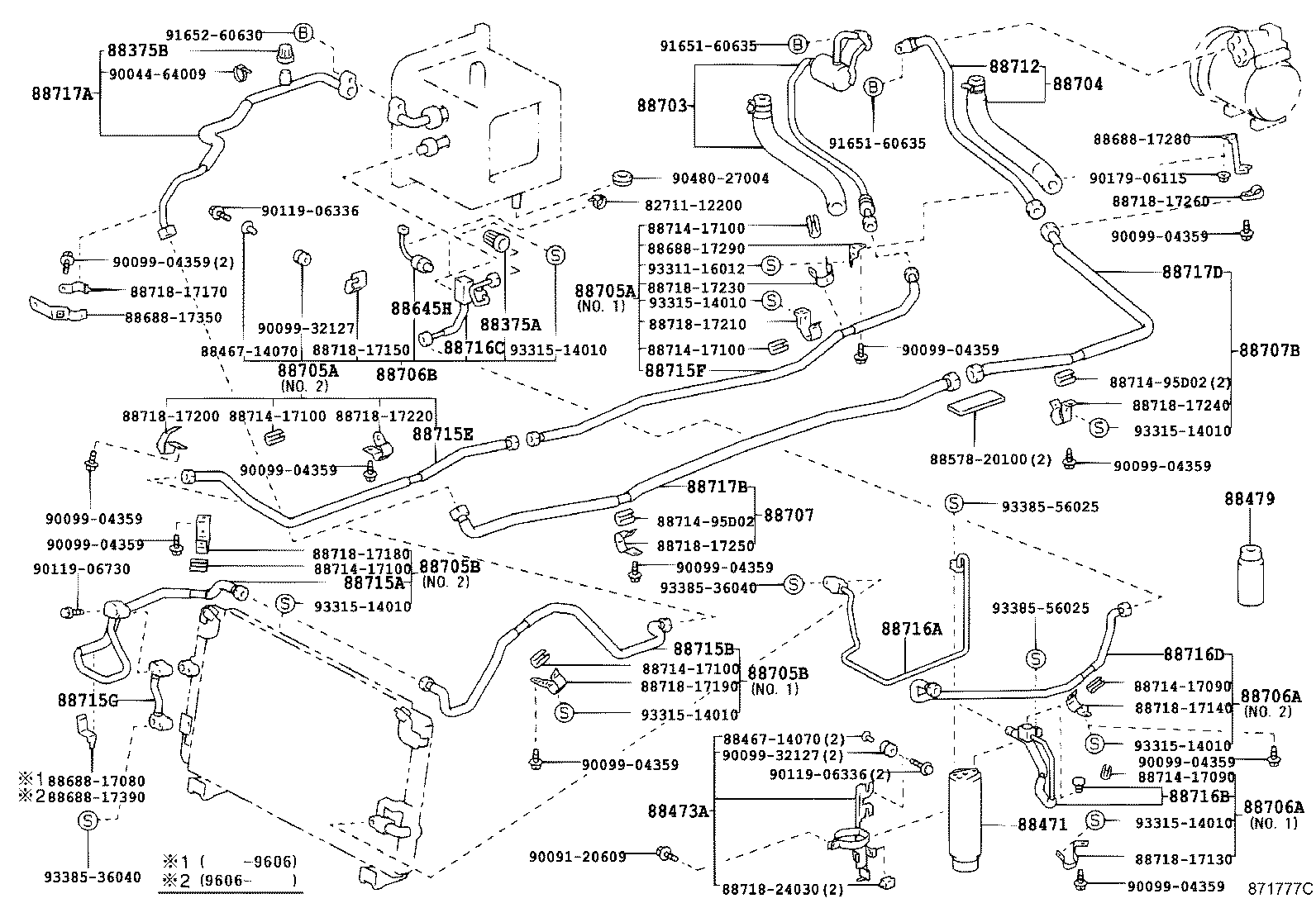

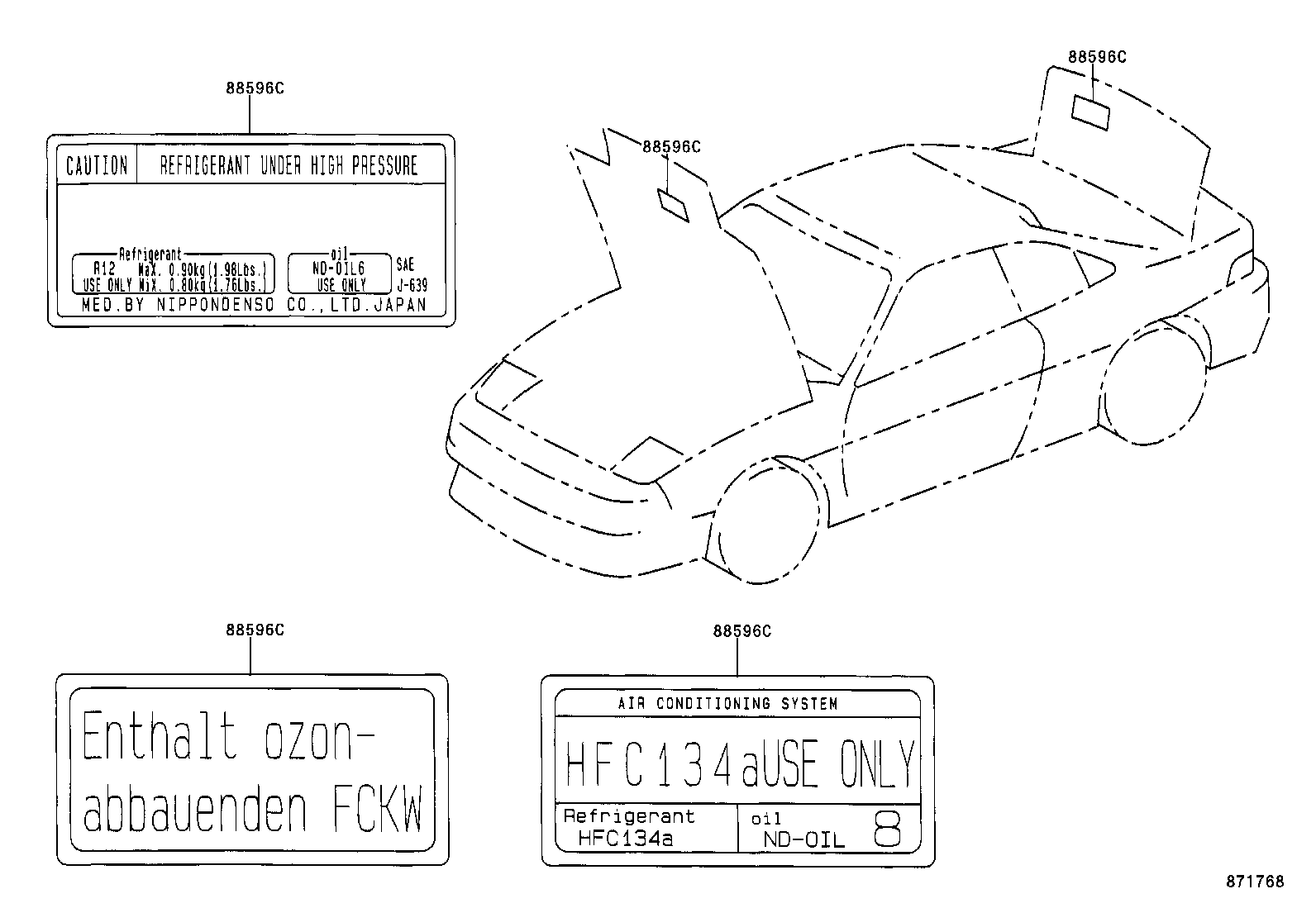

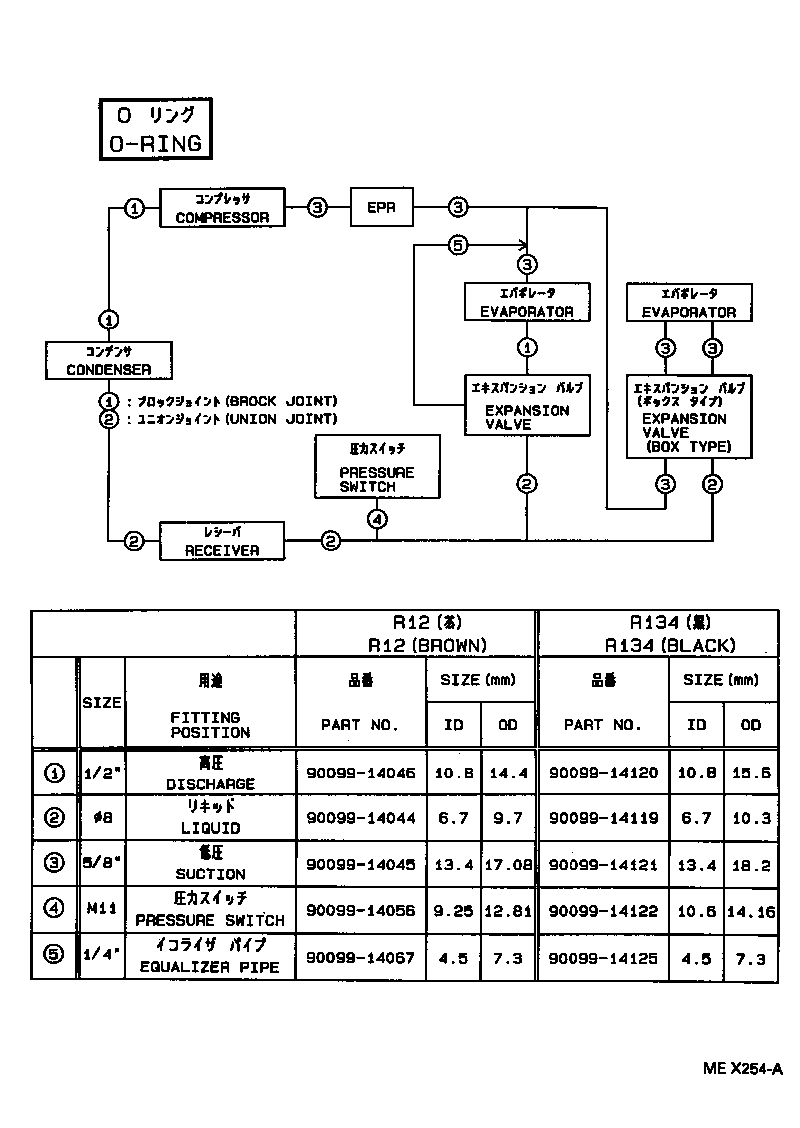

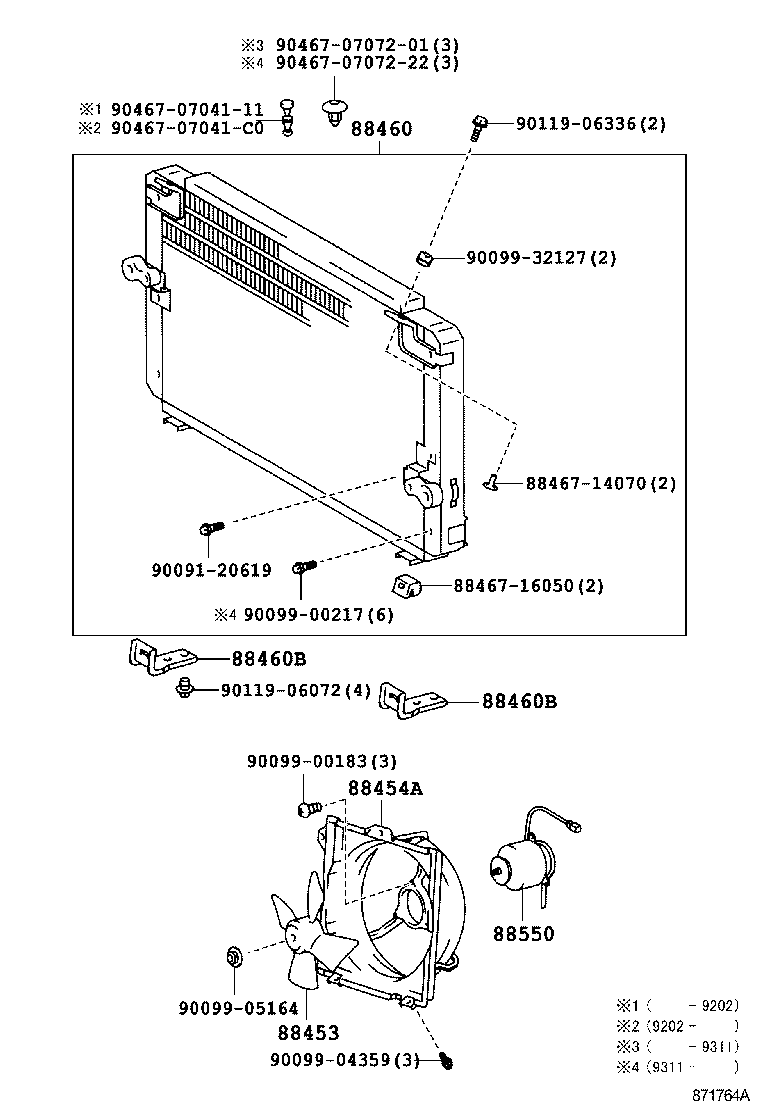

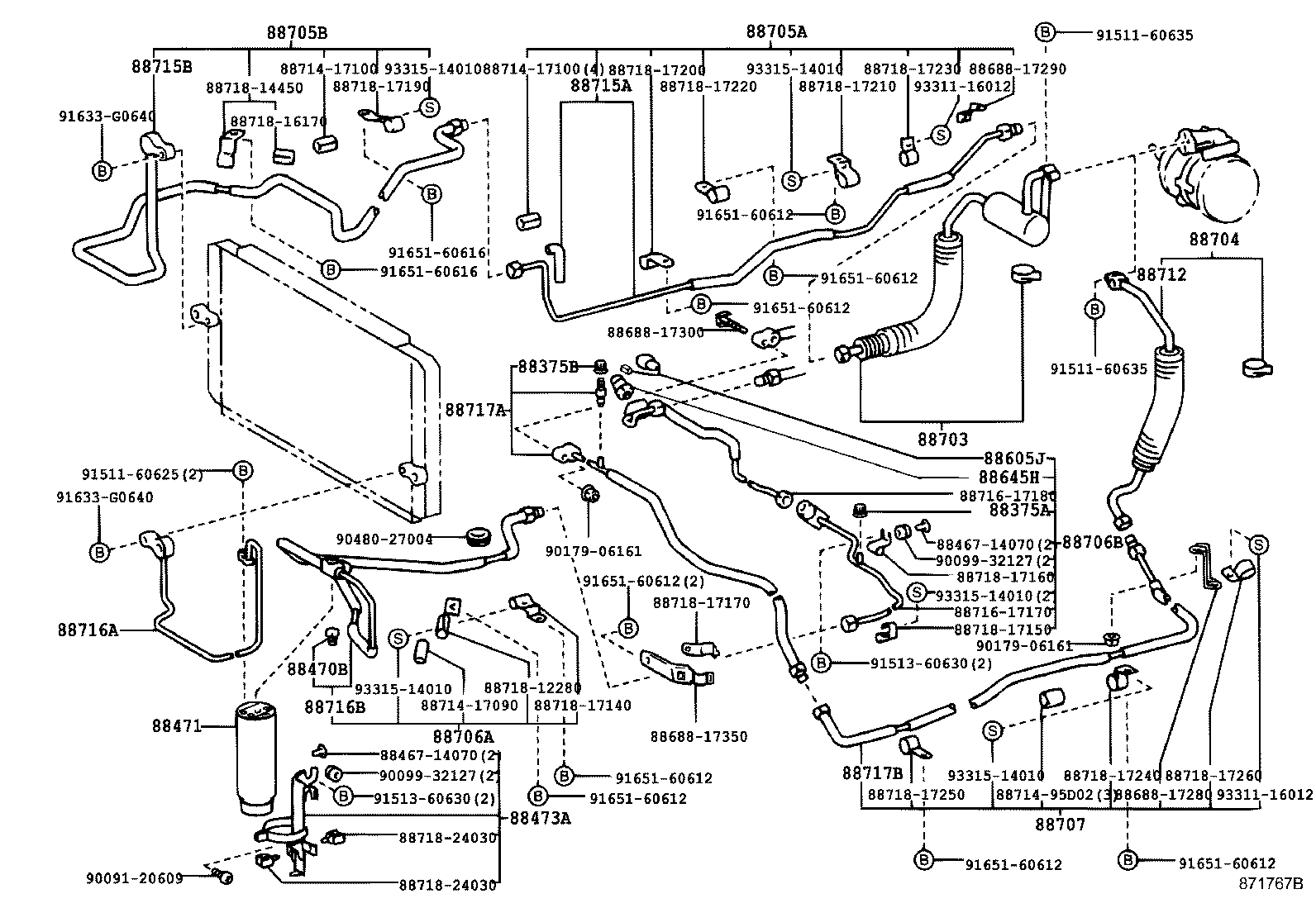

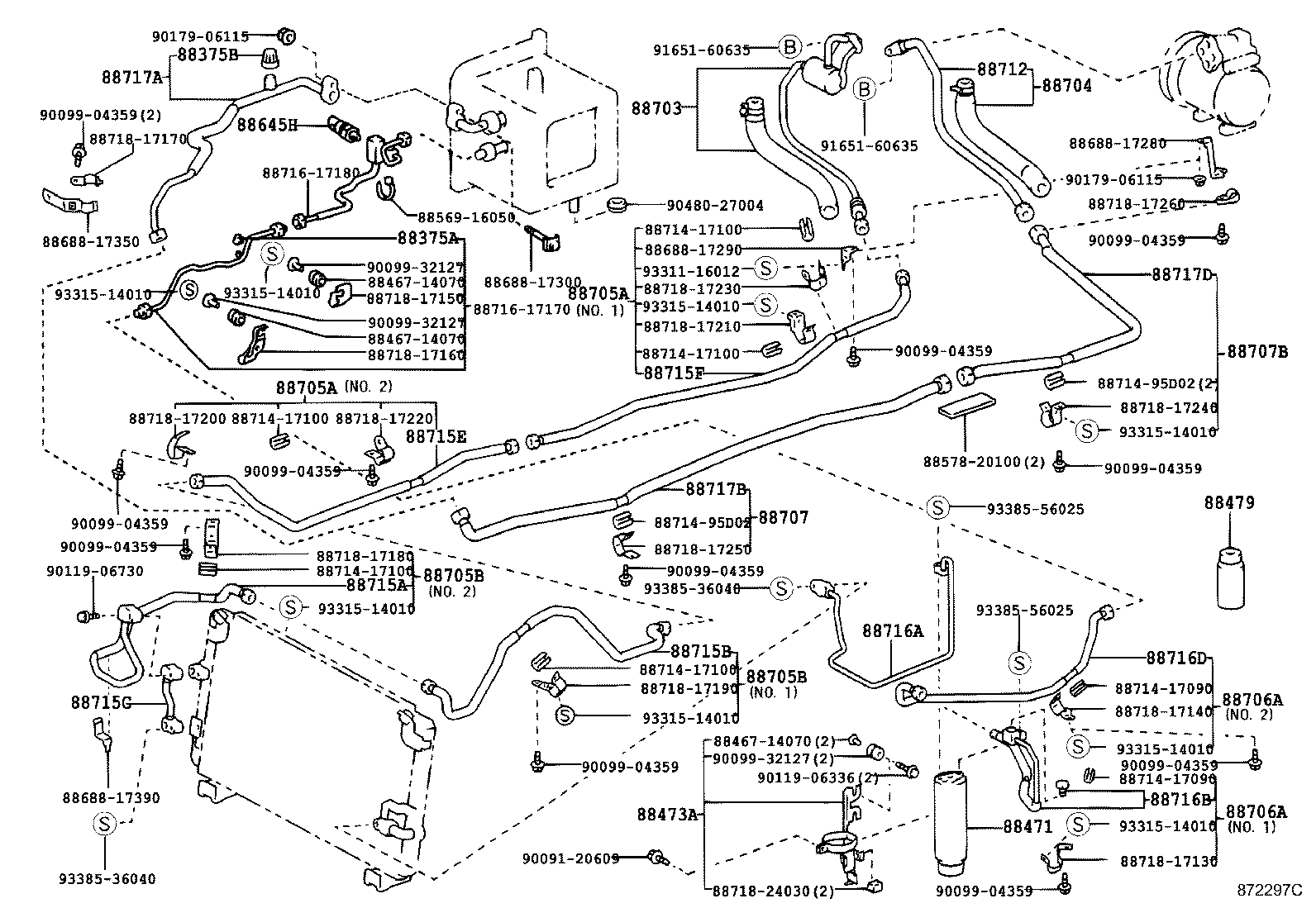

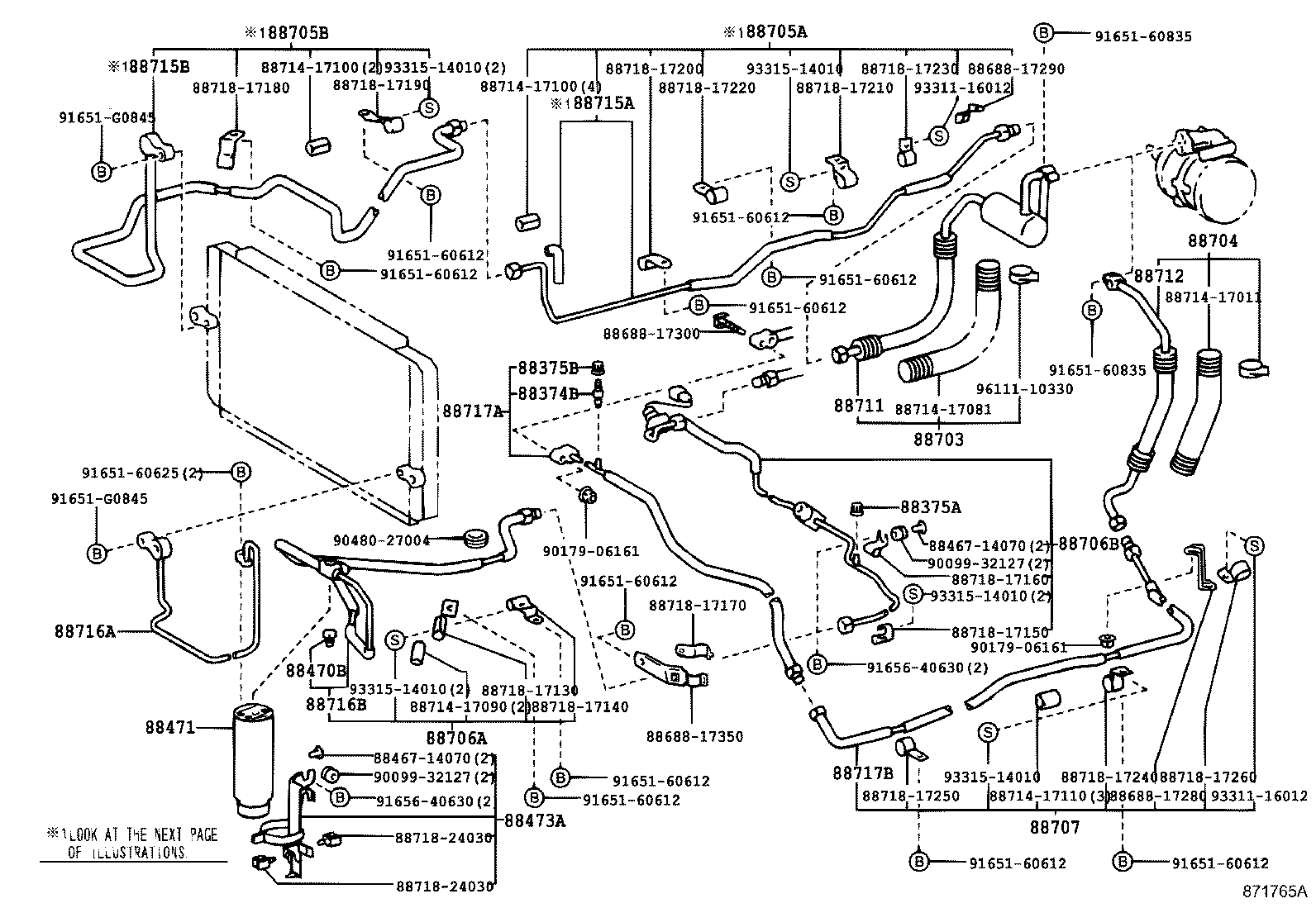

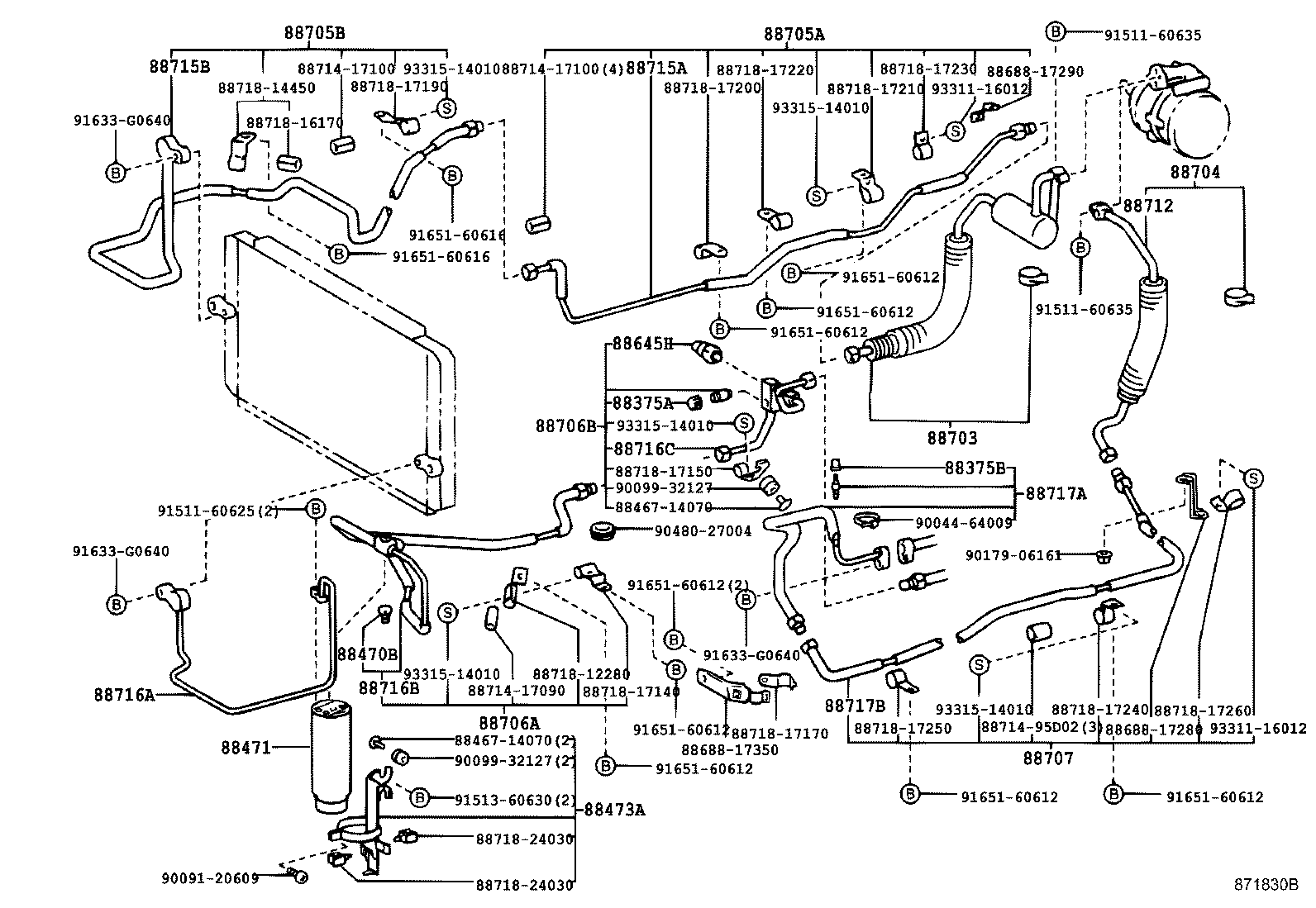

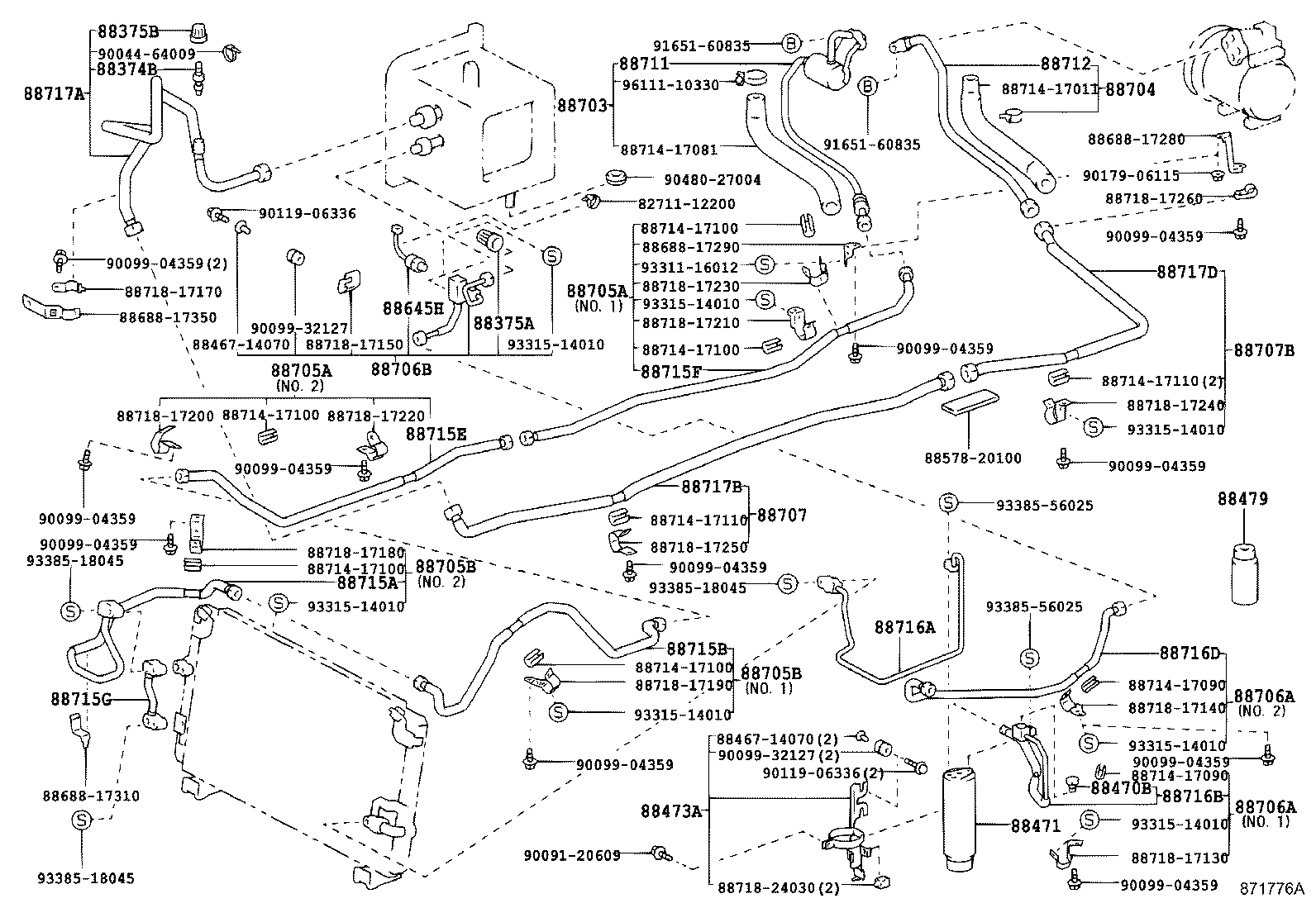

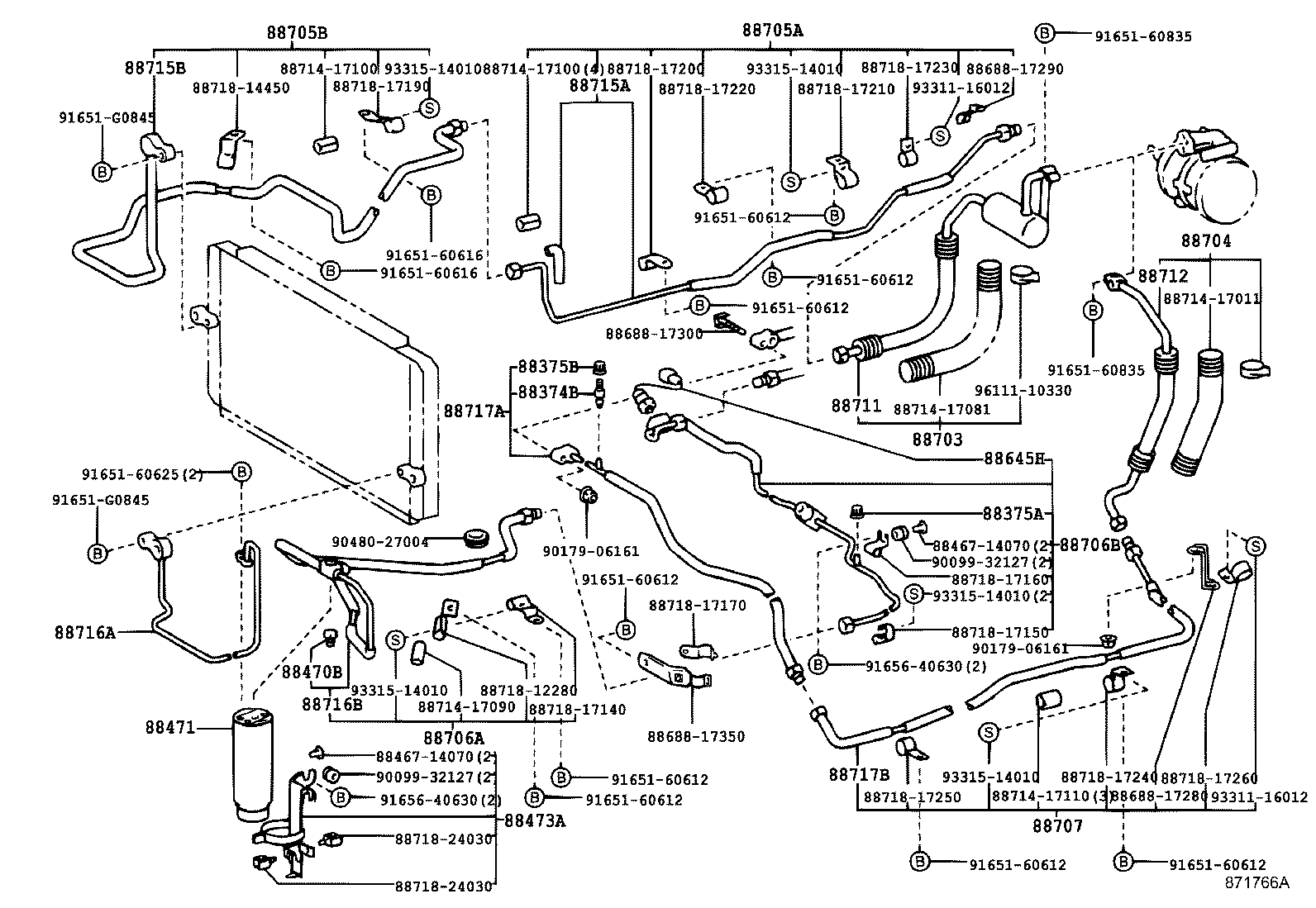

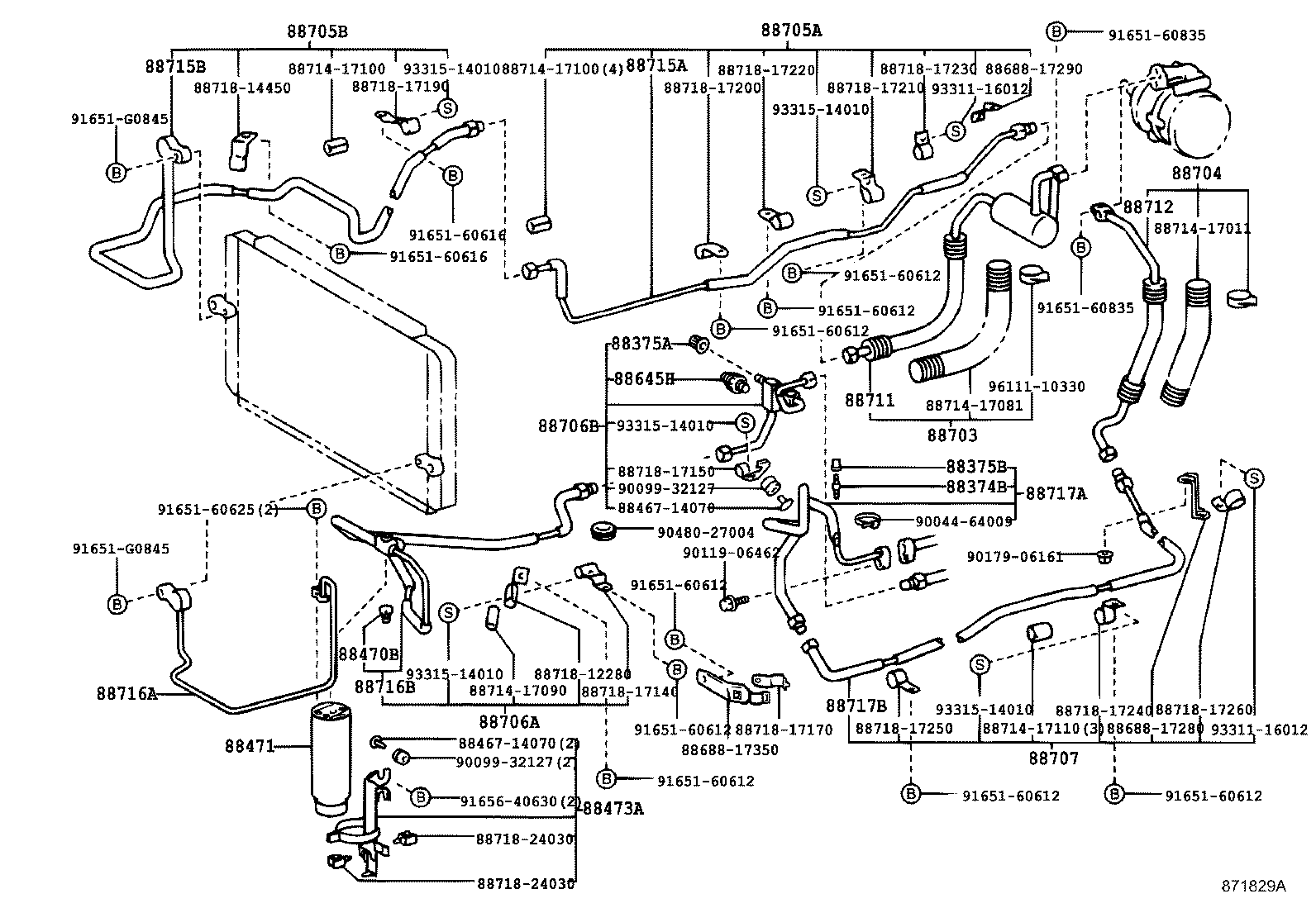

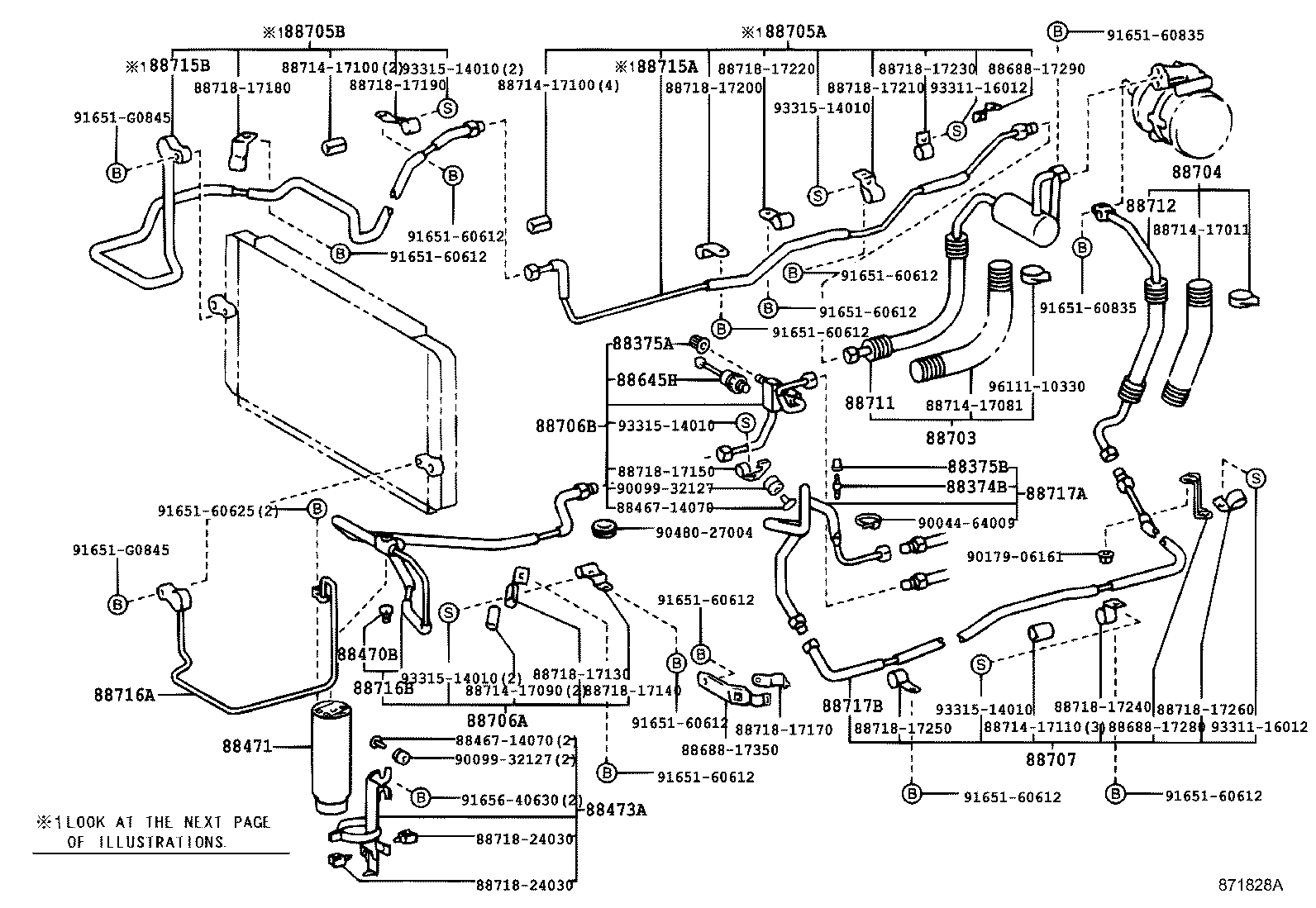

Figure 871763A 871763A 1989-12 → — Figure 871764A 871764A 1989-12 → — Figure 871764A 871764A 1997-12 → — Figure 871828A 871828A 1989-12 → 1991-12 Figure 871829A 871829A 1991-12 → 1993-11 Figure 871830B 871830B 1993-11 → — Figure 871765A 871765A 1989-12 → 1991-12 Figure 871766A 871766A 1991-12 → 1993-11 Figure 871767B 871767B 1993-11 → — Figure 871776A 871776A 1989-12 → 1993-11 Figure 871777C 871777C 1993-11 → — Figure 871777C 871777C 1997-12 → — Figure 872297C 872297C 1997-12 → — Figure 871761 871761 1989-12 → — Figure 871768 871768 1989-12 → — Figure MEX254A MEX254A 1989-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88596C Plate, Caution, NO.2
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88705B Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715F Pipe, Cooler Refrigerant Discharge, F
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717D Pipe, Cooler Refrigerant Suction, D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
