Toyota MR2

1989-12 → 1999-08 · chassis SW20 · catalogue 211220 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

19 part groups · 3 illustrations

Illustrations

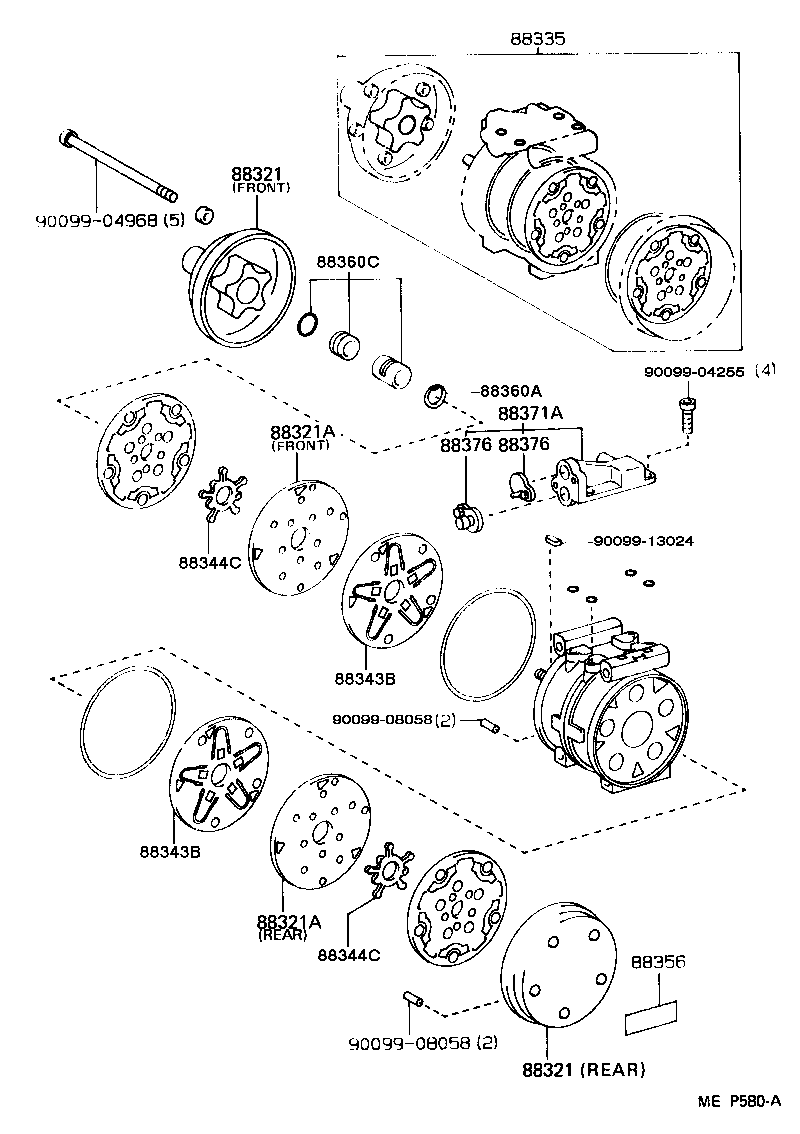

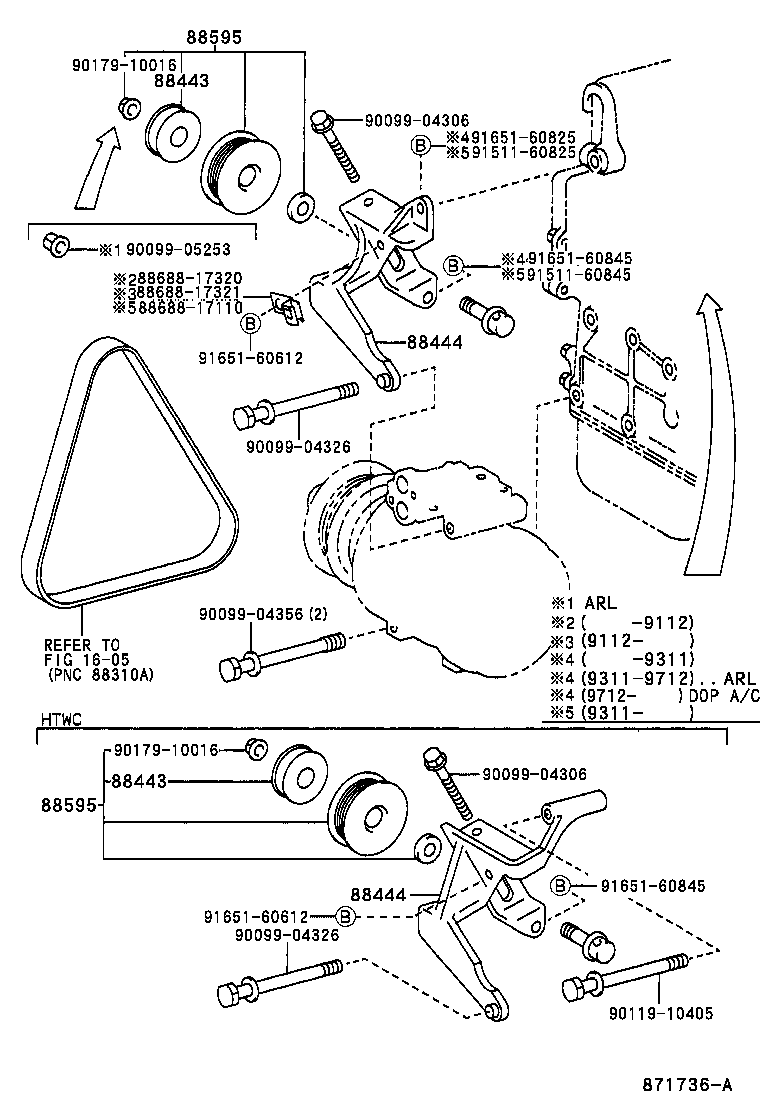

Figure 871739A 871739A 1989-12 → — Figure 871736A 871736A 1989-12 → — Figure MEP580A MEP580A 1989-12 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88356 Label, Compressor Caution
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88376 Cap, Blind
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
