Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle

16 part groups · 2 illustrations

Illustrations

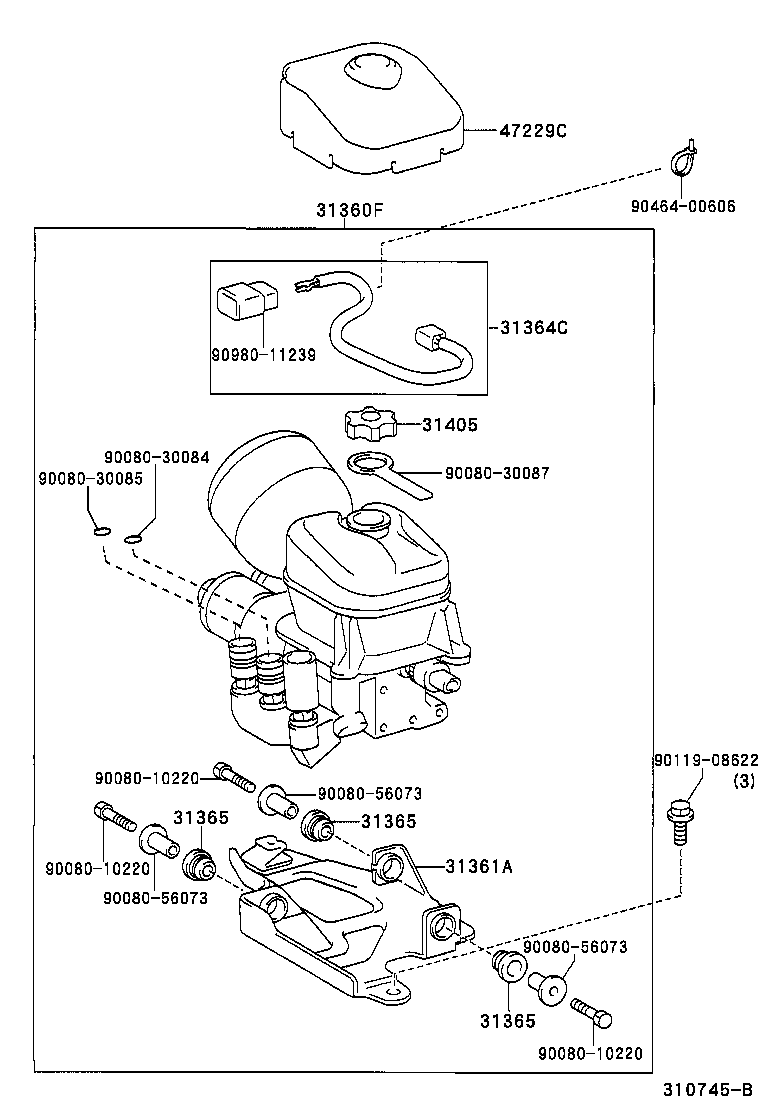

Figure 310746C 310746C 2000-08 → 2005-09 Figure 310745B 310745B 2000-08 → 2005-09

Part groups

PNCDescription
31360F Pump Assy, Sequential Transmission
31361A Bracket, Sequential Transmission Pump
31364A Wire, Sequential Transmission, NO.1
31364B Wire, Sequential Transmission, NO.2
31364C Wire, Sequential Transmission
31365 Cushion, Sequential Transmission Pump
31405 Cap Sub-assy, Clutch Reservoir
31484E Bracket, Flexible Hose NO.1
33117J Bracket, Stiffener Plate
33906 Link Sub-assy, Sequential Transmission Actuator
33960 Actuator Assy, Sequential Transmission
33961 Cover, Sequential Transmission Actuator
33962 Cover, Clutch Stroke Sensor
33965 Packing, Stroke Sensor Connector
47229C Cover, Reservoir Cap
89419 Sensor, Clutch Stroke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
