Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

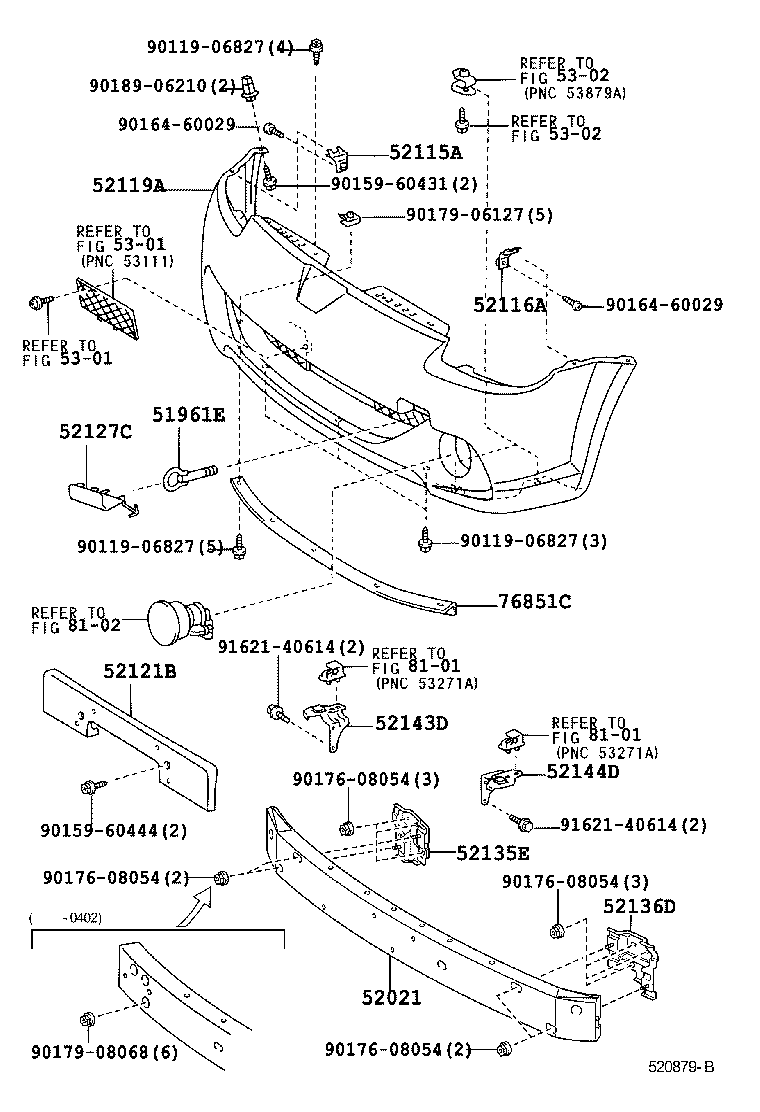

Figure 520586D 520586D 1999-12 → 2002-08 Figure 520879B 520879B 2002-08 → 2005-09

Part groups

PNCDescription
51961E Hook, Front
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52127C Cover, Front Bumper Hole
52135E Reinforcement, Front Bumper Arm Mounting, RH
52136D Reinforcement, Front Bumper Arm Mounting, LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
76851C Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
