Toyota MR2
1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe
Discontinued model
Data version 2006-03

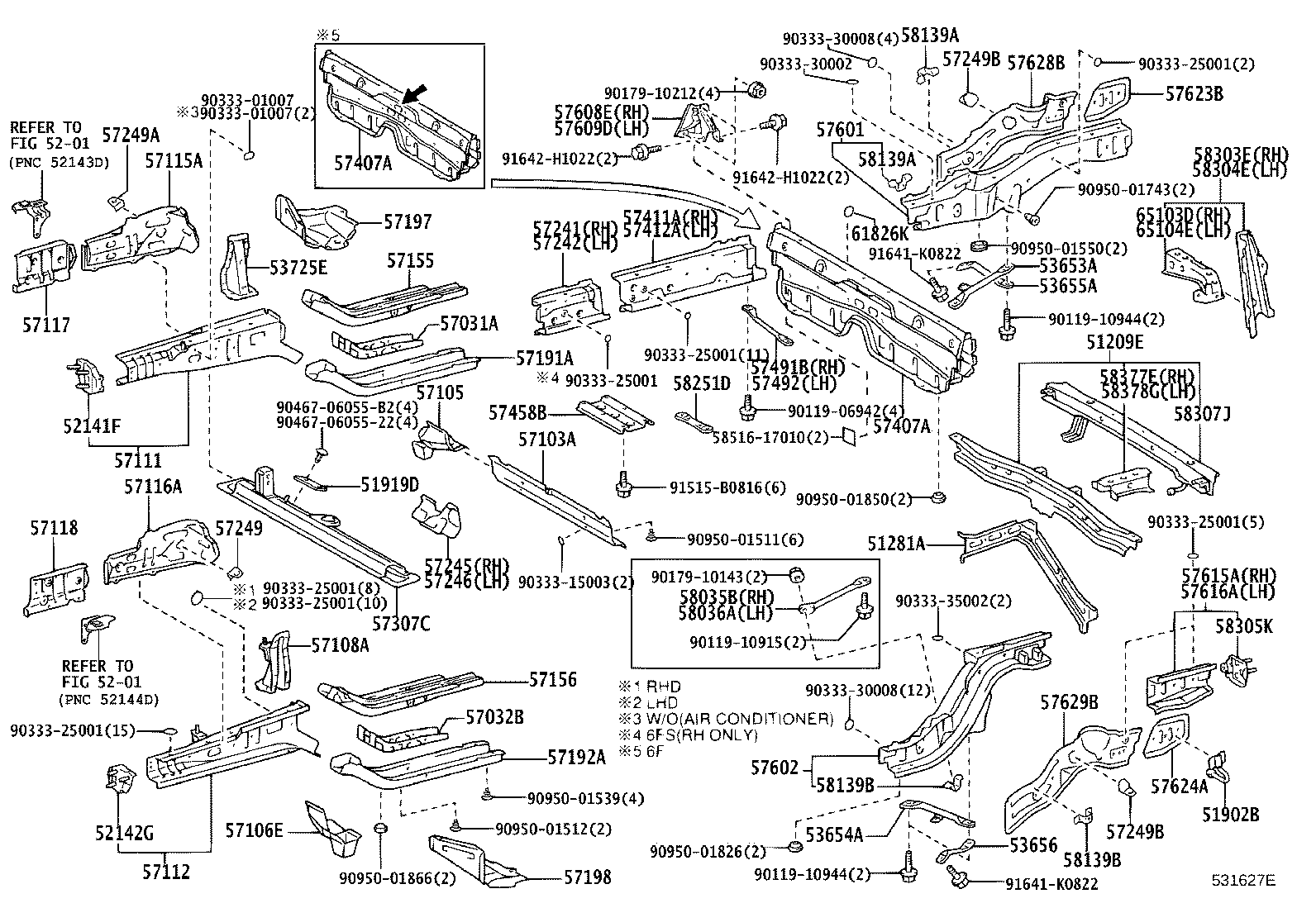

Floor Side Member
69 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51209E | Crossmember, Frame, Rear Upper |
| 51281A | Member, Rear Diagonal |
| 51902B | Hanger Sub-assy, Exhaust Pipe, NO.2 |
| 51919D | Plate, Spare Wheel Mounting |
| 52141F | Arm, Front Bumper, RH |
| 52142G | Arm, Front Bumper, LH |
| 53653A | Brace, Rear Suspension, Lower RH |
| 53654A | Brace, Rear Suspension, Lower LH |
| 53655A | Brace, Rear Suspension, Lower Center RH |
| 53656 | Brace, Rear Suspension, Lower Center LH |
| 53725E | Reinforcement, Front Spring Support, NO.2 RH |
| 57031A | Reinforce Sub-assy, Front Side Member, NO.2 RH |
| 57032B | Reinforcement Sub-assy, Front Side Member, NO.2 LH |
| 57103A | Crossmenber Sub-assy, Floor, NO.3 |
| 57105 | Bracket Sub-assy, Front Suspension Member Mounting, Front RH |
| 57106E | Bracket Sub-assy, Front Suspension Member Mounting, Front LH |
| 57108A | Plate Sub-assy, Front Side Member, NO.2 LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57117 | Plate Sub-assy, Front Side Member, Front RH |
| 57118 | Plate Sub-assy, Front Side Member, Front LH |
| 57145A | Reinforcement, Front Side Member, Rear RH |
| 57146 | Plate, Front Side Member, Center LH |
| 57155 | Reinforcement, Front Side Member, NO.3, RH |
| 57156 | Reinforcement, Front Side Member, NO.3, LH |
| 57191A | Member, Front Side, Inner Rear RH |
| 57192A | Member, Front Side, Inner Rear LH |
| 57197 | Box, Torque, Front RH |
| 57198 | Box, Torque, Front LH |
| 57241 | Reinforcement, Front Side Member, NO.5 RH |
| 57242 | Reinforcement, Front Side Member, NO.5 LH |
| 57245 | Reinforcement, Front Side Member, NO.9 RH |
| 57246 | Reinforcement, Front Side Member, NO.9 LH |
| 57249 | Bracket, Flexible Hose, NO.1 |
| 57249A | Bracket, Frexible House, NO.1, LH |
| 57249B | Bracket, Flexible Hose, NO.1 |
| 57307C | Panel Sub-assy, Front Luggage End |
| 57407A | Member Sub-assy, Center Floor Cross |
| 57411A | Member, Floor Side, Inner RH |
| 57412A | Member, Floor Side, Inner LH |
| 57458B | Patch, Floor Side Member, Rear LH |
| 57491B | Brace, Front Floor Cross, NO.1 RH |
| 57492 | Brace, Front Floor Cross, NO.1 LH |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57608E | Reinforce Sub-assy, Side Member TO Floor, RH |
| 57609D | Reinforce Sub-assy, Side Member TO Floor, LH |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57623B | Plate. Rear Floor Side Member, Rear RH |
| 57624A | Plate. Rear Floor Side Member, Rear LH |
| 57628B | Plate, Rear Floor Side Member, RH |
| 57629B | Plate, Rear Floor Side Member, LH |
| 58035B | Brace Sub-assy, Rear Floor Panel, RH |
| 58036A | Brace Sub-assy, Rear Floor Panel, LH |
| 58139A | Plate, Front Floor Side, Rear RH |
| 58139B | Bracket, Fender Liner, LH |
| 58251D | Brace, Floor Panel, Front |
| 58303E | Reinforce Sub-assy, Rear Bumper Arm Support, RH |
| 58304E | Reinforce Sub-assy, Rear Bumper Arm Support, LH |
| 58305K | Bracket Sub-assy, Rear Bumper Arm |
| 58307J | Panel Sub-assy, Body Lower Back |
| 58377E | Panel, Body Lower Back, RH |
| 58378G | Panel, Body Lower Back, LH |
| 61826K | Plate, Noise Control |
| 65103D | Bracket Sub-assy, Mounting, RH |
| 65104E | Bracket Sub-assy, Mounting, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
