Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

70 part groups · 11 illustrations

Illustrations

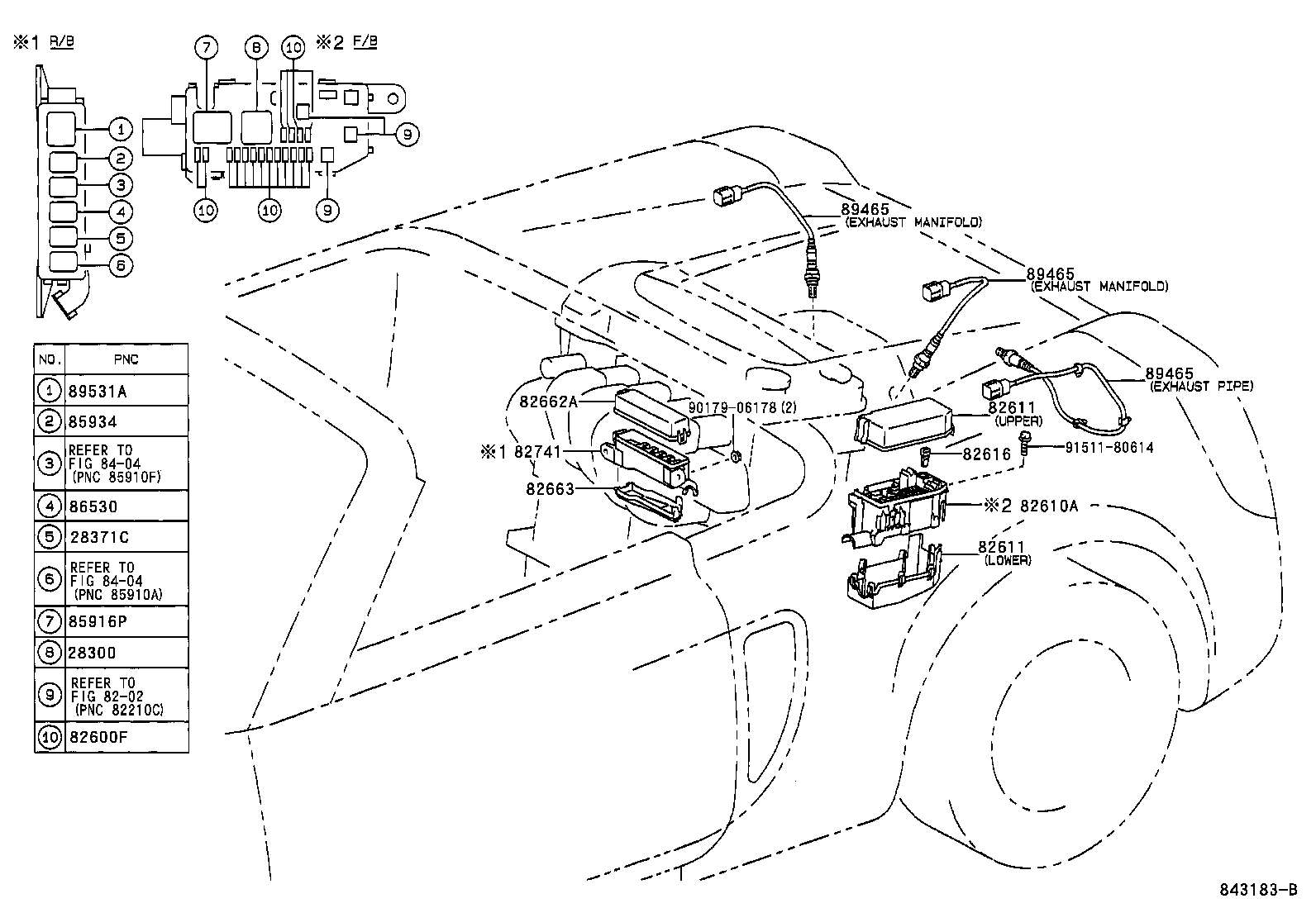

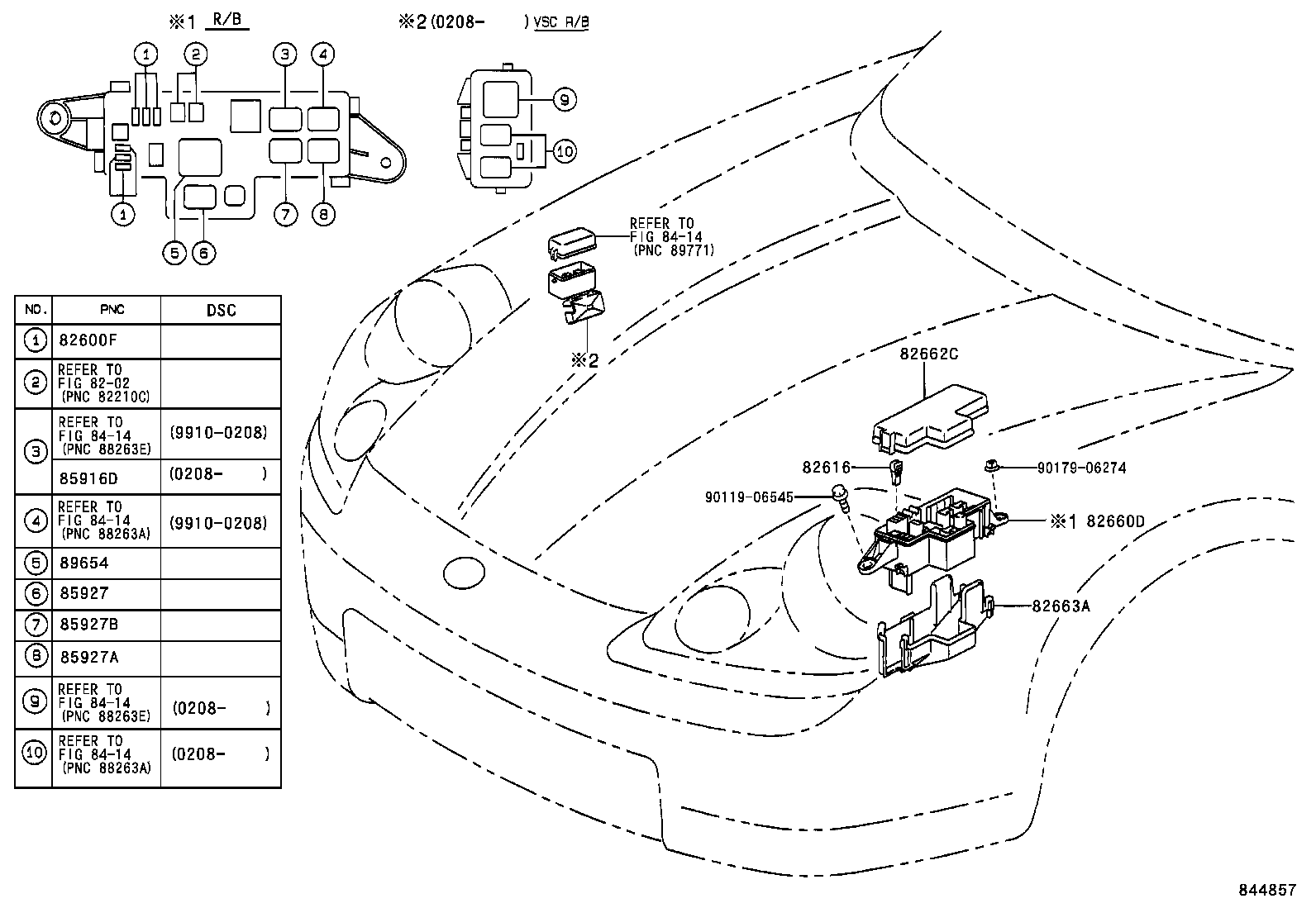

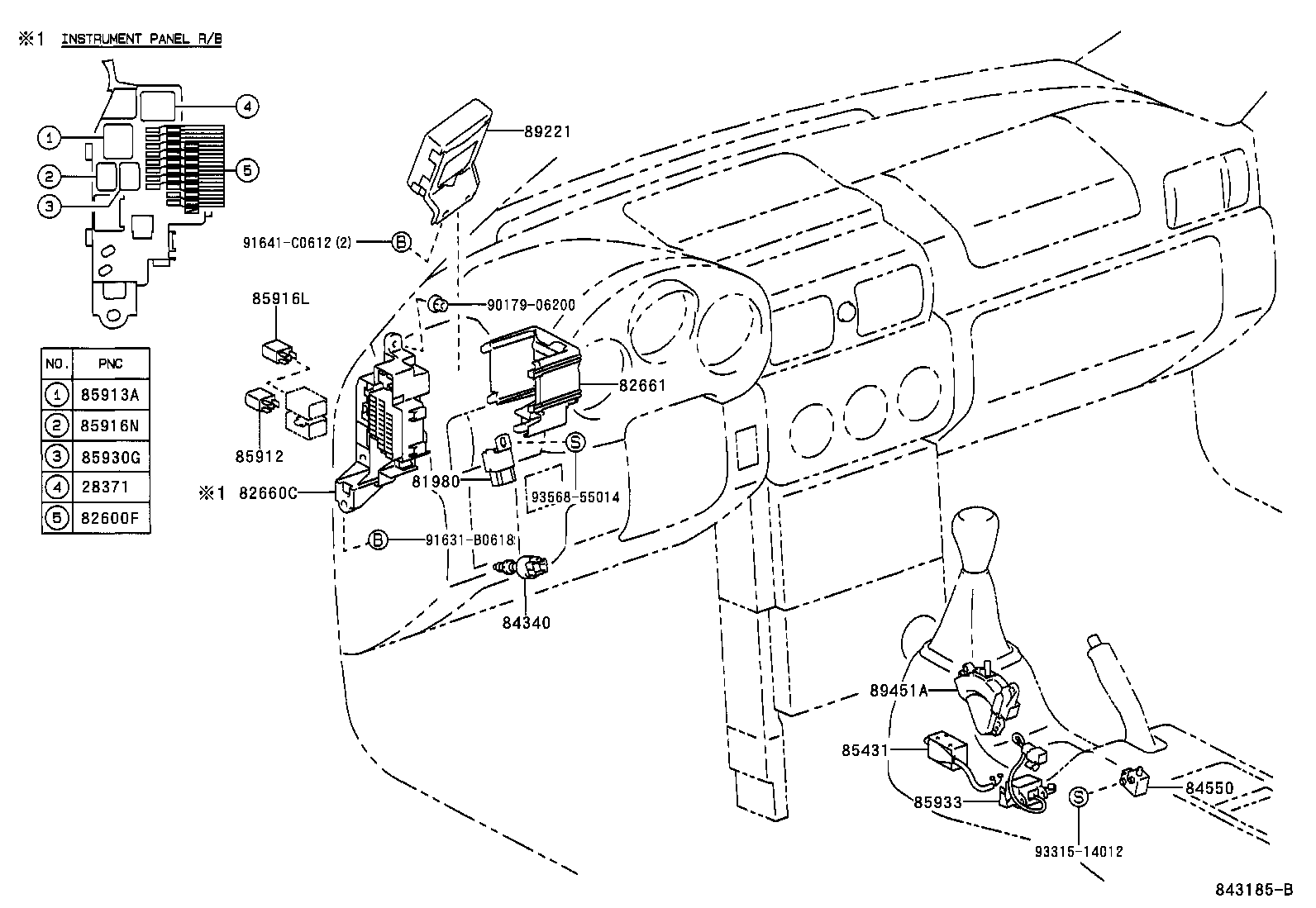

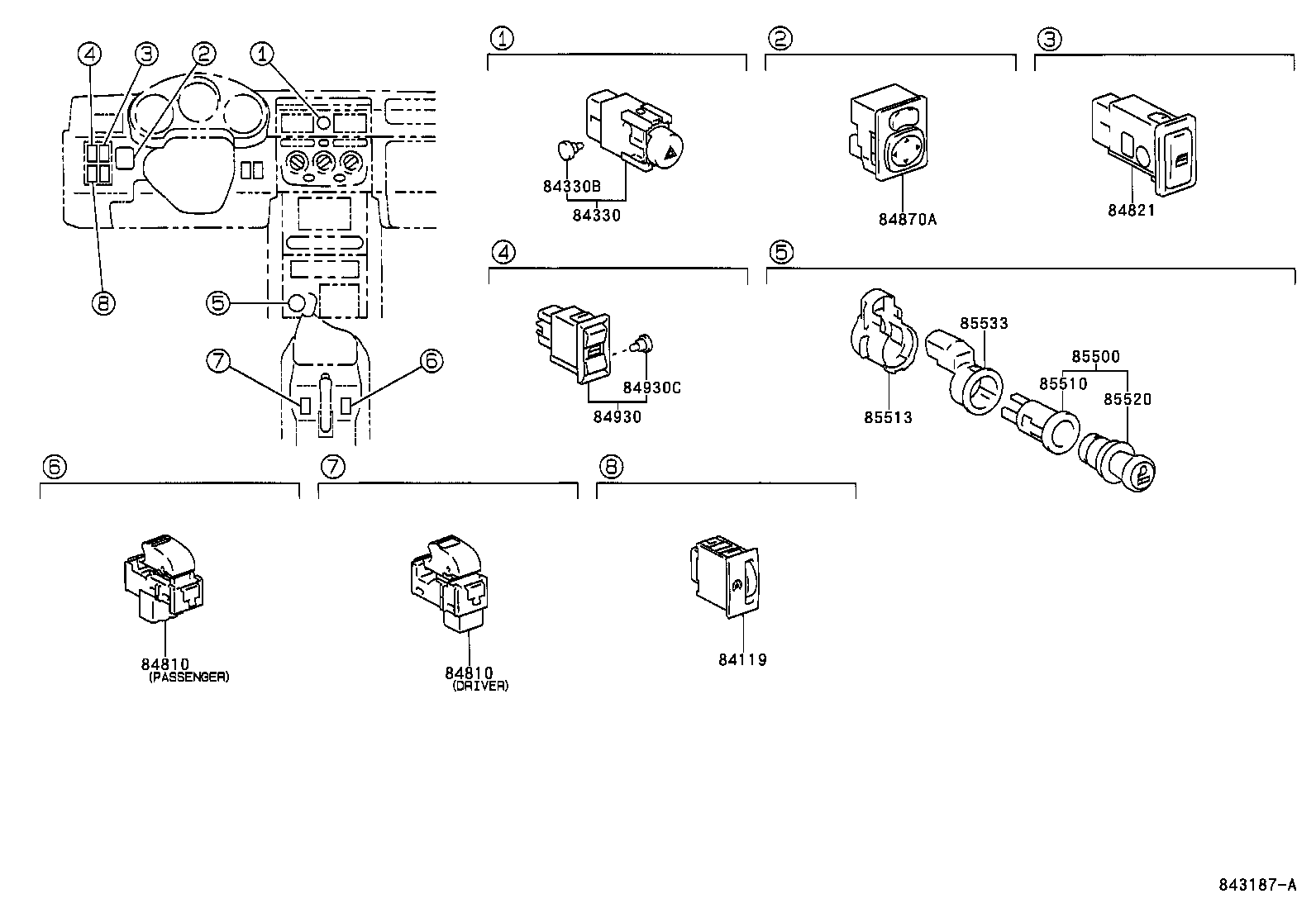

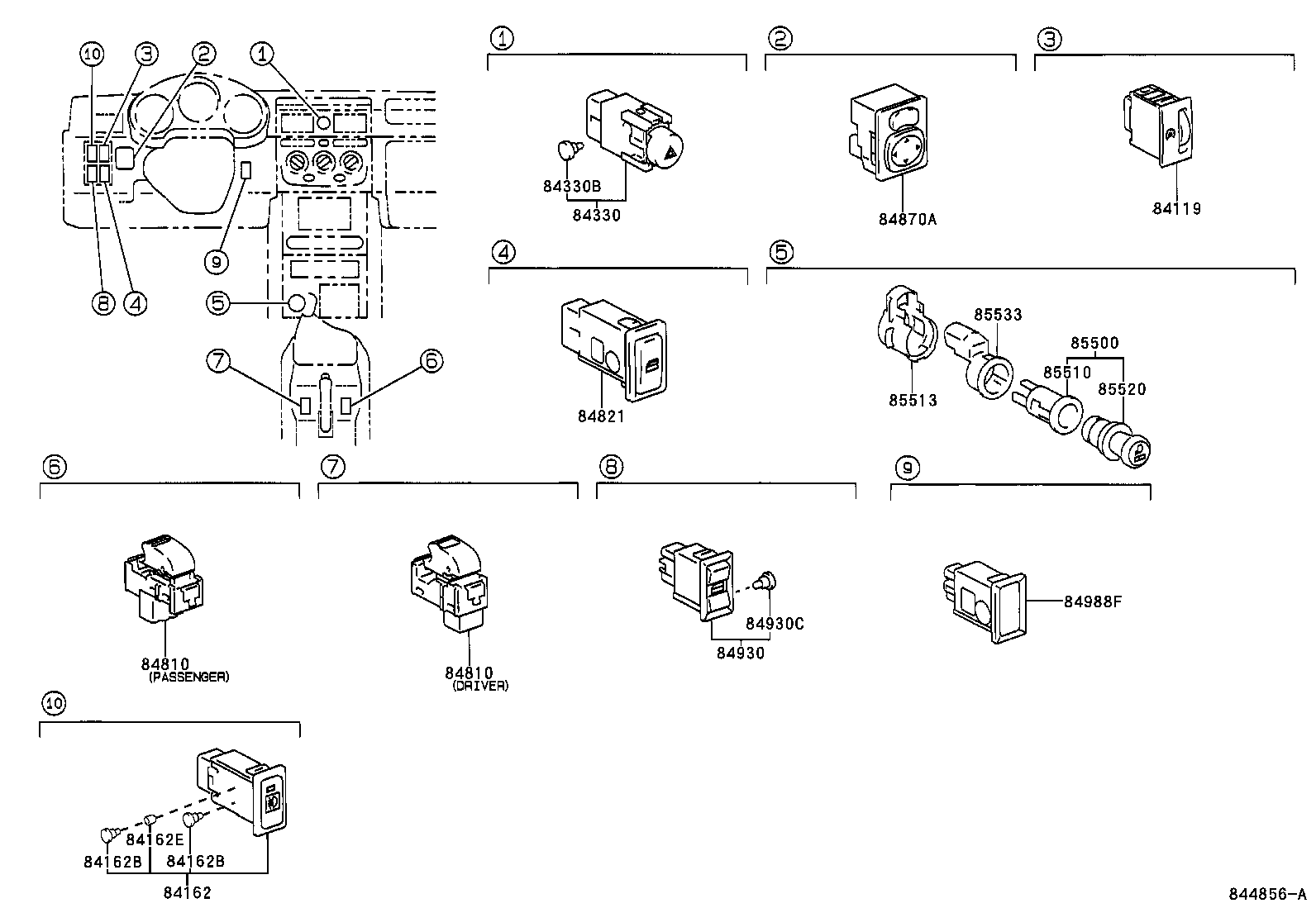

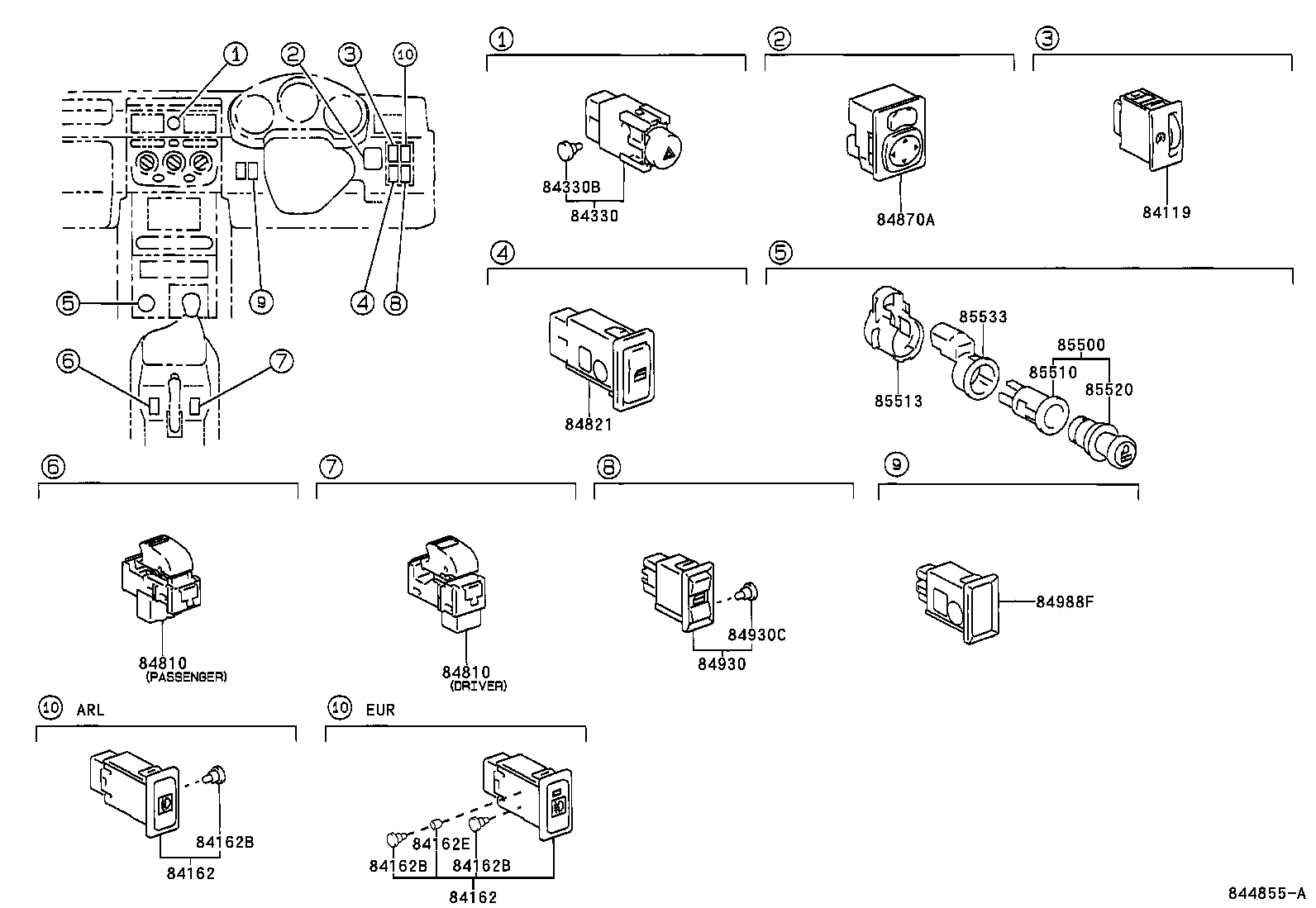

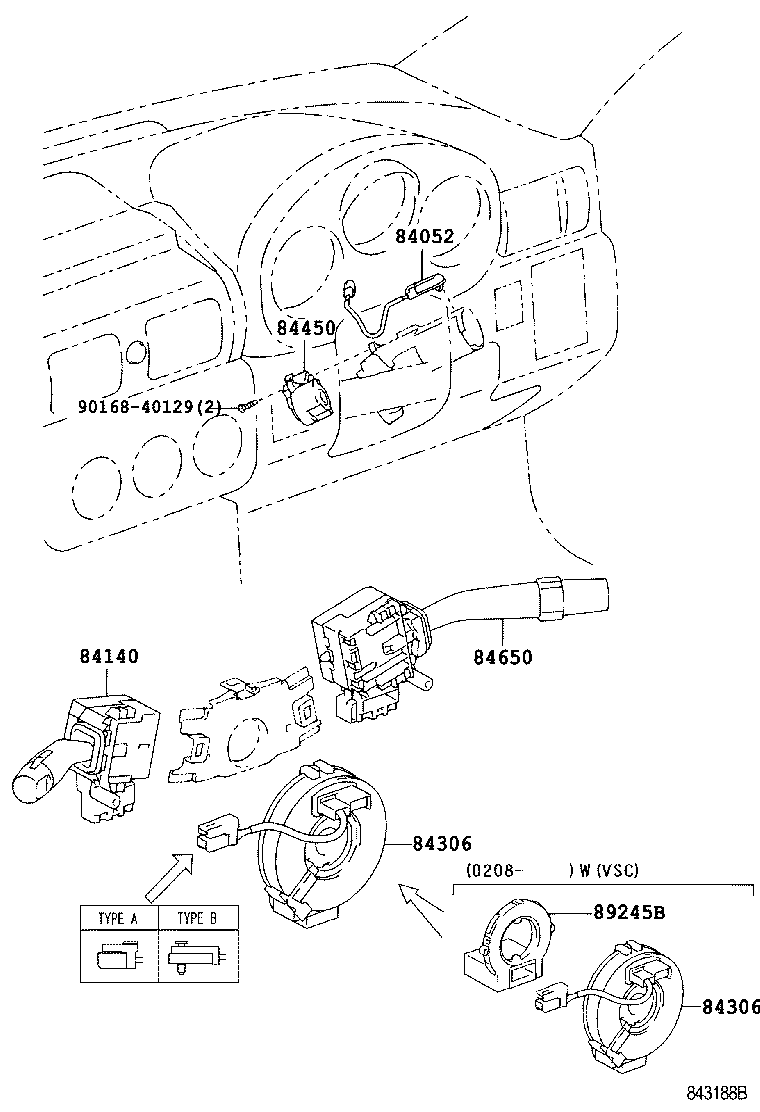

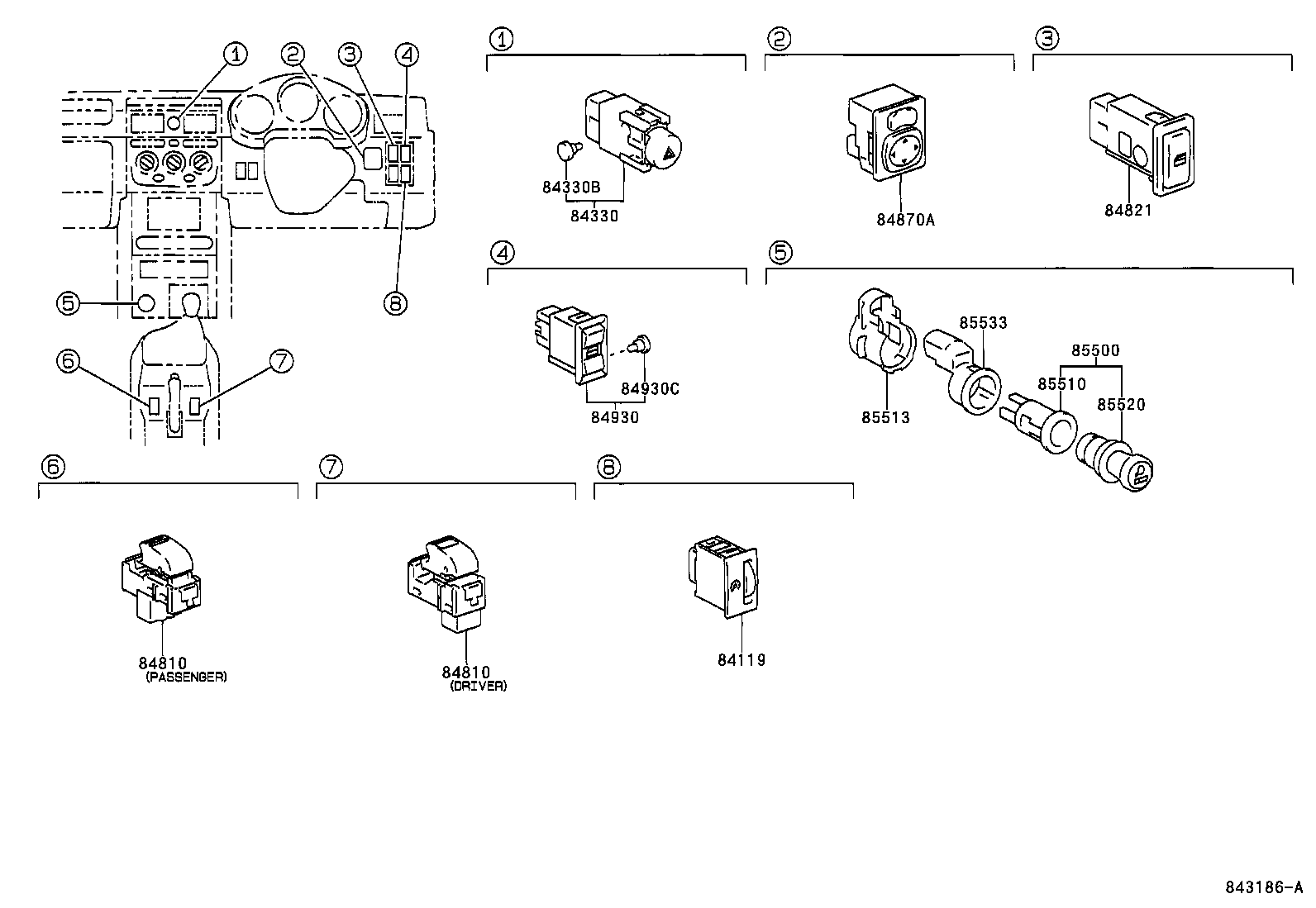

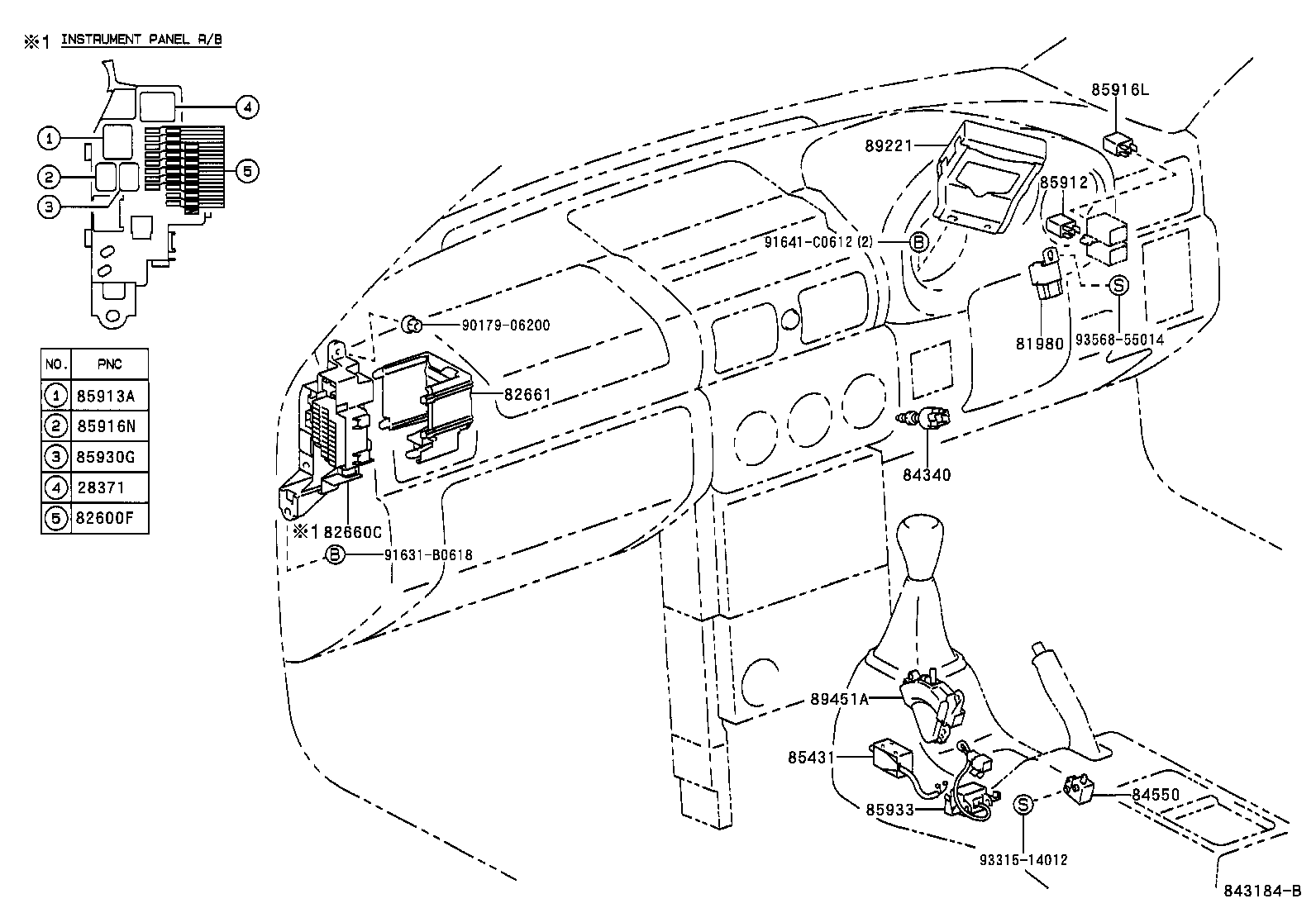

Figure 843955A 843955A 1999-12 → — Figure 843183B 843183B 1999-12 → — Figure 844857 844857 1999-12 → — Figure 843184B 843184B 1999-12 → — Figure 843185B 843185B 1999-12 → — Figure 843186A 843186A 1999-12 → 2002-08 Figure 843187A 843187A 1999-12 → 2002-08 Figure 844855A 844855A 2002-08 → — Figure 844856A 844856A 2002-08 → — Figure 843188B 843188B 1999-12 → — Figure 843160B 843160B 1999-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82616 Puller, Fuse
82660C Block Assy, Relay
82660D Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82741 Block, Engine Room Relay
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84162E Cap, Fog Lamp Bulb
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84821 Switch, Power Window Lock
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84988F Switch, Traction Control
85431 Solenoid, Shift Lock
85500 Lighter Assy, Cigarette
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85912 Relay, Defogger
85913A Relay, Heater Control
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
86530 Relay Assy, Horn
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89279A Cover, Computer
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89530C Computer Assy, Transmission Control
89531A Relay, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89615 Sensor, Knock Control
89654 Relay, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
