Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe

Discontinued model Data version 2006-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 3 illustrations

Illustrations

Figure 843163B

843163B 1999-12 → 2002-08

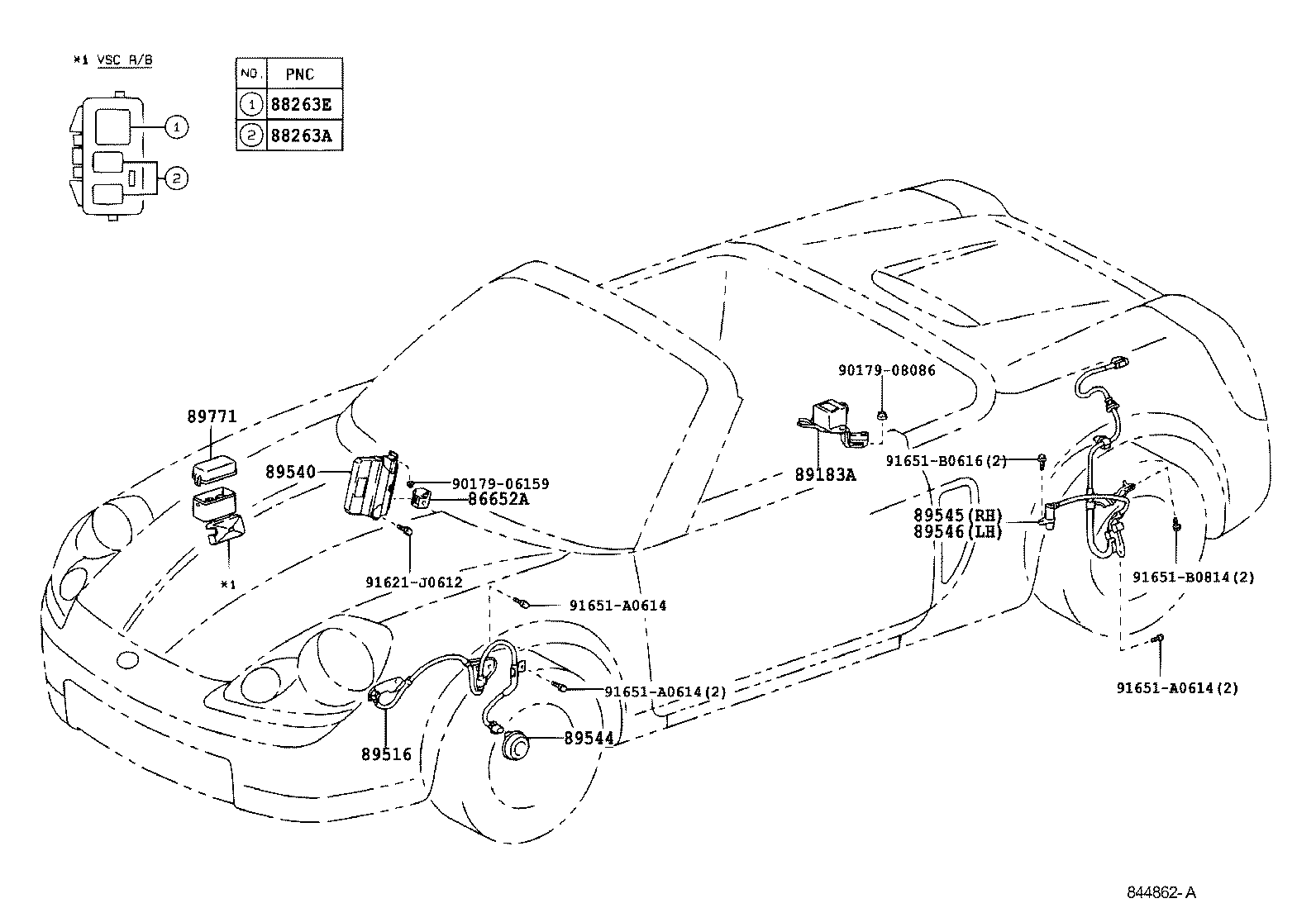

Figure 844862A

844862A 2002-08 → 2005-09

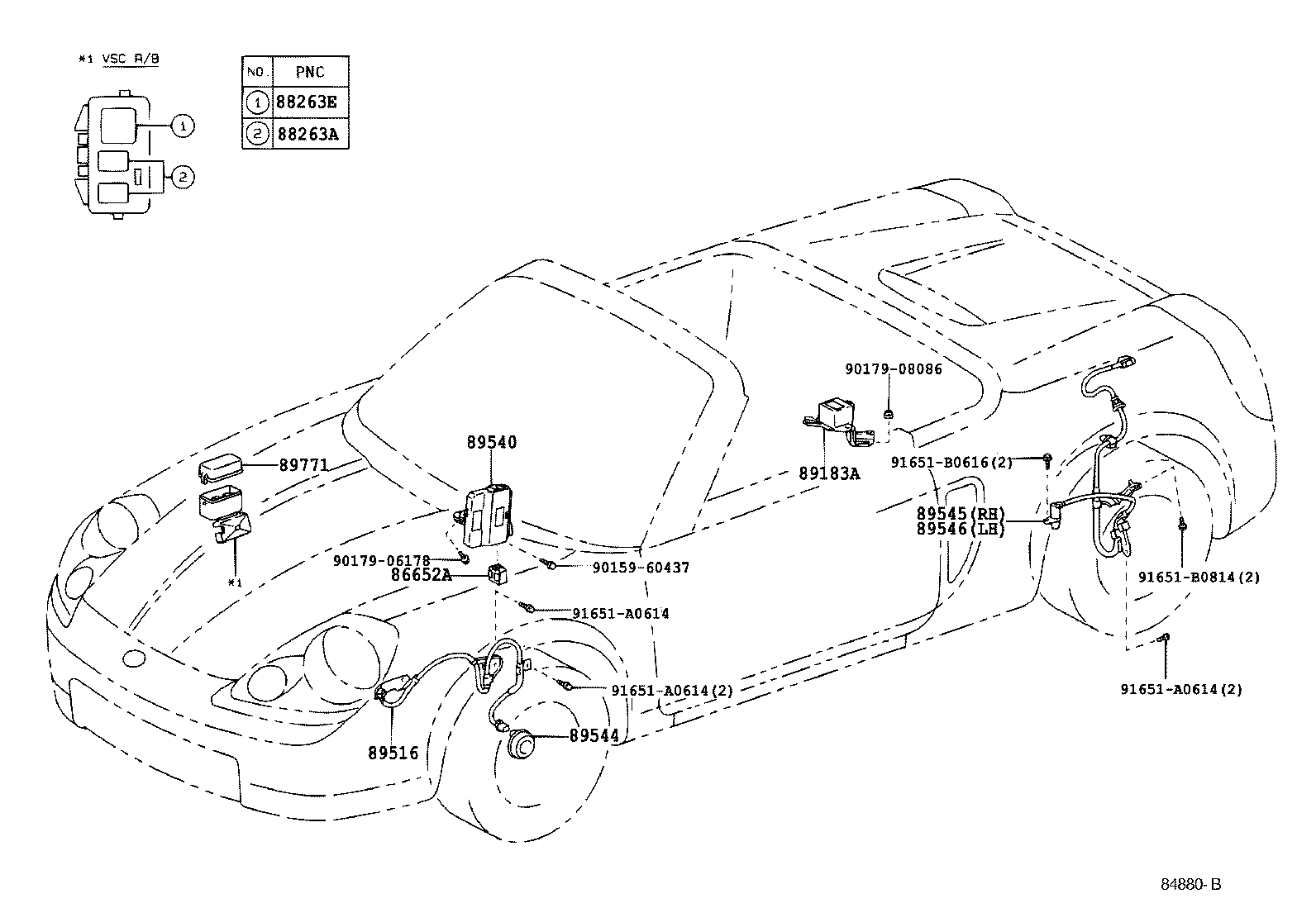

Figure 844880B

844880B 2002-08 → 2005-09

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89183A	Sensor, Yawrate
89516	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89771	Cover, Abs Relay Block, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
