Toyota MR2

1999-12 → 2005-09 · chassis ZZW30 · catalogue 211230 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 9 illustrations

Illustrations

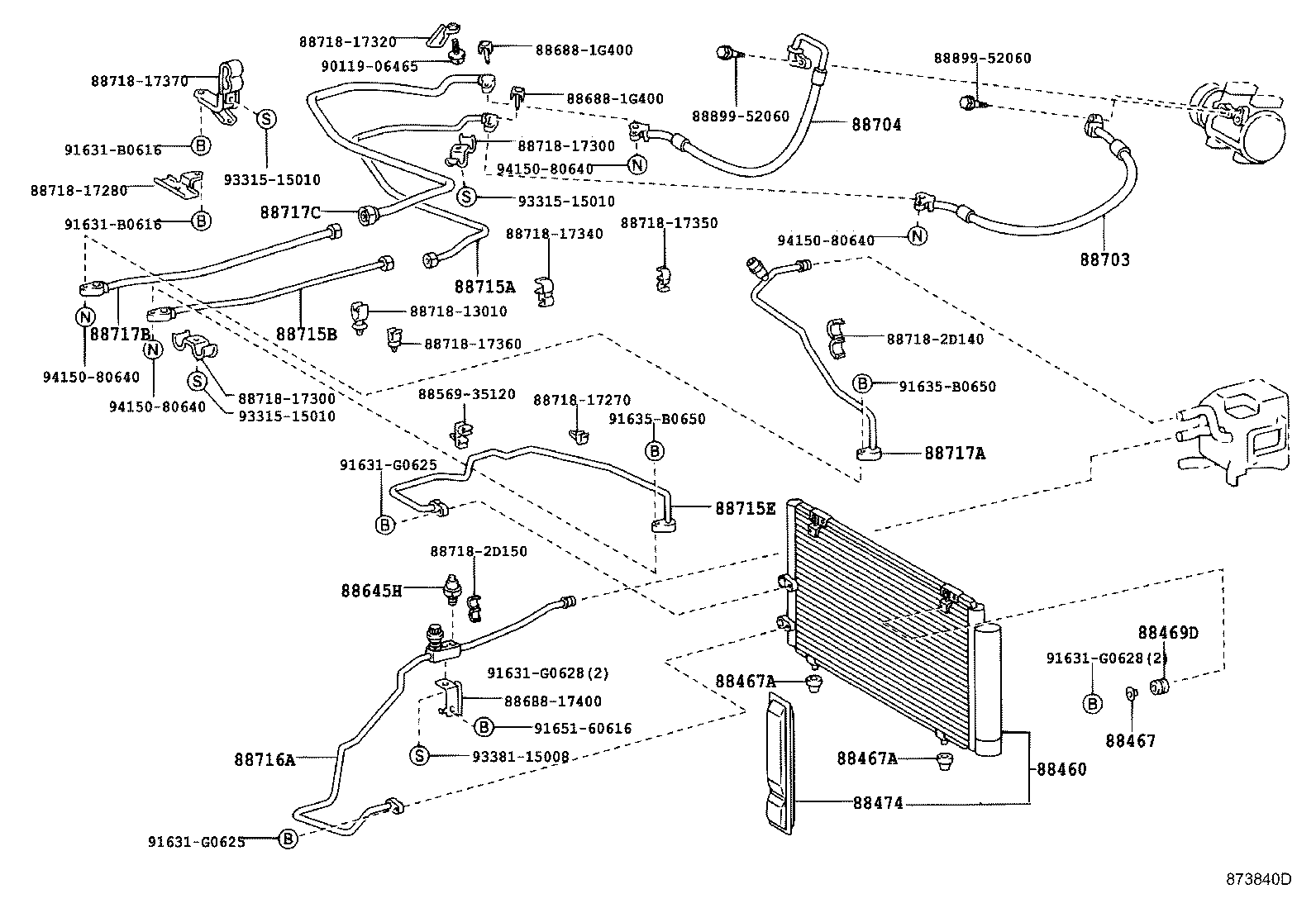

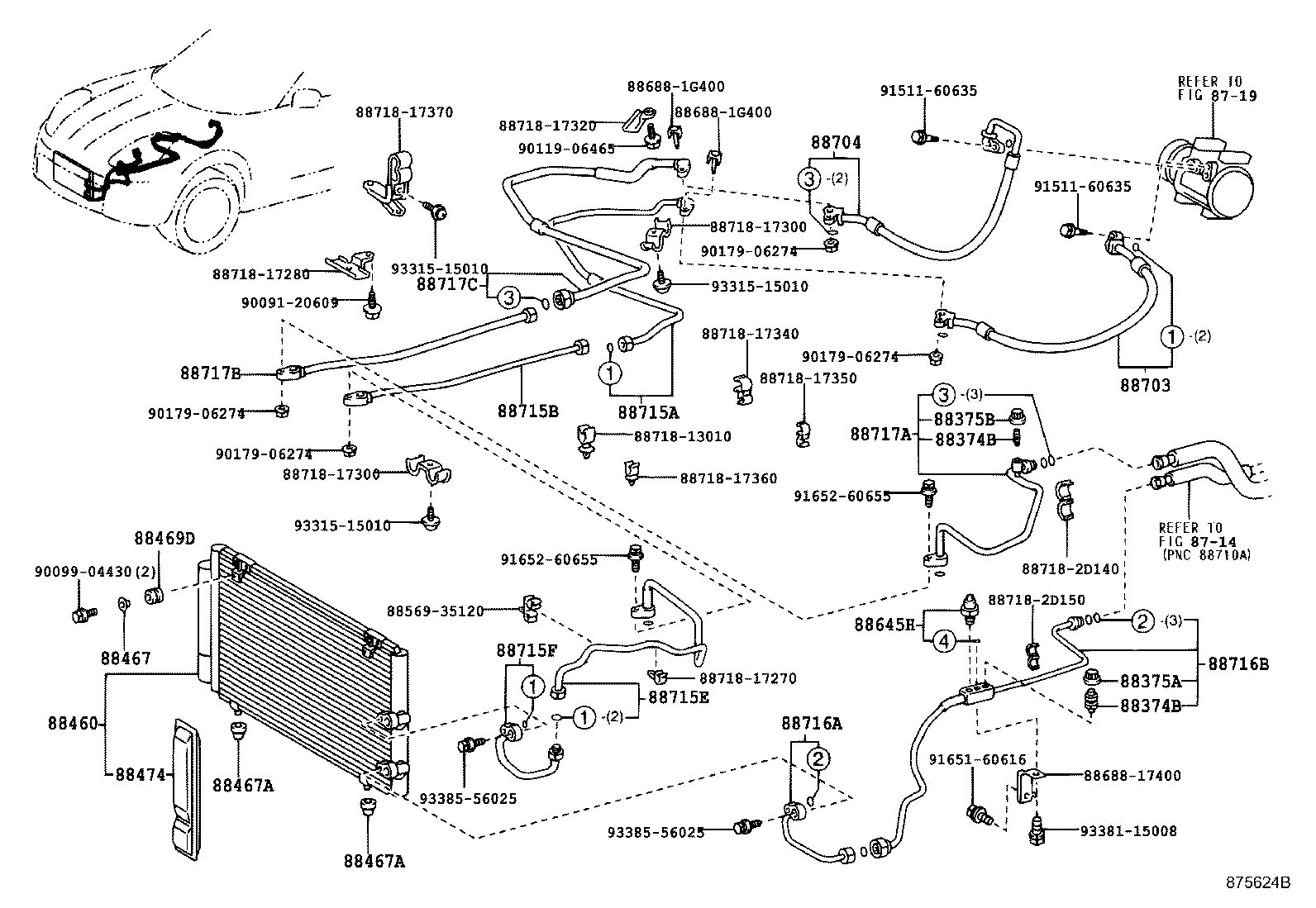

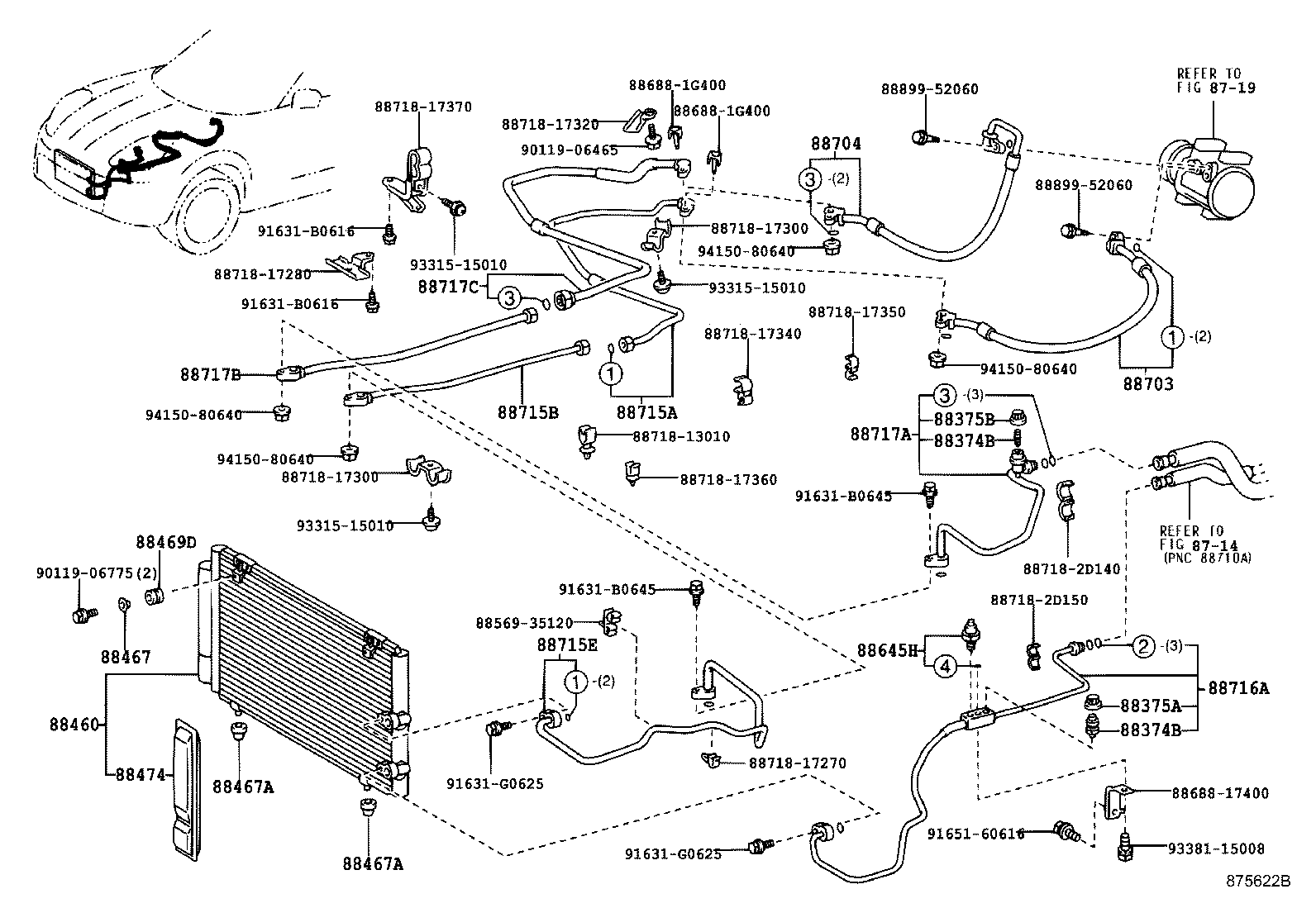

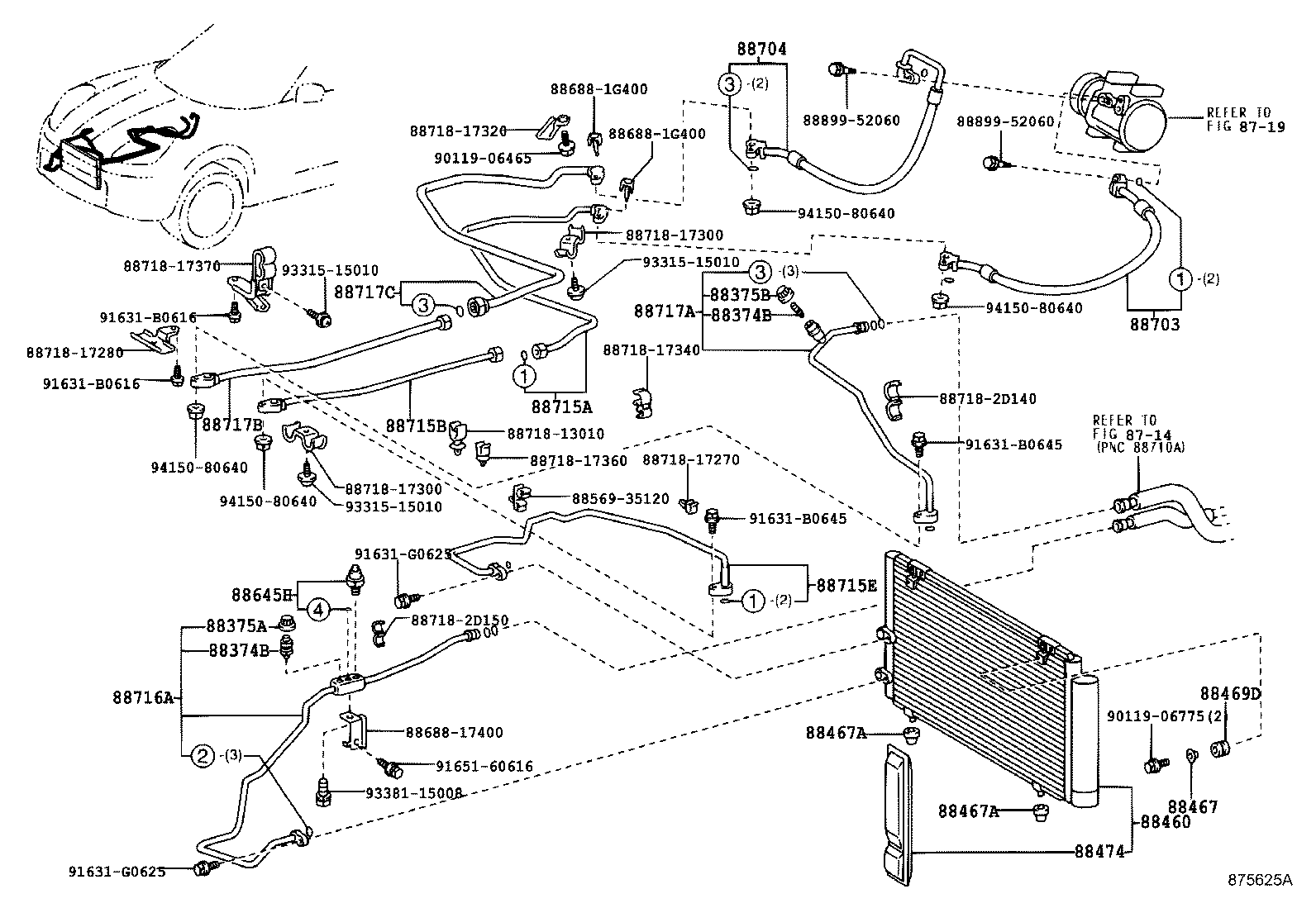

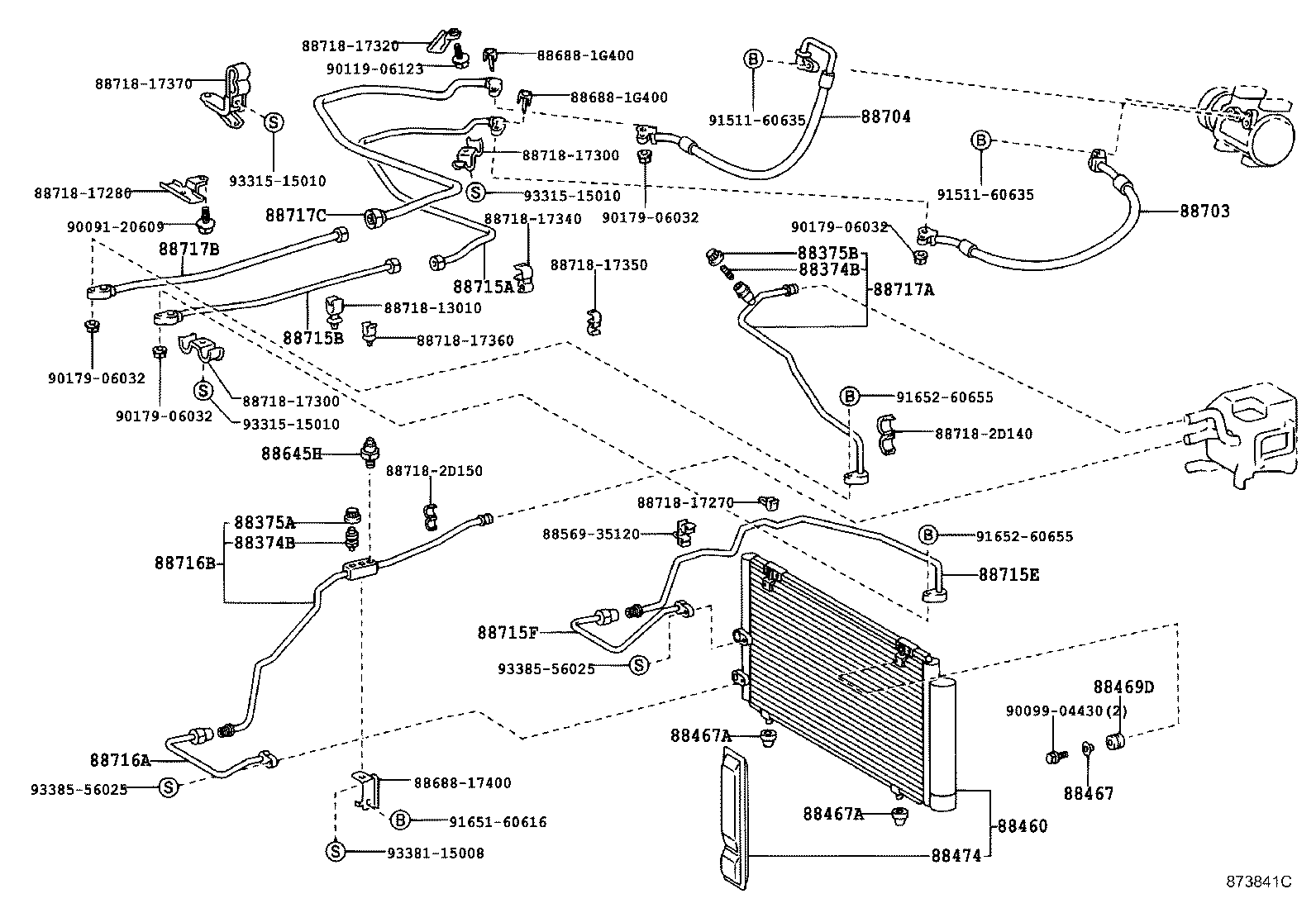

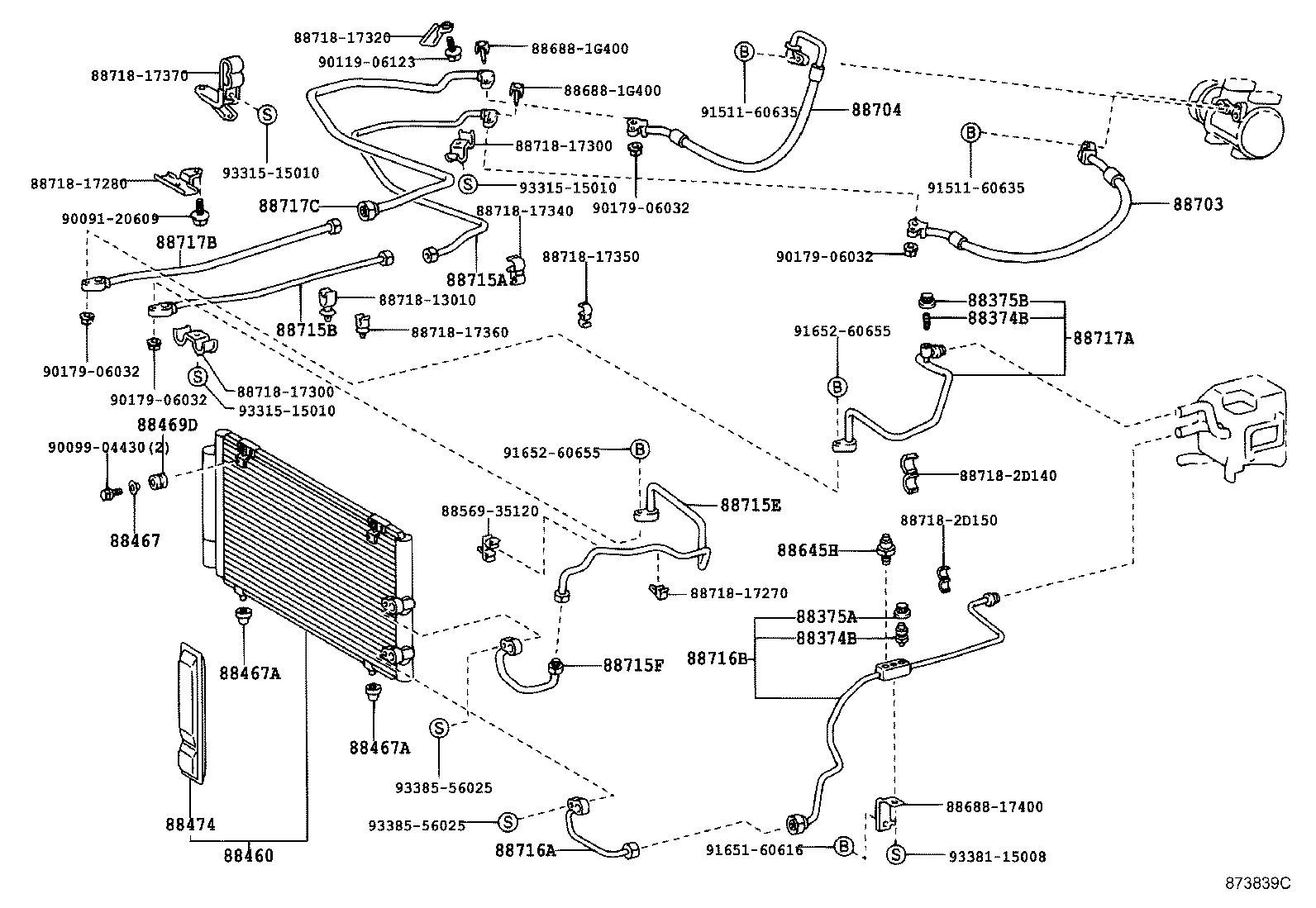

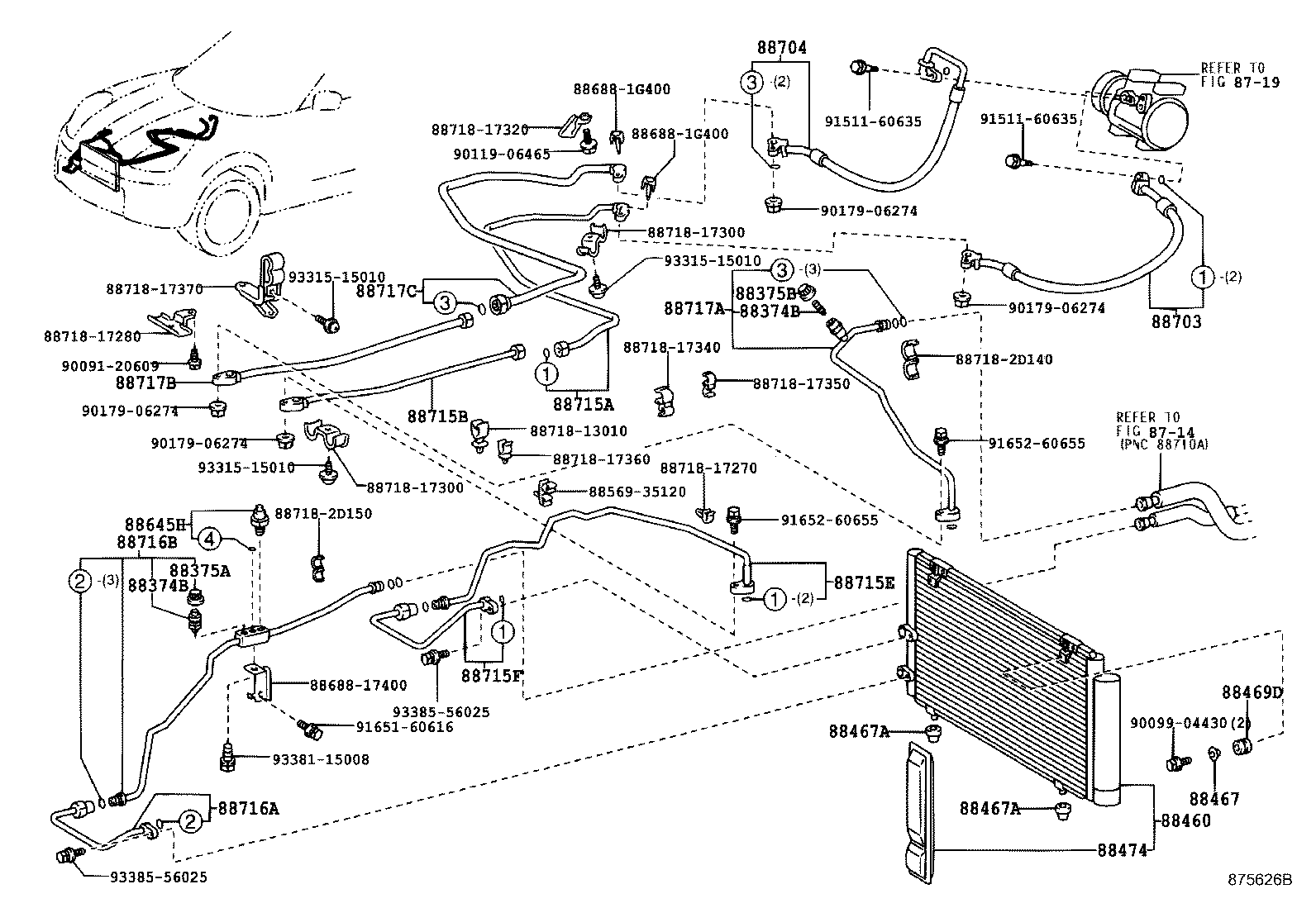

Figure 873797F 873797F 1999-12 → 2002-08 Figure 873839C 873839C 1999-12 → 2002-08 Figure 873840D 873840D 1999-12 → 2002-08 Figure 873841C 873841C 1999-12 → 2002-08 Figure 875622B 875622B 2002-08 → — Figure 875624B 875624B 2002-08 → — Figure 875625A 875625A 2002-08 → — Figure 875626B 875626B 2002-08 → — Figure 873793 873793 1999-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715F Pipe, Cooler Refrigerant Discharge, F
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
