Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe
Discontinued model
Data version 1989-12

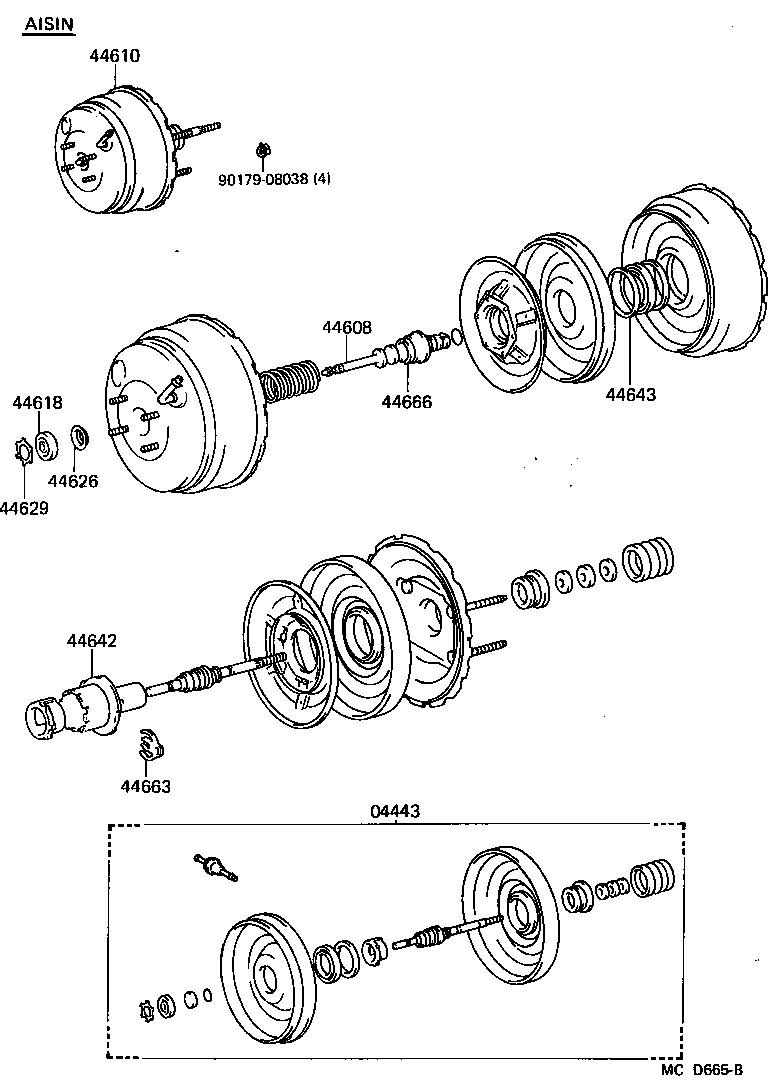

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04443 — Booster Kit, Brake | ||||
| 04443-17020 note |
Booster Kit, Brake
1984-12 → 1986-08
ended
|
AW11 | — | |
| 04443-17030 note |
Booster Kit, Brake
1984-12 → 1986-08
ended
|
AW11 | — | |
| 04443-17050 note |
Booster Kit, Brake
1986-08 → 1988-03
ended
|
AW11 GT | — | |
| 04443-17050 note |
Booster Kit, Brake
1988-03 → 1989-12
ended
|
AW11 GT | — | |
| 04443-17090 note |
Booster Kit, Brake
1986-08 → 1987-08
ended
|
AW11 | — | |
| 04443-17091 note |
Booster Kit, Brake
1987-08 → 1988-03
ended
|
AW11 GT | — | |
| 04443-17091 note |
Booster Kit, Brake
1988-03 → 1989-12
ended
|
AW11 GT | — | |
| 04443-17160 note |
Booster Kit, Brake
1987-08 → 1988-03
ended
|
AW11 SPC | — | |
| 04443-17160 note |
Booster Kit, Brake
1988-03 → 1989-12
ended
|
AW11 SPC | — | |
| 04443-17170 note |
Booster Kit, Brake
1988-03 → 1989-12
ended
|
AW11 SPC | — | |
| 04443-17170 note |
Booster Kit, Brake
1987-08 → 1988-03
ended
|
AW11 SPC | — | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-12520 note |
Push Rod Sub-assy, Booster
1984-12 → 1988-03
ended
|
AW11 GT | — | |
| 44606-12520 note |
Push Rod Sub-assy, Booster
1988-03 → 1989-12
ended
|
AW11 GT | — | |
| 44606-20800 note |
Push Rod Sub-assy, Booster
1987-08 → 1988-03
ended
|
AW11 SPC | — | |
| 44606-20800 note |
Push Rod Sub-assy, Booster
1988-03 → 1989-12
ended
|
AW11 SPC | — | |
| 44608-20810 note |
Push Rod Sub-assy, Booster
1987-08 → 1988-03
ended
|
AW11 SPC | — | |
| 44608-32020 note |
Push Rod Sub-assy, Booster
1984-12 → 1988-03
ended
|
AW11 GT | — | |
| 44608-32020 note |
Push Rod Sub-assy, Booster
1988-03 → 1989-12
ended
|
AW11 GT | — | |
| 44610 — Booster Assy, Brake | ||||
| 44610-17020 |
Booster Assy, Brake
1984-12 → 1986-08
ended
|
AW11 | — | |
| 44610-17060 |
Booster Assy, Brake
1986-08 → 1987-08
ended
|
AW11 | — | |
| 44610-17061 |
Booster Assy, Brake
1987-08 → 1989-12
ended
|
AW11 GT | — | |
| 44610-17160 |
Booster Assy, Brake
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44618 — Seal, Booster Body | ||||
| 44621-14030 |
Seal, Booster Body
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44621-28120 |
Seal, Booster Body
1984-12 → 1989-12
ended
|
AW11 GT | — | |
| 44626 — Retainer, Booster Rod Cup | ||||
| 44626-60010 |
Retainer, Booster Rod Cup
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44629 — Ring, Circular Internal | ||||
| 44628-28120 |
Ring, Circular Internal
1984-12 → 1989-12
ended
|
AW11 GT | — | |
| 44628-60010 |
Ring, Circular Internal
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44642 — Piston, Brake Booster | ||||
| 44642-16050 |
Piston, Brake Booster
1984-12 → 1986-08
ended
|
AW11 | — | |
| 44642-20800 |
Piston, Brake Booster
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44642-32010 |
Piston, Brake Booster
1986-08 → 1989-12
ended
|
AW11 GT | — | |
| 44643 — Retainer, Diaphragm | ||||
| 44643-20800 |
Retainer, Diaphragm
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44663 — Key, Valve Stopper | ||||
| 44635-12630 |
Key, Valve Stopper
1986-08 → 1988-03
ended
|
AW11 5F | — | |
| 44635-12630 |
Key, Valve Stopper
1988-03 → 1989-12
ended
|
AW11 GT | — | |
| 44635-20800 |
Key, Valve Stopper
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
| 44635-28120 |
Key, Valve Stopper
1984-12 → 1988-03
ended
|
AW11 GT | — | |
| 44666 — Case, Reaction Disc | ||||
| 44657-22630 |
Case, Reaction Disc
1987-08 → 1989-12
ended
|
AW11 SPC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
