Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

41 part groups · 3 illustrations

Illustrations

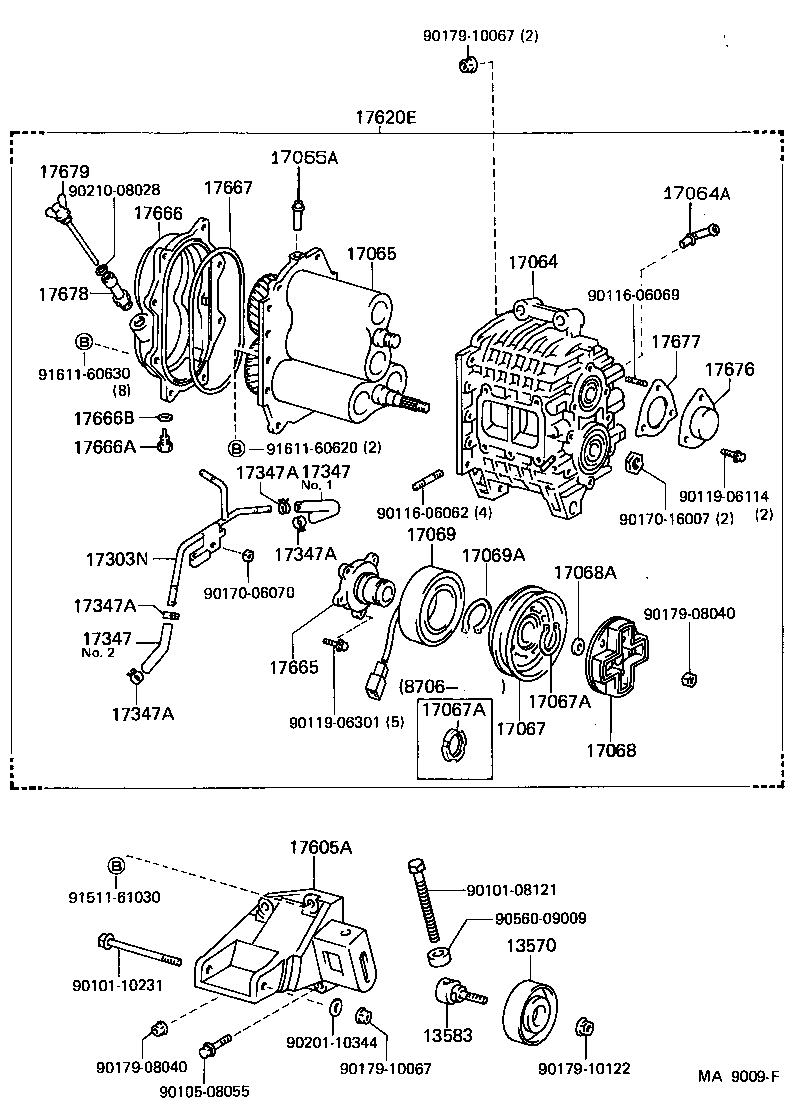

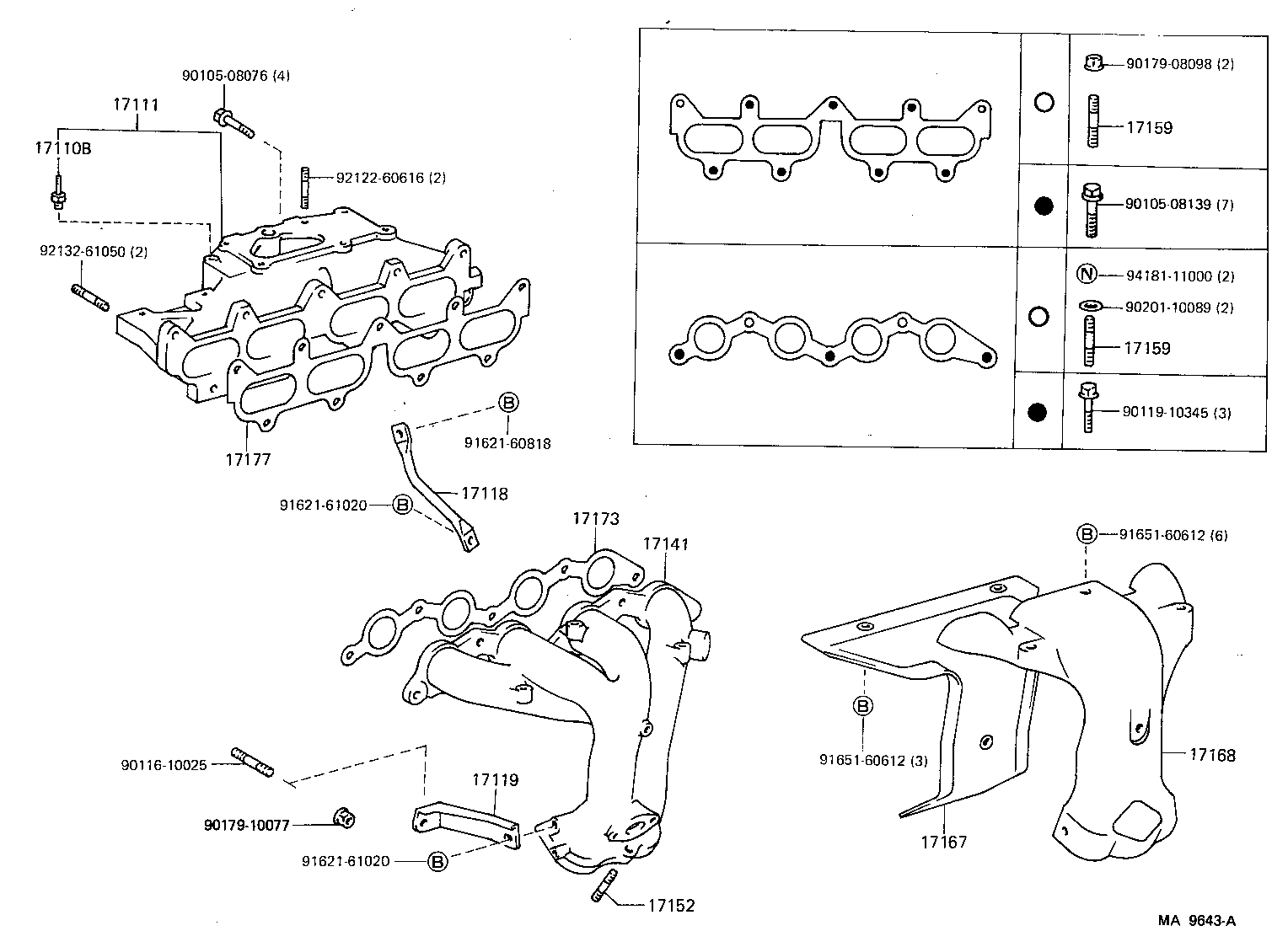

Figure MA8090C MA8090C 1984-12 → — Figure MA9643A MA9643A 1987-08 → — Figure MA9009F MA9009F 1987-08 → —

Part groups

PNCDescription
13570 Idler Assy, V-ribbed, NO.1
13583 Shaft, Idler, V-ribbed Belt(FOR SUPERCHARGER)
17064 Housing Sub-assy, Rotor
17064A Elbow(FOR SUPERCHARGER)
17065 Plate Sub-assy, Rotor Housing, RR
17065A Union(FOR SUPERCHARGER)
17067 Pulley Sub-assy, Clutch
17067A Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY)
17068 Hub Sub-assy, Clutch
17068A Shim(FOR SUPERCHARGER)
17069 Stator Sub-assy, Clutch
17069A Ring, Shaft Snap(FOR CLUTCH STATOR SUB-ASSY)
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17300 Valve Assy, Intake Air Control
17303N Pipe Sub-assy, Air
17347 Hose, Air, NO.7
17347A Clip(FOR AIR HOSE NO.7)
17605A Bracket, Sub-assy, Supercharger
17620E Supercharger Assy
17665 Flange, Clutch
17666 Cover, Rear(FOR SUPERCHARGER)
17666A Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER)
17666B Gasket, Seat(FOR SUPERCHARGER)
17667 Gasket, Rear Cover(FOR SUPERCHARGER)
17676 Cover, Housing, Front
17677 Gasket, Housing Front Cover
17678 Guide, Supercharger Oil Level Gage
17679 Gage, Supercharger Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
