Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 3 illustrations

Illustrations

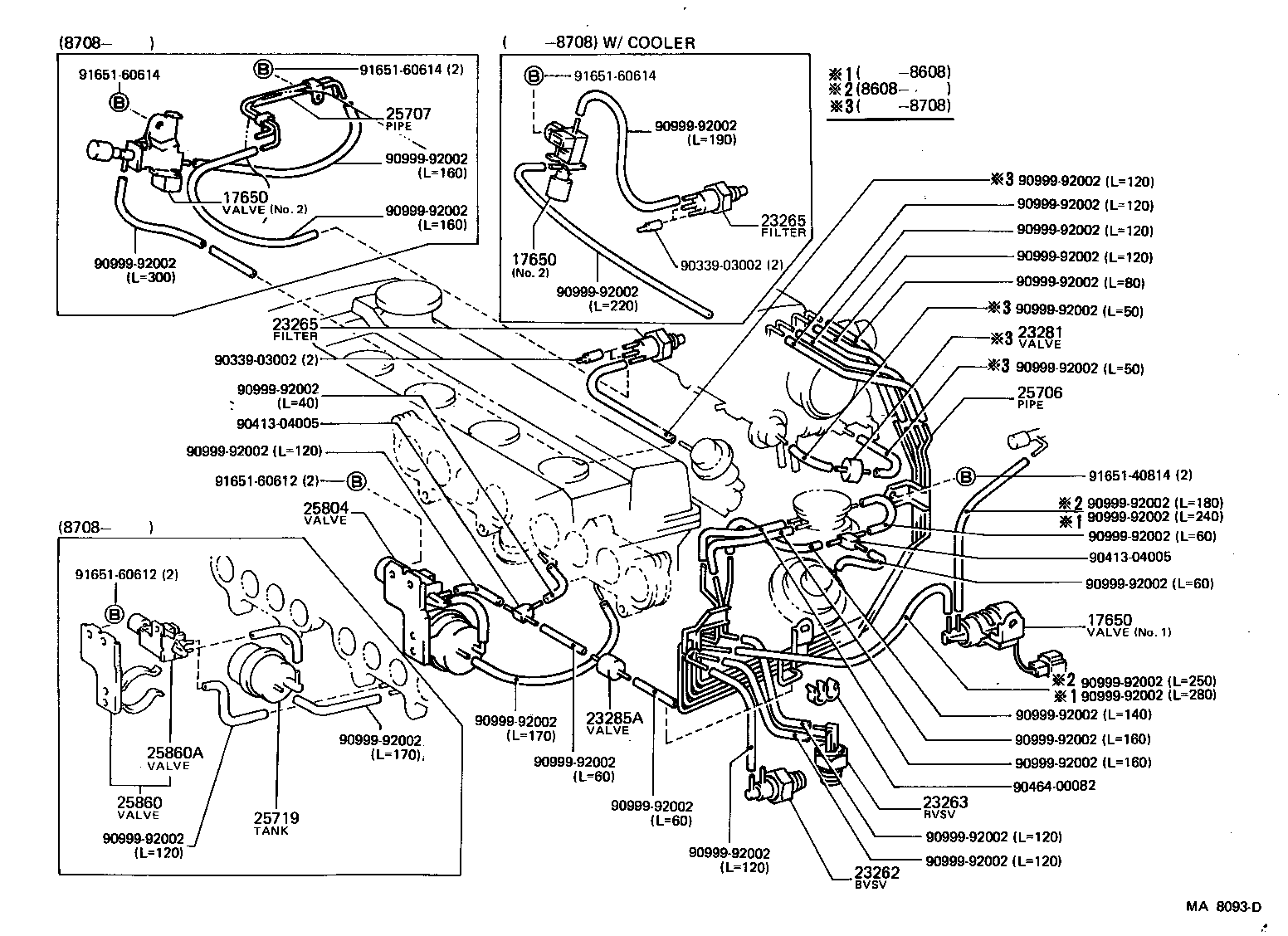

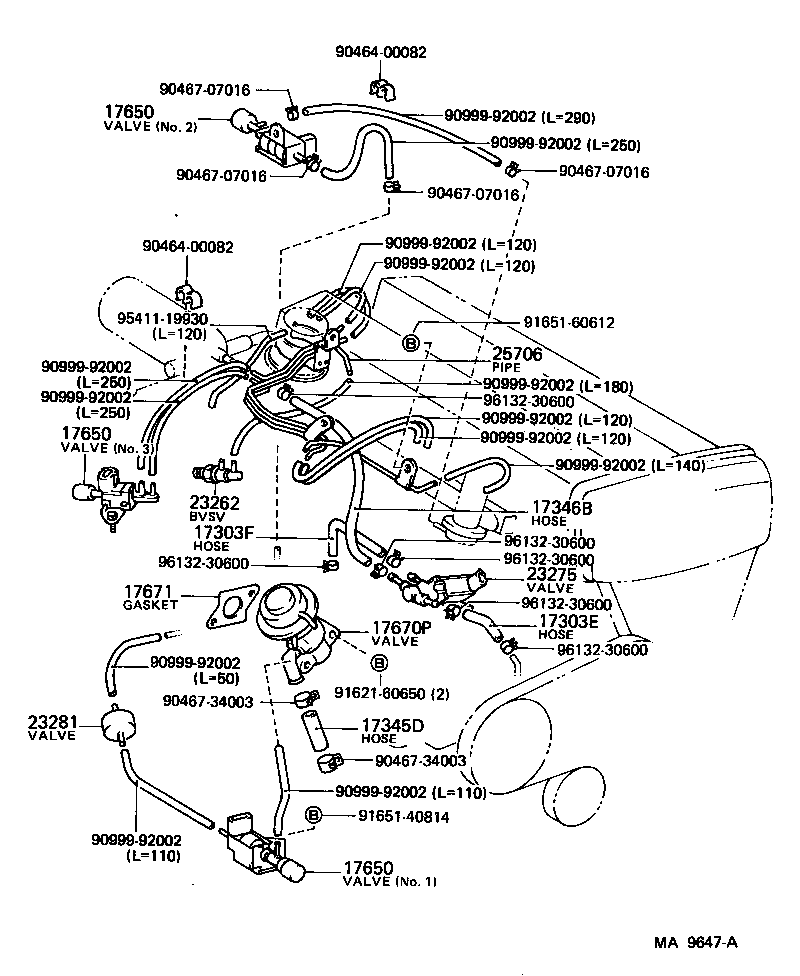

Figure MA9504B MA9504B 1984-12 → — Figure MA8093D MA8093D 1984-12 → — Figure MA9647A MA9647A 1987-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17650 Valve Assy, Vacuum Switching
17670P Valve Assy, Air By-pass
17671 Gasket, Air By-pass Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
