Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

7 part groups · 2 illustrations

Illustrations

Figure MC9624B

MC9624B 1984-12 → —

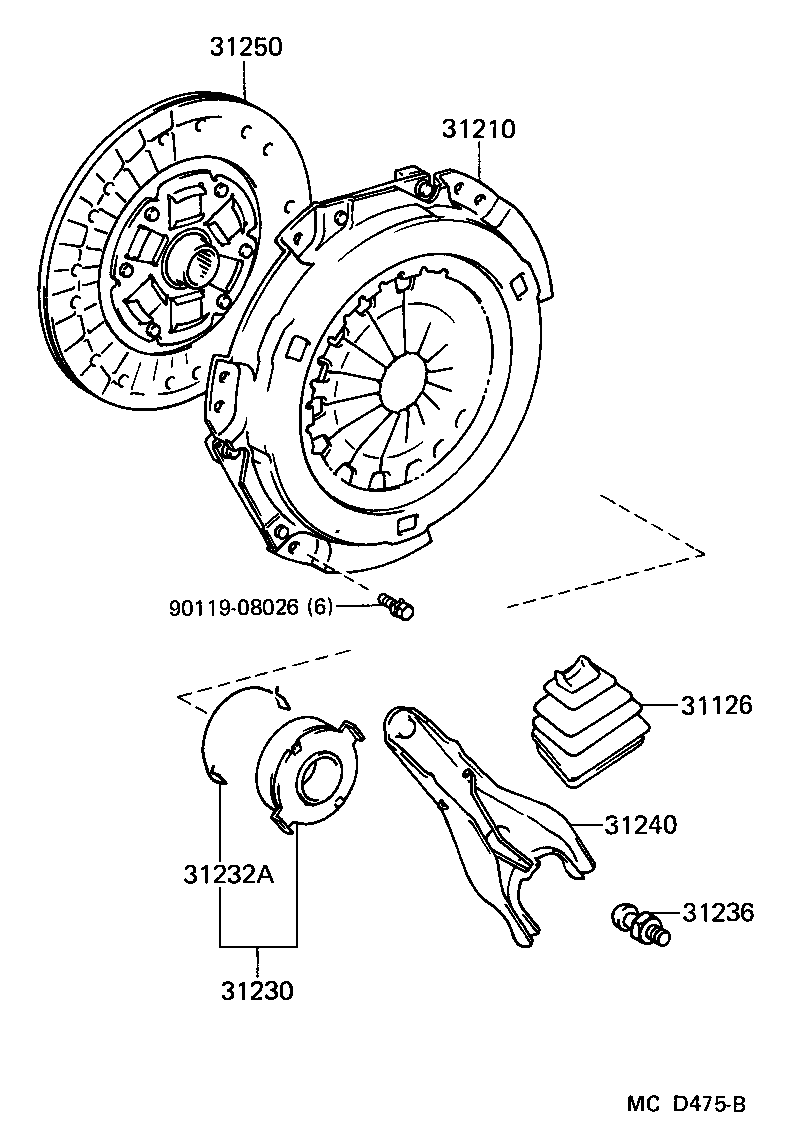

Figure MCD475B

MCD475B 1987-08 → —

Part groups

PNC	Description
31126	Boot, Clutch Release Fork
31210	Cover Assy, Clutch
31230	Bearing Assy, Clutch Release
31232A	Clip, Release Bearing Hub
31236	Ball, Release Fork
31240	Fork Assy, Clutch Release
31250	Disc Assy, Clutch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
