Toyota MR2
1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe
Discontinued model
Data version 1989-12
Overdrive Gear (ATM)

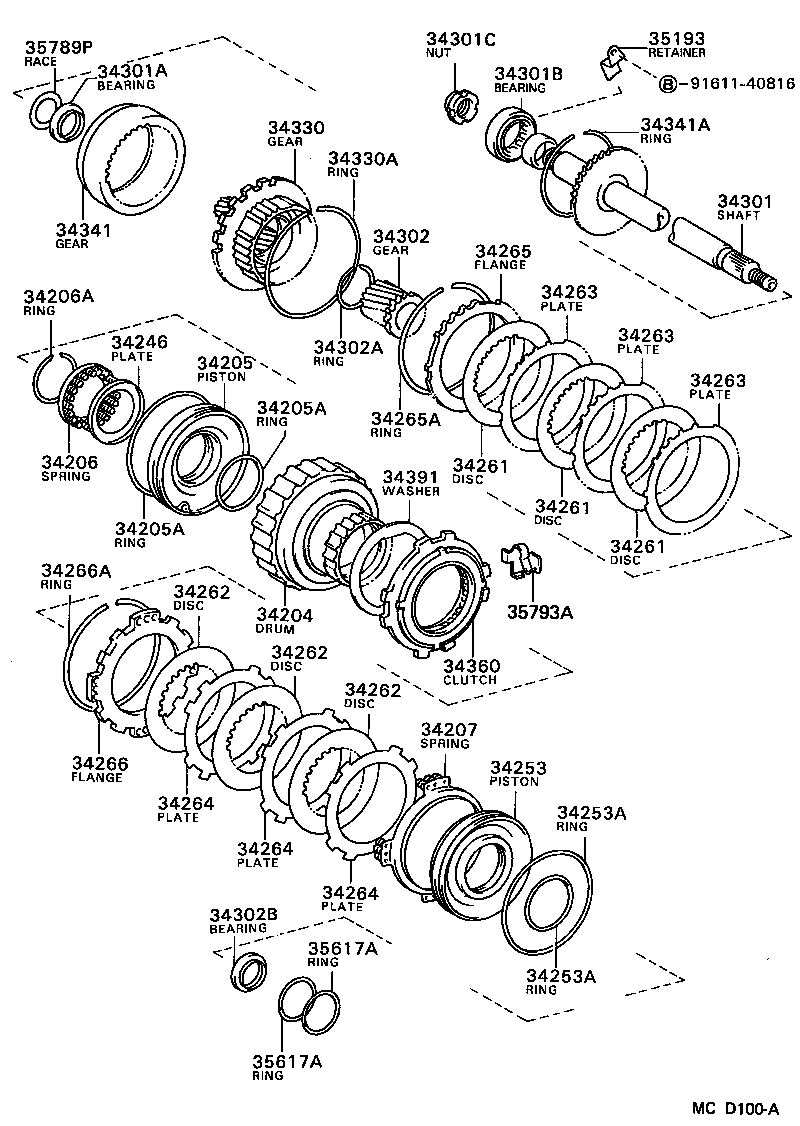

78 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 34101 | Case Sub-assy, Overdrive |
| 34101B | Ring, O (FOR OVERDRIVE CASE) |
| 34101C | Plug, Straight (FOR OVERDRIVE CASE) |
| 34101D | Bearing, Needle Roller (FOR OVERDRIVE CASE) |
| 34101E | Bolt (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) |
| 34112 | Gasket, Overdrive Case |
| 34204 | Drum Sub-assy, Underdrive Clutch |
| 34205 | Piston Sub-assy, Underdrive Clutch |
| 34205A | Ring, O (FOR UNDERDRIVE CLUTCH PISTON) |
| 34206 | Spring Sub-assy, Underdrive Clutch Return |
| 34206A | Ring, Shaft Snap (FOR UNDERDRIVE RETURN SPRING) |
| 34207 | Spring Sub-assy, Underdrive Brake Return |
| 34246 | Plate, Underdrive Clutch Return Spring |
| 34253 | Piston, Underdrive Brake |
| 34253A | Ring, O (FOR UNDERDRIVE BRAKE PISTON) |
| 34261 | Disc, Underdrive Clutch, NO.1 |
| 34262 | Disc, Underdrive Clutch, NO.2 |
| 34263 | Plate, Underdrive Clutch, NO.1 |
| 34264 | Plate, Underdrive Clutch, NO.2 |
| 34265 | Flange, Underdrive Clutch, NO.1 |
| 34265A | Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.1) |
| 34266 | Flange, Underdrive Clutch, NO.2 |
| 34266A | Ring, Hole Snap (FOR UNDERDRIVE CLUTCH FLANGE NO.2) |
| 34301 | Shaft Sub-assy, Underdrive Input |
| 34301A | Bearing, Needle Roller (FOR UNDERDRIVE INPUT SHAFT) |
| 34301B | Bearing, Cylindrical Roller, NO.1 (FOR UNDERDRIVE) |
| 34301C | Nut (FOR UNDERDRIVE INPUT SHAFT) |
| 34302 | Gear Sub-assy, Underdrive Planetary Sun |
| 34302A | Ring, Hole Snap (FOR UNDERDRIVE PLANETARY SUN GEAR) |
| 34302B | Bearing, Needle Roller(FOR UNDERDRIVE PLANETARY SUN GEAR) |
| 34330 | Gear Assy, Underdrive Planetary |
| 34330A | Ring, Hole Snap (FOR UNDERDRIVE PLANETARY GEAR) |
| 34341 | Gear, Underdrive Planetary Ring |
| 34341A | Ring, Hole Snap (FOR UNDERDRIVE PLANETARY RING) |
| 34360 | Clutch Assy, Underdrive 1 Way |
| 34391 | Washer, Underdrive Clutch Drum Thrust |
| 34601 | Drum Sub-assy, Overdrive Direct Clutch |
| 34601A | Spring, Compression (FOR OVERDRIVE DIRECT CLUTCH) |
| 34601B | Ring, Shaft Snap (FOR OVERDRIVE DIRECT CLUTCH) |
| 34601G | Bearing,Thrust Needle Roller(FOR OVERDRIVE DIRECT CLUTCH) |
| 34602 | Piston Sub-assy, Overdrive Direct Clutch |
| 34602A | Ring, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) |
| 34603 | Spring Sub-assy, Overdrive Brake Return |
| 34613 | Seat, Overdrive Direct Clutch Return Spring |
| 34621 | Drum, Overdrive Brake |
| 34621A | Screw (FOR OVERDRIVE BRAKE DRUM SETTING) |
| 34622 | Piston, Overdrive Brake |
| 34622A | Ring, O (FOR OVERDRIVE BRAKE PISTON) |
| 34624 | Hub, Overdrive Brake |
| 34624A | Ring, Hole Snap, NO.1 (FOR OVERDRIVE BRAKE HUB) |
| 34624B | Ring, Hole Snap, NO.2 (FOR OVERDRIVE BRAKE HUB) |
| 34625 | Flange, Overdrive Brake, NO.1 |
| 34625A | Ring, Hole Snap (FOR OVERDRIVE BRAKE FLANGE) |
| 34626 | Plate, Overdrive Brake Cushion |
| 34710 | Gear Assy, Overdrive Planetary |
| 34710F | Pin, Straight(FOR OVERDRIVE PLANETARY GEAR) |
| 34710G | Bearing, Radial Ball(FOR OVERDRIVE PLANETARY GEAR) |
| 34710H | Ring, Hole Snap(FOR OVERDRIVE PLANETARY GEAR BEARING) |
| 34710J | Nut(FOR OVERDRIVE PLANETARY GEAR) |
| 34710P | Washer(FOR OVERDRIVE PLANETARY GEAR) |
| 34713 | Race, 1 Way Clutch Outer (FOR OVERDRIVE) |
| 34714 | Clutch, 1 Way(FOR OVERDRIVE) |
| 34714A | Ring, Hole Snap(FOR 1 WAY CLUTCH) |
| 34727 | Plate, Retaining (FOR OVERDRIVE) |
| 34731 | Gear, Overdrive Planetary Ring |
| 34731A | Ring, Hole Snap (FOR OVERDRIVE PLANETARY RING GEAR) |
| 34737 | Washer, Overdrive Planetary Gear Thrust, NO.3 |
| 35193 | Retainer, Roller Bearing |
| 35617A | Ring, Clutch Drum Oil Seal (FOR OVERDRIVE) |
| 35633D | Disc, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35634C | Plate, Clutch (FOR OVERDRIVE DIRECT CLUTCH) |
| 35648B | Plate, Clutch (FOR OVERDRIVE BRAKE) |
| 35677B | Disc, Clutch (FOR OVERDRIVE BRAKE) |
| 35748A | Ring, Intermediate Shaft Oil Seal (FOR OVERDRIVE) |
| 35789G | Race, Thrust Bearing (FOR OVERDRIVE DIRECT CLUTCH DRUM) |
| 35789H | Race, Thrust Bearing (FOR OVERDRIVE CASE) |
| 35789P | Race, Thrust Bearing (FOR UNDERDRIVE INPUT SHAFT) |
| 35793A | Retainer, Underdrive 1 Way Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
