Rear Axle Shaft & Hub

32 part groups · 5 illustrations

Illustrations

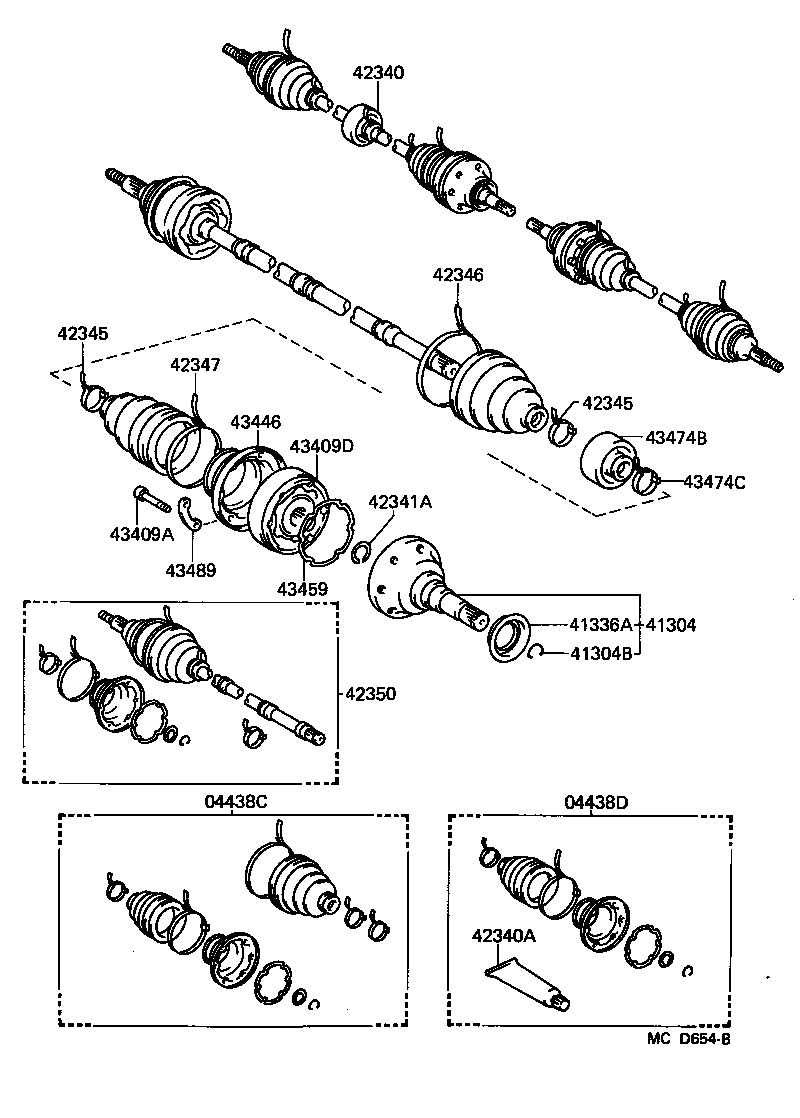

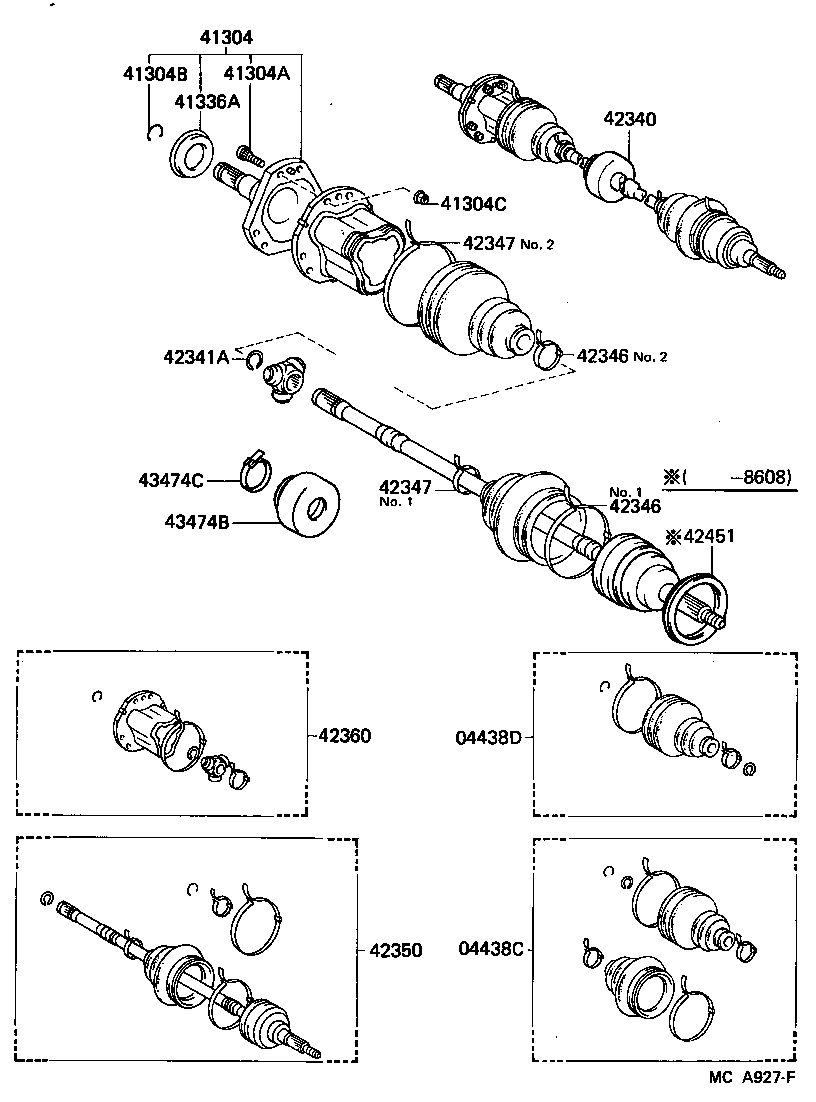

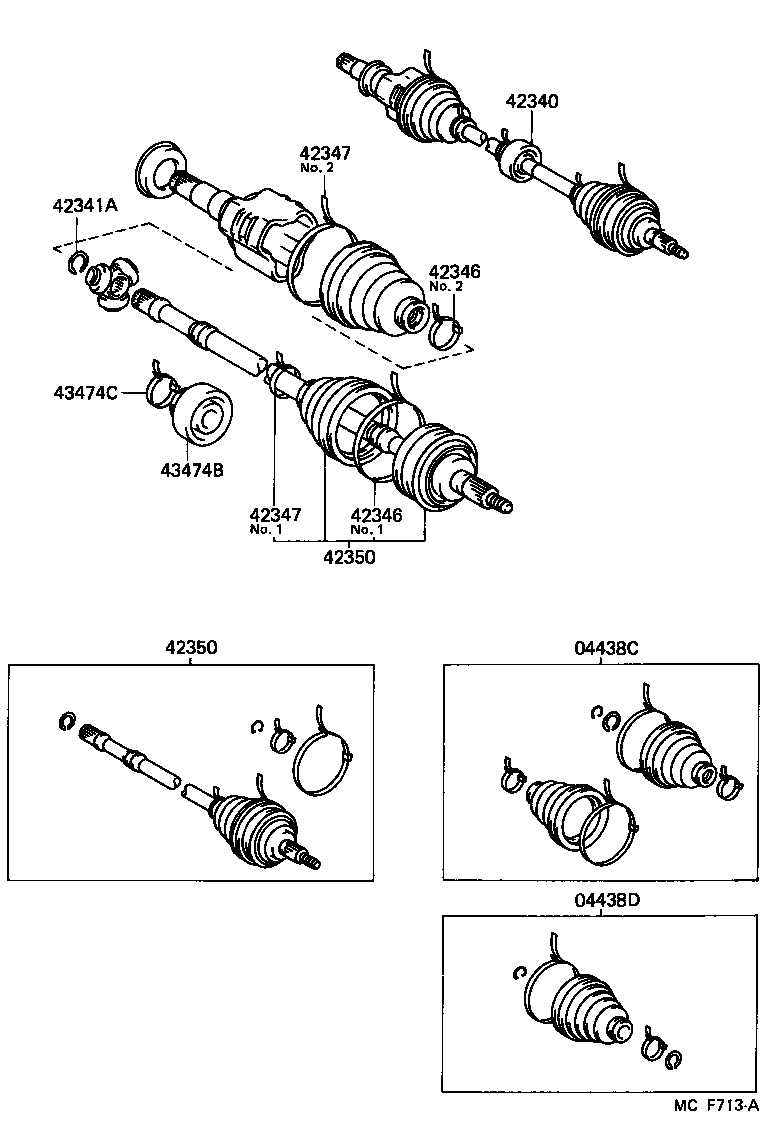

Figure MCA926B MCA926B 1984-12 → — Figure MCA927F MCA927F 1984-12 → 1988-01 Figure MCA927F MCA927F 1988-01 → — Figure MCD654B MCD654B 1987-08 → — Figure MCF713A MCF713A 1988-01 → —

Part groups

PNCDescription
04422 Seal Kit, Rear Axle Oil
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
41304 Shaft Sub-assy, Differential Side Gear
41304A Bolt, Serration (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304B Ring, Hole Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41304C Nut (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41336A Cover, Dust(FOR DIFFERENTIAL SIDE GEAR SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311D Ring, Snap(FOR REAR AXLE SHAFT)
42311F Washer, Plate(FOR REAR AXLE SHAFT)
42311G Nut(FOR REAR AXLE SHAFT)
42311S Cap, Rear Wheel Adjusting Lock
42340 Shaft Assy, Rear Drive
42340A Grease (FOR REAR DRIVE SHAFT)
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42345 Clamp, Rear Drive Shaft Boot
42346 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42350 Joint Assy, Rear Drive Shaft Outboard
42360 Joint Assy, Rear Drive Shaft Inboard
42411 Hub, Rear Axle
42431 Disc, Rear
42451 Deflector, Rear Wheel Bearing Dust, NO.1
42611E Bolt, Hub (FOR REAR AXLE)
43409A Bolt (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43409D Joint Sub-assy, Rear Drive Shaft Cross Groove
43446 Cover, Rear Axle Inboard Joint
43459 Gasket, Rear Axle Inboard Joint End Cover
43474B Damper, Rear Drive Shaft
43474C Clamp (FOR REAR DRIVE SHAFT DAMPER)
43489 Washer, Rear Drive Shaft Cross Groove Joint
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
