Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 2 illustrations

Illustrations

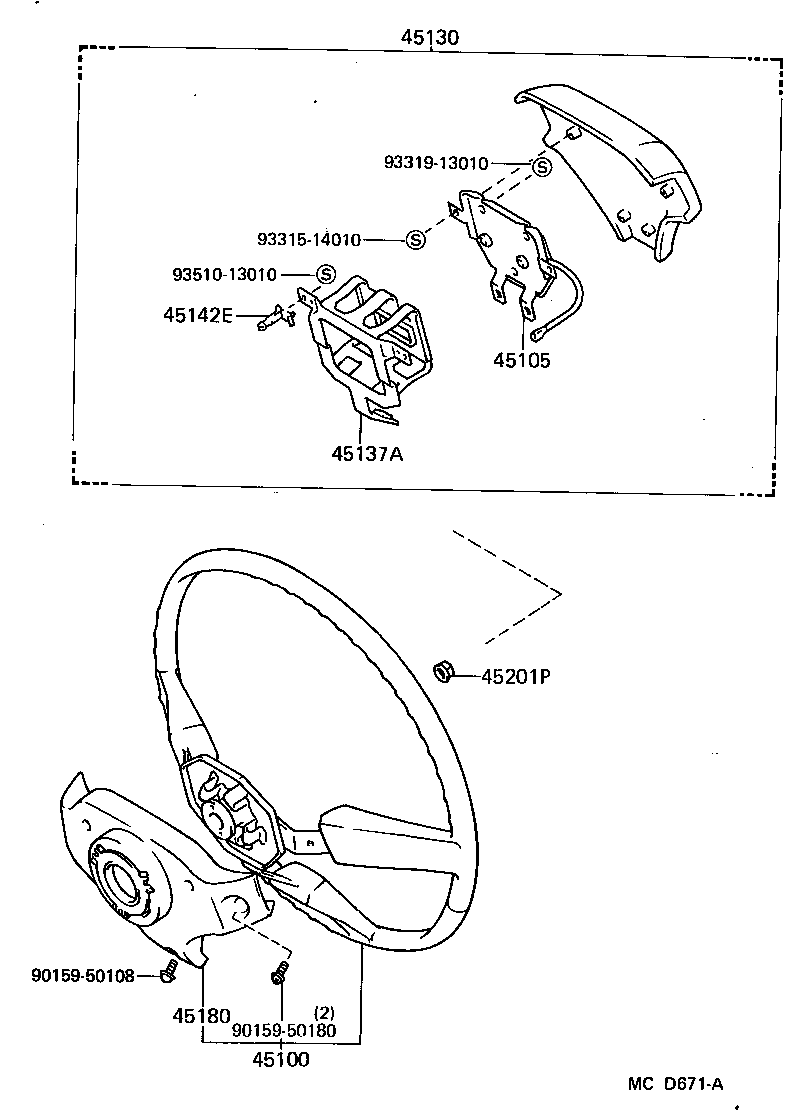

Figure MCC033 MCC033 1984-12 → 1986-08 Figure MCD671A MCD671A 1986-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45127 Insert, Horn Button, Upper NO.1
45128A Spring, Steering Wheel Pad Set
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45137A Plate, Horn Button Contact, NO.2
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45147 Spacer, Horn Button
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
