Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 3 illustrations

Illustrations

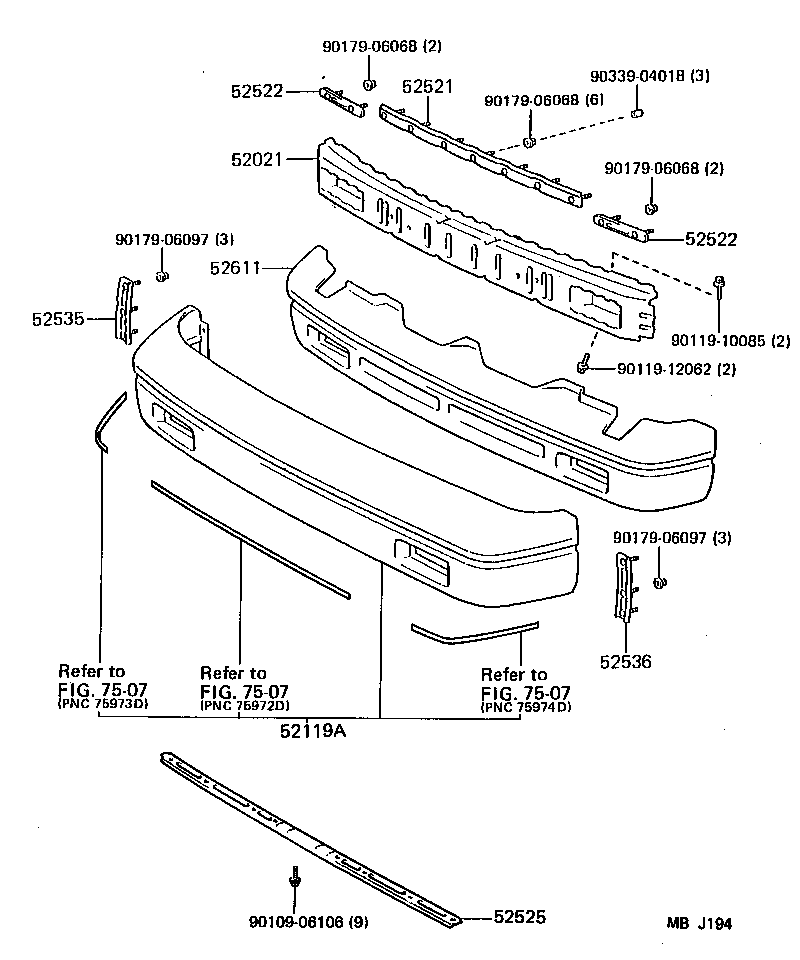

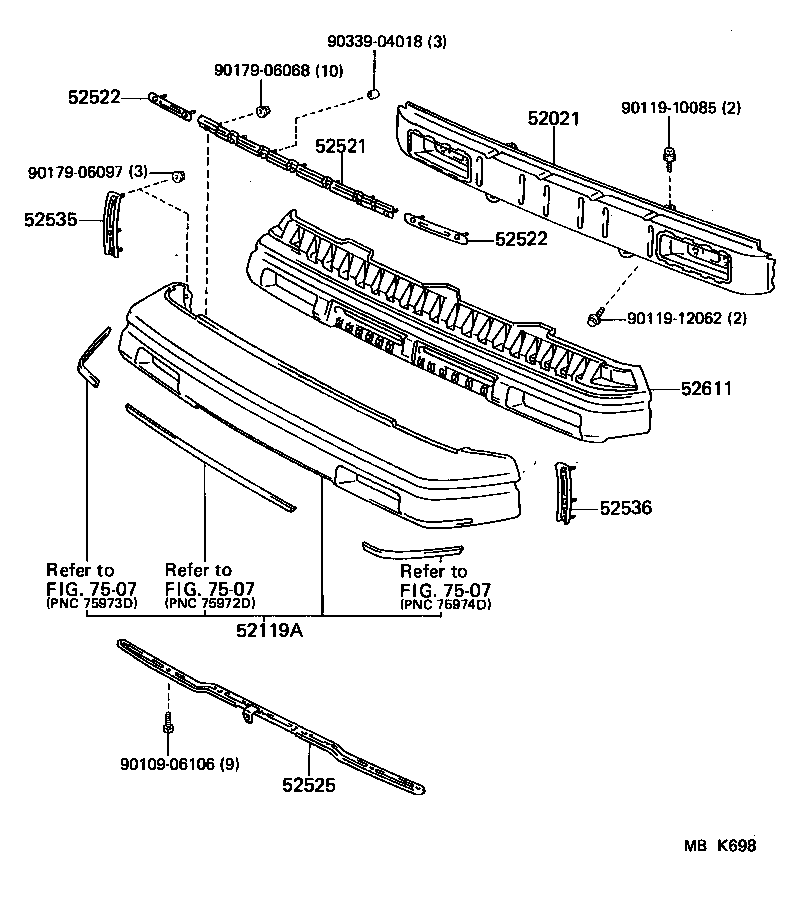

Figure MBH948 MBH948 1984-12 → 1985-08 Figure MBJ194 MBJ194 1985-08 → 1986-08 Figure MBK698 MBK698 1986-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
