Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

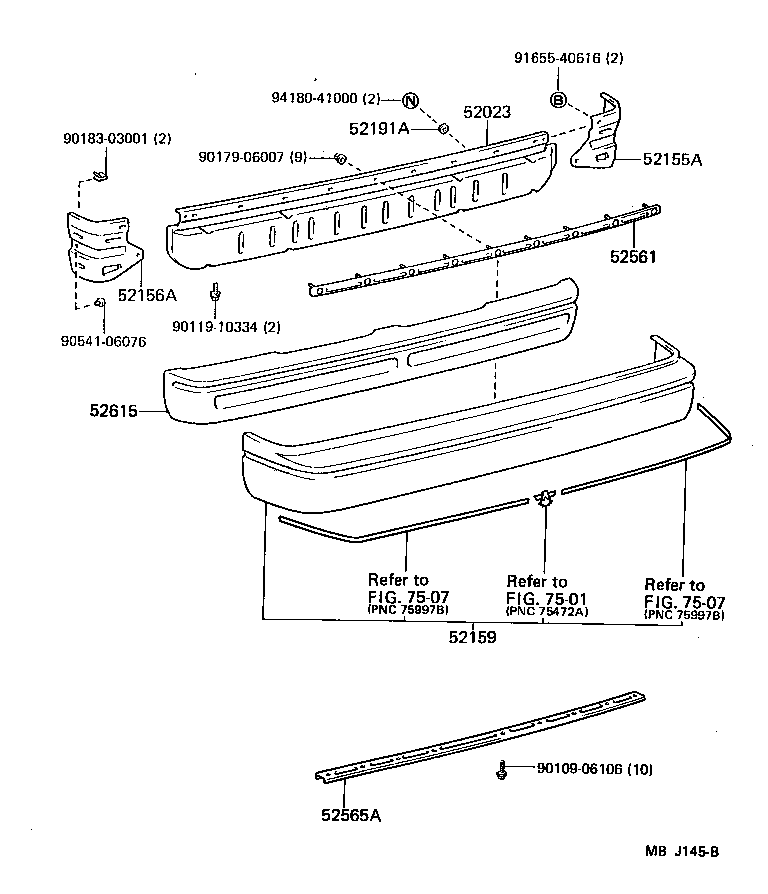

Figure MBH949 MBH949 1984-12 → 1985-08 Figure MBJ145B MBJ145B 1985-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52191A Seal, Rear Bumper Arm
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
