Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

32 part groups · 2 illustrations

Illustrations

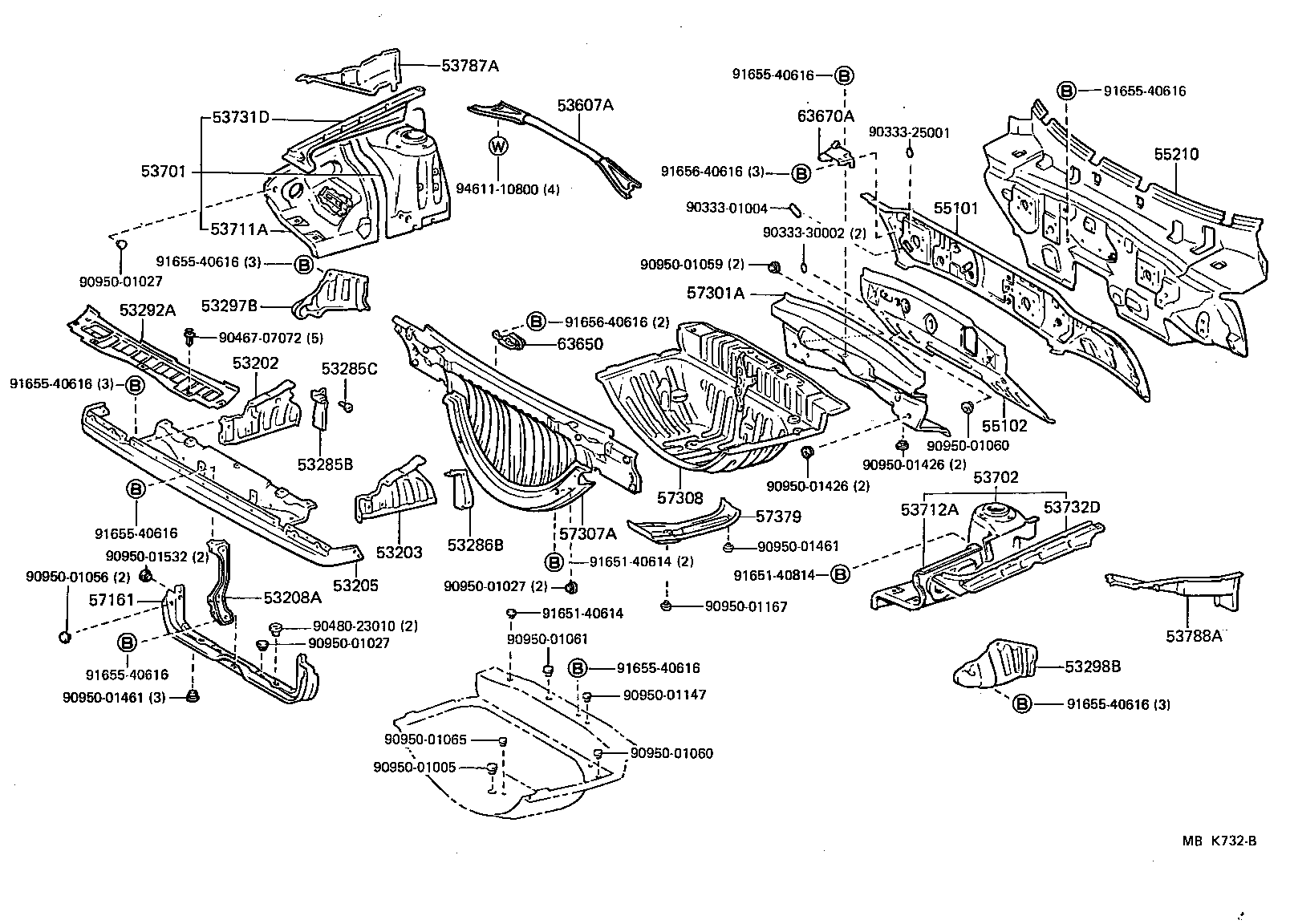

Figure MBH922B MBH922B 1984-12 → 1986-08 Figure MBK732B MBK732B 1986-08 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53285B Seal, Radiator Side Air, NO.1
53285C Clip(FOR RADIATOR SIDE AIR SEAL)
53286B Seal, Radiator Side Air, NO.2
53292A Seal, Radiator Support, Upper
53295 Deflector, Radiator Lower Air
53295B Clip(FOR RADIATOR LOWER AIR DEFLECTOR)
53297B Protector, Radiator Hose, NO.1
53298B Protector, Radiator Hose, NO.2
53607A Brace Sub-assy, Front Suspension, Upper Center
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711A Apron, Front Fender, W/Support, Front RH
53712A Apron, Front Fender, W/Support, Front LH
53731D Member, Front Apron TO Cowl Side, Upper RH
53732D Member, Front Apron TO Cowl Side, Upper LH
53787A Gusset, Front Fender Apron, Lower RH
53788A Gusset, Front Fender Apron, Lower LH
55101 Panel Sub-assy, Dash
55102 Panel Sub-assy, Dash, Lower
55210 Insulator Assy, Dash Panel
57161 Crossmember, Front
57301A Member Sub-assy, Steering Gear Box Support
57307A Panel Sub-assy, Front Luggage End
57308 Pan Sub-assy, Front Luggage
57379 Reinforcement, Front Luggage Under
63650 Holder Assy, Removable Roof
63660A Stay Assy, Removable Roof, LH
63670A Stay Assy, Removable Roof, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
