Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

15 part groups · 2 illustrations

Illustrations

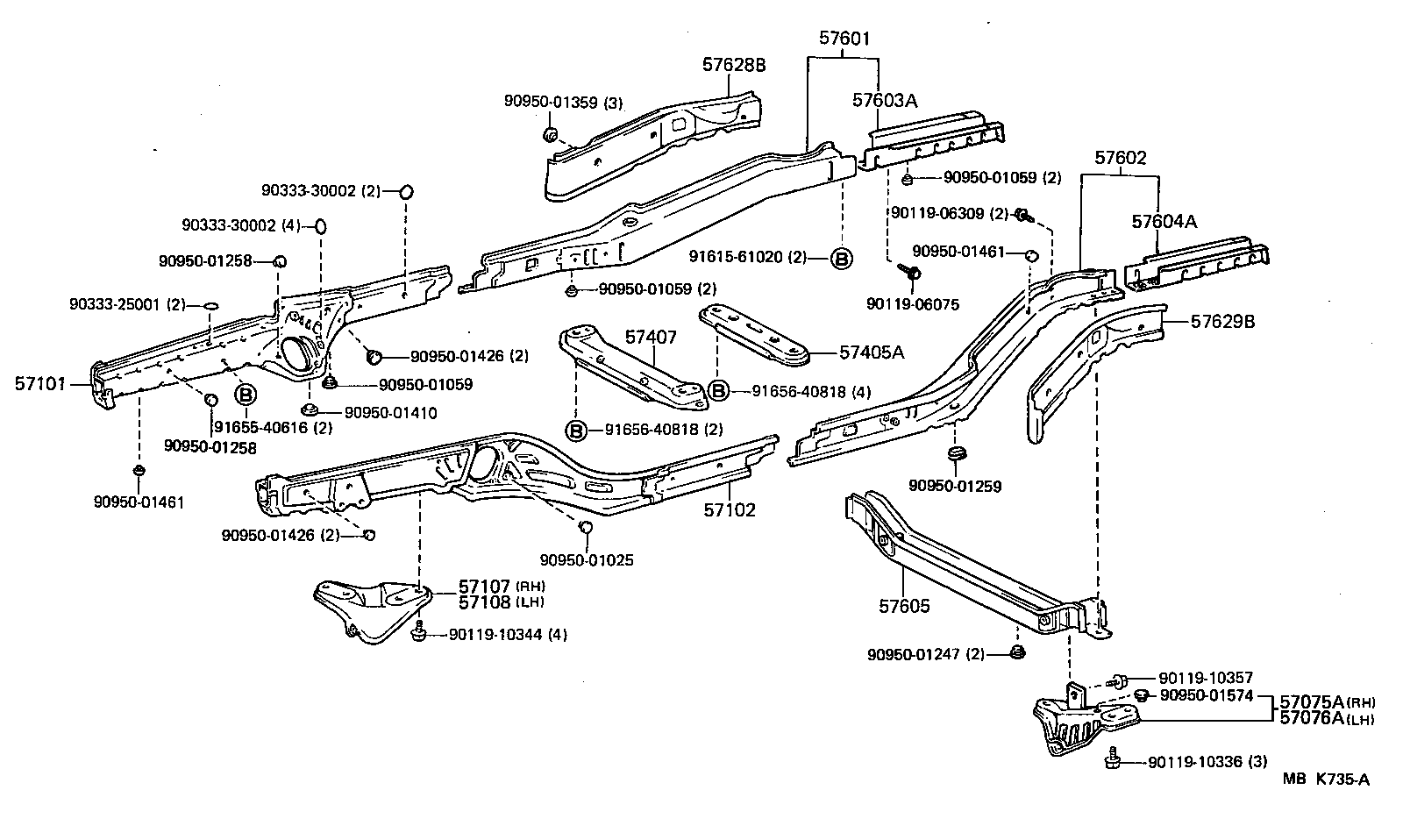

Figure MBH923C MBH923C 1984-12 → 1986-08 Figure MBK735A MBK735A 1986-08 → —

Part groups

PNCDescription
57075A Bracket Sub-assy, Rear Suspension Arm, RH
57076A Bracket Sub-assy, Rear Suspension Arm, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57405A Member Sub-assy, Center Floor Cross, NO.2
57407 Crossmember Sub-assy, Center Floor, NO.1
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605 Crossmember Sub-assy, Rear
57628B Plate, Rear Floor Side Member, RH
57629B Plate, Rear Floor Side Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
