Toyota MR2

1984-12 → 1989-12 · chassis AW11 · catalogue 211410 · Europe

Discontinued model Data version 1989-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

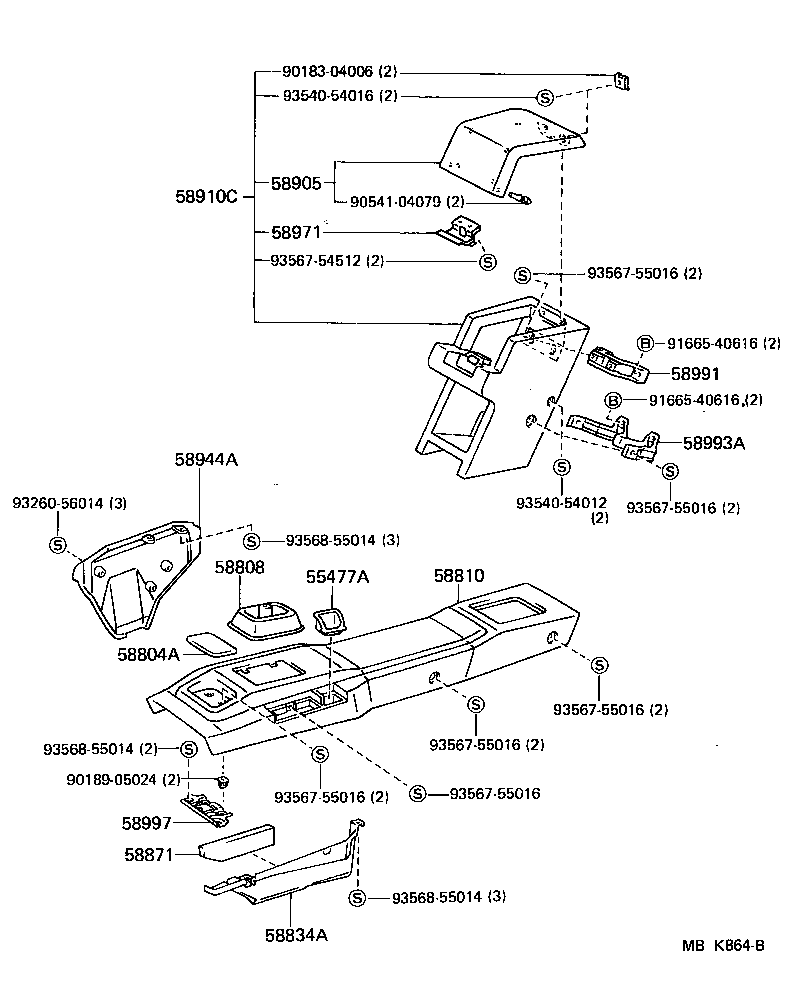

Figure MBH927B MBH927B 1984-12 → 1986-08 Figure MBK864B MBK864B 1986-08 → —

Part groups

PNCDescription
55477A Bezel, Cigarette Lighter Hole
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58834A Cover, Console, Lower
58871 Cushion, Console Box
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58944A Cover, Console, Rear
58971 Lock, Console Compartment Door
58991 Bracket, Console Box Mounting, Upper
58993A Bracket, Console Box Mounting, Lower
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
